Pro Series Round 5,000 lbs. A-Frame Trailer Jack Topwind 15" Lift w/ 2-3/32" Tall Removable Footplate

Pro Series Round 5,000 lbs. A-Frame Trailer Jack Topwind 15" Lift w/ 2-3/32" Tall Removable Footplate

Pro Series Round 5,000 lbs. A-Frame Trailer Jack Topwind 15" Lift w/ 2-3/32" Tall Removable Footplate
Pro Series Round 5,000 lbs. A-Frame Trailer Jack Topwind 15" Lift w/ 2-3/32" Tall Removable Footplate
Home Trailer Parts Trailer Jacks A-Frame Style Trailers
0 reviews - Write a review

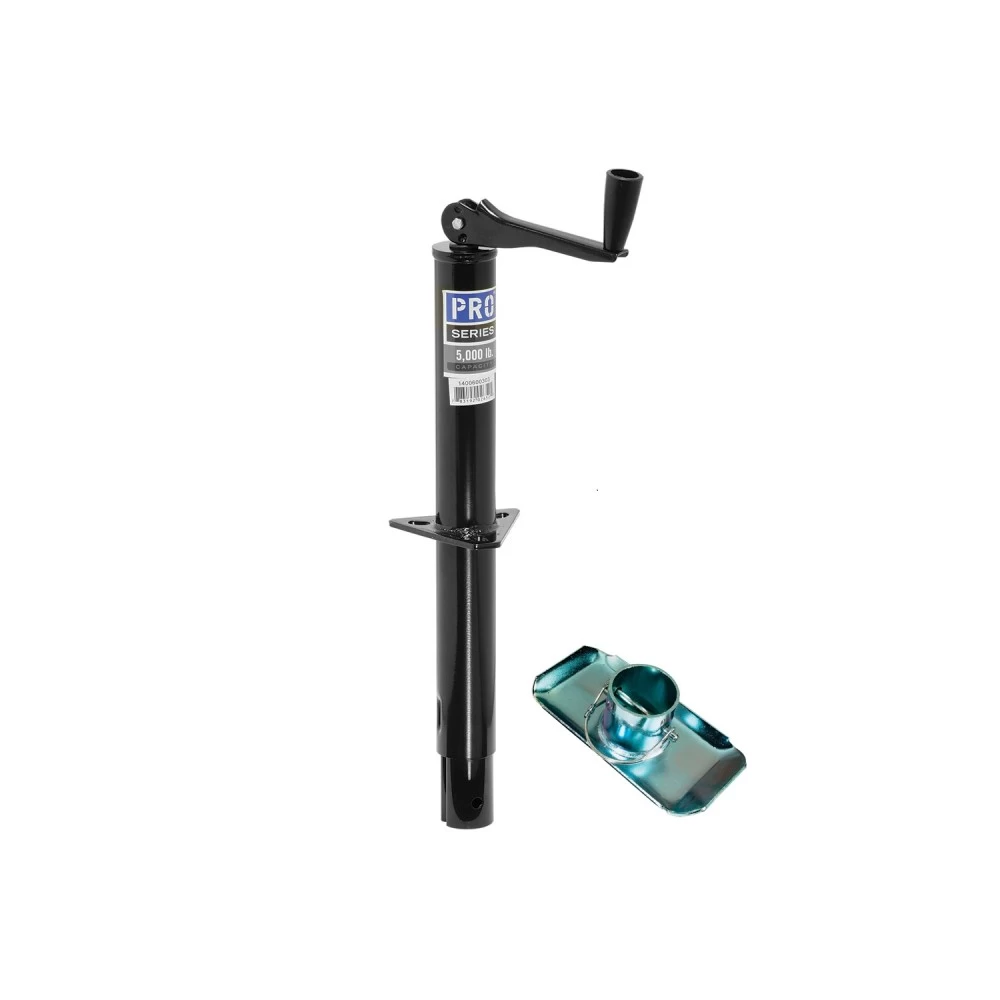

Pro Series Round 5,000 lbs. A-Frame Trailer Jack Topwind 15" Lift w/ 2-3/32" Tall Removable Footplate
$69.17
  • Stock: In Stock
  • Brand: Pro Series
  • Model: 1400600303 500244
Add to Cart
Buy Now Ask Question
Add to Wish List Compare this Product

Applies to this product only
Estimate

PRO SERIES round jacks are used by leading agricultural, commercial, horse, livestock, and other trailer manufacturers. PRO SERIES jacks have been demonstrated to be reliable, field-proven jacks on the market.

  • Smooth, comfortable, ergonomic design

  • Dependable vertical and side load capacity

  • Proven reliability for long term use at rated loads

  • Precision fitted parts for extra stability

  • Black painted outer and inner tube

  • Limited 1-year warranty



Specifications:

  • Lift Capacity: 5,000 lbs.

  • Retracted Bracket Height: 10.80" from bracket to bottom

  • Extended Bracket Height: 25.80"

  • Travel/Lift: 15"

  • Clearance: 14.55" from bracket to top

  • Works with any standard A-Frame mount

  • Inner tube diameter: 2"

  • Outer tube diameter: 2-1/4"

2-3/32" Tall Removable Footplate Included

Footplate Specs:

  • 2-3/32" Tall Removable Footplate included
  • 2-3/32" Height
  • Includes snapper pin
  • Actual size 6 In. W x 2.25 In. L x 9.5 In. H
  • For 2,000-5,000 lbs. Jacks
  • Zinc plated

Specification
Jack Style A-Frame
Finish Black
Static Capacity 5000
Lift Capacity 5000
Lift Style Topwind
Travel 15"
Retracted 10.80"
Extended 25.80"
Clearance 14.55"
Inner tubing diameter 2"
Leg Fixed Leg
Outer tubing diameter 2.25"
Swivel No
Foot Footplate
Jack Shape Round
