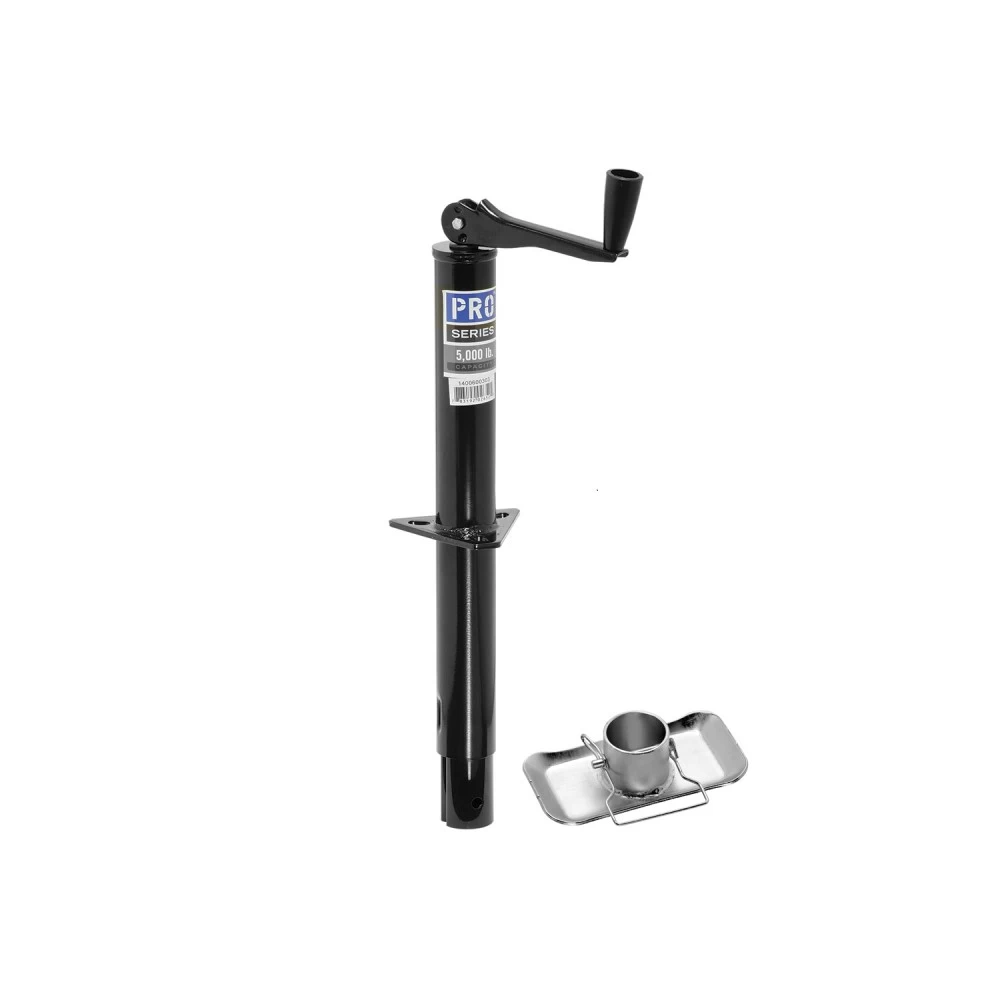

Pro Series Round 5,000 lbs. A-Frame Trailer Jack Topwind 15" Lift w/ 2" Footplate Stand

Pro Series Round 5,000 lbs. A-Frame Trailer Jack Topwind 15" Lift w/ 2" Footplate Stand
Pro Series Round 5,000 lbs. A-Frame Trailer Jack Topwind 15" Lift w/ 2" Footplate Stand
$57.48
  • Stock: In Stock
  • Brand: Pro Series
  • Model: 1400600303 1400700340

Applies to this product only

PRO SERIES round jacks are used by leading agricultural, commercial, horse, livestock, and other trailer manufacturers. PRO SERIES jacks have been demonstrated to be reliable, field-proven jacks on the market.

  • Smooth, comfortable, ergonomic design

  • Dependable vertical and side load capacity

  • Proven reliability for long term use at rated loads

  • Precision fitted parts for extra stability

  • Black painted outer and inner tube

  • Limited 1-year warranty



Specifications:

  • Lift Capacity: 5,000 lbs.

  • Retracted Bracket Height: 10.80" from bracket to bottom

  • Extended Bracket Height: 25.80"

  • Travel/Lift: 15"

  • Clearance: 14.55" from bracket to top

  • Works with any standard A-Frame mount

  • Inner tube diameter: 2"

  • Outer tube diameter: 2-1/4"

2" Footplate Included

Footplate Specs:
  • Height: 2-1/10"
  • Capacity: 5,000 lbs
Specification
Jack Style A-Frame
Finish Black
Static Capacity 5000
Lift Capacity 5000
Lift Style Topwind
Travel 15"
Retracted 10.80"
Extended 25.80"
Clearance 14.55"
Inner tubing diameter 2"
Leg Fixed Leg
Outer tubing diameter 2.25"
Swivel No
Foot Footplate
Jack Shape Round
