Pro Series Single Speed Single Speed 12K Trailer Jack Non Spring Return Drop Leg Curbside Plunger Pin w/ Manual Override Crank, Bulldog Electric Motor Powered-Drive Kit

Pro Series Single Speed Single Speed 12K Trailer Jack Non Spring Return Drop Leg Curbside Plunger Pin with Manual Override Crank Bulldog Electric Motor Powered-Drive Kit
Pro Series Single Speed Single Speed 12K Trailer Jack Non Spring Return Drop Leg Curbside Plunger Pin with Manual Override Crank Bulldog Electric Motor Powered-Drive Kit
Pro Series Single Speed Single Speed 12K Trailer Jack Non Spring Return Drop Leg Curbside Plunger Pin with Manual Override Crank Bulldog Electric Motor Powered-Drive Kit
Pro Series Single Speed Single Speed 12K Trailer Jack Non Spring Return Drop Leg Curbside Plunger Pin with Manual Override Crank Bulldog Electric Motor Powered-Drive Kit
Pro Series Single Speed Single Speed 12K Trailer Jack Non Spring Return Drop Leg Curbside Plunger Pin with Manual Override Crank Bulldog Electric Motor Powered-Drive Kit
Pro Series Single Speed Single Speed 12K Trailer Jack Non Spring Return Drop Leg Curbside Plunger Pin with Manual Override Crank Bulldog Electric Motor Powered-Drive Kit
Pro Series Single Speed Single Speed 12K Trailer Jack Non Spring Return Drop Leg Curbside Plunger Pin w/ Manual Override Crank, Bulldog Electric Motor Powered-Drive Kit
$835.99
  • Stock: In Stock
  • Brand: Pro Series
  • Model: 1401010376 1824200100

Applies to this product only

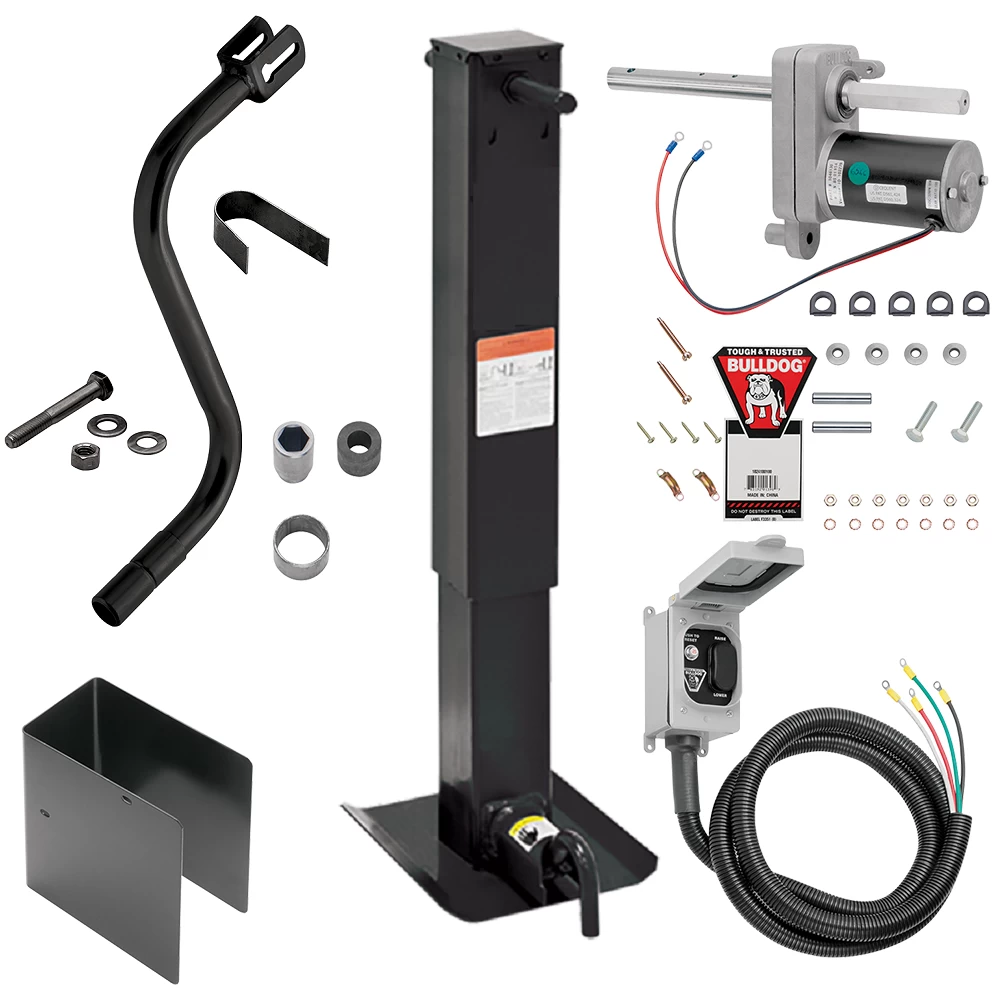

Ultimate Trailer Jack and Motor Bundle: Pro Series and Bulldog Combo

Upgrade your trailer functionality with our premier bundle, featuring the Pro Series Trailer Jack - 1401010376 paired with the Bulldog Electric Motor Powered-Drive Kit - 1824200100. Ideal for a variety of trailers, this combo offers unmatched efficiency and robust performance.

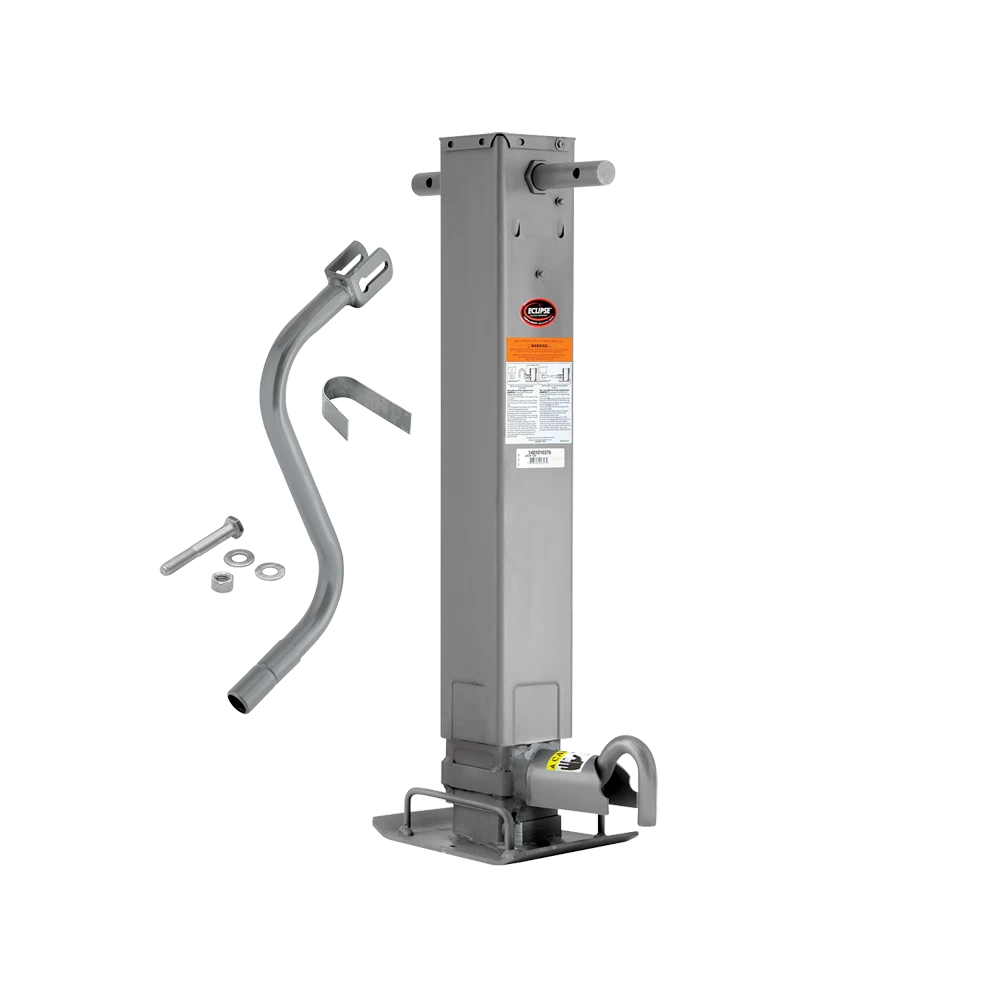

Pro Series Trailer Jack - 1401010376 Highlights:

Constructed from high-strength steel and finished in weather-resistant black, the Pro Series Trailer Jack ensures durability and adds elegance to your trailer. It boasts a 10,000 lbs manual and 7,500 lbs electric lift capacity, supported by a 12,000 lbs static capacity.

Key Features:

  • Durable steel construction with a black weather-resistant finish.
  • Adjustable drop leg with a non-spring return for effortless deployment.
  • Curbside facing plunger pin for easy access.
  • Grease zerk fittings for simplified maintenance.
  • Direct-weld design ensures a secure fit.
  • Includes a sidewind crank and integrated footplate for stability.

Technical Specifications:

  • Bracket Height: 28-1/4" (Retracted), 54-1/4" (Extended)
  • Total Lift: 26"
  • Travel: 12-1/2"
  • Drop Leg: 13-1/2"
  • Manual Operation Lift Capacity: 10,000 lbs
  • Electric Lift Capacity: 7,500 lbs (with Bulldog Kit)
  • Static Capacity: 12,000 lbs
  • 1-year limited warranty

Bulldog Electric Motor Powered-Drive Kit - 1824200100 Features:

Complement your Pro Series Jack with this electric drive kit for quiet, efficient lifting. It’s designed for seamless integration, offering an electric lift capacity of 7,500 lbs.

Kit Highlights:

  • Ensures faster, easier lifting operations.
  • Perfect for single-speed jacks with a 12,000-lb static capacity.
  • Compact, quiet, and efficient design.
  • Weatherproof components for durable, maintenance-free operation.
  • Includes a manual operation option for power outages.

Kit Specifications:

  • 12V DC motor power.
  • Electric Lift Capacity: 7,500 lbs.
  • Dimensions: 16-1/2" long x 3-1/8" wide x 7-3/16" tall.
  • 5-year limited warranty.

Transform your trailer operations with our Pro Series Trailer Jack and Bulldog Electric Motor Powered-Drive Kit bundle. For exceptional strength and convenience, contact us at 877-869-6690. Invest today for a superior towing experience tomorrow.

Specification
Jack Style Direct Weld HD
Finish Black
Static Capacity 12000
Lift Capacity 10000
Electric Lift Capacity 7500
Lift Style Sidewind
Travel 26"
Retracted 28.25"
Extended 54.25"
Clearance Varies
Tubing Width 4"
Leg Drop Leg
Swivel No
Foot Footplate
Jack Shape Square
Description Facts Non spring return drop leg, 26" travel with drop leg, pin to side, manual crank included. Finish is black painted outer tube, inner tube, and drop leg. In Electric Mode, Lift Capacity is 7,500 per jack
Spring Return No
