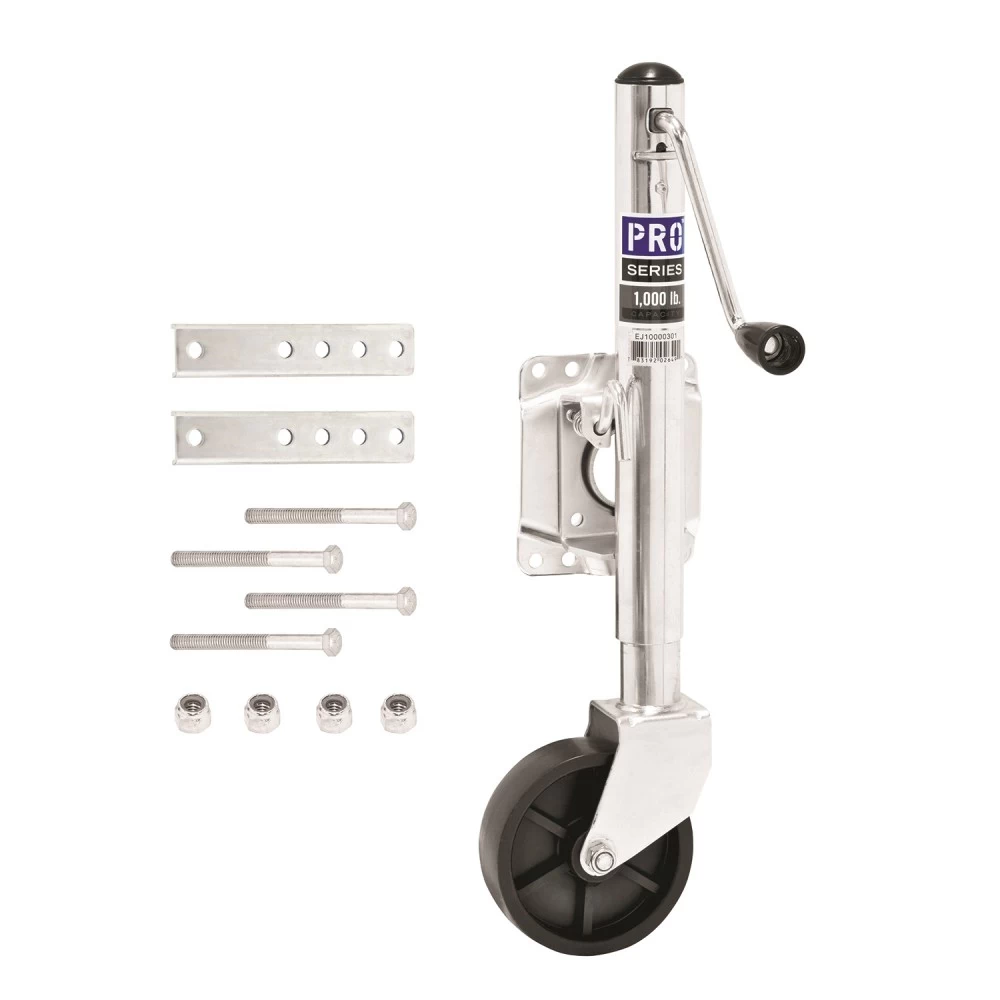

Pro Series Snap Ring Swivel Trailer Jack 1,000 lbs w/ 6" Caster Wheel 10" Lift Bolt-On
Pro Series Snap Ring Swivel Trailer Jack 1,000 lbs w/ 6" Caster Wheel 10" Lift Bolt-On

Pro Series Snap Ring Swivel Trailer Jack 1,000 lbs w/ 6" Caster Wheel 10" Lift Bolt-On

Model: EJ10000301
Pro Series Marine and Recreational Trailer Jack (Bolt-On Hardware Included)


Designed for use with marine and utility trailers, Pro Series brand tongue jacks are time-tested and application-proven. Our bolt-on versions include all necessary mounting hardware. The Pro Series brand Snap Ring swivel mounts use 3-D formed heavy-gauge steel stampings and a proprietary bushing material for a mount with minimal deflection and maximum support. All mounts fit up to a 3" x 5" trailer frame.


Specifications:
  • Fits: 3"x3", 3"x4", and 3"x5" trailer frames
  • Lift Capacity 1,000 lbs
  • Retracted Bracket Height: 13" from bracket to bottom
  • Travel/Lift: 10"
  • Extended Bracket Height: 23"
  • Clearance: 11" from bracket to top
  • Wheel size: 6" diameter
  • Spring loaded Pull pin diameter: 3/8"
  • Finish: 100 Hr. Clear Zinc
  • 5-Year limited warranty


Popular Tongue Jack applications include: Eagle Magic-Tilt Ranger Sea Ray Maverick Master Angler Continental trailer Tow Dolly + many others

$56 17 $70.63 20% OFF

  • Best Price on Web Guarantee
  • Fastest Shipping
  • FREE Shipping
  • In Stock
Best Price on Web Guarantee
Best Price on Web Guarantee

We match lower prices from major authorized retailers for brand-new products in original packaging, provided the item is in stock. The competing seller must be an authorized, professional retail business; offers from individuals, auctions, peer-to-peer sites, or unauthorized sellers don’t qualify. Used, refurbished, or open-box items are excluded.

Please see our full terms for details.

Applies to this product only

Applies to this product only

$70.63 $56 17

Pay in 4 interest-free installments of with Pay with Affirm Learn more

Questions? Call our Auto Experts at (877) 869-6690

Get it now, pay later

Select installments at checkout to split your purchase into 4 interest-free payments of $ every 2 weeks.

  • No fees, ever.
  • No impact on your credit score.

Payment options are offered by Affirm and are subject to an eligibility check and might not be available in all states. CA Residents: Loans by Affirm Loan Services, LLC are made or arranged pursuant to a California Finance Lender license.

Fits Vehicle Styles

Product Details

  • Brand: Pro Series
  • Model: EJ10000301
  • UPC: 783192026491
  • Includes: Snap Ring Swivel Jack

Pro Series Marine and Recreational Trailer Jack (Bolt-On Hardware Included)


Designed for use with marine and utility trailers, Pro Series brand tongue jacks are time-tested and application-proven. Our bolt-on versions include all necessary mounting hardware. The Pro Series brand Snap Ring swivel mounts use 3-D formed heavy-gauge steel stampings and a proprietary bushing material for a mount with minimal deflection and maximum support. All mounts fit up to a 3" x 5" trailer frame.


Specifications:
  • Fits: 3"x3", 3"x4", and 3"x5" trailer frames
  • Lift Capacity 1,000 lbs
  • Retracted Bracket Height: 13" from bracket to bottom
  • Travel/Lift: 10"
  • Extended Bracket Height: 23"
  • Clearance: 11" from bracket to top
  • Wheel size: 6" diameter
  • Spring loaded Pull pin diameter: 3/8"
  • Finish: 100 Hr. Clear Zinc
  • 5-Year limited warranty


Popular Tongue Jack applications include: Eagle Magic-Tilt Ranger Sea Ray Maverick Master Angler Continental trailer Tow Dolly + many others

Specification
Jack Style Bolt-On/Weld-On
Finish Zinc
Static Capacity 1000
Lift Capacity 1000
Lift Style Sidewind
Travel 10"
Retracted 13.0"
Extended 23.0"
Clearance 11.0"
Pull Pin Diameter 3/8"
Inner tubing diameter 2"
Leg Fixed Leg
Outer tubing diameter 2.25"
Swivel Yes
Foot 6" Wheel
Jack Shape Round
Description Facts 6" Wheel, Clear Zinc Finish, Bolt-On, Fits up to 3" x 5" Trailer Frame
