Pro Series Tandem 12,000 lbs. Square Trailer Jack 26" Lift Drop Leg Non Spring Return Pin on Side w/ Crank Tandem Rod Shaft

Pro Series Tandem 12,000 lbs. Square Trailer Jack 26" Lift Drop Leg Non Spring Return Pin on Side w/ Crank Tandem Rod Shaft
Pro Series Tandem 12,000 lbs. Square Trailer Jack 26" Lift Drop Leg Non Spring Return Pin on Side w/ Crank Tandem Rod Shaft
$485.36
  • Stock: In Stock
  • Brand: Pro Series
  • Model: 1401010376x2 CS730300 1400920383

Applies to this product only

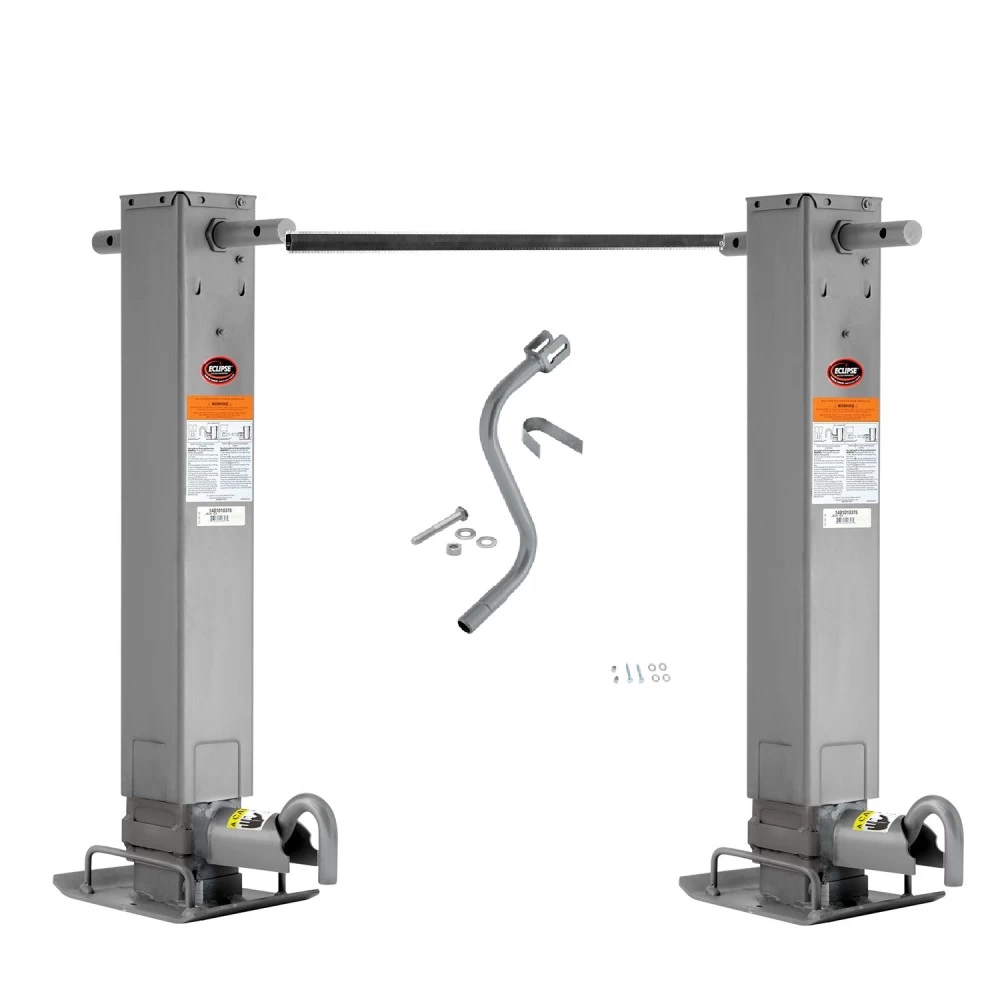

What's Included:
12,000 lb Square Trailer Jack
12,000 lb Square Trailer Jack
Crank Handle
72-3/4" Cross Shaft Tube w/Slotted Ends & Mounting Hardware


Strong, durable, and sturdy, the Pro Series 12,000 lbs. support capacity square jacks can be used on agricultural,  construction, heavy-duty utility, and horse/livestock trailers. All Pro Series 4" square jacks are rated for 12,000 lbs. support capacity and 10,000 lbs. lift capacity. The strength of the product, plus the wide variety of styles, makes this jack the best choice in its product class.



Specifications:

  • Support Capacity: 12,000 lbs.

  • Lift Capacity: 10,000 lbs.

  • Retracted Bracket Height: 28.25"

  • Extended Bracket Height: 54.25"

  • Travel/Lift: 12.5"

  • This Jack is intended to be welded on directly onto your application

  • Non-Spring Return Drop Leg w/ integrated footplate

  • Drop Leg offers 13.50" of additional adjustment

  • Drop Leg pull pin is on the side - Same side as the handle

  • Crank included & 72-3/4" Cross Shaft Tube w/Slotted Ends & Mounting Hardware

  • 4" Tubing width





Specification
Jack Style Landing Gear
Finish Black
Static Capacity 24000
Lift Capacity 20000
Lift Style Sidewind
Travel 26"
Retracted 28.25"
Extended 54.25"
Clearance Varies
Tubing Width 4"
Leg Drop Leg
Swivel No
Foot Footplate
Jack Shape Square
Description Facts non spring return drop leg landing gear jacks landing gear jacks landing gear, 26" travel with drop leg, pin to side, crank included. Finish is black painted outer tube, inner tube, and drop leg. One jack must be designated as a slave, and top cap must be opened and gears be flipped so that the plunger pin is facing you on the roadside.
Spring Return No
