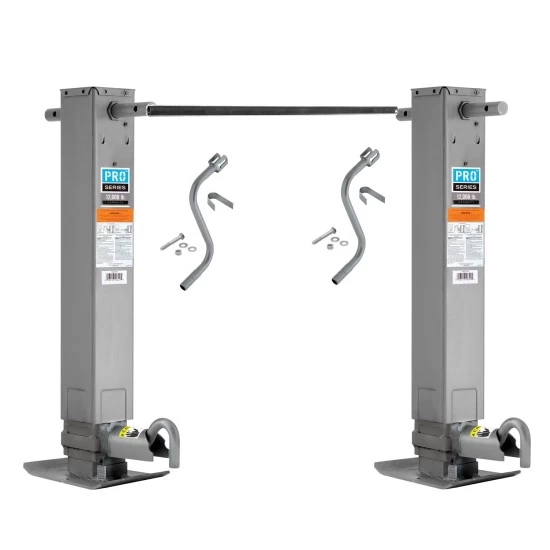

Pro Series Tandem 12,000 lbs. Square Trailer Jack 26" Lift Drop Leg Spring Return Pin on Side w/ Crank & Cross Shaft Tube

Pro Series Tandem 12,000 lbs. Square Trailer Jack 26" Lift Drop Leg Spring Return Pin on Side w/ Crank & Cross Shaft Tube

Pro Series Tandem 12,000 lbs. Square Trailer Jack 26" Lift Drop Leg Spring Return Pin on Side w/ Crank & Cross Shaft Tube
Pro Series Tandem 12,000 lbs. Square Trailer Jack 26" Lift Drop Leg Spring Return Pin on Side w/ Crank & Cross Shaft Tube
Home Trailer Parts Trailer Jacks Heavy Duty Trailers
0 reviews - Write a review
Pro Series Tandem 12,000 lbs. Square Trailer Jack 26" Lift Drop Leg Spring Return Pin on Side w/ Crank & Cross Shaft Tube
$620.00
  • Stock: In Stock
  • Brand: Pro Series
  • Model: 140094x2 CS730300
Add to Cart
Buy Now Ask Question
Add to Wish List Compare this Product

Applies to this product only
Estimate

Strong, durable, and sturdy, the Pro Series 12,000 lbs. support capacity square jacks can be used on agricultural,  construction, heavy-duty utility, and horse/livestock trailers. All Pro Series 4" square jacks are rated for 12,000 lbs. support capacity and 10,000 lbs. lift capacity. The strength of the product, plus the wide variety of styles, makes this jack the best choice in its product class.

What's Included:

Pro Series 12,000 lbs. Square Trailer Jack 26" Lift Drop Leg Spring Return Pin on Side
Pro Series 12,000 lbs. Square Trailer Jack 26" Lift Drop Leg Spring Return Pin on Side
2x Crank Handles
73" Cross Shaft (Can be cut to fit your required length)

Specifications:

  • Support Capacity: 12,000 lbs.

  • Lift Capacity: 10,000 lbs.

  • Retracted Bracket Height: 27.25"

  • Extended Bracket Height: 53.25"

  • Travel/Lift: 12.5"

  • This Jack is intended to be welded on directly onto your application

  • Spring Return Drop Leg w/ integrated footplate

  • Drop Leg offers 13.50" of additional adjustment

  • Drop Leg pull pin is on the side (same side as the handle)

  • Crank included

4" Tubing width

Two of these Jacks can be used in tandem applications.

Recommended applications: PJ Downeaster Sundowner eby merhow Featherlite CM Kaufman Saratoga Classic Jamco 4 Star Sidekick Hawk Trail-et Sundowner Bri-Mar Big Tex Trails West Forest River Lexington dump construction equipment stock grain cart cherokee Trailerman cORN PRO McLander GatorMade Trailerman Cronkite Elite Boss Stillwater Brooks Bothers Horton



Specification
Jack Style Landing Gear
Finish Black
Static Capacity 24000
Lift Capacity 20000
Lift Style Sidewind
Travel 26"
Retracted 27.25"
Extended 53.25"
Clearance Varies
Tubing Width 4"
Leg Drop Leg
Swivel No
Foot Footplate
Jack Shape Square
Description Facts spring return drop leg landing gear jacks landing gear, 26" travel with drop leg, pin to side, crank included. Finish is black painted outer tube, inner tube, and drop leg. One jack must be designated as a slave, and top cap must be opened and gears be flipped so that the plunger pin is facing you on the roadside.
Spring Return Yes
