Reese 10K Trailer Weight Distribution Hitch Trunnion Spring Bars Adjustable Shank w/ 2" Ball, 600 lbs TW, Brackets, Hardware Travel Trailer Load Equilizing Hitch
$692.95
- Stock: In Stock
- Brand: Reese
- Model: 66540 63830

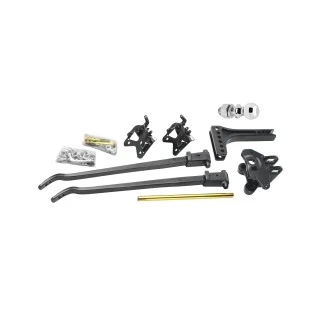

Includes Everything Pictured:
High Strength Steel Head Assemnly
Trunnion spring bars
Adjustable Shank
Hitch Ball 2" x 1-1/4" x 2-3/4" 8,000 lbs.
Lift Brackets
Pin/Clip
Installation Hardware
Installation Instructions
REESE TRUNNION BAR HEAVY DUTY WEIGHT DISTRIBUTING COMPLETE KIT FEATURES
Reese has combined the best of the features from all of our weight distributing kits to create the High-Performance Trunnion Kit. It includes a head design with superior strength and easy adjustment.
In addition to the changes in the head, the Weight Distributing Kit includes the highest rated spring bars per class in the industry. They also feature an integrated cam for easy set up with the optional Dual Cam High-Performance Sway Control. Other features include 9-link chains for easier set up on larger trailer frames and innovative snap-up brackets designed for superior strength and durability.
Raised hitch ball platform eliminates the need for raised hitch balls
Easy-to-use serrated washers for head adjustment
Forged ball platform and spring bar mounts
High Strength Steel Head Assemnly
Trunnion spring bars
Adjustable Shank
Hitch Ball 2" x 1-1/4" x 2-3/4" 8,000 lbs.
Lift Brackets
Pin/Clip
Installation Hardware
Installation Instructions
REESE TRUNNION BAR HEAVY DUTY WEIGHT DISTRIBUTING COMPLETE KIT FEATURES
Reese has combined the best of the features from all of our weight distributing kits to create the High-Performance Trunnion Kit. It includes a head design with superior strength and easy adjustment.
In addition to the changes in the head, the Weight Distributing Kit includes the highest rated spring bars per class in the industry. They also feature an integrated cam for easy set up with the optional Dual Cam High-Performance Sway Control. Other features include 9-link chains for easier set up on larger trailer frames and innovative snap-up brackets designed for superior strength and durability.
Raised hitch ball platform eliminates the need for raised hitch balls
Easy-to-use serrated washers for head adjustment
Forged ball platform and spring bar mounts
Rated up to 10,000 lbs. GTW and 600 lbs. TW
2" Ball is Included
Limited lifetime warranty
2" Ball is Included
Limited lifetime warranty
Weigh Distribution Specs:
| Part Number | 66540 |
| Gross Towing Weight Capacity | 10,000 lbs |
| Tongue Weight Capacity | 600 |
|
Application:
|
2" Trailer Hitch Receivers rated for weight distribution |
| Lift-bracket positioning | mount around 30" back from hitch ball |
| Max. Trailer Frame Height | Around 5-1/2" of space along trailer frame is required |
| Maximum Frame Width | Will not fit trailer frames wider than 2-1/2" |
| Total height adjustment along shank | 5-1/4" |
| Maximum Frame Width Required | Will not fit trailer frames wider than 2-1/2" |
| Installation Instructions |  |
Adjustable Shank Specs:
| Length | 14" from center of Ball hole to center of hitch pin hole |
| Rise | 6"-1/2" From top of hitch receiver opening |
| Drop | 1-1/4" From top of hitch receiver opening |
Hitch Ball Specs:
Part Number 63830
Brand Draw-Tite
Size 2" x 1-1/4" x 2-3/4"
Towing Capacity 8,000 lbs. GTW
Material Chrome
(Cold forged for superior strength)
Torque torgue to 450 ft. lbs
Ball Hole Diameter 1-1/4"
Warranty Lifetime
Add a weight distributing system to provide a more level ride, greater steering and brake control. The differences are in construction materials, welding, manufacturing processes and hook-up. Adjustment is simple because of the easy-to-operate snap-up brackets that allow trunnion spring bar tension to be adjusted by changing links in the support chains. Rather than merely supporting the trailer tongue weight (TW), weight-distributing hitches apply leverage between the towing vehicle and trailer causing the TW to be carried by all axles of the tow vehicle and trailer.
WHY CHOOSE REESE WEIGHT DISTRIBUTION SYSTEMS?
Reese has been the leader in weight distributing systems for more than 60 years. Over those years, much has changed within the industry with tow vehicles and their frames made lighter while the trailers have become heavier. The technology utilized yesterday can no longer be used in today’s world. Reese purchases metals from high quality steel mills with history of performance. Metals are routinely audited by third party labs for chemistry. Reese is proud of their quality manufacturing process, using Inducting heating and forming which allows for tapering bars to improve comfort and performance. Bars are produced for high strength and excellent durability and special processes are employed to remove scale and compression-set high stress surfaces. Spring bars are physically tested for spring rate, maximum strength and fatigue life Hardness testing and microscope analysis ensure a quality heat treat result. This is why Reese offer lifetime warranty.
Optional Parts that can be added to this kit:
Bar-Style Friction Sway Control
Dual-Cam Sway Control
Optional Parts that can be added to this kit:
Bar-Style Friction Sway Control
Dual-Cam Sway Control
