Reese 11.5K Trailer Weight Distribution Hitch Kit w/ Head, Dual Cam Sway Control, Deep Drop Shank, 2-5/16" Ball, Spring Bars, Control Brackets and Lift-Assist Bar, Hardware - Reduce Sway on Travel Trailer
$629.74
- Stock: In Stock
- Brand: Reese
- Model: 49913 26002

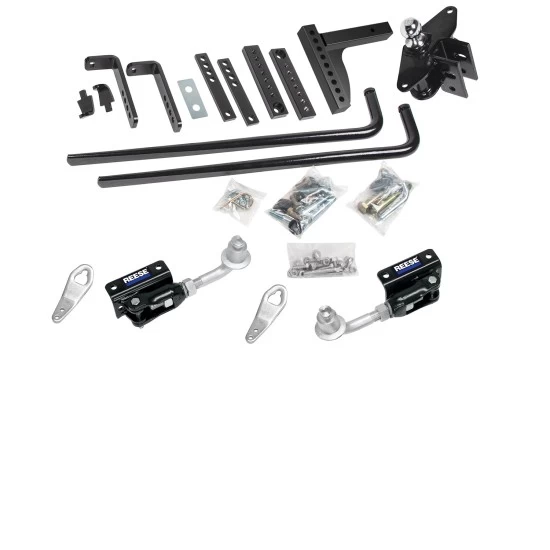

Includes Everything Pictured:
High Strength Steel Head Assemnly
Dual Cam Reese Sway Control System
Preinstalled and torqued 2-5/16" ball
Tapered spring bars
Adjustable Deep Drop Shank
Control Brackets
Lift-Assist Bar
Pin/Clip
Installation Hardware
Installation Instructions
REESE ROUND BAR HEAVY DUTY WEIGHT DISTRIBUTING COMPLETE KIT FEATURES
The innovative Reese Round Bar weight distribution is engineered to provide the features you expect in a weight distribution kit.
Designed to improve stability for added ride control and security
2-5/16" hitch ball - Preinstalled and torqued to proper specifications
Dual Cam Reese Sway Control System
Includes 8.5” deep drop shank – For today’s taller trucks
No-drill, clamp on brackets (fits up to 7” Trailer Frames)
High strength steel head and welded hitch bar
Tapered spring bars provide constant weight distribution over the axles for superior ride comfort
Fits bottom mount couplers
Powder Coat Finish for durability and corrosion resistance
Lifetime warranty
High Strength Steel Head Assemnly
Dual Cam Reese Sway Control System
Preinstalled and torqued 2-5/16" ball
Tapered spring bars
Adjustable Deep Drop Shank
Control Brackets
Lift-Assist Bar
Pin/Clip
Installation Hardware
Installation Instructions
REESE ROUND BAR HEAVY DUTY WEIGHT DISTRIBUTING COMPLETE KIT FEATURES
The innovative Reese Round Bar weight distribution is engineered to provide the features you expect in a weight distribution kit.
Designed to improve stability for added ride control and security
2-5/16" hitch ball - Preinstalled and torqued to proper specifications
Dual Cam Reese Sway Control System
Includes 8.5” deep drop shank – For today’s taller trucks
No-drill, clamp on brackets (fits up to 7” Trailer Frames)
High strength steel head and welded hitch bar
Tapered spring bars provide constant weight distribution over the axles for superior ride comfort
Fits bottom mount couplers
Powder Coat Finish for durability and corrosion resistance
Lifetime warranty
Weigh Distribution Specs:
| Part Number | 49913 |
| Tongue Weight Capacity | 1,150 lbs |
| Gross Towing Weight Capacity | 11,500 lbs |
|
Application:
|
2" Trailer Hitch Receivers rated for weight distribution |
| Max. Trailer Frame Height | 7" |
| Total height adjustment along shank | 8-1/2" |
| Installation Instructions |  |
REESE DUAL CAM HIGH PERFORMANCE SWAY CONTOL
This patented product is Reese Products main technique for controlling trailer sway. Unlike Friction Sway Control, this approach works to control sway from the start rather than just resisting sway once it's begun. And it works only when needed. The advantage of the Dual Cam System is its ability to forestall sway in addition to sway resistance. It works to hold down the start of swaying activity while at the same time allowing free and easy vehicle and trailer interaction. Another advantage of the Dual Cam System is that it is installed on the trailer and thereofre does not require adjustment every time the towing vehicle and trailer are hooked up, unless hitch weight or tow vehicle loading are changed.
Integrated cams into the spring bars reduce noise
No U-bolts to interfere with bottle racks or other A-Frame mounted items
Specific attachment reference points provided
Fits most applications
Improved installation times
Years of extensive field testing
Lifetime warranty

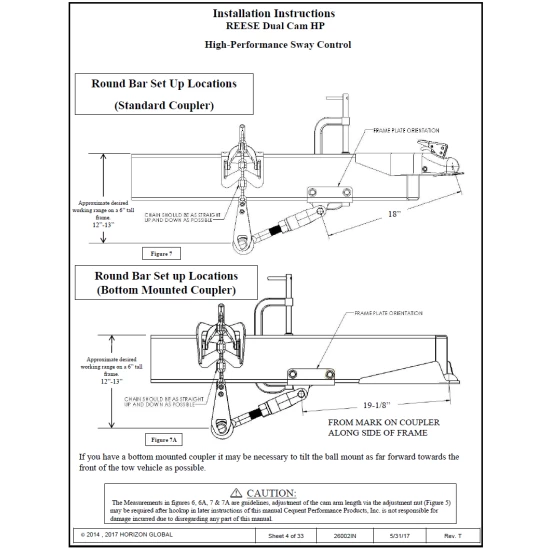

Install Instructions:
Add a weight distributing system to provide a more level ride, greater steering and brake control. The differences are in construction materials, welding, manufacturing processes and hook-up. Adjustment is simple because of the easy-to-operate snap-up brackets that allow spring bar tension to be adjusted by changing links in the support chains. Rather than merely supporting the trailer tongue weight (TW), weight-distributing hitches apply leverage between the towing vehicle and trailer causing the TW to be carried by all axles of the tow vehicle and trailer.
WHY CHOOSE REESE WEIGHT DISTRIBUTION SYSTEMS?
Reese has been the leader in weight distributing systems for more than 60 years. Over those years, much has changed within the industry with tow vehicles and their frames made lighter while the trailers have become heavier. The technology utilized yesterday can no longer be used in today’s world. Reese purchases metals from high quality steel mills with history of performance. Metals are routinely audited by third party labs for chemistry. Reese is proud of their quality manufacturing process, using Inducting heating and forming which allows for tapering bars to improve comfort and performance. Bars are produced for high strength and excellent durability and special processes are employed to remove scale and compression-set high stress surfaces. Spring bars are physically tested for spring rate, maximum strength and fatigue life Hardness testing and microscope analysis ensure a quality heat treat result. This is why Reese offer lifetime warranty.
