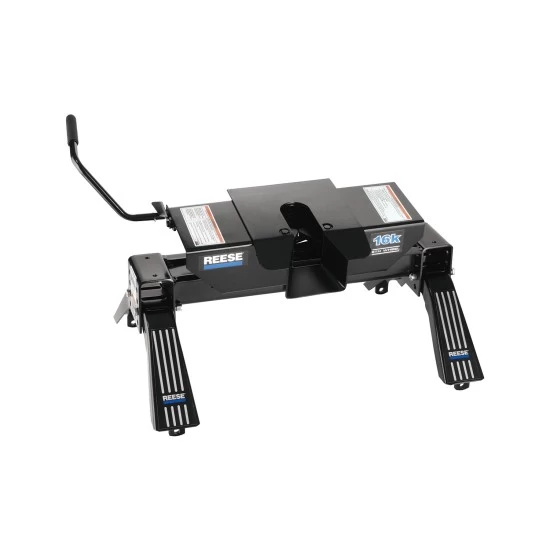

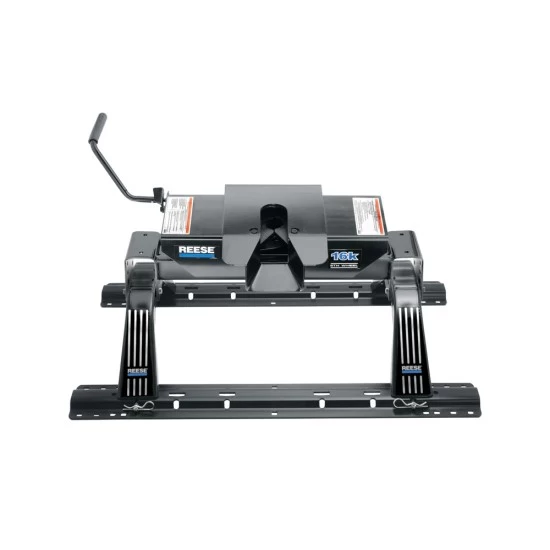

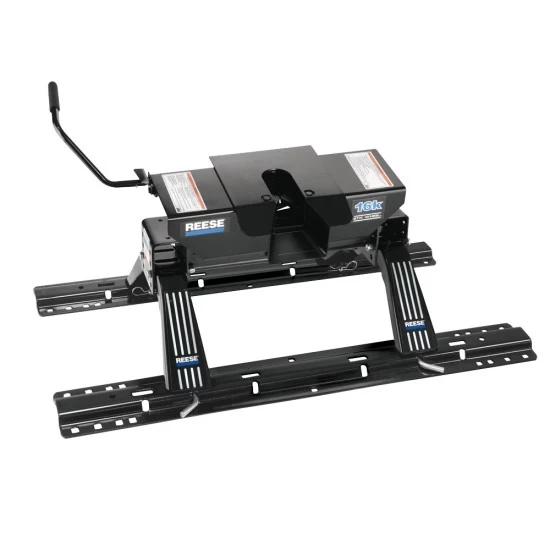

Reese 16K 5th Fifth Wheel Trailer Hitch 5th Wheel New Reese 30047 Fits Standard Rails
Model: 30047- Two-jaw locking system
- Fore-and-aft and side-to-side 44-5 degree pivot
- Locking jaw handle
- Wide stance one-piece legs for improved stability
- Requires rails & installation kit (sold separately)
Featuring side-to-side pivot action to better accommodate hook-ups on uneven ground. Quick-easy installation, strong performance and easy removal in just seconds to allow full access to the truck bed.
Trailer Hitch Specs:
| Part Number | 30047 |
| Brand | Reese |
| Finish | Black Powdercoat |
| Category | Fifth Wheel |
| Capacity | 16,000 lbs |
| Pin Weight Capacity | 4,000lbs |
| Vertical Adjustment | 13-1/2" to 17" |
| Warranty | Lifetime |
| Installation Instructions |  |
$513 97 $710.00 28% OFF
- Best Price on Web Guarantee
- Fastest Shipping
- FREE Shipping
- In Stock
We match lower prices from major authorized retailers for brand-new products in original packaging, provided the item is in stock. The competing seller must be an authorized, professional retail business; offers from
individuals, auctions, peer-to-peer sites, or unauthorized sellers don’t qualify. Used, refurbished, or open-box items are excluded.
Please see our full terms for details.
Verify Fitment
$710.00 $513 97
Learn more
Questions? Call our Auto Experts at (877) 869-6690
Get it now, pay later
Select installments at checkout to split your purchase into 4 interest-free payments of $128.25 every 2 weeks.
- No fees, ever.
- No impact on your credit score.
Payment options are offered by Affirm and are subject to an eligibility check and might not be available in all states. CA Residents: Loans by Affirm Loan Services, LLC are made or arranged pursuant to a California Finance Lender license.
Installments in partnership with
.
Affirm and its offerings are supported in English only. Translations are not provided by Affirm.
Product Details
- Brand: Reese
- Model: 30047
- UPC: 01611803036
- Includes: Fifth Wheel Hitch 16K
Compatibility Chart
| Year Range | Make | Model | Style |
|---|
- Two-jaw locking system
- Fore-and-aft and side-to-side 44-5 degree pivot
- Locking jaw handle
- Wide stance one-piece legs for improved stability
- Requires rails & installation kit (sold separately)
Featuring side-to-side pivot action to better accommodate hook-ups on uneven ground. Quick-easy installation, strong performance and easy removal in just seconds to allow full access to the truck bed.
Trailer Hitch Specs:
| Part Number | 30047 |
| Brand | Reese |
| Finish | Black Powdercoat |
| Category | Fifth Wheel |
| Capacity | 16,000 lbs |
| Pin Weight Capacity | 4,000lbs |
| Vertical Adjustment | 13-1/2" to 17" |
| Warranty | Lifetime |
| Installation Instructions | |
Get Expert Help
Reese 16K 5th Fifth Wheel Trailer Hitch 5th Wheel New Reese 30047 Fits Standard Rails Install Notes
Installation Instructions for 16K Fifth Wheel Hitch
Part Numbers:
- 30047
Tools Required:
- 17mm Socket
- 17mm Wrench
- Torque Wrench
- White Lithium Grease
- Marking Pencil
Step-by-Step Instructions:
Step 1: Guidelines for Matching Tow Vehicle and Trailer
- Ensure the gross trailer weight (including factory trailer weight, water tanks, and cargo) does not exceed 16,000 lbs.
- Verify the kingpin weight is between 15-25% of the gross trailer weight and does not exceed 4,000 lbs.
- Use a SAE 2-inch kingpin with your fifth wheel hitch.
- For short-bed trucks (6-8 ft.), ensure the trailer has an extended pin box and consider adding a Reese Kwik-Slide (Part # 30048) for improved turning clearance.
- Allow a minimum of 6 inches of clearance between the truck bed rails and the underside of the trailer overhang.
Step 2: Assembly Instructions
- Unpack all parts from the two cartons and verify them against the parts list.
- Place the base rails across the truck bed, aligning them as instructed in the mounting kit guide.
- Insert the legs into the base rail slots and secure them using the provided long pull pins and spring retaining clips.
- Attach the head support to the legs using 1/2-13 x 4.5-inch bolts and lock nuts. Adjust the hitch height to fit your trailer requirements (range: 13-17 inches).
- Torque all 1/2-inch bolts to 75 lb.-ft. using a torque wrench.
- Follow the separate rail mounting kit instructions to install the base rails and mounting brackets.
Step 3: Hitching Procedure
- Block the trailer wheels firmly on both sides.
- Adjust the trailer height using the jacks so that the bottom of the kingpin is 1/2 to 1 inch below the hitch skid plate.
- Rotate the handle latch away from the groove to allow the jaws to open.
- Slowly back the truck up so that the kingpin enters the hitch. The jaws will close automatically, and the handle will return to the locked position.
- Verify there is no gap between the kingpin and the hitch skid plate.
Step 4: Pull Test
- Ensure the trailer wheels remain blocked, and the trailer landing gear is resting firmly on the ground.
- Apply the trailer brakes and gently try to pull the truck forward. The trailer should remain stationary. If it moves, repeat the hitching process.
Step 5: Unhitching Procedure
- Block the trailer wheels and ensure the truck is in park with the emergency brake engaged.
- Lower the trailer landing gear until it supports the trailer weight.
- Disconnect the power cable and breakaway switch cable.
- Rotate the latch to release the kingpin and pull the handle to open the jaws fully.
- Slowly drive the truck forward to separate it from the trailer.
Hardware List:
- (4x) Long Pull Pins
- (4x) Spring Retaining Pins
- (1x) Left Jaw
- (1x) Right Jaw
- (2x) Retainer Rings
- (1x) Actuating Handle
- (1x) Latch
- (4x) 1/2-13 x 4.5" Hex Bolts
- (4x) 1/2" Lock Nuts
- Additional parts as specified in the assembly guide.
Safety Notes:
- WARNING: Always block the trailer wheels and ensure the landing gear is on firm ground before any procedure.
- Inspect the hitch jaws to ensure they are fully closed and locked around the kingpin before towing.
- Never attempt to hitch by lowering the trailer onto the hitch. Use only the prescribed hitching method.
- Regularly inspect all components for wear and ensure proper torque settings.
Specifications:
- Gross Trailer Weight (GTW): 16,000 lbs.
- Maximum Kingpin Weight: 4,000 lbs.
- Recommended Torque:
- 1/2" Bolts: 75 lb.-ft.
- Compliance: Designed for recreational fifth-wheel trailers only.
