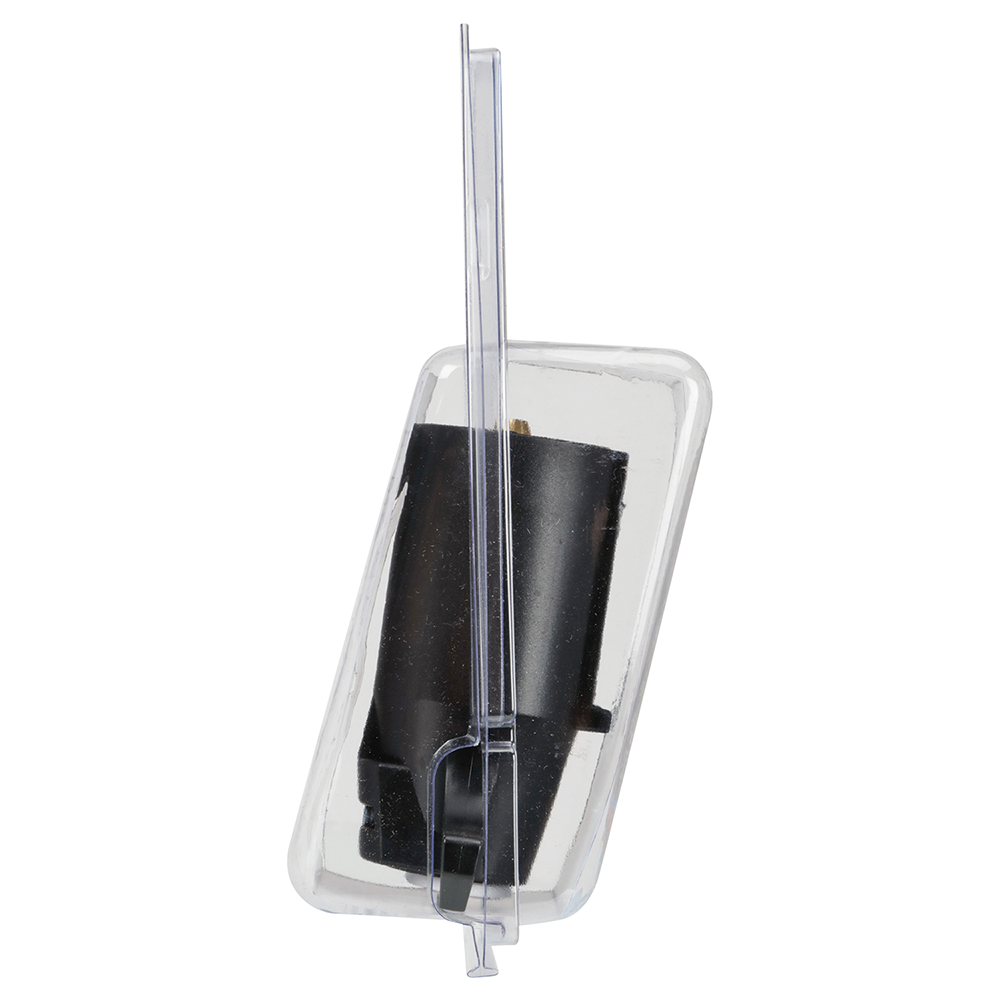

Reese 7 Way Trailer End Wiring Connector Plug Only 74127

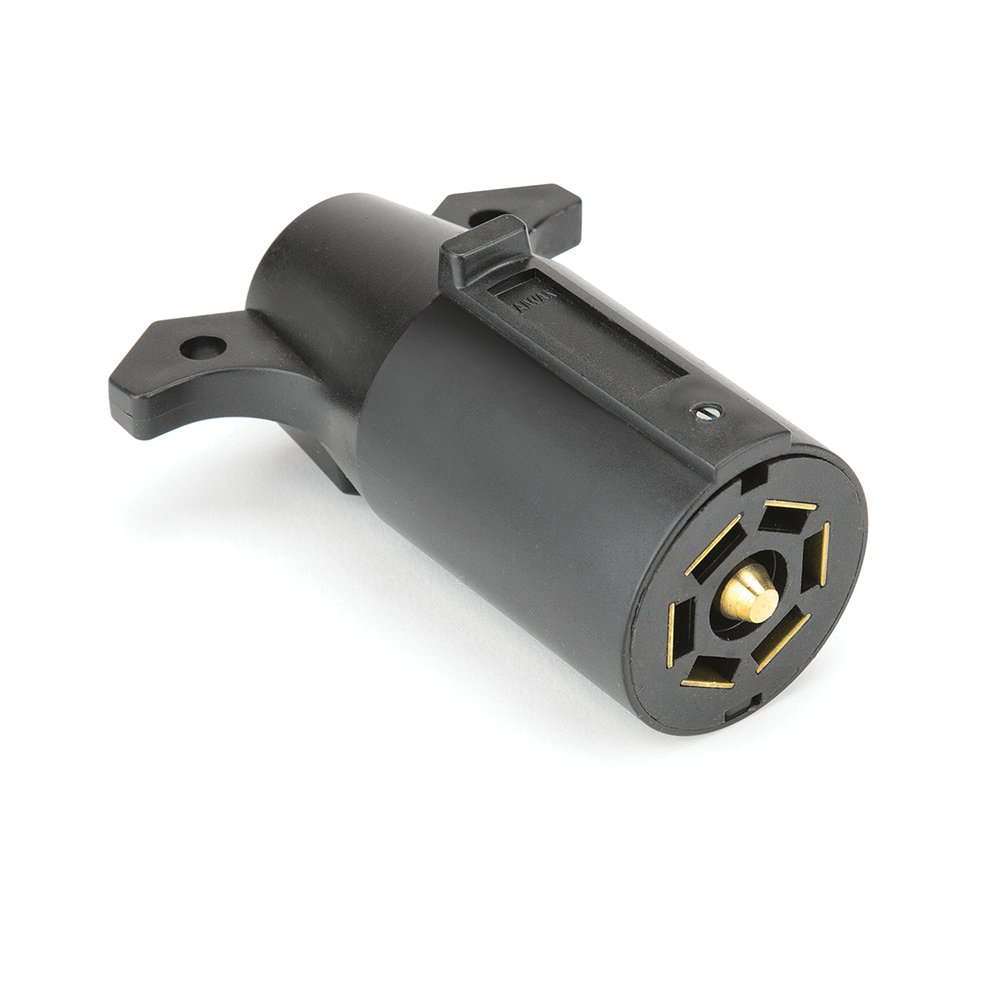

Model: 74127REESE Towpower 7-Way RV Blade Trailer End Connector
Enhance your towing experience with the REESE Towpower 7-Way RV Blade Style Trailer End Connector. Specifically designed for RV trailers, this high-quality connector ensures reliable connection to your tow vehicle's 7-way round connector, facilitating seamless integration and superior performance.
- 7-Way RV Blade Style Connections: Ensures compatibility with a wide range of recreational vehicles.
- Non-Corrosive Thermo-Plastic Construction: Offers a durable and attractive solution for long-lasting use.
- Non-Corroding Brass Terminals: Provides exceptional electrical connectivity for electric brake, auxiliary, and backup circuits.
- Built-in Strain Relief: Keeps the wire securely fastened to the terminals, reducing wear and tear.
- Designed for 12 Volt Systems: Optimizes performance for standard RV systems.
- Flat Style Contact Pins: Allows for easy, positive connection and disconnection, ensuring convenience and efficiency.
- Compatibility: Works seamlessly with both plastic and metal 7-way blade connectors.
Invest in safety and functionality on the road with this reliable and expertly crafted trailer end connector, and enjoy hassle-free towing for years to come.
| Specifications: | |
|---|---|
| Connector Function | Trailer End Connector |
| Connector Type | 7 Round - Blade |
| Connector Design | Plug Only |
$14 68
- Best Price on Web Guarantee
- Fastest Shipping
- FREE Shipping
- In Stock
We match lower prices from major authorized retailers for brand-new products in original packaging, provided the item is in stock. The competing seller must be an authorized, professional retail business; offers from
individuals, auctions, peer-to-peer sites, or unauthorized sellers don’t qualify. Used, refurbished, or open-box items are excluded.
Please see our full terms for details.
$14 68
Learn more
Questions? Call our Auto Experts at (877) 869-6690
Get it now, pay later
Select installments at checkout to split your purchase into 4 interest-free payments of $3.50 every 2 weeks.
- No fees, ever.
- No impact on your credit score.
Payment options are offered by Affirm and are subject to an eligibility check and might not be available in all states. CA Residents: Loans by Affirm Loan Services, LLC are made or arranged pursuant to a California Finance Lender license.
Installments in partnership with
.
Affirm and its offerings are supported in English only. Translations are not provided by Affirm.
Product Details
- Brand: Reese Towpower
- Model: 74127
- UPC: 16118741278
- Includes: Wiring Connector
Description
Get Expert Help
Reese 7 Way Trailer End Wiring Connector Plug Only 74127 Install Notes
Installation Instructions for 7-Way Blade Trailer Plug
Part Number:
- 74127
Tools Required:
- Philips Head Screwdriver
- Wire Stripper
Step-by-Step Installation Instructions:
Plug Instructions:
- Loosen the set screw on the plug and remove it from the housing.
- Pull trailer wires through the housing and attach them securely to the plug terminals.
- Important: Ensure wires are attached to the plug terminals in the same function positions as the 7-Way Blade socket insert. Refer to the wiring diagram for guidance.
- Insert the plug back into the housing, aligning the keyway on the plug with the key housing.
- Re-tighten the set screw to secure the plug.
Testing:
- Verify all connections using a test light, circuit tester, or trailer to ensure proper functionality.
Warnings:
- All connections must be complete for the system to function correctly.
- Overloading circuits can cause fires. Adhere to the following maximum ratings:
- Right Turn, Left Turn, Stop, & Tail Light Circuits: 7.5 amps
- (+) Battery, Reverse, and Electric Brake Circuits: 30 amps
- Refer to the vehicle owner’s manual and these instructions for additional details. Additional fusing may be required.
Manufacturer Notes:
For complete installation instructions, including diagrams and detailed information, please download the full installation PDF.
For technical support and assistance, our team of experts is available to help. You can reach our tech support by visiting www.trailerjacks.com or calling 877-869-6690.
