- Stock: In Stock
- Brand: Reese
- Model: 30047A 30048 30035 58405

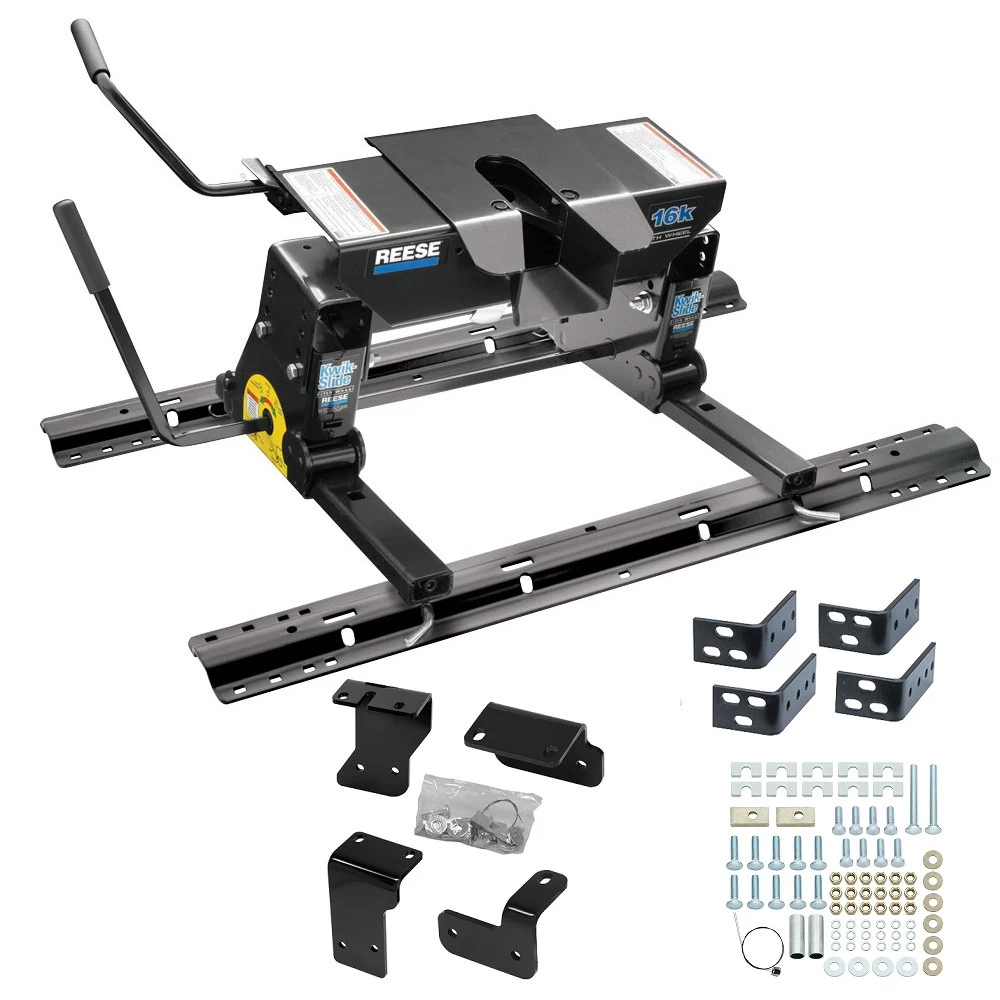

Reese Dual Jaw 16K 5th Wheel Hitch
Base Rail Kit
Brakets and Hardware
4 Pins and 4 Clips
Fits The Following Vehicles
2004 - 2015 Nissan, Titan, All Styles
Fifth Wheel Features:
Whether you’re a novice at fifth wheel towing or you’ve been doing it for years, REESE® has the gear you need to connect your truck and trailer safely and securely. Designed with state-of-the-art equipment by top-of-the-line engineers, REESE’s 16K fifth wheel hitches are built to last! Featuring wide-stance one-piece legs, a dual jaw locking system, side-to-side pivot action to better accommodate hook-ups on uneven ground, quick installation, and strong performance while on the road. When you’re done towing, REESE’s fifth wheel hitches are easy to remove as well, giving you full access to the bed of your truck in no time. So tow with the confidence that only REESE can provide and make the journey as enjoyable as the destination.
- Rated up to 16,000 lbs. towing capacity and up to 4,000 lbs. pin weight capacity
- Fore and aft 44 degree pivot; side-to side 5 degree pivot
- Vertically adjust from 13-1/2 inches to 17 inches
- Mounts to in-bed (industry Standard) rails
- Wide stance, one-piece legs
- Dual jaw locking system completely surrounds the king pin for significantly reduced wear
- Rugged appearance
- Black powder coat over E-coat finish
Fifth Wheel Specs:
| Part Number | 30047A |
| Brand | Reese |
|
Capacity:
|
16,000 lbs. |
| Pin Weight Capacity: | 4,000 lbs. |
| Hitch Height: | 13-1/2" - 18" |
| Warranty: | Lifetime |
| Installation Instructions |  |
| Part Number | 30048 |
| Brand | Reese |
| Finish | Black Powdercoat |
| Category | Fifth Wheel |
| Warranty | 10 Year |
| Travel | 10” |
| Installation Instructions | |
Rails and installation kits for full-size trucks. Quick and easy installation with full truck bed access.
Includes Brackets and Hardware (10 - Bolt Design).
Base Rail Kit Specs:
| Part Number | 30035 |
| Brand | Reese |
| Warranty | 10 Year |
| Finish | Black Powdercoat |
| Installation Instructions | |
Adaptor Bracket Specs
| Part Number | 58405 |
| Brand | Reese |
| Installation Instructions | |
Reese Rail Kit is known in the industry to be the most reliable. It will accomodate most fifth wheel and gooseneck hitches by all manufacturers including Draw-Tite, Hidden Hitch, Reese, Valley, Husky and others. It even works with RBW Lil Rocker Fith Wheel Hitch and various Fifth Wheel Slider Hitch Systems.
Footnotes:
Installation involves drilling
About Reese
Founded in 1952, the Reese brand has become a household name in the heavy-duty towing industry. With proven designs that exceed the industry standards, Reese has become the brand of choice when performance is the expectation. The core product line of Reese is the heavy duty fifth wheels which provide safe towing for the weekend warriors and the seasoned campers. Coupled with the Reese weight distribution systems to control sway, peace of mind is easy to achieve with this product line. The best known Reese products include the Titan Fifth Wheel series, the Sidewinder, and the Goosebox. These products, among others, have helped Reese achieve the Trailer Life Readers’ Choice Gold winner in the '5th Wheel Hitch' category and the Silver winner in the 'Travel Trailer' category status in 2013.
Partial list of fitment years: 04 05 06 07 08 09 10 11 12 13 14 15 2004 2005 2006 2007 2008 2009 2010 2011 2012 2013 2014 2015
