- Stock: In Stock
- Brand: Reese
- Model: 30118 50024

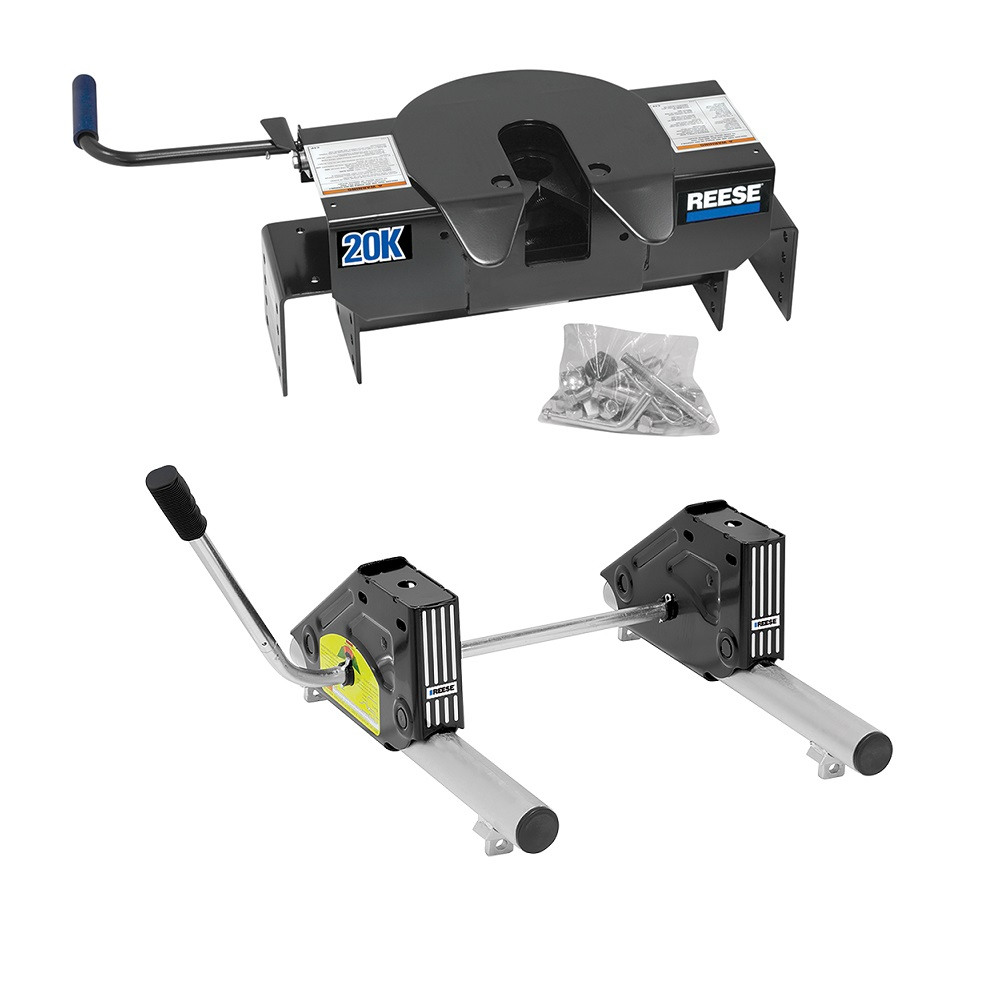

Reese Dual Jaw 20K 5th Wheel Hitch
4 Pins and 4 Clips
Fifth Wheel Features:
Whether you’re a novice at fifth wheel towing or you’ve been doing it for years, REESE® has the gear you need to connect your truck and trailer safely and securely. Designed with state-of-the-art equipment by top-of-the-line engineers, REESE’s 20K fifth wheel hitches are built to last! Featuring wide-stance one-piece legs, a dual jaw locking system, side-to-side pivot action to better accommodate hook-ups on uneven ground, quick installation, and strong performance while on the road. When you’re done towing, REESE’s fifth wheel hitches are easy to remove as well, giving you full access to the bed of your truck in no time. So tow with the confidence that only REESE can provide and make the journey as enjoyable as the destination.
- Rated up to 20,000 lbs. towing capacity and up to 5,000 lbs. pin weight capacity
- Fore and aft 44 degree pivot; side-to side 5 degree pivot
- Vertically adjust from 13-1/2 inches to 17 inches
- Mounts to in-bed (industry Standard) rails
- Dual jaw locking system completely surrounds the king pin for significantly reduced wear
- Rugged appearance
- Black powder coat over E-coat finish
Fifth Wheel Specs:
| Part Number | 30118 |
| Brand | Reese |
|
Capacity:
|
20,000 lbs. |
| Pin Weight Capacity: | 5,000 lbs. |
| Hitch Height: | 13" - 17" |
| King Pin Opening: | 5-3/4" wide |
| Skid Plate Thickness | 5/8" |
| Warranty: | 10-Year |
| Installation Instructions |  |
While it is true that you can tow with any pickup truck, you may need some extra equipment to pull a fifth wheel trailer with it. Why you ask? Well, aside from the size and pulling capacity of each truck, pickups also come with varying bed sizes, which can make turning and maneuvering a bit of a challenge for those with a shorter bed. REESE® sliders works by moving – or sliding - your fifth wheel hitch toward the rear of your truck, so the pin position is moved temporarily behind the rear axle, to provide more room for tighter maneuvering at low speeds. Without a slider, the front – or nose – of your trailer could hit and potentially damage your truck cab when you’re trying to turn. Therefore, a slider is recommended for any short-bed pickup, so you can enjoy the journey as much as the destination.
- Contoured rollers float from side to side to accommodate mounting systems that may not be fully square
- Fully adjustable with trailer attached
- Works with full size and compact trucks
- Embossed roller supports for low friction and longer wear
- Forged mounting feet for wide consistent attachment to rails
- Plated rails hold up longer for extended wear
| Part Number | 50024 |
| Brand | Reese |
| Finish | Black Powdercoat & Silver |
| Category | Fifth Wheel |
| Warranty | 10 Year |
| Travel | 10” |
| Installation Instructions | |
About Reese
Founded in 1952, the Reese brand has become a household name in the heavy-duty towing industry. With proven designs that exceed the industry standards, Reese has become the brand of choice when performance is the expectation. The core product line of Reese is the heavy duty fifth wheels which provide safe towing for the weekend warriors and the seasoned campers. Coupled with the Reese weight distribution systems to control sway, peace of mind is easy to achieve with this product line. The best known Reese products include the Titan Fifth Wheel series, the Sidewinder, and the Goosebox. These products, among others, have helped Reese achieve the Trailer Life Readers’ Choice Gold winner in the '5th Wheel Hitch' category and the Silver winner in the 'Travel Trailer' category status in 2013.
