Model: 83660 26003

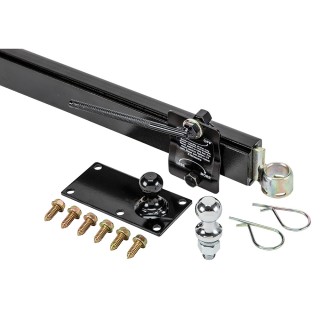

Friction Sway Control Features:
Friction Sway Control uses friction to resist pivotal movement and thereby works against the effects of induced sway. It operates on the principle of "stiffening" the coupling between the tow vehicle and trailer. The degree of "stiffening" or friction is adjusted to suit various trailer weights and towing conditions. Its operation is simple and uncomplicated. It doesn't prevent the generation of sway; it simply works to resist the forces once they have started.

Installs and removes easily
Removes with two spring locking pins
Heavy construction for added reliability
Friction brake keeps trailer and tow vehicle stable
Quick attachment to trailer frame and ball mount
Can be used on left and right side of trailer

Sway Control Specs:
Part Number 83660
Brand Reese
Ball Shank Length 1-1/4"

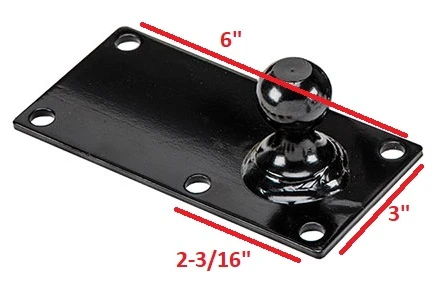

Ball Plate Dimensions 6" Length 3" Height
Warranty 10 Year
Installation Instructions

Sway Control Adapter Bracket Features:

Easy bolt-on installation. This bracket will attach to your Ball Mount to provide an attachment point for the sway control ball. The ball will secure the plate to the Ball Mount

Sway Control Adapter Bracket Specs:
Part Number 26003
Brand Reese
Application Class III IV or V 2" x 2" Ball Mount
Ball Hole Diameter 1"
Sway Ball Hole Distance 5-1/2" from ball hole to sway ball hole
Metal Thickness 3/8"
Installation Instructions

Ball Mount is not included!

Questions or Comments? Call 702-374-8999

WHY CHOOSE REESE WEIGHT DISTRIBUTION SYSTEMS?
Reese has been the leader in weight distributing systems for more than 60 years. Over those years, much has changed within the industry with tow vehicles and their frames made lighter while the trailers have become heavier. The technology utilized yesterday can no longer be used in today’s world. Reese purchases metals from high quality steel mills with history of performance. Metals are routinely audited by third party labs for chemistry. Reese is proud of their quality manufacturing process, using Inducting heating and forming which allows for tapering bars to improve comfort and performance. Bars are produced for high strength and excellent durability and special processes are employed to remove scale and compression-set high stress surfaces. Spring bars are physically tested for spring rate, maximum strength and fatigue life Hardness testing and microscope analysis ensure a quality heat treat result. This is why Reese offer lifetime warranty.

$103 68 $122.68 15% OFF

  • Best Price on Web Guarantee
  • Fastest Shipping
  • FREE Shipping
  • In Stock
Best Price on Web Guarantee
Best Price on Web Guarantee

We match lower prices from major authorized retailers for brand-new products in original packaging, provided the item is in stock. The competing seller must be an authorized, professional retail business; offers from individuals, auctions, peer-to-peer sites, or unauthorized sellers don’t qualify. Used, refurbished, or open-box items are excluded.

Please see our full terms for details.

Applies to this product only

Applies to this product only

$122.68 $103 68

Pay in 4 interest-free installments of with Pay with Affirm Learn more

Questions? Call our Auto Experts at (877) 869-6690

Get it now, pay later

Select installments at checkout to split your purchase into 4 interest-free payments of $ every 2 weeks.

  • No fees, ever.
  • No impact on your credit score.

Payment options are offered by Affirm and are subject to an eligibility check and might not be available in all states. CA Residents: Loans by Affirm Loan Services, LLC are made or arranged pursuant to a California Finance Lender license.

Fits Vehicle Styles

Product Details

  • Brand: Reese
  • Model: 83660 26003
  • Includes: Friction Sway Control Kit w/ Ball Plate

Be the first to ask a question.

Write a review

Note: HTML is not translated!
Rating
Bad Good

Description

Friction Sway Control Features:
Friction Sway Control uses friction to resist pivotal movement and thereby works against the effects of induced sway. It operates on the principle of "stiffening" the coupling between the tow vehicle and trailer. The degree of "stiffening" or friction is adjusted to suit various trailer weights and towing conditions. Its operation is simple and uncomplicated. It doesn't prevent the generation of sway; it simply works to resist the forces once they have started.

Installs and removes easily
Removes with two spring locking pins
Heavy construction for added reliability
Friction brake keeps trailer and tow vehicle stable
Quick attachment to trailer frame and ball mount
Can be used on left and right side of trailer

Sway Control Specs:
Part Number 83660
Brand Reese
Ball Shank Length 1-1/4"
Ball Plate Dimensions 6" Length 3" Height
Warranty 10 Year
Installation Instructions

Sway Control Adapter Bracket Features:

Easy bolt-on installation. This bracket will attach to your Ball Mount to provide an attachment point for the sway control ball. The ball will secure the plate to the Ball Mount

Sway Control Adapter Bracket Specs:
Part Number 26003
Brand Reese
Application Class III IV or V 2" x 2" Ball Mount
Ball Hole Diameter 1"
Sway Ball Hole Distance 5-1/2" from ball hole to sway ball hole
Metal Thickness 3/8"
Installation Instructions

Ball Mount is not included!

Questions or Comments? Call 702-374-8999

WHY CHOOSE REESE WEIGHT DISTRIBUTION SYSTEMS?
Reese has been the leader in weight distributing systems for more than 60 years. Over those years, much has changed within the industry with tow vehicles and their frames made lighter while the trailers have become heavier. The technology utilized yesterday can no longer be used in today’s world. Reese purchases metals from high quality steel mills with history of performance. Metals are routinely audited by third party labs for chemistry. Reese is proud of their quality manufacturing process, using Inducting heating and forming which allows for tapering bars to improve comfort and performance. Bars are produced for high strength and excellent durability and special processes are employed to remove scale and compression-set high stress surfaces. Spring bars are physically tested for spring rate, maximum strength and fatigue life Hardness testing and microscope analysis ensure a quality heat treat result. This is why Reese offer lifetime warranty.
