- Stock: Pre-Order
- Brand: Reese
- Model: 56018-53 30119

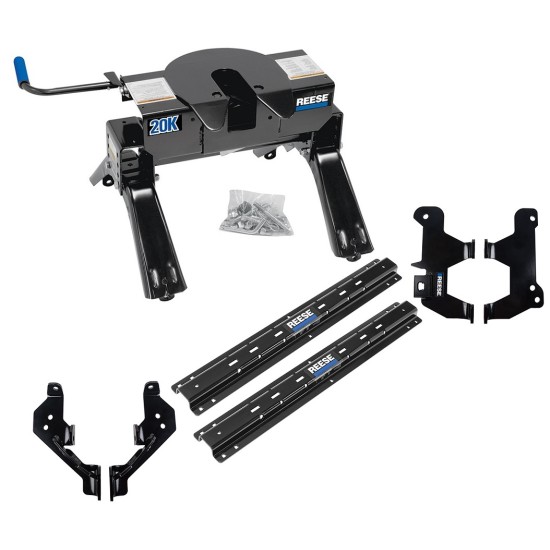

Reese Outboard Fifth Wheel Rail Kit
Custom Outboard Quick Connect Brackets
Reese Pro Series 5th Wheel Trailer Hitch 20K
Installation Hardware
Installation Instructions
Fits The Following Vehicles
2019 - 2024 RAM, 1500, New Body Style
Features:
Beaneath truck bed custom bracket mounting providing attachments for 5th wheel rails
48" wide rails allow for mounting farther out from truck frame
Quick and easy installation with full truck bed access
Uses pre-existing holes on the truck frame
Reduces installation time in half when compared to universal brackets
Adaptable hitches include: Reese, Hidden Hitch, Curt, Reese, and Draw-Tite
Rails are wider (48”) for faster install , because the mounting points are outside the truck frame, allowing the installer to avoid under-bed components
Corrosion resistant black powder coat finish
Rail Kit Specs:
| Part Number | 56018-53 |
| Brand | Reese |
|
Finish:
|
Black Powder Coat |
| Warranty: | Lifetime |
| Installation Instructions |  |

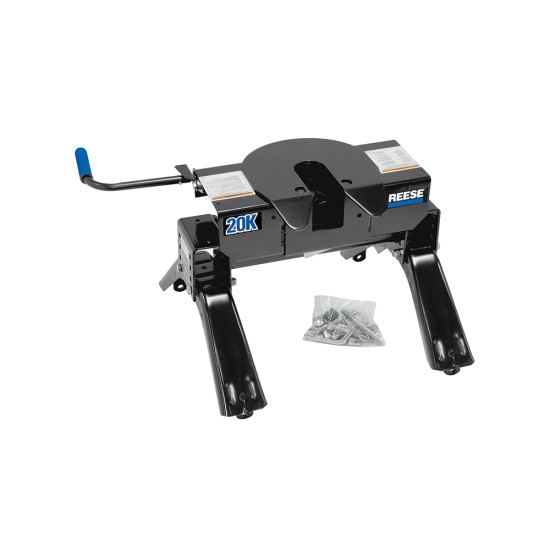

Fifth Wheel Features:
Affordable and reliable sturdy 5th-wheel
Full floating head for improved hooking and unhooking, as well as ride
Dual jaw system completely surrounds the king pin for significantly reduced wear
Lubricated and clamped side joints for tight and efficient operation
Lightweight, easy to install and remove
Vertically adjusts from 13-1/2" to 17"
4 way pivot provides full range motion for simple trailer hook up
One-piece formed legs, provides a wider footprint for superior stability
Sidewinder compatible, preferred for short bed pickups
Best value in marketplace, more combination options
Fifth Wheel Specs:
| Part Number | 30119 |
| Brand | Reese |
|
Capacity:
|
20,000 lbs. |
| Pin Weight Capacity: | 5,000 lbs. |
| Hitch Height: | 13" - 17" |
| King Pin Opening: | 5-3/4" wide |
| Skid Plate Thickness | 5/8" |
| Warranty: | 10-Year |
| Installation Instructions | |
Questions or Comments? Call 702-374-8999
Founded in 1952, the Reese brand has become a household name in the heavy-duty towing industry. With proven designs that exceed the industry standards, Reese has become the brand of choice when performance is the expectation.
The core product line of Reese is the heavy duty fifth wheels which provide safe towing for the weekend warriors and the seasoned campers. Coupled with the Reese weight distribution systems to control sway, peace of mind is easy to achieve with this product line.
The best known Reese products include the Titan Fifth Wheel series, the Sidewinder, and the Goosebox. These products, among others, have helped Reese achieve the Trailer Life Readers’ Choice Gold winner in the '5th Wheel Hitch' category and the Silver winner in the 'Travel Trailer' category status in 2013.
