Reese Pilot Trailer Brake Control for 95‑09 Dodge RAM 1500 2500 3500 Electric Trailer Brakes Module Box Controller 1‑3 Axle

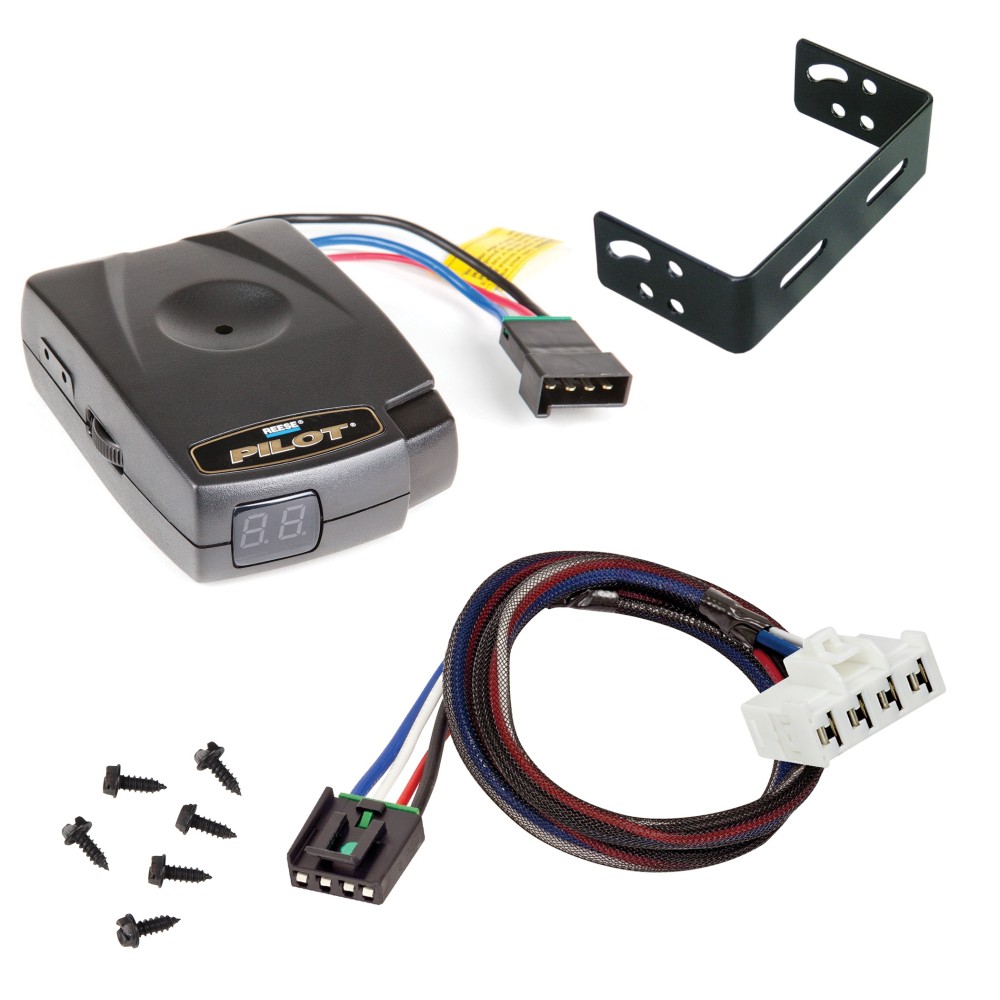

Model: 74378 3020-2Brake Control Unit
Mounting hardware and bracket
Vehicle specific Plug and Play Wiring Adapter
Fits The Following Vehicles
1995 - 2009 Dodge, Ram 1500, All Styles
1995 - 2009 Dodge, Ram 2500, All Styles
1995 - 2009 Dodge, Ram 3500, All Styles
Pilot has a dark, smoke lens that is ideal for direct light applications, creating optimum visibility to read the large, two-digit display. Flexible mounting options and can be installed in any direction. Our microprocessor allows you the ability to read the display even when mounted upside down. The Pilot’s digital display shows voltage output to the brakes.
Brake Control Specs:
| Part Number | 74378 |
| Brand | Reese |
| Type | Timed Actuated |
| Axles | 1 to 3 axle trailers |
| Warranty | Limited Lifetime |
| Features: | Large easy to read dual digital display shows: Properly wired control Voltage output to brakes (vs. a percentage) Connection to trailer Protection against short circuit/loss of ground For use on any 12 volt negative ground system |
| Installation Instructions |  |
2-Plug Wiring Adapter Specs:
| Part Number | 3020 |
| Brand | Tekonsha |
| Warranty | 1 Year |
| Installation Instructions | |
Thank you for choosing Reese made by same people that brought you Tekonsha and Draw-Tite the most powerful manufacturers of electric trailer brake control systems. Manufactured by the same people that brought you Reese, Draw-Tite and Hidden Hitch all of our products come with standard lifetime warranty and support. Our brake controls easily install on your Car Truck Van and SUV. For custom applications on Ford F150 F250 F350 E Series Van Expedition Toyota Tundra Tacoma Chevy Silverado Tahoe GMC Sierra Nissan Titan Frontier please choose one of our 2-Plug wiring adapters recommended below. These adapters will simply plug into the back of the brake control and the other end plugs into a matching plug on your truck. There is no splicing or worry involved, a very easy process. We have adapters for other vehicles as well. The brake control itself always comes with a 1-plug adapter out of the box, which you can splice into any vehicle. Getting a 2plug adapter will only easy your installation and avoid any sort of splicing. All parts in our store are sold at a discount. If you have any questions please do not hesitate to give us a call at 702-374-8999. We will match or beat anyones price.
Partial list of fitment years: 95 96 97 98 99 00 01 02 03 04 05 06 07 08 09 1995 1996 1997 1998 1999 2000 2001 2002 2003 2004 2005 2006 2007 2008 2009
$73 79 $114.44 36% OFF
- Best Price on Web Guarantee
- Fastest Shipping
- FREE Shipping
- Pre-Order
We match lower prices from major authorized retailers for brand-new products in original packaging, provided the item is in stock. The competing seller must be an authorized, professional retail business; offers from
individuals, auctions, peer-to-peer sites, or unauthorized sellers don’t qualify. Used, refurbished, or open-box items are excluded.
Please see our full terms for details.
Verify Fitment
$114.44 $73 79
Learn more
Questions? Call our Auto Experts at (877) 869-6690
Get it now, pay later
Select installments at checkout to split your purchase into 4 interest-free payments of $18.25 every 2 weeks.
- No fees, ever.
- No impact on your credit score.
Payment options are offered by Affirm and are subject to an eligibility check and might not be available in all states. CA Residents: Loans by Affirm Loan Services, LLC are made or arranged pursuant to a California Finance Lender license.
Installments in partnership with
.
Affirm and its offerings are supported in English only. Translations are not provided by Affirm.
Product Details
- Brand: Reese
- Model: 74378 3020-2
- Includes: Pilot Trailer Time-Delay Brake Controller for Trailers with 1-3 Axles, Trailer Brake Controller Custom Harness
Compatibility Chart
| Year Range | Make | Model | Style |
|---|
Description
Brake Control Unit
Mounting hardware and bracket
Vehicle specific Plug and Play Wiring Adapter
Fits The Following Vehicles
1995 - 2009 Dodge, Ram 1500, All Styles
1995 - 2009 Dodge, Ram 2500, All Styles
1995 - 2009 Dodge, Ram 3500, All Styles
Pilot has a dark, smoke lens that is ideal for direct light applications, creating optimum visibility to read the large, two-digit display. Flexible mounting options and can be installed in any direction. Our microprocessor allows you the ability to read the display even when mounted upside down. The Pilot’s digital display shows voltage output to the brakes.
Brake Control Specs:
| Part Number | 74378 |
| Brand | Reese |
| Type | Timed Actuated |
| Axles | 1 to 3 axle trailers |
| Warranty | Limited Lifetime |
| Features: | Large easy to read dual digital display shows: Properly wired control Voltage output to brakes (vs. a percentage) Connection to trailer Protection against short circuit/loss of ground For use on any 12 volt negative ground system |
| Installation Instructions | |
2-Plug Wiring Adapter Specs:
| Part Number | 3020 |
| Brand | Tekonsha |
| Warranty | 1 Year |
| Installation Instructions | |
Thank you for choosing Reese made by same people that brought you Tekonsha and Draw-Tite the most powerful manufacturers of electric trailer brake control systems. Manufactured by the same people that brought you Reese, Draw-Tite and Hidden Hitch all of our products come with standard lifetime warranty and support. Our brake controls easily install on your Car Truck Van and SUV. For custom applications on Ford F150 F250 F350 E Series Van Expedition Toyota Tundra Tacoma Chevy Silverado Tahoe GMC Sierra Nissan Titan Frontier please choose one of our 2-Plug wiring adapters recommended below. These adapters will simply plug into the back of the brake control and the other end plugs into a matching plug on your truck. There is no splicing or worry involved, a very easy process. We have adapters for other vehicles as well. The brake control itself always comes with a 1-plug adapter out of the box, which you can splice into any vehicle. Getting a 2plug adapter will only easy your installation and avoid any sort of splicing. All parts in our store are sold at a discount. If you have any questions please do not hesitate to give us a call at 702-374-8999. We will match or beat anyones price.
Partial list of fitment years: 95 96 97 98 99 00 01 02 03 04 05 06 07 08 09 1995 1996 1997 1998 1999 2000 2001 2002 2003 2004 2005 2006 2007 2008 2009
Get Expert Help
Reese Pilot Trailer Brake Control for 95-09 Dodge RAM 1500 2500 3500 Electric Trailer Brakes Module Box Controller 1-3 Axle Install Notes
Installation Instructions for Electric Trailer Brake Control Wiring Adapter
Part Number: 302000
Tools Required:
- None
Step-by-Step Instructions:
Step 1: Locate the Vehicle’s Electric Brake Control Harness Connector
- The electric brake control harness connector is located:
- Underneath the dashboard
- To the left of the steering column, near the emergency brake pedal.
- It is typically taped to another harness and will feature a 4-pin connector that matches the adapter’s connector.
Step 2: Connect the Adapter
- Plug the brake control adapter into the 4-pin connector on the vehicle’s brake control harness.
- Connect the opposite end of the adapter to the brake controller.
- Follow the brake control manufacturer’s installation instructions for wiring and mounting the unit.
CAUTION:
Plug the adapter into the brake controller before attaching it to the vehicle connector.
Step 3: Complete Installation and Testing
- Mount the brake controller as per the manufacturer’s instructions.
- Perform all test procedures recommended by the brake controller manufacturer to verify proper operation.
Safety Warnings:
- Do NOT overload the circuit:
- Maximum capacity: 4 axles / 8 brakes (24 amps).
- Follow the lower of the towing manufacturer’s rating or the above maximum.
- Always refer to the vehicle owner’s manual and the brake controller instructions for proper installation and operation.
Wiring Overview:
- Stop Lamp Switch to Brake Controller (Input): Provides braking signal to the brake controller.
- Fused Battery Feed: Supplies power to the brake controller.
- Trailer Brake Controller (Output): Sends braking signal to the trailer brakes.
- Ground: Connects the brake controller to vehicle ground.
Final Notes:
- Periodically check all connections to ensure they remain secure and free of corrosion.
- Avoid exceeding the electrical limits specified for the towing system.
End of Instructions
Installation Instructions for Electronic Brake Control
Product Information:
- Model: Brake Control for 2 to 6 Brake Applications
- Part Number: N74378
Tools Required:
- Screwdriver
- Drill with 1/8" Drill Bit
- Wire Stripper/Cutter
- Crimping Tool
Components Included:
- Brake Control Unit
- Mounting Bracket
- Mounting Screws (#6 x 3/8") (Qty: 4)
Mounting Instructions:
-
Select Mounting Location:
- Choose a solid surface within easy reach of the driver.
- Ensure no wires or components are behind the mounting area.
-
Attach the Mounting Bracket:
- Place the bracket and mark the holes using the mounting bracket slots as a guide.
- Drill two 1/8" holes at the marked points.
- Secure the bracket with #6 x 3/8" screws.
-
Install the Brake Control:
- Slide the Brake Control into the bracket.
- Adjust to the desired position and secure it by tightening the screws.
Wiring Instructions:
- Black Wire: Connect to the 12V positive battery terminal using a 30A circuit breaker.
- White Wire: Connect to a clean, bare metal ground.
- Red Wire: Connect to the cold side of the stoplight switch (voltage present only when the brake pedal is pressed).
- Blue Wire: Connect to the trailer brake wire at the 7-way trailer connector.
Setting Power to Trailer Brakes:
- Connect the trailer to the tow vehicle.
- Locate the Manual Slide Knob and Power Knob on the Brake Control.
- Apply the Manual Slide Knob and turn the Power Knob until the display reads 4.0.
- Drive at 25 mph on a dry, level surface and apply the Manual Slide Knob:
- If brakes lock up: Reduce the power setting.
- If braking is insufficient: Increase the power setting.
- Repeat the test until braking is smooth, without wheel lock-up.
Adjusting Display Orientation:
To reverse the display from upside down to right side up:
- Disconnect the Black Wire (battery connection) from the tow vehicle.
- Wait 5 seconds.
- Reconnect the Black Wire.
- Do not press the brake pedal or Manual Slide Knob while reconnecting.
Important Notes:
- Always warm trailer brakes by driving 1/4 mile at 45 mph while applying a low brake level.
- Do not exceed power settings that lock up the trailer brakes. Wheel skidding can cause loss of vehicle control.
- Adjust power settings for different loads or road conditions.
Troubleshooting:
| Issue | Probable Cause | Solution |
|---|---|---|
| No display when connected to power | Poor connection (Black or White wires) | Check wiring connections and ground. |
| Trailer brakes are too aggressive | Power set too high | Reduce power using Power Knob. |
| Braking is weak or insufficient | Power set too low or poor connections | Increase power; check Blue wire. |
| Display shows "0.0" when activated | Poor trailer connection or wiring issue | Inspect trailer connector and wiring. |
Safety Notes:
- Disconnect the trailer plug before testing the breakaway switch. Failure to do so may damage the Brake Control.
- Regularly inspect trailer brakes and connections to ensure proper operation.
Technical Support:
For technical support and assistance, our team of experts is available to help. You can reach our tech support by visiting www.trailerjacks.com or calling 877-869-6690.
Warning: Do not exceed the vehicle's Gross Combined Weight Rating (GCWR) as recommended by the manufacturer.
