7‑Way RV Round Tow Plug Harness U.S. Car End Connector (See Application Guide for Fit Information)
Model: 85219*7-Way U.S. Car End Connector (See Application Guide for Fit Information)
$30 06 $33.75 11% OFF
- Best Price on Web Guarantee
- Fastest Shipping
- FREE Shipping
- In Stock
We match lower prices from major authorized retailers for brand-new products in original packaging, provided the item is in stock. The competing seller must be an authorized, professional retail business; offers from
individuals, auctions, peer-to-peer sites, or unauthorized sellers don’t qualify. Used, refurbished, or open-box items are excluded.
Please see our full terms for details.
$33.75 $30 06
Learn more
Questions? Call our Auto Experts at (877) 869-6690
Get it now, pay later
Select installments at checkout to split your purchase into 4 interest-free payments of $7.50 every 2 weeks.
- No fees, ever.
- No impact on your credit score.
Payment options are offered by Affirm and are subject to an eligibility check and might not be available in all states. CA Residents: Loans by Affirm Loan Services, LLC are made or arranged pursuant to a California Finance Lender license.
Installments in partnership with
.
Affirm and its offerings are supported in English only. Translations are not provided by Affirm.
Product Details
- Brand: Reese Towpower
- Model: 85219*
- UPC: 016118029192
- Includes: 7-Way RV Round Tow Plug Harness
Get Expert Help
7-Way RV Round Tow Plug Harness U.S. Car End Connector (See Application Guide for Fit Information) Install Notes
Installation Instructions for 7-Way Blade Car Socket
Part Numbers:
- 85219
Wiring Access Location:
Not specified.
Tools Required:
- Philips head screwdriver
- Adjustable wrench
Step-by-Step Instructions:
Mounting Bracket Instructions:
- Determine a suitable mounting point on the tow vehicle for the connector or use an existing mount.
- Ensure the trailer's wire harness has adequate length to reach this point.
- Secure the mounting bracket to the rear of the tow vehicle or the plate attached to the hitch cross tube using the self-tapping screws provided.
- Caution: Avoid drilling into the hitch cross tube or any exposed surfaces to prevent damage or injury. Refer to the hitch owner's manual for recommendations and limitations.
Socket Instructions:
- Install the 7-Way Blade Socket onto the mounting bracket using the screws and nuts provided.
- Plug the OEM factory-equipped car end socket harness into the 7-Way Blade Car Socket as shown in the provided diagram.

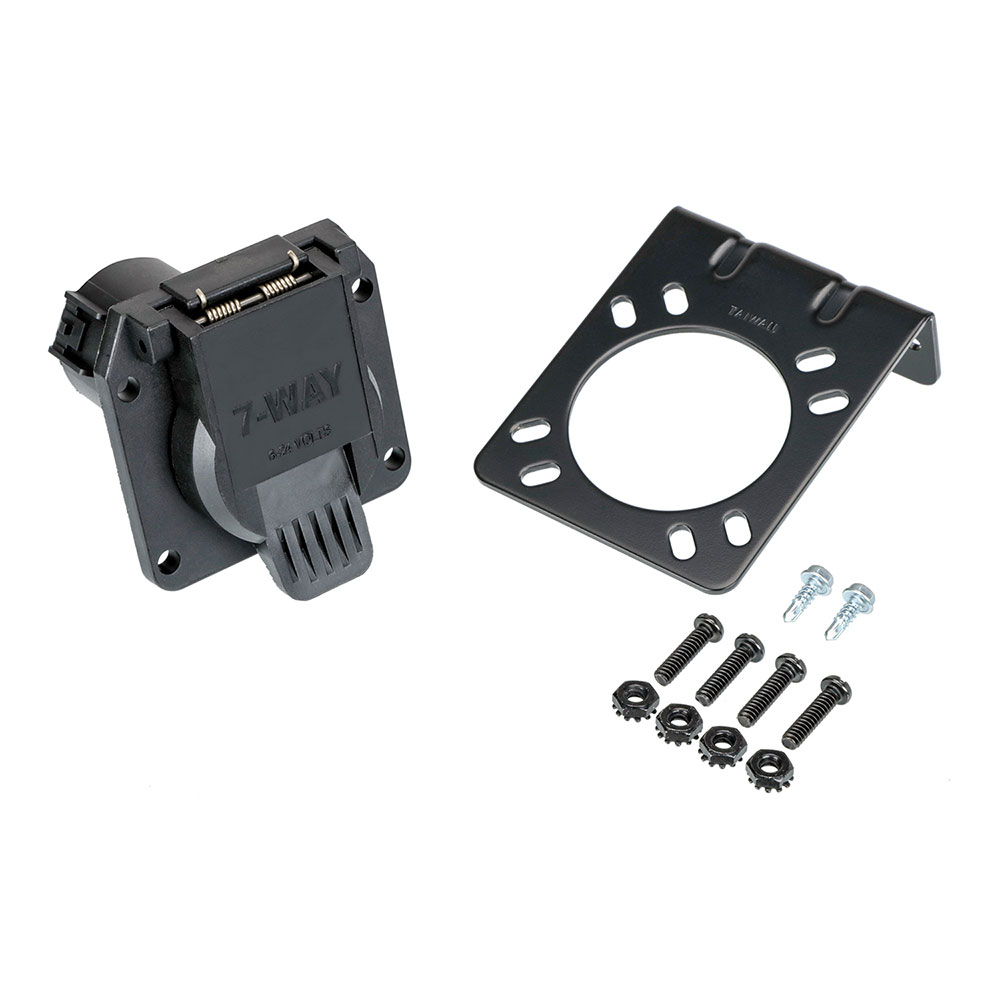

Hardware List:
- 7-Way Blade Socket (P/N 85219)
- Mounting bracket
- Screws and nuts
- Self-tapping screws
Safety Notes:
- Ensure all connections are complete and properly tested for functionality using a test light, circuit tester, or trailer.
- Avoid circuit overloading to prevent fires:
- Max. capacity for Right Turn, Left Turn, Stop, and Tail Light circuits: 7.5 amps.
- Max. capacity for (+) Battery, Reverse, and Electric Brake circuits: 30 amps.
- Consult the vehicle owner's manual for additional guidance and fuse requirements.
Specifications:
- Compatibility: 7-Way Blade Car Socket for towing connections.
- Max. circuit capacities:
- 7.5 amps for lighting circuits.
- 30 amps for battery, reverse, and brake circuits.
Manufacturer Notes:
- Test all connections thoroughly after installation to ensure functionality.
- Use the provided mounting hardware for secure and proper installation.
- Additional fusing may be required based on the vehicle's specifications.
