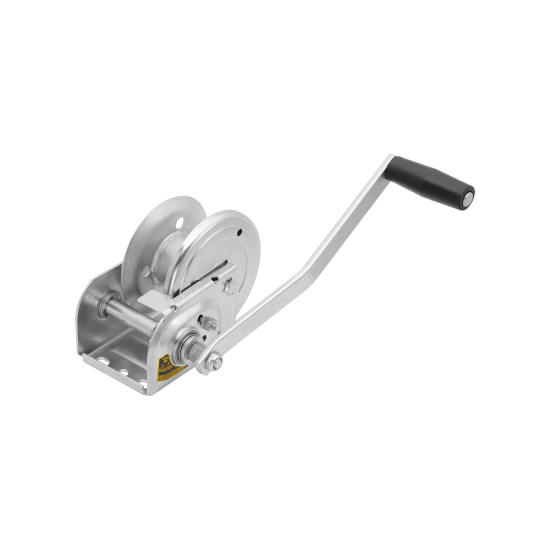

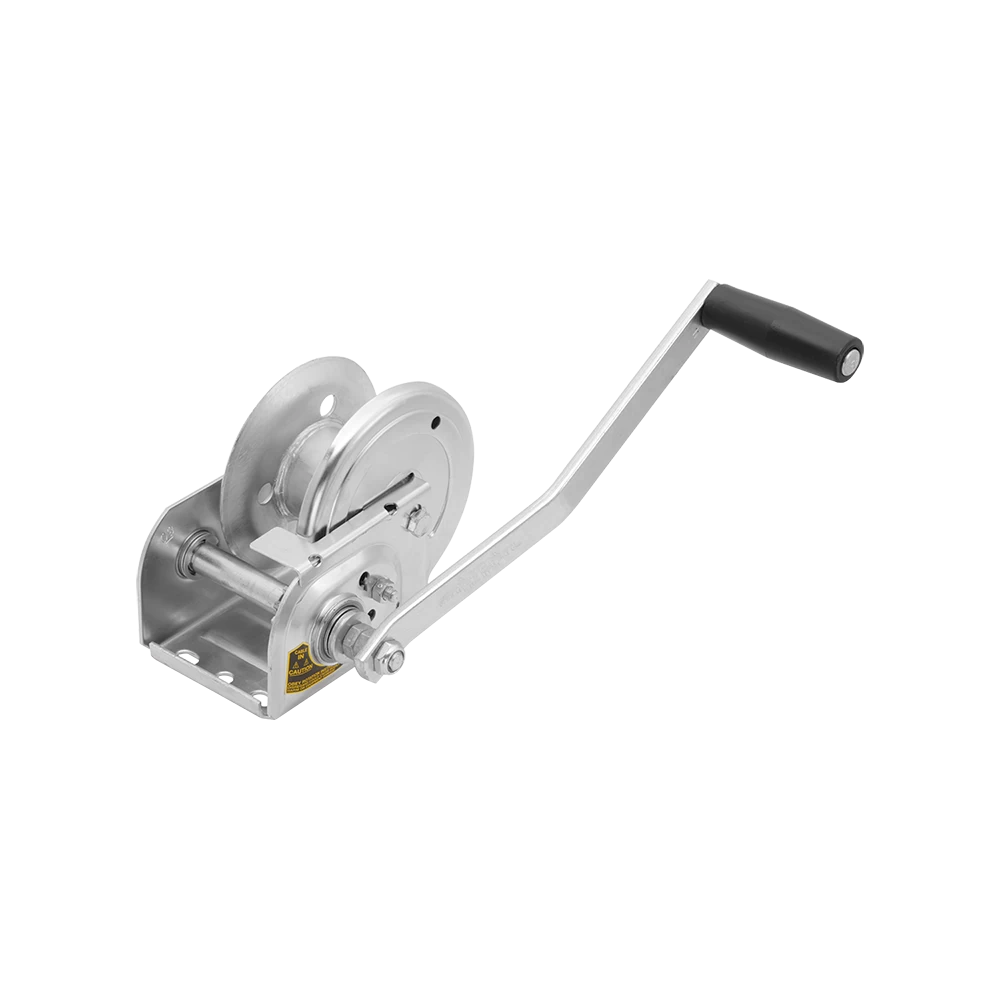

Fulton® Brake Winch - Part Number: 143104

Efficiency and safety in lifting and hauling tasks are paramount, whether you're working on a construction site, managing agricultural equipment, or ensuring the smooth operation of manual fork lifts and boat lifts. With Fulton® Brake Winches, you gain the advantage of self-activating automatic brakes that securely hold the load whenever the crank handle is released. This feature, combined with Fulton®'s dedication to superior materials and rugged manufacturing, ensures that our brake winches not only perform under the most demanding conditions but also offer sleek, attractive designs that complement any setup. Designed by some of the industry's most innovative engineers, our brake winches provide reliable solutions for a wide range of applications, making your work easier, safer, and more efficient.

Key Features and Operational Insights

• Self-activating automatic brake winches hold the load securely when the crank handle is released, requiring a minimum load of 50 lbs to function properly.
• Winches maintain their position when the handle is stopped, regardless of the direction in which the handle is turned, ensuring the load is always securely held.
• Max Rated Line Pull 1st Layer: 1,500 lbs (680 kg) - Ideal for heavier loads.
• Max Rated Line Pull Full Drum: 700 lbs (318 kg)
• Max Cable Size Data (7 x 9 Galvanized Aircraft Cable) Diameter: 1/4" (6 mm)
• Max Cable Size Data (7 x 9 Galvanized Aircraft Cable) Drum Storage: 70 ft (21 m)
• Max Cable Size Data (7 x 9 Galvanized Aircraft Cable) Test Strength: 7,000 lbs (3175 kg)
• Handle Length (in.): 11 (27.9 cm)
• Gear Ratio: 5:1
• Drum Hub Diameter (in.): 2-1/2 (63 mm)
• Covered Gears: Yes, for enhanced durability and protection
• Cable Included: No, allowing for customized cable selection
• 5-Year Warranty, offering peace of mind
• Packaging: Litho Box

How to Select the Right Winch

Selecting the correct winch capacity is crucial for operational efficiency and safety:

1. Assess the maximum weight of the load you intend to lift or haul.
2. Choose a winch with a capacity at least equal to or greater than your maximum load to ensure efficient and safe operation.
3. Example: For a load weighing up to 1,450 lbs, the Fulton® Brake Winch 143104, with its 1,500 lbs first layer capacity, offers a perfect match for secure and reliable lifting.

Note: Always consider the maximum load and operational requirements when selecting a winch to ensure optimal performance and safety. The Fulton® Brake Winch 143104, with its robust design and advanced braking system, is engineered for the demands of your lifting and hauling tasks.
