Install Notes
Installation Instructions for Ford Focus Sedan, Ford Focus 5 DR – ZX5 (Hatchback), and Ford Focus 3 DR – ZX3 (Hatchback)

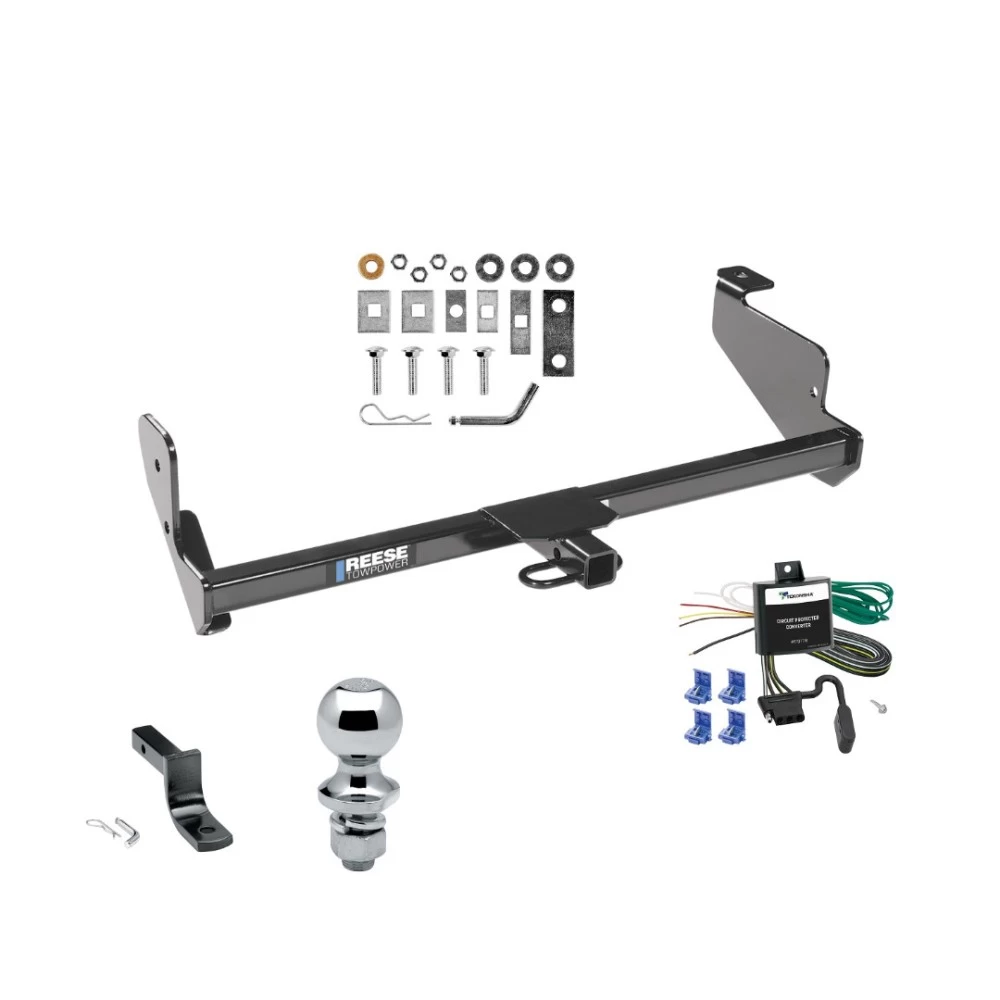

Part Numbers:
- 77114
- 24692
- 60870
Wiring Access Location:
- Sedan: PC3, PC4
- Hatchback: PC1, PC2
Tools Required:
- Drill Bits: 1/2"
- Wrenches: 3/4", 7/8"
Specifications:
- Max Gross Trailer Weight: 2,000 lb. (908 kg)
- Max Tongue Weight: 200 lb. (91 kg)
- Note: Do not exceed towing vehicle ratings.
Step-by-Step Instructions:
General Instructions:
-
Raise Hitch Into Position:
- Position the hitch so that the driver’s side bracket is inboard of the tie-down hook and the passenger’s side bracket is outboard of the tie-down hook.
- The placement of the block with two holes varies by model (see Figure 1).
-
Install Carriage Bolts and Blocks:
- Insert the bolts and blocks through the vehicle’s tie-down hooks. Loosely install flat washers and hex nuts.
Sedan Models:
-
Fishwire Carriage Bolt:
- Use the fishwire to guide the carriage bolt and block through the end of the frame rail into the existing hole in the frame.
-
Install Remaining Fasteners:
- Secure the remaining fasteners as shown in the diagram.
Hatchback Models:
-
Drill Holes:
- Use the hitch as a template to drill a 1/2” hole at the forward-most end of the slot in the side bracket on the passenger side.
-
Fishwire Carriage Bolt:
- Guide the carriage bolt and block through the access hole on the bottom of the frame rail.
-
Install Remaining Fasteners:
- Secure the remaining fasteners as shown in the diagram.
-
Tighten Fasteners:
- Use a torque wrench to tighten all 1/2” fasteners to 75 Lb.-Ft. (102 N*M).
Hardware List:
- (4) 1/2”-13 x 2.00 GR5 Carriage Bolts
- (1) .188” x 1.00” x 2.00” Block
- (1) .25” x 1.50” x 4.00” Block
- (2) .25” x 1.50” x 2.00” Blocks
- (1) .25” x 1.00” x 3.00” Block
- (1) .25” x 1.00” x 2.00” Block
- (3) Flat Washers: 1/2"
- (1) Conical Washer: 1/2"
- (1) 1/2”-13 Hex Nut
- (3) 1/2”-13 Lock Nuts
Drawbar:
- Drawbar Kit: 3593
- Must be used in the rise position only.
Safety Notes:
- Regularly inspect all fasteners and the hitch ball to ensure proper tightening.
- If the hitch is removed, plug all holes in the trunk pan or body panels to prevent water and exhaust fumes from entering.
- Replace any damaged hitch or ball immediately.
- Always wear safety glasses when working under the vehicle.
- Do not use a torch to cut access or attachment holes.
Compliance:
- This product complies with SAE J684, V.E.S.C. Regulation V-5, and safety requirements of the State of New York.
Additional Notes:
- Does not fit models with the Street Appearance Package.

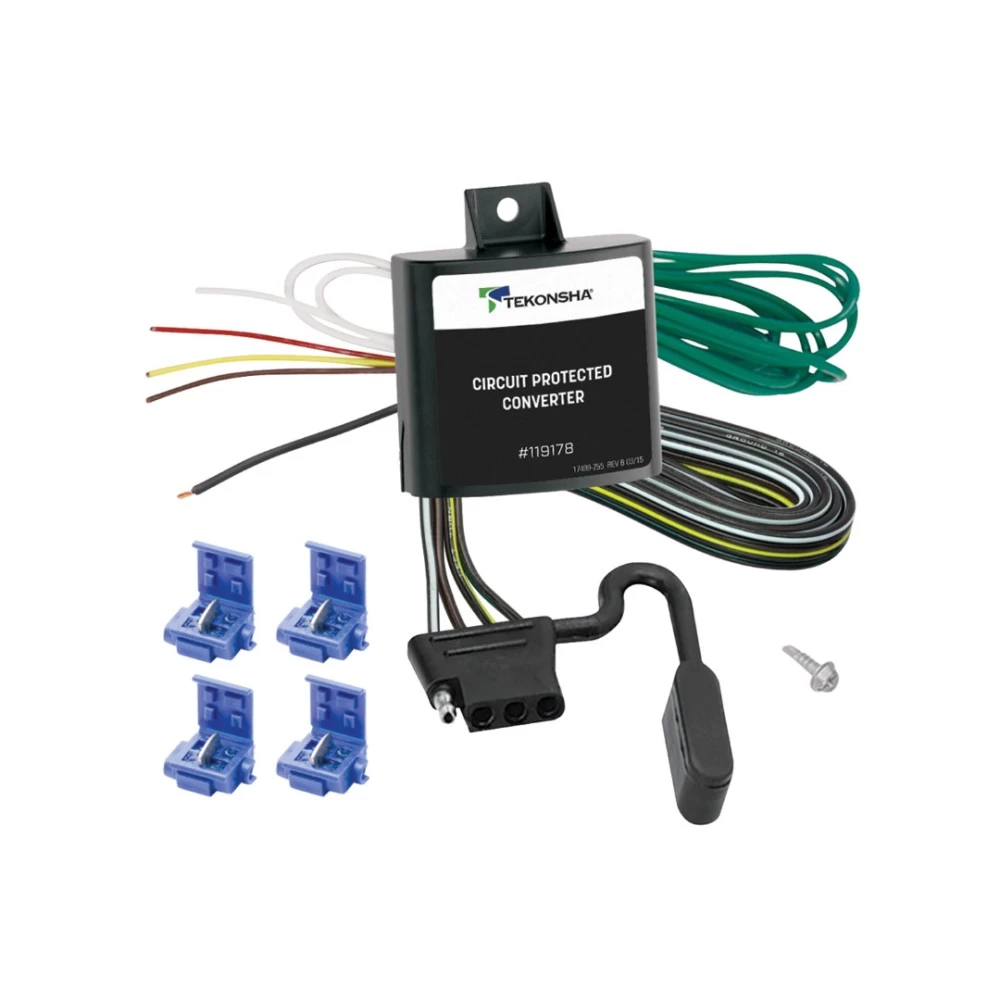

Installation Instructions for Circuit Protected Converter
Part Numbers:
- 119178
Wiring Access Location:
- Not specified in the document.
Tools Required:
- Drill (3/32” Drill Bit)
- Wire Crimpers
- Philips Head Screwdriver
- Test Probe
Step-by-Step Instructions:
-
Using a circuit tester, carefully probe one wire at a time to determine vehicle functions.
- Caution: Do not probe across two wires or across a wire and vehicle structure to avoid damaging electronic components.
-
Disconnect and isolate the vehicle's negative (-) battery terminal.
- Warning: Follow all warnings and precautions printed on the tow vehicle’s battery.
-
Attach the trailer wiring to the vehicle as shown in the illustration using splices.
-
Locate a suitable grounding point.
- Caution: Verify what is behind any surface before drilling to avoid damage or injury. Do not drill into exposed surfaces.
-
Mount the circuit-protected converter near the left tail light in the trunk or on the frame rail under the vehicle.
- Mount with the wiring directed downward or sideways if downward is not possible.
-
Reconnect the vehicle's negative (-) battery terminal.
-
Testing Procedure:
- Attach the ground lead of a circuit tester to the exposed ground terminal of the 4-flat end.
- Activate the tow vehicle’s left turn, right turn, tail, and stop lights one at a time. Test each to confirm proper functionality.
- Warning: Ensure all connections are complete for proper function. Test installation with a trailer or test light.
-
Secure all loose wires with cable ties.
- Warning: Do not overload circuits to prevent fires. Adhere to these limits:
- Max stop/turn light: 1 per side (2.1 amps)
- Max tail lights: (7.5 amps)
- Warning: Do not overload circuits to prevent fires. Adhere to these limits:
Hardware List:
- Not detailed in the document.
Safety Notes:
- Wear safety glasses and follow safety precautions.
- Disconnect the negative (-) cable before wiring.
- Securely ground to the vehicle chassis or an existing ground stud.
- Use on 12-volt negative ground systems only.
Specifications:
- Max stop/turn light: 1 per side (2.1 amps)
- Max tail lights: (7.5 amps)
- Secure wiring with cable ties after installation.
Manufacturer Notes:
- Read and follow all vehicle warnings and instructions.
- Refer to the vehicle's owner manual and manufacturer materials for additional guidance.
