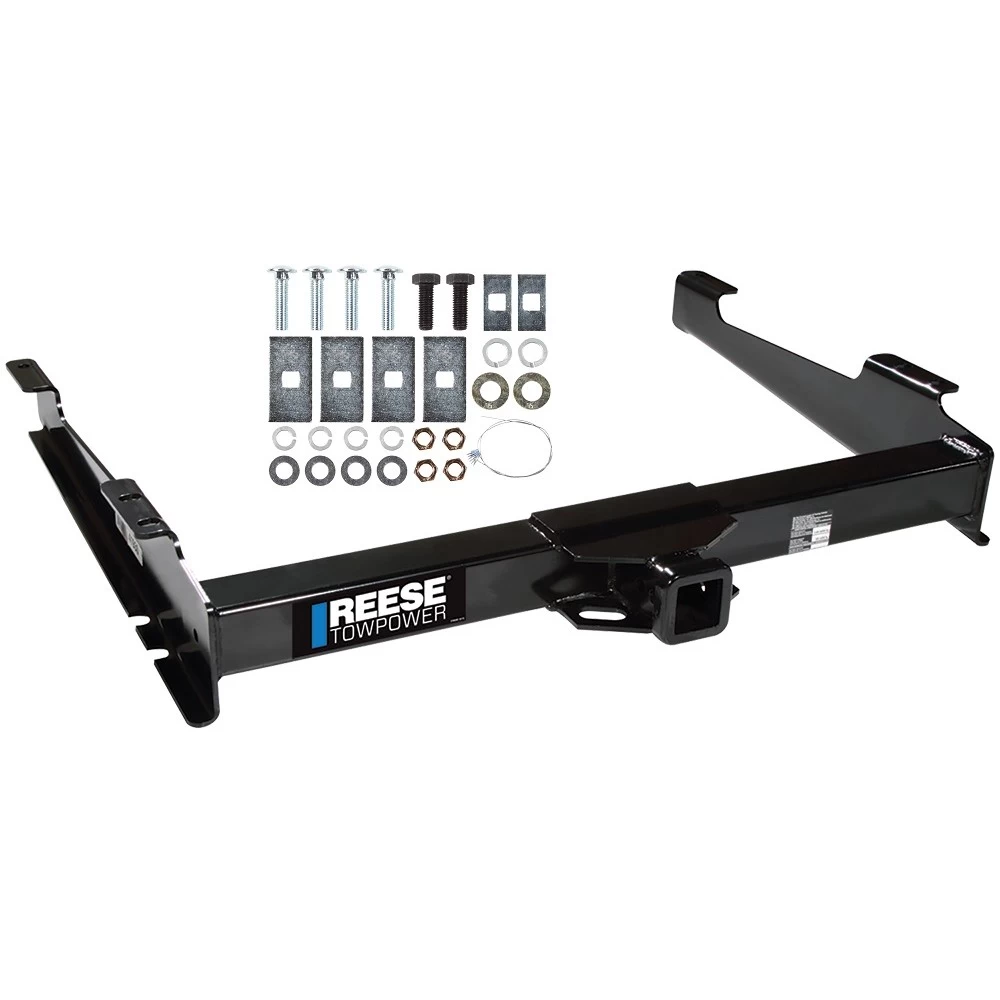

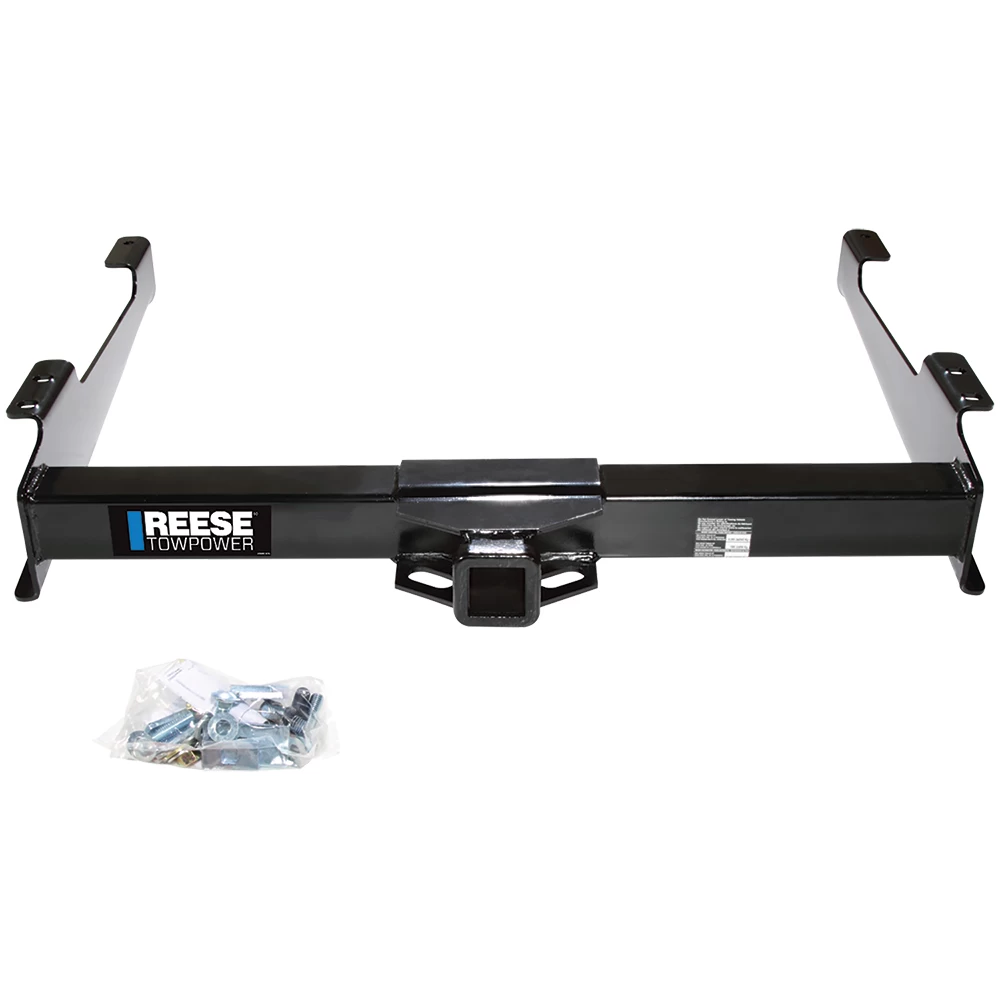

Reese Trailer Tow Hitch For 00‑06 Chevy Suburban GMC Yukon XL 1500 2500 Class V
Model: 96930
2000 - 2006 Chevrolet, Suburban 1500, w/Amber Turn Signals
2000 - 2006 Chevrolet, Suburban 2500, w/Amber Turn Signals
2000 - 2006 GMC, Yukon XL 1500, All Styles
2000 - 2006 GMC, Yukon XL 2500, All Styles
2001 - 2002 GMC, Yukon XL 1500 Denali, All Styles
Trailer Hitch Specs:
| Part Number | 96930 |
| Brand | Reese |
| Finish | Black Powdercoat |
| Class | 5 |
| Receiver size opening | 2" |
| Max gross trailer weight | 10,000 lbs |
| Max GTW w/ weight distribution | 12,000 lbs |
| Max Tongue Weight | 1,000/1,200 lbs |
| Warranty | Lifetime |
| Installation Instructions |  |
Thank you for choosing Reese the most powerful name in towing industry bar none. Manufactured by the same people that brought you Draw-Tite and Hidden Hitch all of our products come with standard lifetime warranty and support. Our custom hitches mount easily on your Car Truck Van SUV and RV. Most applications simply bolt on without any need for drilling or modifying your bumper. Please review installation instructions manual pdf file above for exact step by step instructions. Chose Class 1 or 2 for light duty towing, chose Class 3 4 and 5 for heavy duty towing. Pair your hitch with accessories like a ball mount that is available in several drop and rise configurations. Choose a 2 inch ball to haul most standard trailers. Choose a 1-7/8" ball to tow small and u tility trailers. Our hitches come with generous tongue weight ratings for use with cargo racks and other accessories. All parts in our store are sold at a discount. If you have any questions please do not hesitate to give us a call at 702-374-8999
Partial list of fitment years: 00 01 02 03 04 05 06 2000 2001 2002 2003 2004 2005 2006
$310 53 $484.89 36% OFF
- Best Price on Web Guarantee
- Fastest Shipping
- FREE Shipping
- In Stock
We match lower prices from major authorized retailers for brand-new products in original packaging, provided the item is in stock. The competing seller must be an authorized, professional retail business; offers from
individuals, auctions, peer-to-peer sites, or unauthorized sellers don’t qualify. Used, refurbished, or open-box items are excluded.
Please see our full terms for details.
Verify Fitment
$484.89 $310 53
Learn more
Questions? Call our Auto Experts at (877) 869-6690
Get it now, pay later
Select installments at checkout to split your purchase into 4 interest-free payments of $77.50 every 2 weeks.
- No fees, ever.
- No impact on your credit score.
Payment options are offered by Affirm and are subject to an eligibility check and might not be available in all states. CA Residents: Loans by Affirm Loan Services, LLC are made or arranged pursuant to a California Finance Lender license.
Installments in partnership with
.
Affirm and its offerings are supported in English only. Translations are not provided by Affirm.
Product Details
- Brand: Reese
- Model: 96930
- UPC: 042899000938
- Includes: Class 4 Trailer Tow Hitch
Compatibility Chart
Description
2000 - 2006 Chevrolet, Suburban 1500, w/Amber Turn Signals
2000 - 2006 Chevrolet, Suburban 2500, w/Amber Turn Signals
2000 - 2006 GMC, Yukon XL 1500, All Styles
2000 - 2006 GMC, Yukon XL 2500, All Styles
2001 - 2002 GMC, Yukon XL 1500 Denali, All Styles
Trailer Hitch Specs:
| Part Number | 96930 |
| Brand | Reese |
| Finish | Black Powdercoat |
| Class | 5 |
| Receiver size opening | 2" |
| Max gross trailer weight | 10,000 lbs |
| Max GTW w/ weight distribution | 12,000 lbs |
| Max Tongue Weight | 1,000/1,200 lbs |
| Warranty | Lifetime |
| Installation Instructions | |
Thank you for choosing Reese the most powerful name in towing industry bar none. Manufactured by the same people that brought you Draw-Tite and Hidden Hitch all of our products come with standard lifetime warranty and support. Our custom hitches mount easily on your Car Truck Van SUV and RV. Most applications simply bolt on without any need for drilling or modifying your bumper. Please review installation instructions manual pdf file above for exact step by step instructions. Chose Class 1 or 2 for light duty towing, chose Class 3 4 and 5 for heavy duty towing. Pair your hitch with accessories like a ball mount that is available in several drop and rise configurations. Choose a 2 inch ball to haul most standard trailers. Choose a 1-7/8" ball to tow small and u tility trailers. Our hitches come with generous tongue weight ratings for use with cargo racks and other accessories. All parts in our store are sold at a discount. If you have any questions please do not hesitate to give us a call at 702-374-8999
Partial list of fitment years: 00 01 02 03 04 05 06 2000 2001 2002 2003 2004 2005 2006
Get Expert Help
Reese Trailer Tow Hitch For 00-06 Chevy Suburban GMC Yukon XL 1500 2500 Class V Install Notes
Installation Instructions for Chevrolet Suburban, GMC Yukon XL Denali, and GMC Yukon XL
Part Numbers:
- 41930
- 41925 (U-Haul)
- 96930
Wiring Access Location:
- SUV6
Tools Required:
- Wrenches: 13/16", 7/8", 3/4", 22mm
- Drill Bits: 1/2"
Step-by-Step Instructions:
-
Remove Factory Hitch:
- If a factory-installed hitch is present, remove it.
- Remove the factory-installed M14 bumper bolts on both sides from the bottom surface of the frame and return them to the vehicle owner.
-
Raise Hitch:
- Position the hitch and align it with the existing holes where the factory bolts were removed.
- Secure the hitch using the provided M14 bolts with flat washers and lock washers.
-
Install Carriage Bolts:
- Insert 1/2"-13 carriage bolts with spacers through the next open hole in the frame and hitch.
- Secure each bolt with a 1/2" flat washer, 1/2" lock washer, and 1/2" hex nut.
-
Drill Additional Holes:
- Using the remaining hole in the hitch bracket as a guide, drill a 1/2" hole into each frame rail.
-
Installation for 3/4 Ton Vehicles:
- Insert spacers with 1/2"-13 carriage bolts down through the drilled holes in the frame and hitch.
- Secure each bolt with a 1/2" flat washer, 1/2" lock washer, and 1/2" hex nut.
-
Installation for All Other Vehicles:
- Place a 1/4" x 1-1/2" x 3" spacer between the hitch and frame rail on both sides.
- Use the pull wire to guide the carriage bolt and spacer through the drilled holes in the frame.
- Secure each bolt with a 1/2" flat washer, 1/2" lock washer, and 1/2" hex nut.
-
Tighten All Fasteners:
- Use a torque wrench to tighten:
- M14 CL10.9 bolts to 115 lb-ft (156 N*m)
- 1/2"-13 GR5 bolts to 75 lb-ft (102 N*m)
- Use a torque wrench to tighten:
Torque Specifications:
- M14 CL10.9 bolts: 115 lb-ft (156 N*m)
- 1/2"-13 GR5 bolts: 75 lb-ft (102 N*m)

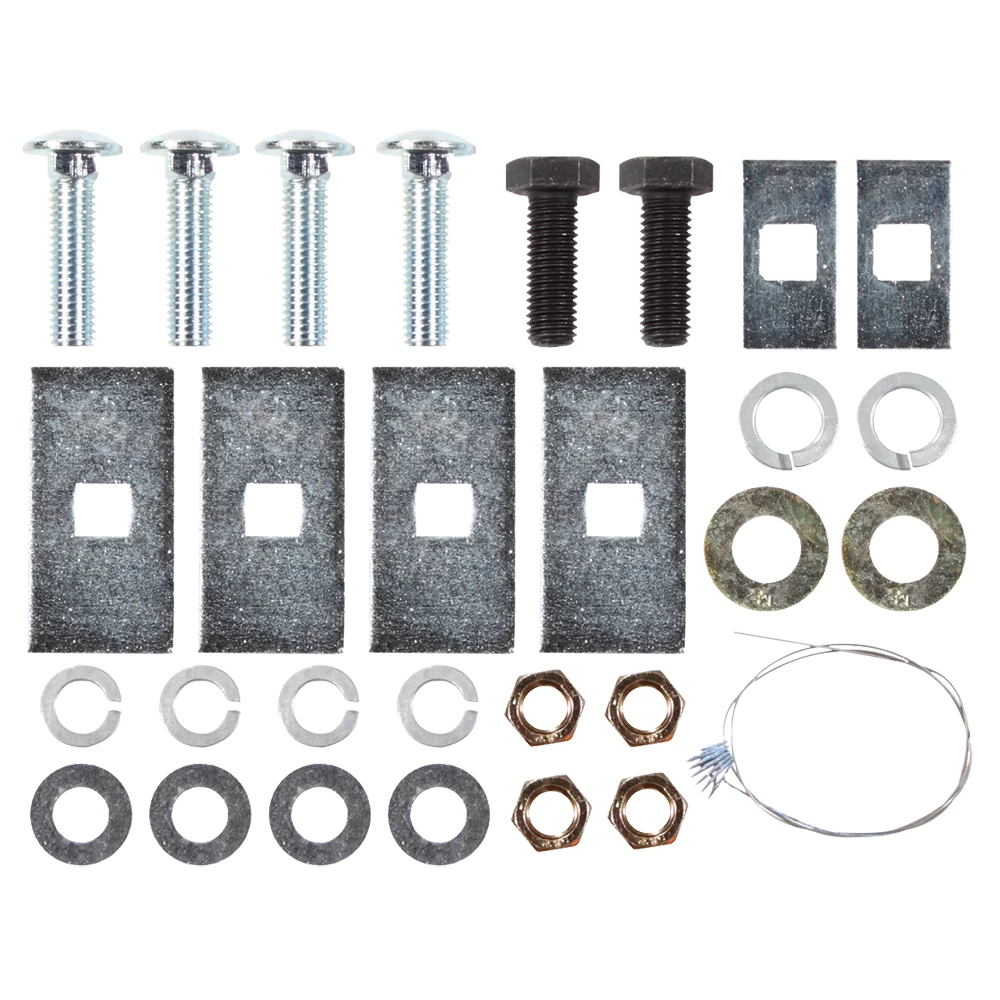

Hardware List:
- (4) Carriage Bolts, 1/2"-13 x 2.00"
- (4) Spacers, 0.25" x 1.50" x 3.00"
- (2) Spacers, 0.25" x 1.00" x 2.00"
- (4) Flat Washers, 1/2"
- (4) Lock Washers, 1/2"
- (5) Hex Nuts, 1/2"-13
- (2) Hex Bolts, M14 x 2.00 x 40mm
- (2) Lock Washers, 5/8"
- (2) Flat Washers, 5/8"
Safety Notes:
- Frequently check the hitch to ensure all fasteners and the ball are securely tightened.
- If the hitch is removed, plug all holes in the trunk pan or other body panels to prevent water or exhaust fumes from entering.
- Replace any damaged hitch or ball immediately.
- Always observe safety precautions and wear eye protection when working beneath a vehicle.
- Do not cut access or attachment holes with a torch.
Specifications:
- Weight Carrying (Ball Mount):
- Max Gross Trailer Weight: 10,000 lb (4,540 kg)
- Max Tongue Weight: 1,000 lb (454 kg)
- Weight Distributing:
- Max Gross Trailer Weight: 12,000 lb (5,448 kg)
- Max Tongue Weight: 1,200 lb (545 kg)
Additional Notes:
- Complies with V.E.S.C. Regulation V-5 and SAE J684 safety standards.
