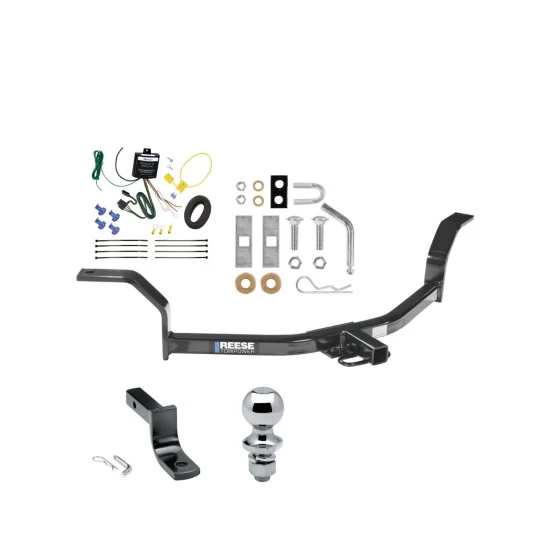

Reese Trailer Tow Hitch For 01-05 Honda Civic 1-1/4" Receiver Class 1 w/ Wiring Draw Bar and 1-7/8" Ball

Wiring Kit Specs:



Part Number	119148
Brand	Tekonsha
Warranty	1 Year
Installation Instructions

Hitch Ball Specs:

Part Number	63810
Brand	Draw-Tite
Size	1-7/8" x 3/4" x 1-1/2"
Towing Capacity	2,000 lbs. GTW
Material	Chrome (Cold forged for superior strength)
Torque	torgue to 160 ft. lbs
Ball Hole Diameter	3/4"
Warranty	Lifetime

Ball Mount Specifications:

Fits	1-1/4" x 1-1/4" Trailer Hitch Receiver
Brand	Draw-Tite
Finish	Black Powdercoat
Length	6-5/8" From Center of Pin Hole to Center of Ball Hole
Rise	2-1/8" From inside top of hitch opening
Towing Capacity in Rise Position	2,000 lb Gross Towing Weight 200 lb Tongue Weight
Drop	2-3/4" From inside top of hitch opening
Towing Capacity in Drop Position	2,000 lb Gross Towing Weight 200 lb Tongue Weight
Ball Hole Diameter	3/4"
Pin hole diameter	1/2"
Warranty	Limited Lifetime

Thank you for choosing Draw Tite the most powerful name in towing industry bar none. Manufactured by the same people that brought you Reese and Hidden Hitch all of our products come with standard lifetime warranty and support. Our custom hitches mount easily on your Car Truck Van SUV and RV. Most applications simply bolt on without any need for drilling or modifying your bumper. Please review installation instructions manual pdf file above for exact step by step instructions. Chose Class 1 or 2 for light duty towing, chose Class 3 4 and 5 for heavy duty towing. Pair your hitch with accessories like a ball mount that is available in several drop and rise configurations. Choose a 2 inch ball to haul most standard trailers. Choose a 1-7/8" ball to tow small and u tility trailers. Our hitches come with generous tongue weight ratings for use with cargo racks and other accessories. All parts in our store are sold at a discount. If you have any questions please do not hesitate to give us a call at 702-374-8999

Partial list of fitment years: 01 02 03 04 05 2001 2002 2003 2004 2005
