Reese Trailer Tow Hitch For 04-08 Acura TL Complete Package w/ Wiring Draw Bar and 1-7/8"" Ball

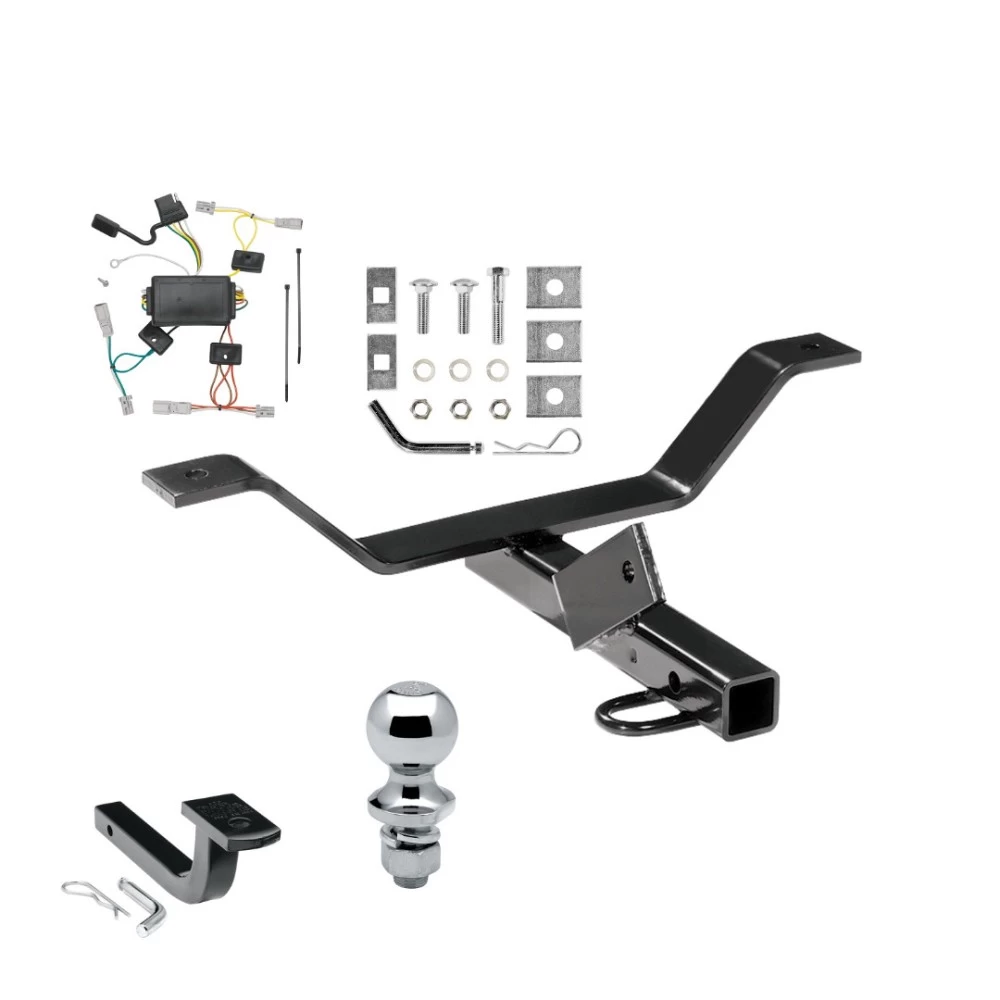

Includes Everything Pictured:
Custom Fit Trailer Hitch
Draw-Bar w/ Pin/Clip
Wiring Harness (Plug & Play)
1-7/8" Chrome Ball
Installation Hardware
Installation Instructions

Fits The Following Vehicles

2004 - 2008    Acura, TL, All Styles

Trailer Hitch Specs:


Part Number	77131
Brand	Reese
Finish	Black Powdercoat
Class	1
Receiver size opening	1-1/4"
Max gross trailer weight	2,000 lbs
Max GTW w/ weight distribution	N/A
Max Tongue Weight	200 lbs
Warranty	Lifetime
Installation Instructions

Wiring Kit Specs:



Part Number	118489
Brand	Tekonsha
Warranty	1 Year
Installation Instructions

Hitch Ball Specs:



Part Number	63810
Brand	Draw-Tite
Size	1-7/8" x 3/4" x 1-1/2"
Towing Capacity	2,000 lbs. GTW
Material	Chrome (Cold forged for superior strength)
Torque	torgue to 160 ft. lbs
Ball Hole Diameter	3/4"
Warranty	Lifetime

Ball Mount Specs:

Part Number	3594011
Brand	Reese
Finish	Black Powdercoat
Towing Capacity	2000 lb Gross Towing Weight 200 lb Tongue Weight
Drop	2.75" From inside top of hitch opening
Rise	4" from top of inside of hitch opening
Warranty	Lifetime



Thank you for choosing Reese the most powerful name in towing industry bar none. Manufactured by the same people that brought you Draw-Tite and Hidden Hitch all of our products come with standard lifetime warranty and support. Our custom hitches mount easily on your Car Truck Van SUV and RV. Most applications simply bolt on without any need for drilling or modifying your bumper. Please review installation instructions manual pdf file above for exact step by step instructions. Chose Class 1 or 2 for light duty towing, chose Class 3 4 and 5 for heavy duty towing. Pair your hitch with accessories like a ball mount that is available in several drop and rise configurations. Choose a 2 inch ball to haul most standard trailers. Choose a 1-7/8" ball to tow small and u tility trailers. Our hitches come with generous tongue weight ratings for use with cargo racks and other accessories. All parts in our store are sold at a discount. If you have any questions please do not hesitate to give us a call at 702-374-8999


Partial list of fitment years: 04 05 06 07 08 2004 2005 2006 2007 2008
