Installation Instructions for Toyota Sienna
Part Numbers:
- 90214
- 36513
- 06137
Wiring Access Location:
- SUV1, SUV2
Tools Required:
- Wrenches: 10mm, 19mm
- 6" Ratchet Extension
- Large Screwdriver
- Drill Bits: None
Step-by-Step Instructions:
-
Remove Appearance Panel:
- For vehicles with an appearance panel covering the trunk pan:
- Remove the panel.
- Trim the panel or return it untrimmed to the vehicle owner based on their preference (see Figure 2).
- For vehicles with an appearance panel covering the trunk pan:
-
Remove Plastic Plugs:
- Remove the plastic plugs from existing holes in the vehicle frame (if present).
-
Position Hitch:

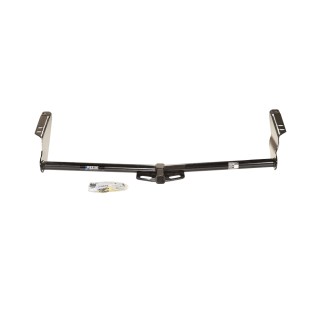

- Raise the hitch into position over the exhaust pipes, aligning the slots in the hitch with the weldnuts in the frame rails.
- Lowering the exhaust may ease installation.
- Spray lubricant on the metal hanger rod and rubber isolator to help remove the exhaust.
-
Install Fasteners:
- Install the provided fasteners through the hitch and into the weldnuts on the frame rails as shown in Figure 1.
-
Tighten Fasteners:
- Use a torque wrench to tighten all M12 CL10.9 fasteners to 75 ft-lb (102 N*m).
-
Reinstall Components:
- Raise the exhaust back into position and reattach hangers.
- Reinstall the trimmed appearance panel or return the untrimmed panel to the vehicle owner.

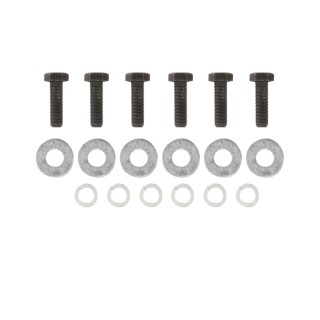

Hardware List:
- (6) Hex Bolt, M12 x 1.25 x 40mm CL10.9
- (6) Lock Washer, 1/2"
- (6) Flat Washer, 1/2"
Safety Notes:
- Frequently check the hitch to ensure all fasteners and the ball are securely tightened.
- If the hitch is removed, plug all holes in the trunk pan or other body panels to prevent water or exhaust fumes from entering.
- Replace any damaged hitch or ball immediately.
- Observe safety precautions when working beneath the vehicle and wear eye protection.
- Do not cut access or attachment holes with a torch.
Specifications:
- Max Gross Trailer Weight: 3,500 lb (1,589 kg)
- Max Tongue Weight: 300 lb (136 kg)
- Drawbar must be used in the RISE position only.
Additional Notes:

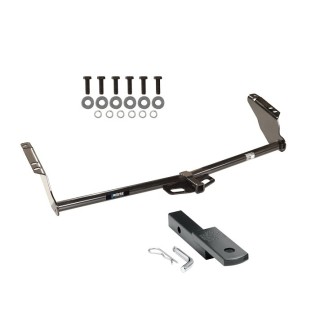

- Drawbar Kit: 36051 (sold separately)
- Fastener Kit: 36513F
- This product complies with V.E.S.C. Regulation V-5 and SAE J684 safety standards.
