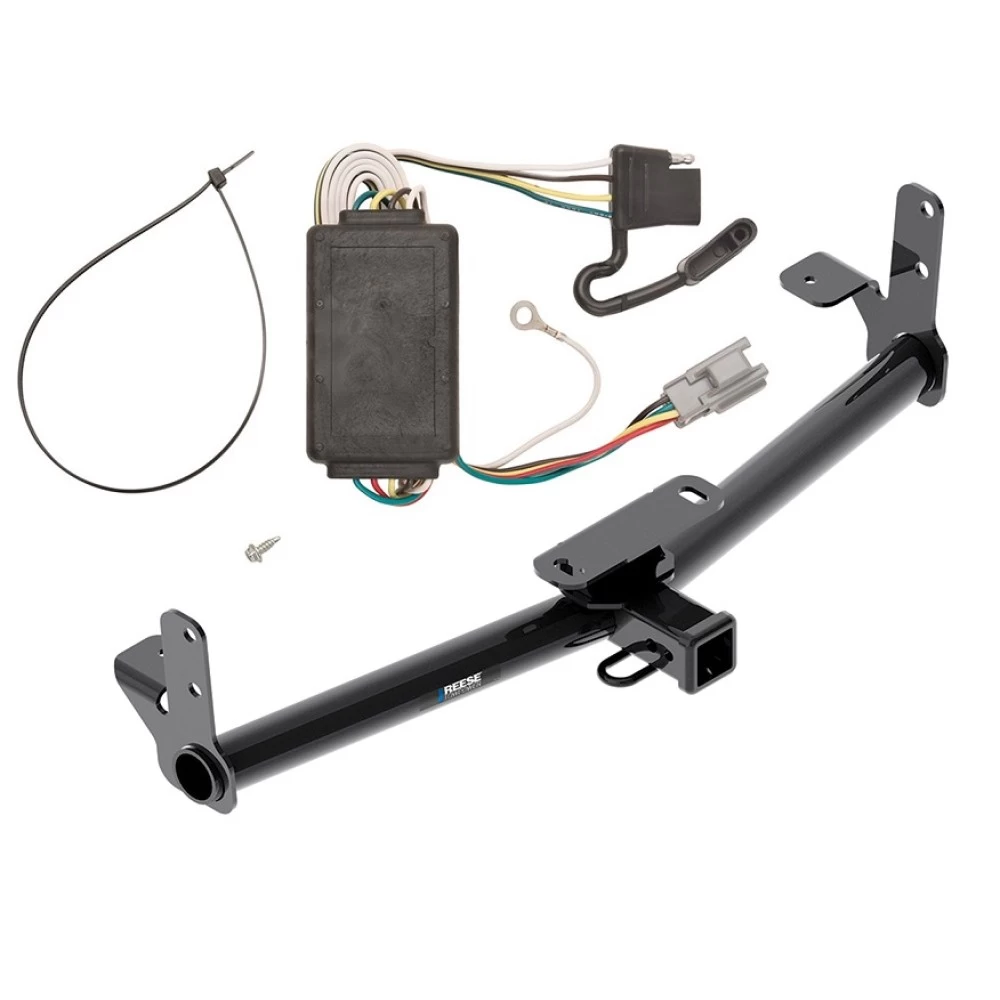

Installation Instructions for Draw-Tite and Reese Trailer Hitch #76028, #84028, and #CQT76028

Part Numbers:

• 76028
• 84028
• CQT76028

Applications:

• Years: 2005-Current (Chevrolet Equinox), 2010-Current (GMC Terrain), 2006-2009 (Pontiac Torrent), 2002-2007 (Saturn Vue, except Redline)
• Make and Models: Chevrolet Equinox, GMC Terrain, Pontiac Torrent, Saturn Vue

For the most up-to-date application years and trim levels, refer to the manufacturer's website.

Tools Required:

• Ratchet
• Torque Wrench
• Safety Glasses
• Sockets: 18 mm, 19 mm, 3/4"
• 6" Socket Extension
• Utility Knife
• Tape Measure

Step-by-Step Instructions:

1. Remove the Fascia Door:

• If present, remove the fascia door.

2. Install Carriage Bolts and Blocks:

• Feed the carriage bolt and large block through slots on the bottom of the frame rails using the pull wire as shown in Figure 3.

3. Position the Hitch:

• Raise the hitch into position, lifting the bumper mounting bracket over the fascia where necessary.
• Secure the hitch using M12 bolts and conical washers into the existing weld nuts. Be cautious not to push the bolts into the frame (Figure 1).

4. Install Hardware:

• Thread the conical washer over the pull wire to hold the bolt in place, remove the pull wire, and attach the hex nut.
• Hand-tighten all bolts.

5. Secure to Bumper:

• For vehicles without weld nuts:
  Pull carriage bolts and small blocks through the end of the bumper and the bumper mounting bracket using the pull wire. Attach the conical washer and nut.
• For vehicles with weld nuts:
  Install the M12 bolts and conical washers into the existing weld nuts on the bumper (Figure 2).

6. Tighten Fasteners:

• Torque all 1/2-13 GR5 fasteners to 75 lb-ft (102 N·m).
• Torque all M12 CL10.9 fasteners to 92 lb-ft (125 N·m).

7. Replace or Modify Fascia Door:

• Replace the fascia door for 2005-2015 Equinox models.
• For 2016 and newer models, trim the fascia door as shown in Figure 4 (obtain the owner's permission before trimming).
• Return fascia doors to the owner for other models.

Hardware List:

• 4 × Carriage Bolt (1/2-13 × 1.50 GR5)
• 2 × Spacer Block (.250 × 1.50 × 3.00)
• 8 × Conical Washer (1/2")
• 4 × Hex Nut (1/2-13 GR2)
• 6 × Bolt (M12 × 1.75 × 45 CL10.9)
• 2 × Small Spacer Block (.250 × 1.50 × 2.0)
• 4 × Pull Wire (1/2-13)

Safety Notes:

• Always wear safety glasses during installation.
• Ensure proper torque for all fasteners to keep the hitch secure while towing.
• Do not cut access or attachment holes with a torch.
• Plug all holes in the trunk pan or body panels if the hitch is removed to prevent water or exhaust entry.
• Periodically check all fasteners for tightness.

Specifications:

• Max Gross Trailer Weight (Weight Carrying/Weight Distributing): 4,500 lbs (2,043 kg)
• Max Tongue Weight (Weight Carrying/Weight Distributing): 675 lbs (306 kg)
• Installation Time: Approximately 30 minutes

This product complies with V.E.S.C. Regulation V-5 and SAE J684 safety specifications for towing systems.

For technical support and assistance, our team of experts is available to help. You can reach our tech support by visiting www.trailerjacks.com or calling 877-869-6690.

Warning: Improper use or failure to follow instructions may result in property damage, serious injury, or death. Always consult your vehicle and trailer manuals for compatibility and installation guidelines.

Installation Instructions for T-Connector Adapter

Part Numbers:

• 118391

Tools Required:

• Drill with 3/32" drill bit.
• Test light or trailer for verification.

Step-by-Step Instructions:

1. Locate the Vehicle’s Harness Area:

   • Open the rear tailgate and locate the vehicle’s jack storage compartment on the driver’s side.
   • Remove the panel and tire jack to access the harness area.

2. Find the Trailer Harness Connector:

   • Inside the driver’s side jack compartment, locate the vehicle’s trailer harness connector.
   • This is a 6-pin connector taped to the vehicle’s wiring harness near the floor of the jack compartment.

3. Install the T-Connector:

   • Remove the tape on the vehicle’s 6-pin connector.
   • Plug the T-Connector into the vehicle’s trailer plug harness.
   • Ensure the T-Connector is fully inserted with locking tabs in place.

4. Ground the White Wire:

   • Locate a suitable grounding point near the connector, such as the vehicle’s frame or crossmember.
   • Clean the grounding area to remove dirt and rustproofing.
   • Drill a 3/32" hole and secure the white wire using the provided eyelet and screw.

   Caution:

   • Verify what is behind any surface prior to drilling to avoid damage to the vehicle or personal injury.
   • Do not drill into exposed surfaces.

5. Test the Installation:

   • Use a test light or trailer to verify the T-Connector’s functionality.
   • Ensure all connections are complete for the T-Connector to function properly.

6. Store the 4-Flat Connector:

   • When not in use, store the 4-flat connector in the jack storage compartment.

   Specifications:

   • Max. stop/turn light: 1 per side (2.1 amps).
   • Max. tail lights: (5 amps).

Safety Notes:

• Overloading circuits can cause fires. Do not exceed the towing manufacturer’s rating or the unit specifications.
• Follow all warnings and installation instructions carefully.

Manufacturer Notes:

• Refer to the vehicle owner’s manual for additional guidance.
• Test thoroughly to ensure proper installation.
