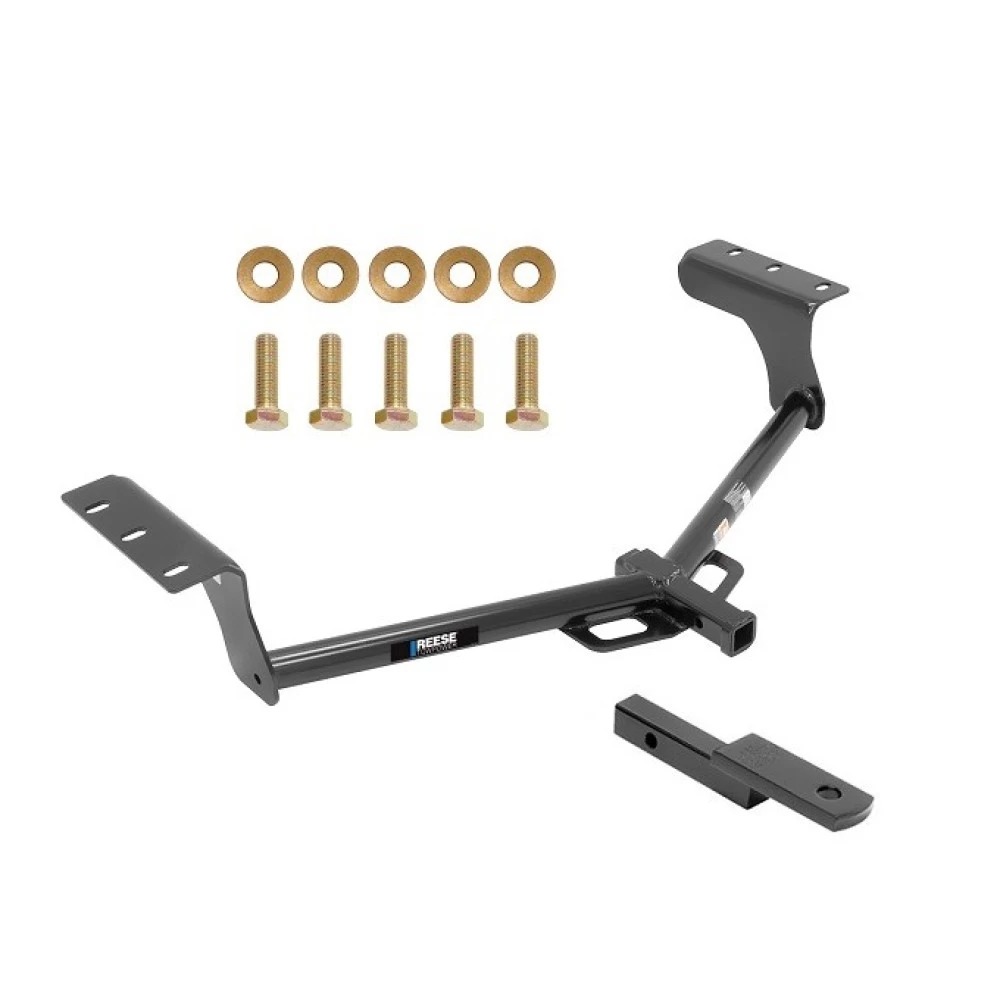

Reese Trailer Tow Hitch For 06-18 Toyota RAV4 All Styles w/ Draw Bar Kit Class 2 1-1/4" Receiver
Model: 06172 36051Includes Everything Pictured:

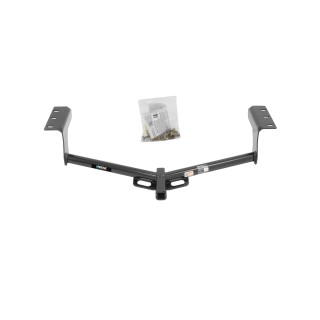

Custom Fit Trailer Hitch
Draw-Bar w/ Pin/Clip

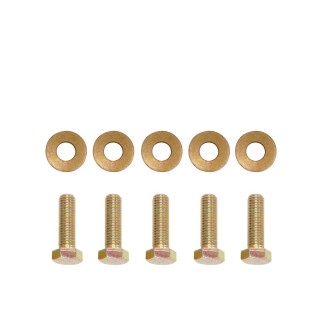

Installation Hardware
Installation Instructions
Fits The Following Vehicles
2006 - 2018 Toyota, RAV4, All Styles
Trailer Hitch Specs:
Part Number | 06172 |
Brand | Reese |
Finish | Black Powdercoat |
Class | 2 |
Receiver size opening | 1-1/4" |
Max gross trailer weight | 3,500 lbs |
Max GTW w/ weight distribution | N/A |
Max Tongue Weight | 300 lbs |
Warranty | Lifetime |
Draw-Tite Ball Mount made out of heavy duty steel can be used in either rise or drop position. Ball mount will allow you to hook up your trailer to your vehicle. Simply slide it inside of your hitch receiver opening and secure it with a pin/clip or lock (pin and clip included)
Specifications:
Fits | 1-1/4" x 1-1/4" Trailer Hitch Receiver |
Brand | Draw-Tite |
Finish | Black Powdercoat |
Length | 7" From Center of Pin Hole to Center of Ball Hole |
Rise | 5/8" From inside top of hitch opening |
Towing Capacity in Rise Position | 3,500 lb Gross Towing Weight 350 lb Tongue Weight |
Drop | 1-1/4" From inside top of hitch opening |
Towing Capacity in Drop Position | 3,500 lb Gross Towing Weight 350 lb Tongue Weight |
Ball Hole Diameter | 3/4" |
Pin hole diameter | 1/2" |
Warranty | Limited Lifetime |
REESE Towpower custom-fit hitches are built according to manufacturer vehicle weight specifications and model year to ensure a perfect fit and top towing performance. Featuring solid all-welded construction for maximum strength and safety, every hitch meets and exceeds industry standards.
Partial list of fitment years: 06 07 08 09 10 11 12 13 14 15 16 17 18 2006 2007 2008 2009 2010 2011 2012 2013 2014 2015 2016 2017 2018
$216 27 $356.99 39% OFF
- Best Price on Web Guarantee
- Fastest Shipping
- FREE Shipping
- In Stock

We match lower prices from major authorized retailers for brand-new products in original packaging, provided the item is in stock. The competing seller must be an authorized, professional retail business; offers from
individuals, auctions, peer-to-peer sites, or unauthorized sellers don’t qualify. Used, refurbished, or open-box items are excluded.
Please see our full terms for details.
Verify Fitment
View products that fit your vehicle
Fits 's with the following styles:
View products that fit your vehicle
Fits 's with the following styles:
$356.99 $216 27
Questions? Call our Auto Experts at (877) 869-6690
Get it now, pay later
Select installments at checkout to split your purchase into 4 interest-free payments of $ every 2 weeks.
- No fees, ever.
- No impact on your credit score.
Payment options are offered by Affirm and are subject to an eligibility check and might not be available in all states. CA Residents: Loans by Affirm Loan Services, LLC are made or arranged pursuant to a California Finance Lender license.
Installments in partnership with
.
Affirm and its offerings are supported in English only. Translations are not provided by Affirm.
Product Details
- Brand: Reese
- Model: 06172 36051
- Includes: Class 2 Trailer Tow Hitch, Trailer Tow Hitch Ball Mount
Compatibility Chart
Year Range | Make | Model | Style |
---|
Ask a Question about Reese Trailer Tow Hitch For 06-18 Toyota RAV4 All Styles w/ Draw Bar Kit Class 2 1-1/4" Receiver
Be the first to ask a question.
Description
Includes Everything Pictured:
Custom Fit Trailer Hitch
Draw-Bar w/ Pin/Clip
Installation Hardware
Installation Instructions
Fits The Following Vehicles
2006 - 2018 Toyota, RAV4, All Styles
Trailer Hitch Specs:
Part Number | 06172 |
Brand | Reese |
Finish | Black Powdercoat |
Class | 2 |
Receiver size opening | 1-1/4" |
Max gross trailer weight | 3,500 lbs |
Max GTW w/ weight distribution | N/A |
Max Tongue Weight | 300 lbs |
Warranty | Lifetime |
Draw-Tite Ball Mount made out of heavy duty steel can be used in either rise or drop position. Ball mount will allow you to hook up your trailer to your vehicle. Simply slide it inside of your hitch receiver opening and secure it with a pin/clip or lock (pin and clip included)
Specifications:
Fits | 1-1/4" x 1-1/4" Trailer Hitch Receiver |
Brand | Draw-Tite |
Finish | Black Powdercoat |
Length | 7" From Center of Pin Hole to Center of Ball Hole |
Rise | 5/8" From inside top of hitch opening |
Towing Capacity in Rise Position | 3,500 lb Gross Towing Weight 350 lb Tongue Weight |
Drop | 1-1/4" From inside top of hitch opening |
Towing Capacity in Drop Position | 3,500 lb Gross Towing Weight 350 lb Tongue Weight |
Ball Hole Diameter | 3/4" |
Pin hole diameter | 1/2" |
Warranty | Limited Lifetime |
REESE Towpower custom-fit hitches are built according to manufacturer vehicle weight specifications and model year to ensure a perfect fit and top towing performance. Featuring solid all-welded construction for maximum strength and safety, every hitch meets and exceeds industry standards.
Partial list of fitment years: 06 07 08 09 10 11 12 13 14 15 16 17 18 2006 2007 2008 2009 2010 2011 2012 2013 2014 2015 2016 2017 2018
