$385.93
  • Stock: In Stock
  • Brand: Reese
  • Model: 77168 3594 118470 63820 63810 580407 2211

Applies to this product only

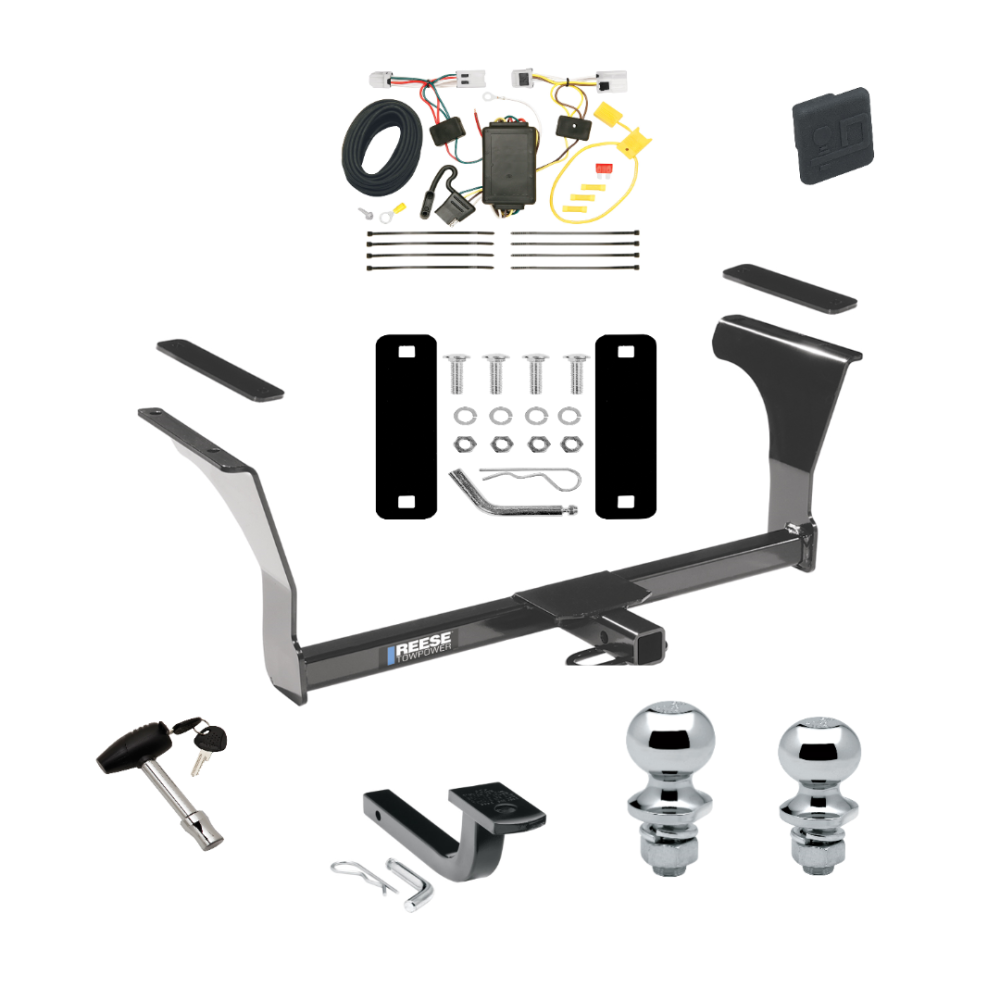

Includes Everything Pictured:
Custom Fit Trailer Hitch

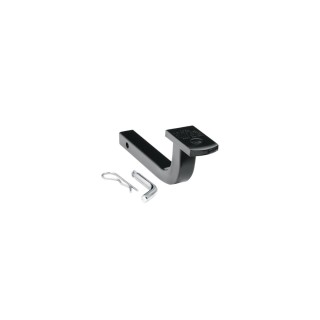

Draw-Bar w/ Pin/Clip

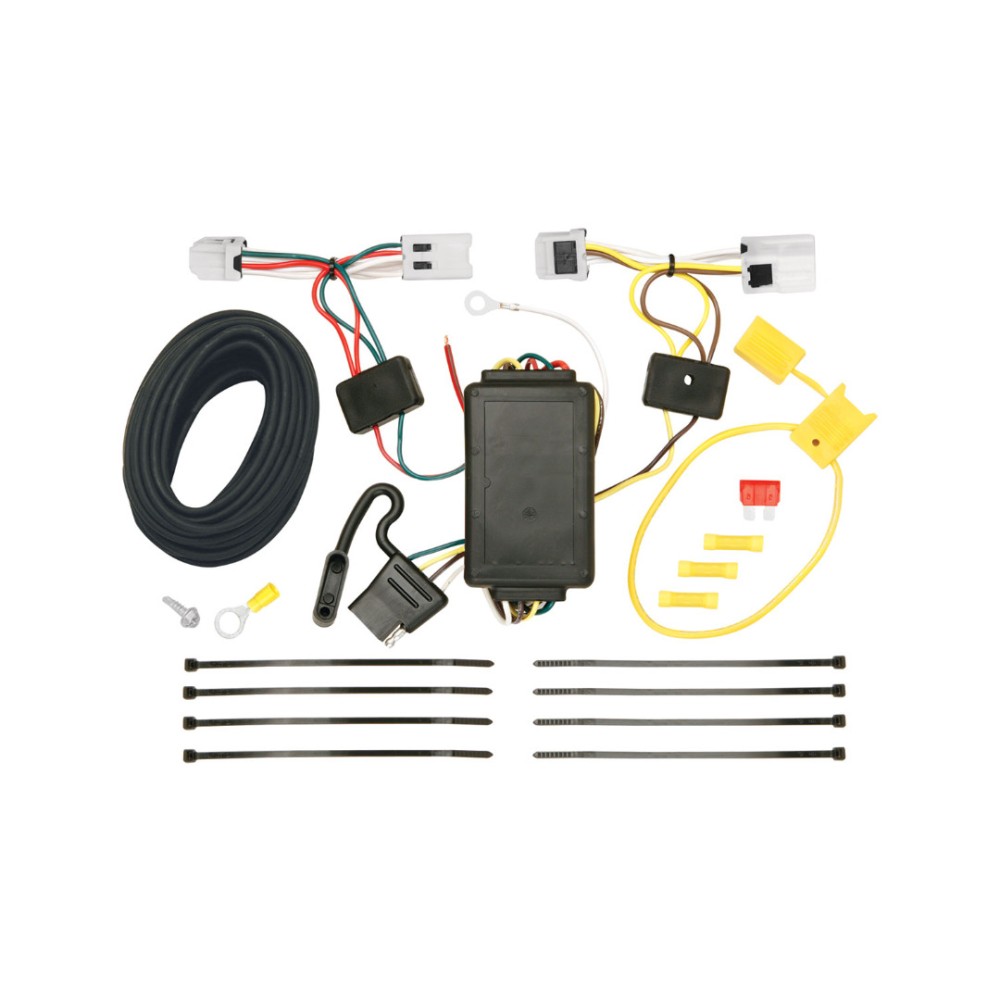

Wiring Harness (Plug & Play)
1-7/8" and 2" Chrome Ball
Security Lock Pin
  Rubber Hitch Plug Cover

Installation Hardware
Installation Instructions


Fits The Following Vehicles


2007 - 2015 Nissan, Altima, Sedan
2022 - 2024 Nissan, Altima, Sedan
2009 - 2014 Nissan, Maxima, All Styles



Trailer Hitch Specs:

Part Number 77168
Brand Reese
Finish Black Powdercoat
Class 1
Max gross trailer weight 2,000 lbs
Max Tongue Weight 200 lbs
Warranty Lifetime
Installation Instructions


Wiring Kit Specs:
Part Number 118470
Brand Tekonsha
Warranty 1 Year
Installation Instructions



Specifications:

Fits 1-1/4" x 1-1/4" Trailer Hitch Receiver
Brand Draw-Tite
Finish Black Powdercoat
Length -10" From Center of Pin Hole to Center of Ball Hole

-7-3/8" From center of pin hole to closest edge of ball platform
Rise 4" From inside top of hitch opening
Towing Capacity in Rise Position 2,000 lb Gross Towing Weight
200 lb Tongue Weight
Drop 2-3/4" From inside top of hitch opening
Towing Capacity in Drop Position 2,000 lb Gross Towing Weight
200 lb Tongue Weight
Ball Hole Diameter 3/4"
Pin hole diameter 1/2"
Warranty Limited Lifetime



Hitch Ball Specs:

Part Number 63820
Brand Draw-Tite
Size 2" x 3/4" x 1-1/2"
Towing Capacity 3,500 lbs. GTW
Material Chrome
Torque Torque to 160 ft. lbs
Shank Diameter 3/4"
Warranty Lifetime
Hitch Ball Specs:

Part Number 63810
Brand Draw-Tite
Size 1-7/8" x 3/4" x 1-1/2"
Towing Capacity 2,000 lbs. GTW
Material Chrome
(Cold forged for superior strength)
Torque torgue to 160 ft. lbs
Ball Hole Diameter 3/4"
Warranty Lifetime

Security Lock Pin
Specs:
Part Number 580407
Fits 2" and 1-7/8" Tow Receivers
Brand Draw-Tite
Prevents Theft
Use in place of standard pin and clip
Easy Access Models Feature Side Key Entry, Sliding Dust Cap, Lock Housing Rotates 360 degrees
Includes Dust Cap
Warranty Lifetime


Rubber Hitch Plug
Specs:

Part Number 2211
Fits 1-1/4" Receiver
Brand Draw-Tite
Attaches to any  1-1/4" receiver
Rubber construction tightly seals tube opening
Pin or clips are not required, simply push the cover into your  1-1/4" x 1-1/4" hitch opening
Prevents any buildup of dirt and debris
Warranty 1 Year

Questions or Comments? Call 702-374-8999

F
ounded in 1952, the Reese brand has become a household name in the heavy-duty towing industry. With proven designs that exceed the industry standards, Reese has become the brand of choice when performance is the expectation.Reese has been the leader in towing systems for more than 60 years. Over those years, much has changed within the industry with tow vehicles and their frames made lighter while the trailers have become heavier. The technology utilized yesterday can no longer be used in today’s world. Reese purchases metals from high quality steel mills with history of performance. Metals are routinely audited by third party labs for chemistry.

For our electrical we rely on Tekonsha. Our Trailer wiring kit comes with a 1 year warranty and everything necessary to install the trailer plug wiring. Tekonsha manufactures a wider range of different products for hooking up trailer lights to your Car Truck or SUV. Our connectors work great with boat trailer wiring and utility trailer wiring. Typically those trailers will use the standard 4 flat plug which is what our Wiring Kits offer. If you have an RV Fifth Wheel or any other large type of trailer you will us a 7 pin trailer plug to control your electric trailer brakes. Tekonsha offers 7 pin trailer connector as well. Simply do a search above to see if there is a 7 wire trailer wiring available for hooking up your 7 way. If there is not you can use part number 85343 trailer wiring adapter to convert any 4-Flat into a 7-Way. In addition you will use part number 20506 which will include the rest of wiring needed for electric brake controls. You can also call us or email us any time and we will be able to provide information you need.


Partial list of fitment years: 07 08 09 10 11 12 13 14 15 16 17 18 19 20 21 22 23 24 2007 2008 2009 2010 2011 2012 2013 2014 2015 2016 2017 2018 2019 2020 2021 2022 2023 2024
Specification
Attachment Location Rear
Color Black
Drawbar Included Yes
Drilling Required Yes
Gross Towing Weight 2,000 lbs.
Hitch Class I
Material Steel
Maximum Tongue Weight 200 lbs.
Mounting Hardware Included Yes
Mounting Type Vehicle Frame
Receiver Size 1.25 in.
Receiver Type Square Tube
