Reese Trailer Tow Hitch For 07‑24 Nissan Altima 09‑23 Maxima w/ Draw Bar Kit Class 1 1‑1/4" Receiver

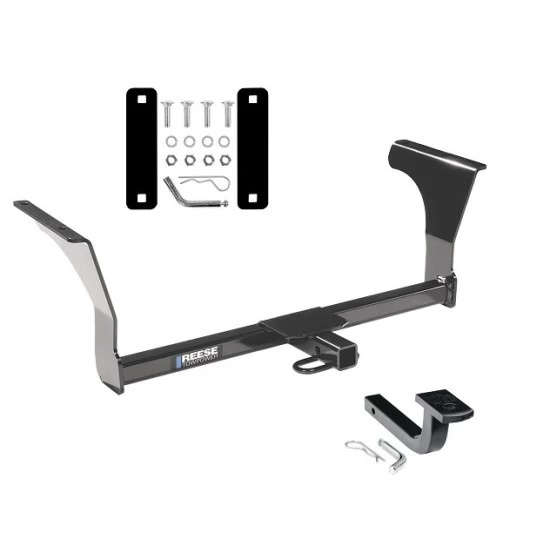

Model: 77168 3594Includes Everything Pictured:

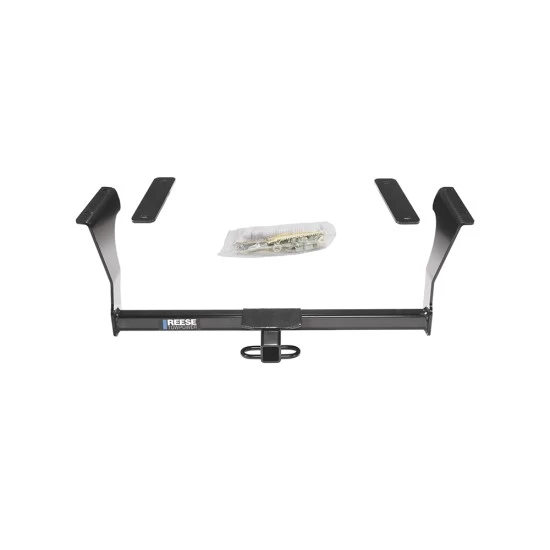

Custom Fit Trailer Hitch
Draw-Bar w/ Pin/Clip
Installation Hardware
Installation Instructions
Fits The Following Vehicles
2007 - 2024 Nissan, Altima, Sedan
2009 - 2023 Nissan, Maxima, All Styles
Trailer Hitch Specs:
| Part Number | 77168 |
| Brand | Reese |
| Finish | Black Powdercoat |
| Class | 1 |
| Receiver size opening | 1-1/4" |
| Max gross trailer weight | 2,000 lbs |
| Max GTW w/ weight distribution | N/A |
| Max Tongue Weight | 200 lbs |
| Warranty | Lifetime |
| Installation Instructions |  |

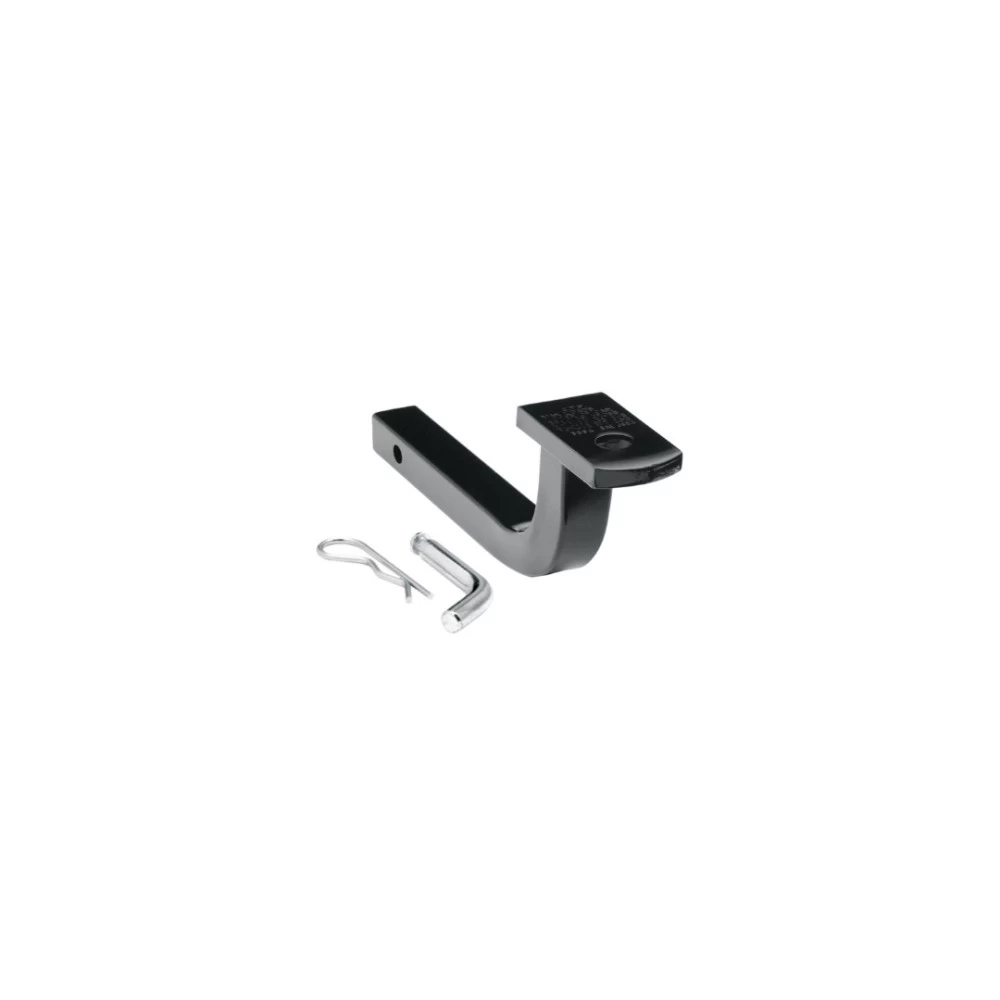

Draw-Tite Ball Mount made out of heavy duty steel can be used in either rise or drop position. Ball mount will allow you to hook up your trailer to your vehicle. Simply slide it inside of your hitch receiver opening and secure it with a pin/clip or lock (includes pin and clip)
Ball Mount Specifications:
| Fits | 1-1/4" x 1-1/4" Trailer Hitch Receiver |
| Brand | Draw-Tite |
| Finish | Black Powdercoat |
| Length | 6-5/8" From Center of Pin Hole to Center of Ball Hole |
| Rise | 2-1/8" From inside top of hitch opening |
| Towing Capacity in Rise Position | 2,000 lb Gross Towing Weight 200 lb Tongue Weight |
| Drop | 2-3/4" From inside top of hitch opening |
| Towing Capacity in Drop Position | 2,000 lb Gross Towing Weight 200 lb Tongue Weight |
| Ball Hole Diameter | 3/4" |
| Pin hole diameter | 1/2" |
| Warranty | Limited Lifetime |
Thank you for choosing Reese the most powerful name in towing industry bar none. Manufactured by the same people that brought you Draw-Tite and Hidden Hitch all of our products come with standard lifetime warranty and support. Our custom hitches mount easily on your Car Truck Van SUV and RV. Most applications simply bolt on without any need for drilling or modifying your bumper. Please review installation instructions manual pdf file above for exact step by step instructions. Chose Class 1 or 2 for light duty towing, chose Class 3 4 and 5 for heavy duty towing. Pair your hitch with accessories like a ball mount that is available in several drop and rise configurations. Choose a 2 inch ball to haul most standard trailers. Choose a 1-7/8" ball to tow small and u tility trailers. Our hitches come with generous tongue weight ratings for use with cargo racks and other accessories. All parts in our store are sold at a discount. If you have any questions please do not hesitate to give us a call at 702-374-8999
Partial list of fitment years: 07 08 09 10 11 12 13 14 15 16 17 18 19 20 21 22 23 24 2007 2008 2009 2010 2011 2012 2013 2014 2015 2016 2017 2018 2019 2020 2021 2022 2023 2024
$238 93 $378.95 37% OFF
- Best Price on Web Guarantee
- Fastest Shipping
- FREE Shipping
- In Stock
We match lower prices from major authorized retailers for brand-new products in original packaging, provided the item is in stock. The competing seller must be an authorized, professional retail business; offers from
individuals, auctions, peer-to-peer sites, or unauthorized sellers don’t qualify. Used, refurbished, or open-box items are excluded.
Please see our full terms for details.
Verify Fitment
$378.95 $238 93
Learn more
Questions? Call our Auto Experts at (877) 869-6690
Get it now, pay later
Select installments at checkout to split your purchase into 4 interest-free payments of $59.50 every 2 weeks.
- No fees, ever.
- No impact on your credit score.
Payment options are offered by Affirm and are subject to an eligibility check and might not be available in all states. CA Residents: Loans by Affirm Loan Services, LLC are made or arranged pursuant to a California Finance Lender license.
Installments in partnership with
.
Affirm and its offerings are supported in English only. Translations are not provided by Affirm.
Product Details
- Brand: Reese
- Model: 77168 3594
- Includes: Class 1 Trailer Tow Hitch, Trailer Tow Hitch Ball Mount
Compatibility Chart
Includes Everything Pictured:
Custom Fit Trailer Hitch
Draw-Bar w/ Pin/Clip
Installation Hardware
Installation Instructions
Fits The Following Vehicles
2007 - 2024 Nissan, Altima, Sedan
2009 - 2023 Nissan, Maxima, All Styles
Trailer Hitch Specs:
| Part Number | 77168 |
| Brand | Reese |
| Finish | Black Powdercoat |
| Class | 1 |
| Receiver size opening | 1-1/4" |
| Max gross trailer weight | 2,000 lbs |
| Max GTW w/ weight distribution | N/A |
| Max Tongue Weight | 200 lbs |
| Warranty | Lifetime |
| Installation Instructions | |
Draw-Tite Ball Mount made out of heavy duty steel can be used in either rise or drop position. Ball mount will allow you to hook up your trailer to your vehicle. Simply slide it inside of your hitch receiver opening and secure it with a pin/clip or lock (includes pin and clip)
Ball Mount Specifications:
| Fits | 1-1/4" x 1-1/4" Trailer Hitch Receiver |
| Brand | Draw-Tite |
| Finish | Black Powdercoat |
| Length | 6-5/8" From Center of Pin Hole to Center of Ball Hole |
| Rise | 2-1/8" From inside top of hitch opening |
| Towing Capacity in Rise Position | 2,000 lb Gross Towing Weight 200 lb Tongue Weight |
| Drop | 2-3/4" From inside top of hitch opening |
| Towing Capacity in Drop Position | 2,000 lb Gross Towing Weight 200 lb Tongue Weight |
| Ball Hole Diameter | 3/4" |
| Pin hole diameter | 1/2" |
| Warranty | Limited Lifetime |
Thank you for choosing Reese the most powerful name in towing industry bar none. Manufactured by the same people that brought you Draw-Tite and Hidden Hitch all of our products come with standard lifetime warranty and support. Our custom hitches mount easily on your Car Truck Van SUV and RV. Most applications simply bolt on without any need for drilling or modifying your bumper. Please review installation instructions manual pdf file above for exact step by step instructions. Chose Class 1 or 2 for light duty towing, chose Class 3 4 and 5 for heavy duty towing. Pair your hitch with accessories like a ball mount that is available in several drop and rise configurations. Choose a 2 inch ball to haul most standard trailers. Choose a 1-7/8" ball to tow small and u tility trailers. Our hitches come with generous tongue weight ratings for use with cargo racks and other accessories. All parts in our store are sold at a discount. If you have any questions please do not hesitate to give us a call at 702-374-8999
Partial list of fitment years: 07 08 09 10 11 12 13 14 15 16 17 18 19 20 21 22 23 24 2007 2008 2009 2010 2011 2012 2013 2014 2015 2016 2017 2018 2019 2020 2021 2022 2023 2024
Get Expert Help
Reese Trailer Tow Hitch For 07-24 Nissan Altima 09-23 Maxima w/ Draw Bar Kit Class 1 1-1/4" Receiver Install Notes
Installation Instructions for Nissan Altima and Nissan Maxima
Part Numbers:
- 60873
- 24796
- 77168
Wiring Access Location:
- PC3, PC4
Tools Required:
- Wrenches: 11/16”, 5/8”, 16mm
- Drill Bits: 7/16”
- Sealant
Specifications:
- Max Gross Trailer Weight: 2,000 lb. (908 kg)
- Max Tongue Weight: 200 lb. (90.8 kg)
- Note: Do not exceed towing vehicle manufacturer’s rating.
Step-by-Step Instructions:
-
Prepare Trunk Area:
- Remove carpeting, fiberboard, and storage bin tray (if present) from the trunk.
-
Remove Ground Wire:
- Detach the ground wire from the driver’s side muffler.
-
Disconnect Exhaust:
- For 2007-2011 Models:
- Disconnect the exhaust at the flange on both sides and retain the fasteners.
- For 2012 and Later Models:
- Disconnect the exhaust at the lap joint on both sides and retain the fasteners.
- For 2007-2011 Models:
-
Expose Frame Area:
- Push the exhaust toward the rear of the vehicle and off the rubber isolator.
- Gently move the heat shield toward the frame rail to expose the area between the frame rail and wheel well.
-
Position Hitch:
- Raise the hitch into position between the frame rails and spare tire wheel well.
- Align the rear edge of the hitch side brackets flush with the bulkhead.
- Verify the hitch is properly positioned.
-
Mark and Drill Holes:
- Using the hitch as a template, mark and center punch two (2) holes on both sides.
- Lower the hitch and drill 7/16” holes through the trunk pan at the marked locations. Adjust alignment if needed, and remove burrs.
-
Install Plates and Bolts:
- Position the provided plate over the drilled holes inside the trunk.
- Insert carriage bolts through the plate and trunk pan. Ensure the installation is above the carpet.
-
Attach Hitch:
- Raise the hitch into position, align it over the carriage bolts, and secure with lock washers and hex nuts.
-
Reattach Components:
- Gently bend the heat shield back into place.
- Reattach the exhaust to the rubber isolator and the flange/lap joint.
- Reinstall the ground wire to the muffler.
-
Seal Bolts:
- Apply sealant to the bolt attachments inside the spare tire well to prevent water and exhaust fumes from entering the vehicle.
-
Reinstall Trunk Components:
- Replace the carpeting, fiberboard, and storage bin tray (if present).

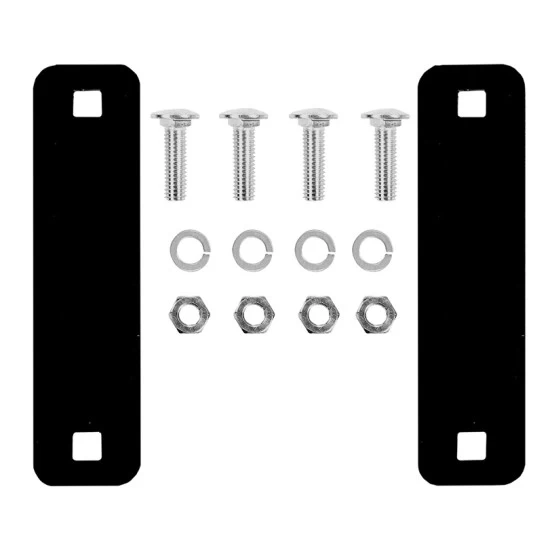

Hardware List:
- (4) Carriage Bolts: 7/16”-14 x 1.50” GR5
- (4) Nuts: 7/16”-14
- (4) Lock Washers
Safety Notes:
- Regularly inspect all fasteners and the hitch ball to ensure they are securely tightened.
- If the hitch is removed, plug any holes in the trunk pan to prevent water and exhaust fumes from entering.
- Replace any damaged hitch or ball immediately.
- Always observe safety precautions and wear eye protection when working under the vehicle.
- Do not use a torch to cut access or attachment holes.
Drawbar:
- Drawbar Kit: 3594
- Important: The drawbar must be used in the rise position only.
Compliance:
- This product complies with SAE J684, V.E.S.C. Regulation V-5, and safety requirements of the State of New York.
Additional Notes:
- Tighten all 7/16”-14 GR5 fasteners to 50 Lb.-Ft. (68 N*M) using a torque wrench.
- Check the hitch frequently to ensure all fasteners remain tight.
