Reese Trailer Tow Hitch For 13‑19 Ford Escape 1‑1/4" Receiver w/ Draw Bar Kit

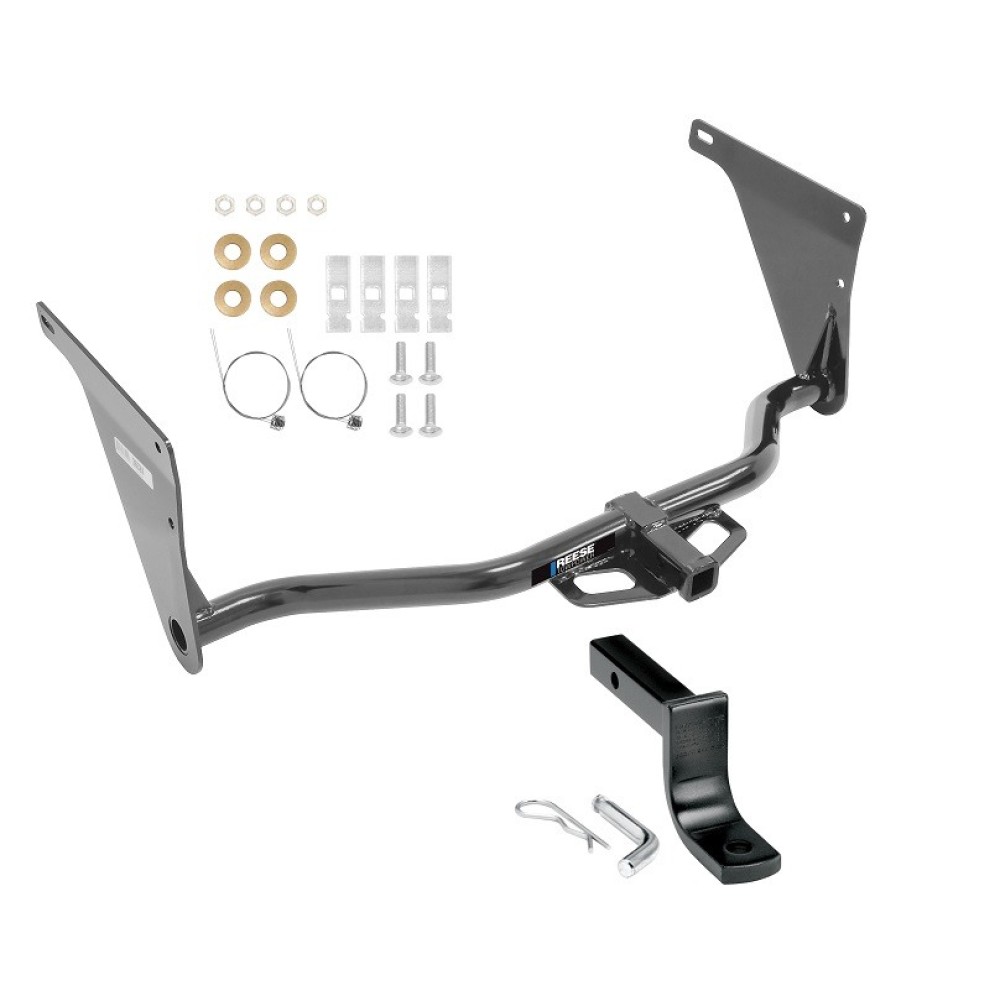

Model: 06147 36071Includes Everything Pictured:
Custom Fit Trailer Hitch
Draw-Bar w/ Pin/Clip
Installation Hardware
Installation Instructions
Fits The Following Vehicles:
2013 - 2019 Ford, Escape, All StylesTrailer Hitch Specs:
| Part Number | 06147 |
| Brand | Reese |
| Finish | Black Powdercoat |
| Class | 2 |
| Receiver size opening | 1-1/4" |
| Max gross trailer weight | 3,500 lbs |
| Max GTW w/ weight distribution | N/A |
| Max Tongue Weight | 300 lbs |
| Warranty | Lifetime |
Draw-Tite Ball Mount made out of heavy duty steel can be used in either rise or drop position. Ball mount will allow you to hook up your trailer to your vehicle. Simply slide it inside of your hitch receiver opening and secure it with a pin/clip or lock (pin and clip included)
Specifications:
| Fits | 1-1/4" x 1-1/4" Trailer Hitch Receiver |
| Brand | Draw-Tite |
| Finish | Black Powdercoat |
| Length | 7-3/16" From Center of Pin Hole to Center of Ball Hole |
| Rise | 2-5/8" From inside top of hitch opening |
| Towing Capacity in Rise Position | 3,500 lb Gross Towing Weight 300 lb Tongue Weight |
| Drop | 3-1/4" From inside top of hitch opening |
| Towing Capacity in Drop Position | 3,500 lb Gross Towing Weight 300 lb Tongue Weight |
| Ball Hole Diameter | 3/4" |
| Pin hole diameter | 1/2" |
| Warranty | Limited Lifetime |
REESE Towpower custom-fit hitches are built according to manufacturer vehicle weight specifications and model year to ensure a perfect fit and top towing performance. Featuring solid all-welded construction for maximum strength and safety, every hitch meets and exceeds industry standards.
Partial list of fitment years: 13 14 15 16 17 18 19 2013 2014 2015 2016 2017 2018 2019
$274 33 $434.83 37% OFF
- Best Price on Web Guarantee
- Fastest Shipping
- FREE Shipping
- Pre-Order
We match lower prices from major authorized retailers for brand-new products in original packaging, provided the item is in stock. The competing seller must be an authorized, professional retail business; offers from
individuals, auctions, peer-to-peer sites, or unauthorized sellers don’t qualify. Used, refurbished, or open-box items are excluded.
Please see our full terms for details.
Verify Fitment
$434.83 $274 33
Learn more
Questions? Call our Auto Experts at (877) 869-6690
Get it now, pay later
Select installments at checkout to split your purchase into 4 interest-free payments of $68.50 every 2 weeks.
- No fees, ever.
- No impact on your credit score.
Payment options are offered by Affirm and are subject to an eligibility check and might not be available in all states. CA Residents: Loans by Affirm Loan Services, LLC are made or arranged pursuant to a California Finance Lender license.
Installments in partnership with
.
Affirm and its offerings are supported in English only. Translations are not provided by Affirm.
Product Details
- Brand: Reese
- Model: 06147 36071
- Includes: Class 2 Trailer Tow Hitch, Trailer Tow Hitch Ball Mount
Compatibility Chart
Get Expert Help
Reese Trailer Tow Hitch For 13-19 Ford Escape 1-1/4" Receiver w/ Draw Bar Kit Install Notes
Installation Instructions for Ford Escape
Part Numbers:
- 36524
- 90219
- 06147
Wiring Access Location:
- SUV1, SUV2
Tools Required:
- Wrench: 11/16"
- Drill with 3/8" Drill Bit (for enlarging access holes if necessary)
Step-by-Step Instructions:
-
Prepare Frame Rails:
- Feed spacers and carriage bolts into position in both frame rails using the provided pull wires. Leave pull wires attached.
- Note: Do not engage the bolt and spacer when inserting into the frame. Insert them separately as shown in Figure 3.
-
Push Fasteners Into Frame Rails:
- Push the fasteners back into the frame rails, ensuring the pull wires remain accessible and sticking out of the frame rails.
-
Raise Hitch Into Position:
- Position the hitch between the frame rails.
- Feed the pull wires through the adjacent holes in the hitch.
- On the passenger side, ensure the forward end of the hitch bracket is positioned over the hoses crossing the frame rail.
-
Secure Fasteners:
- Pull the fasteners back through the access holes in the hitch and frame rails.
- Remove the pull wires carefully, ensuring the fasteners do not fall back into the frame.
- Attach conical washers (teeth facing the hitch) and hex nuts to the fasteners.
-
Tighten Fasteners:
- Use a torque wrench to tighten all 7/16"-14 GR5 fasteners to 50 ft-lb (68 N*m).
Torque Specifications:
- Tighten all 7/16"-14 GR5 fasteners to 50 ft-lb (68 N*m).
Hardware List:
- (4) Carriage Bolt, 7/16"-14 x 1.50" GR5
- (4) Spacer, 1/4" x 7/8" x 3.00"
- (4) Conical Washer, 7/16"
- (4) Hex Nut, 7/16"-14
- (4) Pull Wire, 7/16"
Notes on Hands-Free Liftgate Sensors:
- If the vehicle is equipped with the "Hands-Free Liftgate" option, the sensor function will be limited to a specific area near the hitch (see Figure 2).
Safety Notes:
- Frequently check the hitch to ensure all fasteners and the ball are securely tightened.
- If the hitch is removed, plug all holes in the trunk pan or other body panels to prevent water or exhaust fumes from entering.
- Replace any damaged hitch or ball immediately.
- Observe safety precautions when working beneath the vehicle and wear eye protection.
- Do not cut access or attachment holes with a torch.
Specifications:
- Max Gross Trailer Weight: 3,500 lb (1,589 kg)
- Max Tongue Weight: 300 lb (136 kg)
- Drawbar must be used in the RISE position only.
Additional Notes:
- Drawbar Kit: 36071 (sold separately)
- Fastener Kit: 36524F
- This product complies with V.E.S.C. Regulation V-5 and SAE J684 safety standards.
