Reese Trailer Tow Hitch For 13‑22 Chevy Trax 13‑23 Buick Encore 2" Towing Receiver Class 3
Model: 845932013 - 2022 Buick, Encore, All Styles
2013 - 2023 Chevrolet, Trax, All Styles
Trailer Hitch Specs:
Partial list of fitment years: 13 14 15 16 17 18 19 20 21 22 23 2013 2014 2015 2016 2017 2018 2019 2020 2021 2022 2023
$342 01 $377.98 10% OFF
- Best Price on Web Guarantee
- Fastest Shipping
- FREE Shipping
- In Stock

We match lower prices from major authorized retailers for brand-new products in original packaging, provided the item is in stock. The competing seller must be an authorized, professional retail business; offers from
individuals, auctions, peer-to-peer sites, or unauthorized sellers don’t qualify. Used, refurbished, or open-box items are excluded.
Please see our full terms for details.
Verify Fitment
View products that fit your vehicle
Fits 's with the following styles:
View products that fit your vehicle
Fits 's with the following styles:
$377.98 $342 01
Questions? Call our Auto Experts at (877) 869-6690
Get it now, pay later
Select installments at checkout to split your purchase into 4 interest-free payments of $85.50 every 2 weeks.
- No fees, ever.
- No impact on your credit score.
Payment options are offered by Affirm and are subject to an eligibility check and might not be available in all states. CA Residents: Loans by Affirm Loan Services, LLC are made or arranged pursuant to a California Finance Lender license.
Installments in partnership with
.
Affirm and its offerings are supported in English only. Translations are not provided by Affirm.
Product Details
- Brand: Reese
- Model: 84593

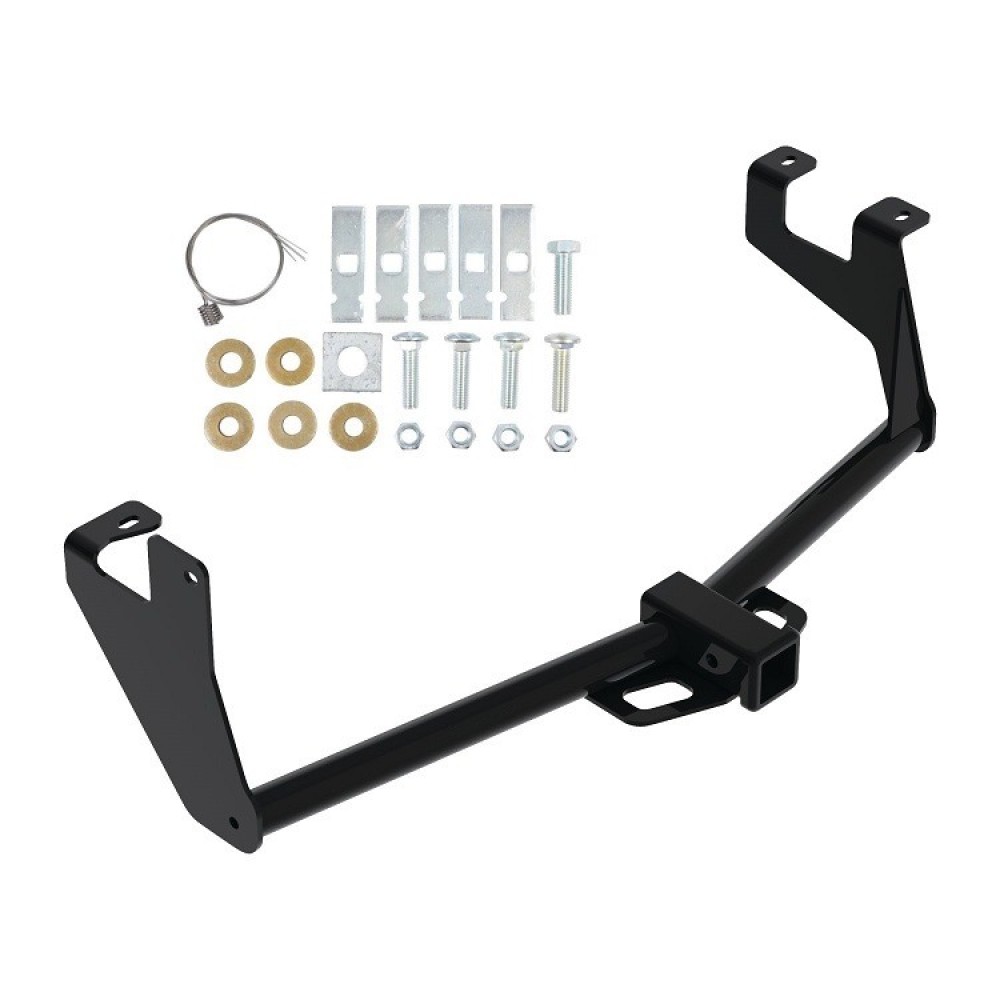

- Includes: Class 3 Trailer Tow Hitch
Compatibility Chart
Year Range | Make | Model | Style |
---|---|---|---|
Loading... |
Specification | |
Attachment Location | Rear |
Ball Mount Included | No |
Color | Black |
Drilling Required | Yes |
Gross Towing Weight | 3,500 lbs. |
Hitch Class | III |
Material | Steel |
Maximum Tongue Weight | 525 lbs. |
Mounting Hardware Included | Yes |
Mounting Type | Vehicle Frame |
Receiver Size | 2 in. |
Receiver Type | Round Tube |
Be the first to ask a question.
Description
2013 - 2022 Buick, Encore, All Styles
2013 - 2023 Chevrolet, Trax, All Styles
Trailer Hitch Specs:
Partial list of fitment years: 13 14 15 16 17 18 19 20 21 22 23 2013 2014 2015 2016 2017 2018 2019 2020 2021 2022 2023
Get Expert Help
Reese Trailer Tow Hitch For 13-22 Chevy Trax 13-23 Buick Encore 2" Towing Receiver Class 3 Install Notes
Installation Instructions for 2013-Current Chevrolet Trax and Buick Encore
Part Numbers:
- 76593
- 84593
- CQT76593
Tools Required:
- Ratchet
- Torque Wrench
- Safety Glasses
- Sockets: 19 mm, 11/16"
- Wire Brush
- Exhaust Removal Pliers
- Soapy Water
Step-by-Step Instructions:
-
Insert Pull Wires:
- Insert pull wires into the frame rails and use them to feed the carriage bolts and spacers into the frame rails through the access holes.
- Leave the pull wires attached.
-
Lower Exhaust System:
- Use exhaust removal pliers to remove the exhaust system at two rubber isolators.
- Spray lubricant or soapy water on the metal hanger rod and rubber isolators to ease removal.
- Support the muffler to avoid damage.
-
Position Hitch:
- Add one spacer to the flange on the driver's side bracket if needed.
- Raise the hitch into position and slide it over the top of the exhaust pipe on the passenger side.
- Feed the pull wires through the slots in the brackets.
-
Secure Hitch:
- Remove the pull wires and loosely install conical washers and hex nuts to secure the hitch.
- For vehicles with a weldnut on the driver's side frame, use the provided M12 bolt and conical washer.
-
Tighten Fasteners:
- Tighten all 7/16”-14 GR5 fasteners to 50 ft-lbs (68 N*m).
- Tighten all M12 x 1.75 CL8.8 fasteners to 68 ft-lbs (92 N*m).
-
Reinstall Exhaust:
- Reinstall the exhaust system onto the rubber isolators.
Hardware List:
- (4) Carriage Bolt 7/16"-14 x 1.75" GR5
- (5) Spacer 0.25" x 0.875" x 3.00"
- (4) Conical Washer 7/16"
- (4) Hex Nut 7/16"-14 GR2
- (4) Pull Wire 7/16"
- (1) Bolt M12 x 1.75 x 40 mm CL8.8
- (1) Conical Washer 1/2"
- (1) Bevel Washer
Safety Notes:
- Always wear safety glasses during installation.
- Periodically check that all fasteners and the ball are securely tightened.
- Replace any damaged hitch or ball immediately.
- Plug all holes in the trunk pan or body panels if the hitch is removed to prevent the entry of water or exhaust fumes.
- Observe all safety precautions when working beneath the vehicle.
- Do not cut access or attachment holes with a torch.
Specifications:
- Weight Carrying Capacity: 3,500 lbs (1,589 kg) trailer weight, 525 lbs (238 kg) tongue weight.
- Weight Distributing Capacity: Not applicable.
- Product complies with V.E.S.C. Regulation V-5 and SAE J684.
Additional Notes:
- Installation time for professional installers is approximately 40 minutes.
- For detailed photo instructions, scan the QR code provided in the manual or visit the website.
