Reese Trailer Tow Hitch For 14-17 KIA Rondo Canada Only Deluxe Package Wiring 2" and 1-7/8" Ball and Lock

Reese Trailer Tow Hitch For 14-17 KIA Rondo Canada Only Deluxe Package Wiring 2" and 1-7/8" Ball and Lock
Reese Trailer Tow Hitch For 14-17 KIA Rondo Canada Only Deluxe Package Wiring 2" and 1-7/8" Ball and Lock
Reese Trailer Tow Hitch For 14-17 KIA Rondo Canada Only Deluxe Package Wiring 2" and 1-7/8" Ball and Lock
Reese Trailer Tow Hitch For 14-17 KIA Rondo Canada Only Deluxe Package Wiring 2" and 1-7/8" Ball and Lock
Reese Trailer Tow Hitch For 14-17 KIA Rondo Canada Only Deluxe Package Wiring 2" and 1-7/8" Ball and Lock
Reese Trailer Tow Hitch For 14-17 KIA Rondo Canada Only Deluxe Package Wiring 2" and 1-7/8" Ball and Lock
Reese Trailer Tow Hitch For 14-17 KIA Rondo Canada Only Deluxe Package Wiring 2" and 1-7/8" Ball and Lock
Reese Trailer Tow Hitch For 14-17 KIA Rondo Canada Only Deluxe Package Wiring 2" and 1-7/8" Ball and Lock
Reese Trailer Tow Hitch For 14-17 KIA Rondo Canada Only Deluxe Package Wiring 2" and 1-7/8" Ball and Lock
Reese Trailer Tow Hitch For 14-17 KIA Rondo Canada Only Deluxe Package Wiring 2" and 1-7/8" Ball and Lock
Reese Trailer Tow Hitch For 14-17 KIA Rondo Canada Only Deluxe Package Wiring 2" and 1-7/8" Ball and Lock
Reese Trailer Tow Hitch For 14-17 KIA Rondo Canada Only Deluxe Package Wiring 2" and 1-7/8" Ball and Lock
Reese Trailer Tow Hitch For 14-17 KIA Rondo Canada Only Deluxe Package Wiring 2" and 1-7/8" Ball and Lock
Reese Trailer Tow Hitch For 14-17 KIA Rondo Canada Only Deluxe Package Wiring 2" and 1-7/8" Ball and Lock
Reese Trailer Tow Hitch For 14-17 KIA Rondo Canada Only Deluxe Package Wiring 2" and 1-7/8" Ball and Lock
Reese Trailer Tow Hitch For 14-17 KIA Rondo Canada Only Deluxe Package Wiring 2" and 1-7/8" Ball and Lock
Reese Trailer Tow Hitch For 14-17 KIA Rondo Canada Only Deluxe Package Wiring 2" and 1-7/8" Ball and Lock
Reese Trailer Tow Hitch For 14-17 KIA Rondo Canada Only Deluxe Package Wiring 2" and 1-7/8" Ball and Lock
Reese Trailer Tow Hitch For 14-17 KIA Rondo Canada Only Deluxe Package Wiring 2" and 1-7/8" Ball and Lock
0 reviews - Write a review
$344.09
  • Stock: In Stock
  • Brand: Reese
  • Model: 06184 36061 119148 63820 63810 580407 2211
Add to Cart
Buy Now Ask Question
Add to Wish List Compare this Product

Applies to this product only
Estimate

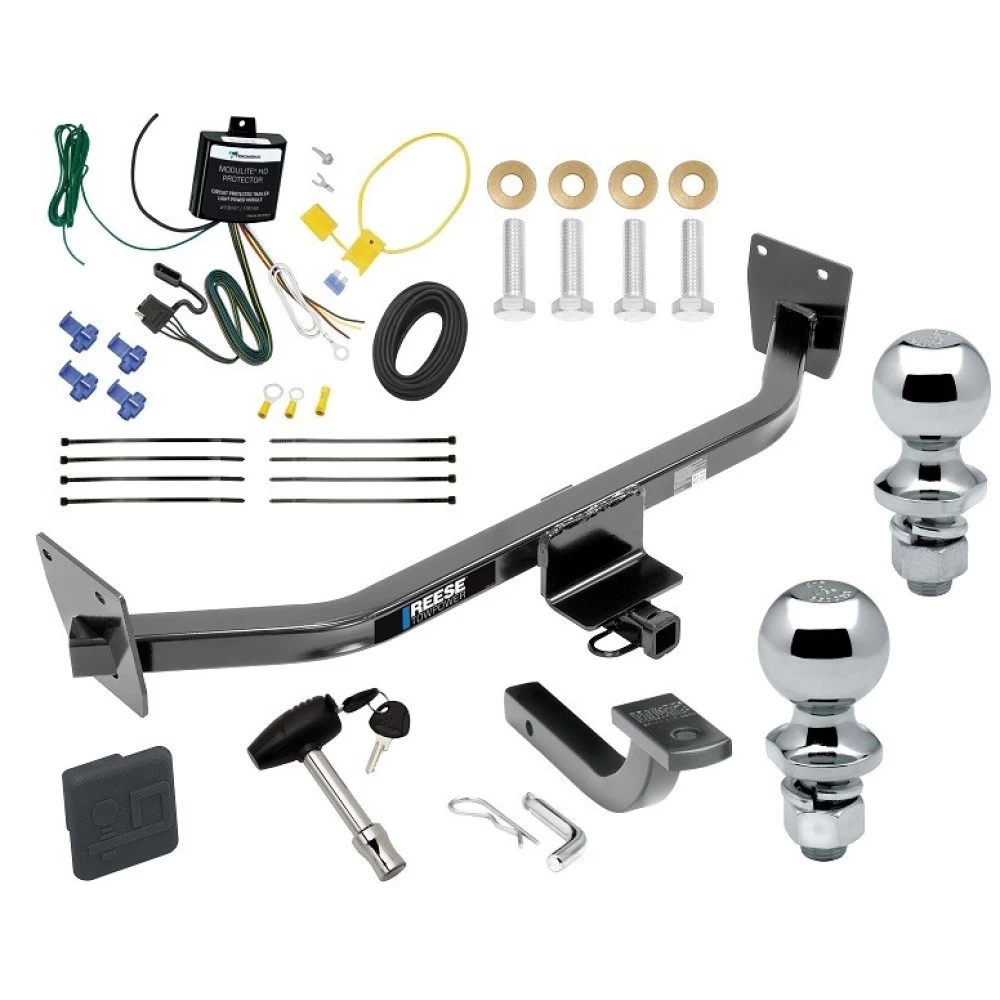

Includes Everything Pictured:
Custom Fit Trailer Hitch
Draw-Bar w/ Pin/Clip
Wiring Harness (Requires Splicing)
1-7/8" and 2" Chrome Ball
Security Lock Pin
  Rubber Hitch Plug Cover
Installation Hardware
Installation Instructions

Fits The Following Vehicles

​2014 - 2017    KIA, Rondo, (Canada Only)

Trailer Hitch Specs:
Part Number 06184
Brand Reese
Finish Black Powdercoat
Class 2
Receiver size opening 1-1/4"
Max gross trailer weight 3,500 lbs
Max GTW w/ weight distribution N/A
Max Tongue Weight 300 lbs
Warranty Lifetime


Draw-Tite Ball Mount made out of heavy duty steel can be used in either rise or drop position. Ball mount will allow you to hook up your trailer to your vehicle. Simply slide it inside of your hitch receiver opening and secure it with a pin/clip or lock (pin and clip included)


Specifications:

Fits 1-1/4" x 1-1/4" Trailer Hitch Receiver
Brand Draw-Tite
Finish Black Powdercoat
Length 9-3/4" From Center of Pin Hole to Center of Ball Hole
Rise 3-1/8" From inside top of hitch opening
Towing Capacity in Rise Position 3,500 lb Gross Towing Weight
300 lb Tongue Weight
Towing Capacity in Drop Position 3,500 lb Gross Towing Weight
300 lb Tongue Weight
Ball Hole Diameter 3/4"
Pin hole diameter 1/2"
Warranty Limited Lifetime

Wiring Kit Specs:
Part Number 119148
Brand Tekonsha
Warranty 1 Year


Hitch Ball Specs:

Part Number 63820
Brand Draw-Tite
Size 2" x 3/4" x 1-1/2"
Towing Capacity 3,500 lbs. GTW
Material Chrome
Torque Torque to 160 ft. lbs
Shank Diameter 3/4"
Warranty Lifetime

Hitch Ball Specs:

Part Number 63810
Brand Draw-Tite
Size 1-7/8" x 3/4" x 1-1/2"
Towing Capacity 2,000 lbs. GTW
Material Chrome
(Cold forged for superior strength)
Torque torgue to 160 ft. lbs
Ball Hole Diameter 3/4"
Warranty Lifetime


Questions or Comments? Call 702-374-8999


REESE Towpower custom-fit hitches are built according to manufacturer vehicle weight specifications and model year to ensure a perfect fit and top towing performance. Featuring solid all-welded construction for maximum strength and safety, every hitch meets and exceeds industry standards.

Partial list of fitment years: 14 15 16 17 2014 2015 2016 2017

Specification
Attachment Location Rear
Color Black
Drawbar Included Yes
Drilling Required No
Gross Towing Weight 3,500 lbs.
Hitch Class II
Material Steel
Maximum Tongue Weight 300 lbs.
Mounting Hardware Included Yes
Mounting Type Vehicle Frame
Receiver Size 1.25 in.
Receiver Type Square Tube
