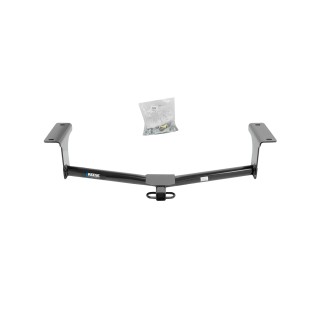

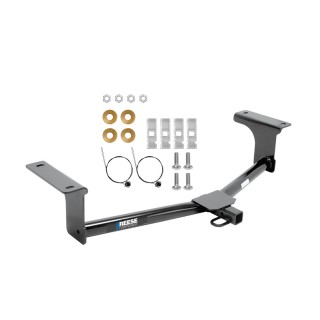

Reese Trailer Tow Hitch For 14-18 Mazda 3 Sedan 1-1/4" Towing Receiver Class 1

Reese Trailer Tow Hitch For 14‑18 Mazda 3 Sedan 1‑1/4" Towing Receiver Class 1

Model: 77299

This Hitch Fits The Following Vehicles:

2014 - 2018 Mazda, 3, 4 Dr. Sedan

Trailer Hitch Specs:

Part Number	77299
Brand	Reese
Finish	Black Powdercoat
Class	1
Receiver size opening	1-1/4"
Max gross trailer weight	2,000 lbs
Max GTW w/ weight distribution	N/A
Max Tongue Weight	200 lbs
Warranty	Lifetime
Installation Instructions

Questions or Comments? Call 702-374-8999

Thank you for choosing Reese the most powerful name in towing industry bar none. Manufactured by the same people that brought you Draw-Tite and Hidden Hitch all of our products come with standard lifetime warranty and support. Our custom hitches mount easily on your Car Truck Van SUV and RV. Most applications simply bolt on without any need for drilling or modifying your bumper. Please review installation instructions manual pdf file above for exact step by step instructions. Chose Class 1 or 2 for light duty towing, chose Class 3 4 and 5 for heavy duty towing. Pair your hitch with accessories like a ball mount that is available in several drop and rise configurations. Choose a 2 inch ball to haul most standard trailers. Choose a 1-7/8" ball to tow small and u tility trailers. Our hitches come with generous tongue weight ratings for use with cargo racks and other accessories. All parts in our store are sold at a discount. If you have any questions please do not hesitate to give us a call at 702-374-8999

Partial list of fitment years: 14 15 16 17 18 2014 2015 2016 2017 2018

See Full Description

$174 ⁵⁷ $272.60 36% OFF

Best Price on Web Guarantee
Fastest Shipping
FREE Shipping
In Stock

Best Price on Web Guarantee

We match lower prices from major authorized retailers for brand-new products in original packaging, provided the item is in stock. The competing seller must be an authorized, professional retail business; offers from individuals, auctions, peer-to-peer sites, or unauthorized sellers don’t qualify. Used, refurbished, or open-box items are excluded.

Please see our full terms for details.

Applies to this product only

Please wait...

Verify Fitment

Year

Make

Model

Add to Wish List

$272.60 $174 ⁵⁷

Pay in 4 interest-free installments of $43.50 with

Learn more

Questions? Call our Auto Experts at (877) 869-6690

Get it now, pay later

Select installments at checkout to split your purchase into 4 interest-free payments of $43.50 every 2 weeks.

No fees, ever.
No impact on your credit score.

Payment options are offered by Affirm and are subject to an eligibility check and might not be available in all states. CA Residents: Loans by Affirm Loan Services, LLC are made or arranged pursuant to a California Finance Lender license.

Fits Vehicle Styles

Product Details

Brand: Reese
Model: 77299
UPC: 042899003328
Includes: Class 1 Trailer Tow Hitch

Compatibility Chart

Description

This Hitch Fits The Following Vehicles:

2014 - 2018 Mazda, 3, 4 Dr. Sedan

Trailer Hitch Specs:

Part Number	77299
Brand	Reese
Finish	Black Powdercoat
Class	1
Receiver size opening	1-1/4"
Max gross trailer weight	2,000 lbs
Max GTW w/ weight distribution	N/A
Max Tongue Weight	200 lbs
Warranty	Lifetime
Installation Instructions

Questions or Comments? Call 702-374-8999

Specifications

Specification
Attachment Location	Rear
Color	Black
Drawbar Included	No
Drilling Required	No
Gross Towing Weight	2,000 lbs.
Hitch Class	I
Material	Steel
Maximum Tongue Weight	200 lbs.
Mounting Hardware Included	Yes
Mounting Type	Vehicle Frame
Receiver Size	1.25 in.
Receiver Type	Round Tube

Questions & Answers

Be the first to ask a question.

Reviews

Tags: 77299 , 2014 , 2015 , 2016 , 2017 , 2018 , 14 , 15 , 16 , 17 , 18 , Mazda , 3 , 4 , Door , Sedan , Reese , Towpower , Trailer , Tow , Hitch , Receiver , Bar , Frame

Get Expert Help

Reese Trailer Tow Hitch For 14-18 Mazda 3 Sedan 1-1/4" Towing Receiver Class 1 Install Notes

Installation Instructions for Mazda 3 Sedan

Part Numbers:

24912
60344
77299

Wiring Access Location:

PC3, PC4

Tools Required:

Wrenches: 11/16"
Drill Bits: None

Specifications:

Max Gross Trailer Weight: 2,000 lb. (908 kg)
Max Tongue Weight: 200 lb. (90.8 kg)
Note: Do not exceed the towing vehicle manufacturer’s rating.

Step-by-Step Instructions:

Prepare Vehicle:
- If additional clearance is needed, lower the exhaust system at the rubber isolators.
- Apply lubricant to the metal hanger rod and rubber isolator to facilitate removal.
Position Hitch and Feed Pull Wires:
- Raise the hitch into position.
- Feed the pull wires through the adjacent slots on the hitch.
Install Carriage Bolts and Spacers:
- Feed the pull wire into the rearward slot and out the access hole.
- Attach the spacer and carriage bolt to the pull wire and feed them into the frame rail, pulling them into position on both sides. Leave the pull wire attached.
Reverse Pull Wire Procedure:
- Use the reverse pull wire procedure to feed the pull wire into position on both frame rails. Leave the pull wires attached.
Attach Fasteners:
- Carefully remove each pull wire one at a time.
- Place the washer over the pull wire and use it to hold the bolt in place while carefully removing the pull wire, then attach the hex nut.
Tighten Fasteners:
- Tighten all 7/16”-14 GR5 fasteners to 50 Lb.-Ft. (68 N*M) using a torque wrench.

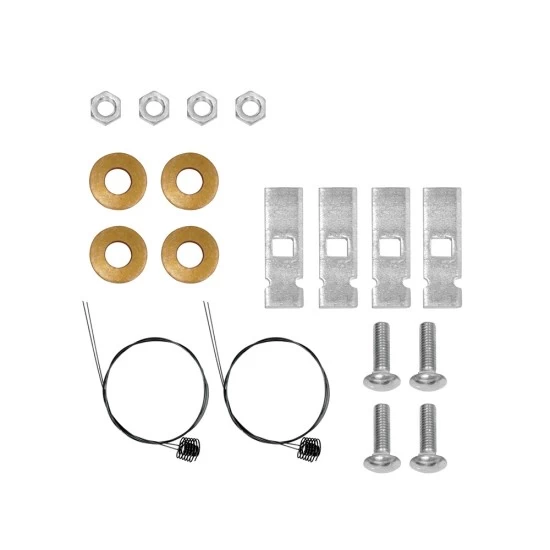

Hardware List:

(4) Carriage Bolts: 7/16”-14 x 1.50” GR5
(4) Spacers: 1/4” x 7/8” x 3”
(4) Conical Tooth Washers: 7/16”
(4) Hex Nuts: 7/16”-14
(4) Pull Wires: 7/16”

Safety Notes:

Regularly inspect all fasteners and the hitch ball to ensure they are securely tightened.
If the hitch is removed, plug all holes in the trunk pan or other body panels to prevent water and exhaust fumes from entering.
Replace any damaged hitch or ball immediately.
Always observe safety precautions and wear eye protection when working under the vehicle.
Do not use a torch to cut access or attachment holes.
