Installation Instructions for Land Rover Range Rover Sport

Part Numbers:

• 75229
• 87693
• 44781

Applications:

• 2015-Current Land Rover Range Rover Sport (*Visit the manufacturer's website for the most up-to-date application years and trim levels.)

Tools Required:

• Ratchet
• Torque Wrench
• Safety Glasses
• Sockets: 10mm, 19mm
• Flat Head Screwdriver
• Philips Screwdriver
• Utility Knife

Installation Time:

• Approximately 45 minutes (for professional installers)

Step-by-Step Instructions:

1. Bottom Appearance Panel Removal:

   • Use a flat head screwdriver to remove (2) plastic rivets attached to the upper panel, then remove the upper panel.
   • Use a 10mm socket and Philips screwdriver to remove (4) bolts attached to the lower panel, then remove the lower panel.

2. Hitch Installation:

   • Raise the hitch into position and loosely install:
     • M12 bolt (Qty. 4) with conical washer (Qty. 2) at the rearward vehicle cross frame weldnuts.
     • M12 bolt with flat washers (Qty. 3) and lock washers (Qty. 2) at the forward vehicle cross frame weldnuts.
   • Insert 1/2”-13 bolt and flat washer into the bumper beam, then loosely secure with flange nut.

3. Torque Fasteners:

   • Tighten all fasteners with a torque wrench to 75 lb-ft (102 N·m).

4. Lower Panel Trimming:

   • Trim the lower panel as shown in the provided diagram (approx. 7" x 5.5" x 4").
   • Perform additional trimming if necessary.

5. Reinstall Appearance Panels:

   • Reinstall the upper and lower appearance panels removed in Step 1.

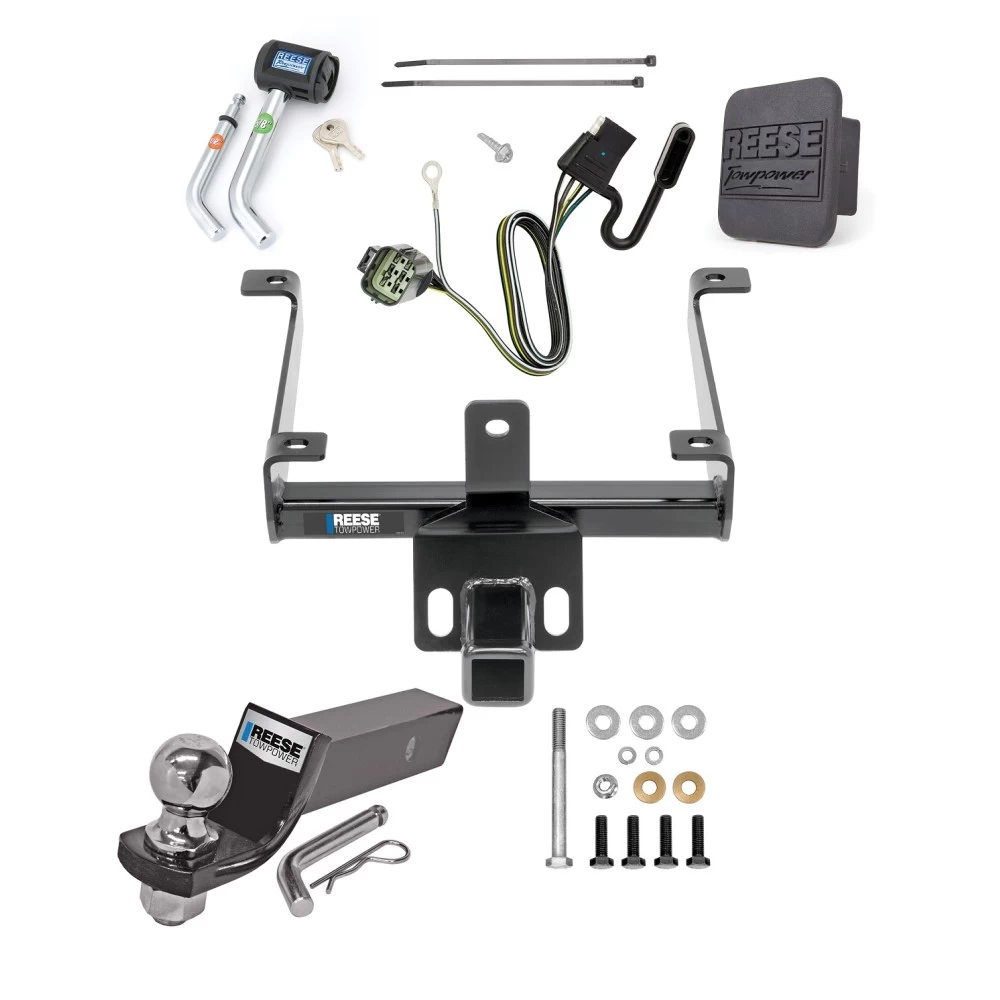

Hardware List:

• (4) M12 x 1.75 x 35mm CL10.9 Bolts
• (2) 1/2" Conical Washers
• (3) 1/2" Flat Washers
• (2) 1/2" Lock Washers
• (1) 1/2-13 x 5" GR5 Bolt
• (1) 1/2-13 GR5 Flange Nut

Safety Notes:

• Check the hitch frequently to ensure all fasteners and the ball are properly tightened.
• If the hitch is removed, plug all holes in the trunk pan or other body panels to prevent water and exhaust fumes from entering.
• Replace any damaged hitch or ball immediately.
• Follow all safety precautions when working beneath the vehicle, and wear eye protection.
• Do not cut access or attachment holes with a torch.

Specifications:

• Hitch Type and Weight Ratings:
  • Weight Carrying: Max Trailer Weight 8,000 lbs (3,632 kg), Max Tongue Weight 800 lbs (363 kg).
  • Weight Distributing: Not applicable.
• Complies with safety specifications and requirements for connecting devices and towing systems of the State of New York, V.E.S.C. Regulation V-5, and SAE J684.

Installation Instructions for T-One® T-Connector for Range Rover Sport

Part Numbers:

• 118681

Tools Required:

• Trim Panel Puller
• Drill (3/32” Drill Bit)
• Phillips Head Screwdriver
• Flat Head Screwdriver
• Test Probe

Step-by-Step Instructions:

1. Locate the Access Cover:

   • Locate the access cover on the vehicle's rear bumper area.
   • Using a screwdriver, unfasten the two clips holding the cover to the vehicle and remove it.

2. Connect the Tow Plug Adapter:

   • Locate the grey 6-pin connector behind the access cover area.
   • Remove the protective cap from the factory tow harness.
   • Check and clean the mating surface to ensure it is free of dirt.
   • Insert the 6-pin tow plug adapter and lock it into place, ensuring all connectors are fully inserted and the locking tabs are secure.

3. Secure the Ground Wire:

   • Locate a suitable grounding point near the connector, such as an existing ground stud.
   • Alternatively, drill a 3/32” hole and secure the white wire using the provided eyelet and screw.
   • Clean the grounding area of dirt and rustproofing before securing the wire.

   Caution:

   • Verify the surface behind before drilling to avoid damage or injury. Do not drill into exposed surfaces.

4. Secure the T-One® T-Connector Harness:

   • Use the provided cable ties to secure the remainder of the T-Connector harness.
   • Avoid routing the wire near areas that could pinch, cut, or melt the wire.

5. Mount the 4-Flat Connector:

   • Mount the 4-flat connector in an accessible location using a bracket or electrical box (not included).

6. Replace the Access Cover:

   • Reattach the cover that was removed during installation.

7. Test the Installation:

   • Verify the installation with a test light or trailer.
   • For the initial test, reset the vehicle's electrical system by temporarily removing the key from the ignition.

Specifications:

• Max. stop/turn light: 7.5 amps
• Max. tail lights: 7.5 amps

Safety Notes:

• All connections must be complete for the T-One® T-Connector to function properly.
• Overloading circuits can cause fires. Do not exceed the vehicle manufacturer's rating or the specified circuit ratings.
• Always wear safety glasses and follow safety precautions during installation.

Manufacturer Notes:

• Refer to the vehicle owner’s manual and instruction sheet for additional details.
• Store these instructions for future reference.
