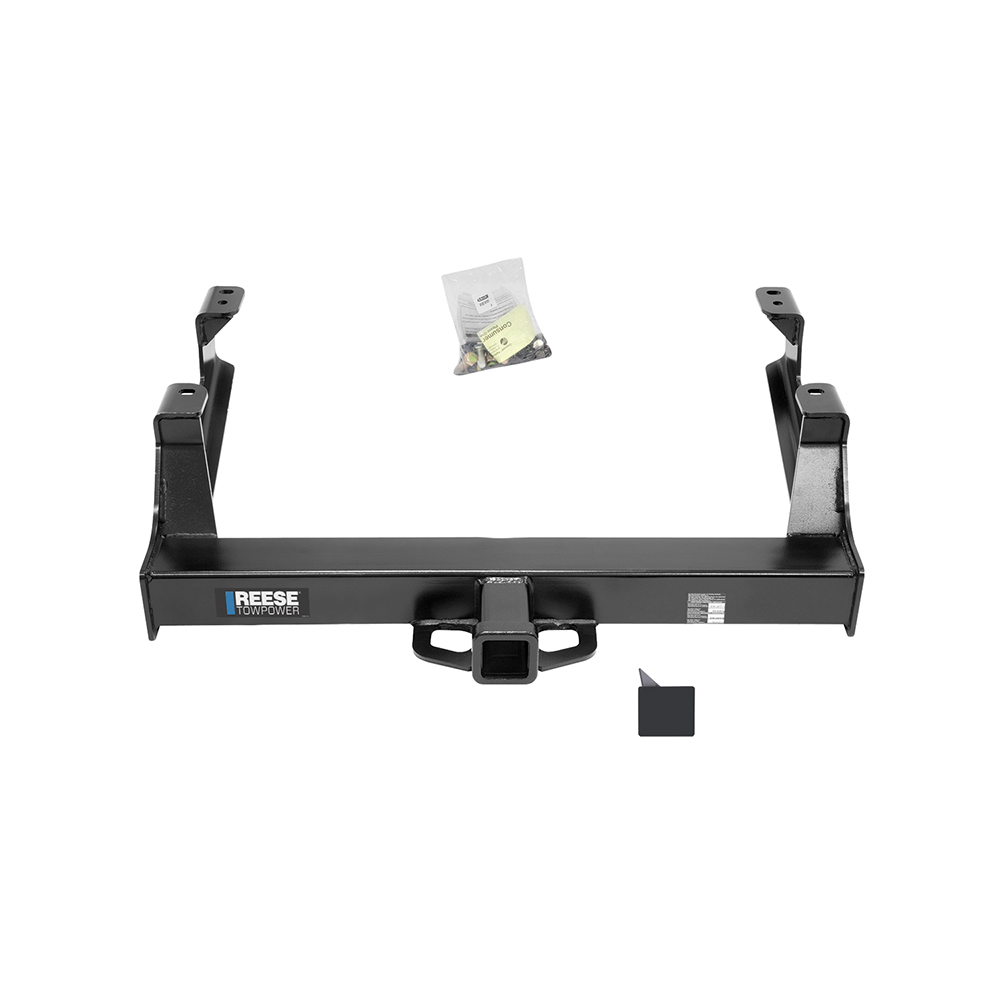

Reese Trailer Tow Hitch For 15‑19 Chevy Silverado GMC Sierra 2500 3500 HD Exc Cab & Chassis Class V
Model: 457112015 - 2019 Chevrolet, Silverado 2500 HD, Exc Cab & Chassis
2015 - 2019 Chevrolet, Silverado 3500 HD, Exc Cab & Chassis
2015 - 2019 GMC, Sierra 2500 HD, Exc Cab & Chassis
2015 - 2019 GMC, Sierra 3500 HD, Exc Cab & Chassis
Trailer Hitch Specs:
| Part Number | 45711 |
| Brand | Reese |
| Finish | Black Powdercoat |
| Class | 5 |
| Receiver size opening | 2-1/2" |
| Max gross trailer weight | 20,000 lbs |
| Max GTW w/ weight distribution | 20,000 lbs |
| Max Tongue Weight | 2,700/2,700 lbs |
| Warranty | Lifetime |
| Installation Instructions |  |
Thank you for choosing Reese the most powerful name in towing industry bar none. Manufactured by the same people that brought you Draw-Tite and Hidden Hitch all of our products come with standard lifetime warranty and support. Our custom hitches mount easily on your Car Truck Van SUV and RV. Most applications simply bolt on without any need for drilling or modifying your bumper. Please review installation instructions manual pdf file above for exact step by step instructions. Chose Class 1 or 2 for light duty towing, chose Class 3 4 and 5 for heavy duty towing. Pair your hitch with accessories like a ball mount that is available in several drop and rise configurations. Choose a 2 inch ball to haul most standard trailers. Choose a 1-7/8" ball to tow small and u tility trailers. Our hitches come with generous tongue weight ratings for use with cargo racks and other accessories. All parts in our store are sold at a discount. If you have any questions please do not hesitate to give us a call at 702-374-8999
Partial list of fitment years: 15 16 17 18 19 2015 2016 2017 2018 2019
$322 73 $503.99 36% OFF
- Best Price on Web Guarantee
- Fastest Shipping
- FREE Shipping
- In Stock
We match lower prices from major authorized retailers for brand-new products in original packaging, provided the item is in stock. The competing seller must be an authorized, professional retail business; offers from
individuals, auctions, peer-to-peer sites, or unauthorized sellers don’t qualify. Used, refurbished, or open-box items are excluded.
Please see our full terms for details.
Verify Fitment
$503.99 $322 73
Learn more
Questions? Call our Auto Experts at (877) 869-6690
Get it now, pay later
Select installments at checkout to split your purchase into 4 interest-free payments of $80.50 every 2 weeks.
- No fees, ever.
- No impact on your credit score.
Payment options are offered by Affirm and are subject to an eligibility check and might not be available in all states. CA Residents: Loans by Affirm Loan Services, LLC are made or arranged pursuant to a California Finance Lender license.
Installments in partnership with
.
Affirm and its offerings are supported in English only. Translations are not provided by Affirm.
Product Details
- Brand: Reese
- Model: 45711
- UPC: 016118145816
- Includes: Titan Class 5 Trailer Tow Hitch
Compatibility Chart
2015 - 2019 Chevrolet, Silverado 2500 HD, Exc Cab & Chassis
2015 - 2019 Chevrolet, Silverado 3500 HD, Exc Cab & Chassis
2015 - 2019 GMC, Sierra 2500 HD, Exc Cab & Chassis
2015 - 2019 GMC, Sierra 3500 HD, Exc Cab & Chassis
Trailer Hitch Specs:
| Part Number | 45711 |
| Brand | Reese |
| Finish | Black Powdercoat |
| Class | 5 |
| Receiver size opening | 2-1/2" |
| Max gross trailer weight | 20,000 lbs |
| Max GTW w/ weight distribution | 20,000 lbs |
| Max Tongue Weight | 2,700/2,700 lbs |
| Warranty | Lifetime |
| Installation Instructions | |
Thank you for choosing Reese the most powerful name in towing industry bar none. Manufactured by the same people that brought you Draw-Tite and Hidden Hitch all of our products come with standard lifetime warranty and support. Our custom hitches mount easily on your Car Truck Van SUV and RV. Most applications simply bolt on without any need for drilling or modifying your bumper. Please review installation instructions manual pdf file above for exact step by step instructions. Chose Class 1 or 2 for light duty towing, chose Class 3 4 and 5 for heavy duty towing. Pair your hitch with accessories like a ball mount that is available in several drop and rise configurations. Choose a 2 inch ball to haul most standard trailers. Choose a 1-7/8" ball to tow small and u tility trailers. Our hitches come with generous tongue weight ratings for use with cargo racks and other accessories. All parts in our store are sold at a discount. If you have any questions please do not hesitate to give us a call at 702-374-8999
Partial list of fitment years: 15 16 17 18 19 2015 2016 2017 2018 2019
Get Expert Help
Reese Trailer Tow Hitch For 15-19 Chevy Silverado GMC Sierra 2500 3500 HD Exc Cab & Chassis Class V Install Notes
Installation Instructions for Chevy/GMC 2500HD and 3500HD (2015–Current)
Part Numbers:
- 45511
- 45711
- CQT45511
Wiring Access Location:
- Not specified
Tools Required:
- Ratchet
- Torque Wrench
- Safety Glasses
- Drill and Bits: 3/8", 5/8"
- Sockets: 13mm, 19mm, 21mm, 22mm, 3/4", 7/8", 15/16"
- 6" Socket Extension
- Paint Marker
- Plastic Cutting Tool
Installation Time:
- Approximately 60 minutes (for professional installers)
Step-by-Step Instructions:
For Long Bed Trucks:
-
Lower Spare Tire:
- Remove the spare tire from under the truck for ease of installation.
- Remove the existing M14 bolts from the frame rail ends and return them to the owner.
-
Remove OEM Mount:
- For trucks without a hitch, remove the OEM bumper mount (refer to relevant illustrations).
-
Position Hitch:
- Raise the hitch into position, aligning the rear slotted holes with existing weldnuts on the truck frame rails and bumper.
-
Install M14 Fasteners:
- Attach the provided M14 bolts and conical washers (teeth side against the hitch) into the weldnuts.
-
Drill Holes:
- Using the hitch as a guide, mark two holes for drilling. Remove the hitch and drill 5/8" holes at the marked locations.
- Enlarge the forwardmost hole for easier bolt installation.
-
Reinstall Hitch:
- Reposition the hitch and reinstall the M14 fasteners.
- Insert 5/8" bolts and conical washers through the drilled holes.
-
Install Attachment Bars:
- Remove existing M14 bolts one frame rail at a time.
- Install attachment bars and secure with the provided 5/8" fasteners.
-
Tighten Fasteners:
- Torque M14 fasteners to 115 lb-ft (156 N*m).
- Torque 5/8" Grade 8 fasteners to 212 lb-ft (287 N*m).
-
Raise Spare Tire:
- Reinstall the spare tire.
For Short Bed Trucks:
-
Lower Spare Tire:
- Follow the same steps as for long bed trucks to remove the spare tire and bolts.
-
Trim Heat Shield:
- Remove two 8mm bolts securing the heat shield on the passenger side. Trim the heat shield and drill a 3/8" hole through the rib as needed.
-
Position Hitch:
- Raise the hitch into position, aligning it with the rearmost weldnuts on the frame rails.
-
Install M14 Fasteners:
- Attach the provided M14 bolts and conical washers (teeth side against the hitch) into the weldnuts.
-
Drill and Reinstall Hitch:
- Mark and drill four 5/8" holes using the hitch as a guide.
- Reposition the hitch, install M14 fasteners, and secure the hitch with 5/8" bolts and washers.
-
Attach Heat Shield:
- Reinstall the heat shield using the forward bolt hole and provided cable tie.
- Ensure the heat shield is not sandwiched between the frame rail and the hitch.
-
Tighten Fasteners:
- Torque M14 fasteners to 115 lb-ft (156 N*m).
- Torque 5/8" Grade 8 fasteners to 212 lb-ft (287 N*m).
-
Raise Spare Tire:
- Reinstall the spare tire.
Torque Specifications:
- M14 fasteners: 115 lb-ft (156 N*m)
- 5/8" Grade 8 fasteners: 212 lb-ft (287 N*m)

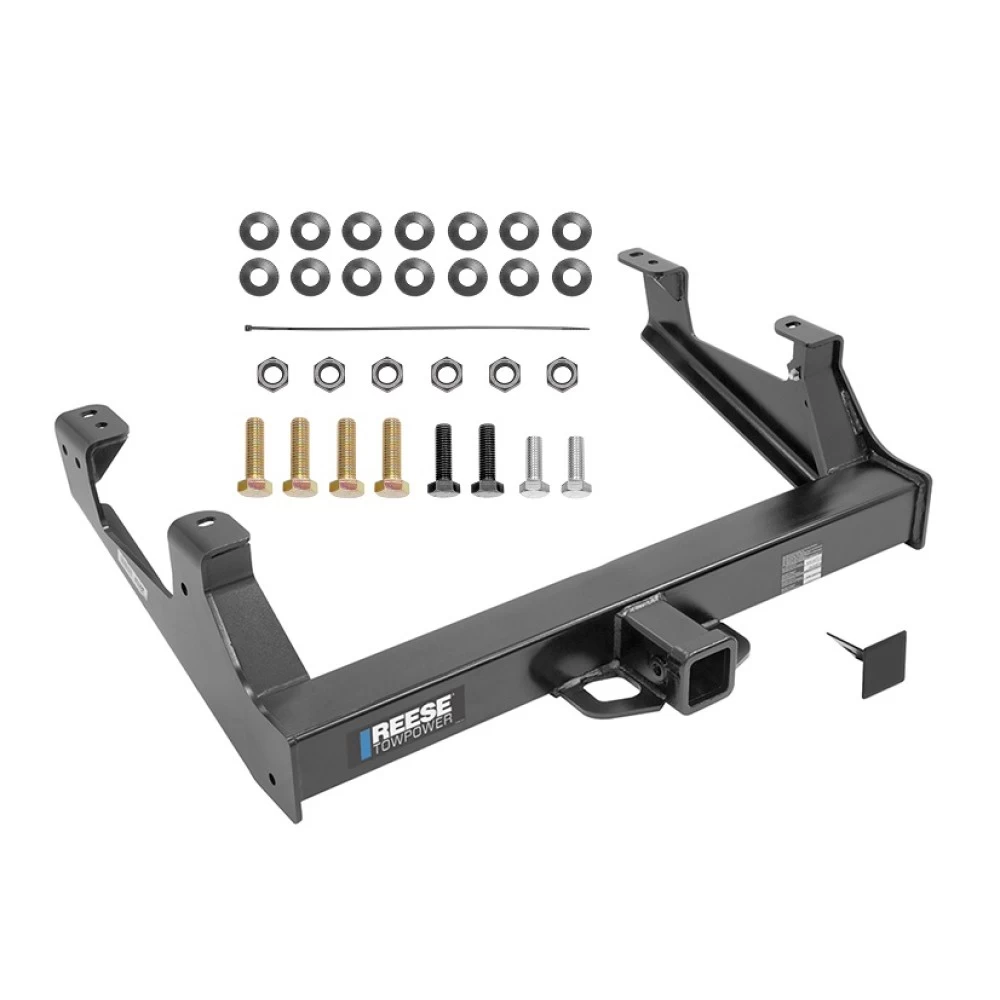

Hardware List:
- (2) Bolts, M14 x 2.00 x 45mm CL10.9
- (10) Conical Tooth Washers, 5/8"
- (4) Bolts, 5/8"-11 x 2.00" GR8
- (4) Hex Nuts, 5/8" GR8
- (2) Bolts, 5/8"-11 x 1.50" GR8
- (2) Attachment Bars
- (1) Cable Tie
Safety Notes:
- Regularly inspect the hitch to ensure all fasteners and the ball are securely tightened.
- Replace any damaged hitch or ball immediately.
- If the hitch is removed, plug all holes in the frame to prevent water or exhaust fumes from entering.
- Always wear safety glasses and observe proper safety precautions when working beneath the vehicle.
- Do not cut access or attachment holes with a torch.
Specifications:
- Weight Carrying (Ball Mount):
- Max Gross Trailer Weight: 20,000 lb (9,072 kg)
- Max Tongue Weight: 2,700 lb (1,225 kg)
- Weight Distributing:
- Max Gross Trailer Weight: 20,000 lb (9,072 kg)
- Max Tongue Weight: 2,700 lb (1,225 kg)
Additional Notes:
- This product complies with V.E.S.C. Regulation V-5 and SAE J684 safety standards.
Technical Support:
For technical support and assistance, our team of experts is available to help. You can reach our tech support by visiting www.trailerjacks.com or calling 877-869-6690.
Warning: Do not exceed the vehicle manufacturer’s towing capacity. Improper installation may result in personal injury or property damage.
