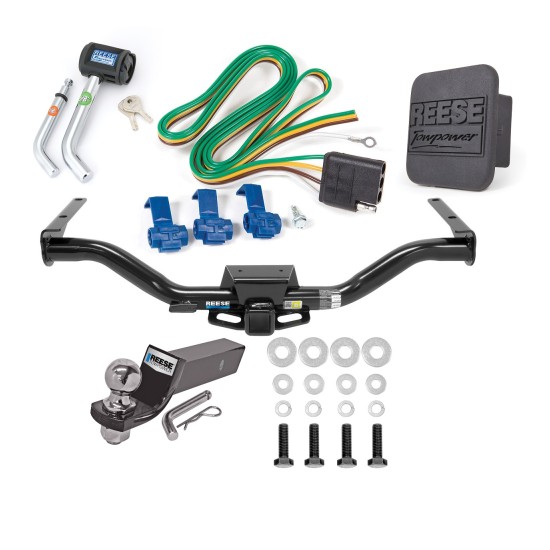

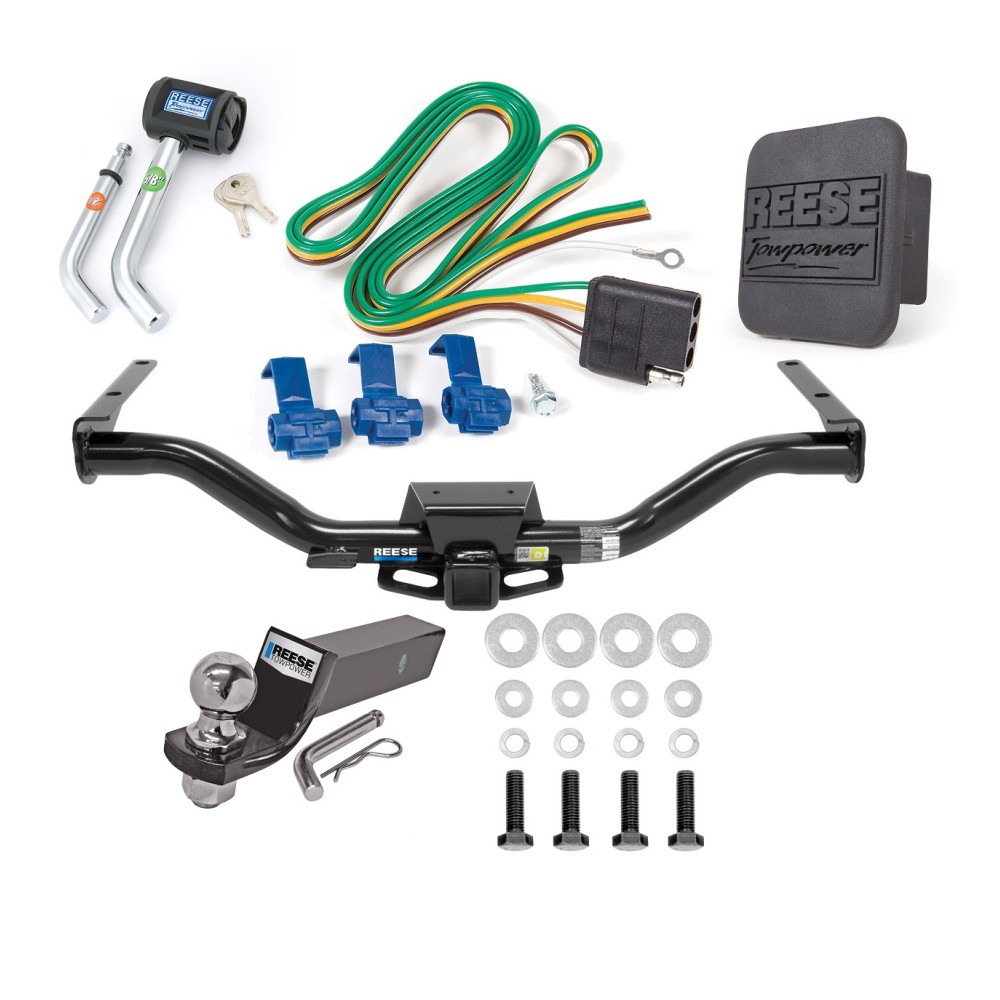

Reese Trailer Tow Hitch For 15‑22 Chevy Colorado GMC Canyon Deluxe Package Wiring 2" Ball and Lock
Model: 44757 78058 21536 7054430 7000600Custom Fit Trailer Hitch
Wiring Harness (Requires Splicing)
2" Drop Ball-Mount w/ Pin/Clip
2" Chrome Ball
Security Lock Pin
Rubber Hitch Plug Cover
Installation Hardware
Installation Instructions
Fits The Following Vehicles
2015 - 2022 Chevrolet, Colorado, All Styles
2015 - 2022 GMC, Canyon, All Styles
Trailer Hitch Specs:
| Part Number | 44757 |
| Brand | Reese |
| Finish | Black Powdercoat |
| Class | 3 |
| Receiver size opening | 2" |
| Max gross trailer weight | 6,000 lbs |
| Max GTW w/ weight distribution | 8,000 lbs |
| Max Tongue Weight | 800/800 lbs |
| Warranty | Lifetime |
| Installation Instructions |  |
Wiring Kit Specs:
| Part Number | 78058 |
| Brand | Reese |
| Warranty | 1 Year |
| Installation Instructions | |
Towing Starter Kit Specs:
| Part Number | 21536 |
| Brand | Reese |
| Fits | 2" x 2" Trailer Hitch Receiver |
| Ball Size | 2" |
| Ball Shank Dia. | 1" |
| Ball-Mount Length | 9" From Center of Pin Hole to Center of Ball Hole |
| Towing Capacity | 6,000 lb Gross Towing Weight 600 lb Tongue Weight |
| Drop | 2" From inside top of hitch opening |
| Rise | 3/4" from top of inside of hitch opening |
| Ball-Mount Finish | Black Powdercoat |
| Ball Finish | Chrome (Cold forged for superior strength) |
| Warranty | Lifetime |
Security Lock Pin Specs:
| Part Number | 7054430 |
| Fits | 1/2" and 5/8" Tow Receivers |
| Brand | Reese |
| Prevents Theft Use in place of standard pin and clip Easy Access Models Feature Side Key Entry, Sliding Dust Cap, Lock Housing Rotates 360 degrees Includes Dust Cap |
|
| Warranty | Lifetime |
Rubber Hitch Plug Specs:
| Part Number | 7000600 |
| Fits | 2" Receiver |
| Brand | Reese |
| REESE Towpower rubber receiver plug is designed for 2-in hitch box openings. It keeps the hitch clean and clear of debris. | |
| Warranty | 1 Year |
Questions or Comments? Call 702-374-8999
Reese has been the leader in towing systems for more than 60 years. Over those years, much has changed within the industry with tow vehicles and their frames made lighter while the trailers have become heavier. The technology utilized yesterday can no longer be used in today’s world. Reese purchases metals from high quality steel mills with history of performance. Metals are routinely audited by third party labs for chemistry.
Partial list of fitment years: 15 16 17 18 19 20 21 22 2015 2016 2017 2018 2019 2020 2021 2022
$263 23 $420.27 37% OFF
- Best Price on Web Guarantee
- Fastest Shipping
- FREE Shipping
- Pre-Order
We match lower prices from major authorized retailers for brand-new products in original packaging, provided the item is in stock. The competing seller must be an authorized, professional retail business; offers from
individuals, auctions, peer-to-peer sites, or unauthorized sellers don’t qualify. Used, refurbished, or open-box items are excluded.
Please see our full terms for details.
Verify Fitment
$420.27 $263 23
Learn more
Questions? Call our Auto Experts at (877) 869-6690
Get it now, pay later
Select installments at checkout to split your purchase into 4 interest-free payments of $65.75 every 2 weeks.
- No fees, ever.
- No impact on your credit score.
Payment options are offered by Affirm and are subject to an eligibility check and might not be available in all states. CA Residents: Loans by Affirm Loan Services, LLC are made or arranged pursuant to a California Finance Lender license.
Installments in partnership with
.
Affirm and its offerings are supported in English only. Translations are not provided by Affirm.
Product Details
- Brand: Reese
- Model: 44757 78058 21536 7054430 7000600
- Includes: Class 4 Trailer Tow Hitch, Wiring Connector, Trailer Tow Hitch Ball Mount Starter Kit, Trailer Tow Hitch Lock, Trailer Tow Hitch Tube Cover
Compatibility Chart
Description
Custom Fit Trailer Hitch
Wiring Harness (Requires Splicing)
2" Drop Ball-Mount w/ Pin/Clip
2" Chrome Ball
Security Lock Pin
Rubber Hitch Plug Cover
Installation Hardware
Installation Instructions
Fits The Following Vehicles
2015 - 2022 Chevrolet, Colorado, All Styles
2015 - 2022 GMC, Canyon, All Styles
Trailer Hitch Specs:
| Part Number | 44757 |
| Brand | Reese |
| Finish | Black Powdercoat |
| Class | 3 |
| Receiver size opening | 2" |
| Max gross trailer weight | 6,000 lbs |
| Max GTW w/ weight distribution | 8,000 lbs |
| Max Tongue Weight | 800/800 lbs |
| Warranty | Lifetime |
| Installation Instructions | |
Wiring Kit Specs:
| Part Number | 78058 |
| Brand | Reese |
| Warranty | 1 Year |
| Installation Instructions | |
Towing Starter Kit Specs:
| Part Number | 21536 |
| Brand | Reese |
| Fits | 2" x 2" Trailer Hitch Receiver |
| Ball Size | 2" |
| Ball Shank Dia. | 1" |
| Ball-Mount Length | 9" From Center of Pin Hole to Center of Ball Hole |
| Towing Capacity | 6,000 lb Gross Towing Weight 600 lb Tongue Weight |
| Drop | 2" From inside top of hitch opening |
| Rise | 3/4" from top of inside of hitch opening |
| Ball-Mount Finish | Black Powdercoat |
| Ball Finish | Chrome (Cold forged for superior strength) |
| Warranty | Lifetime |
Security Lock Pin Specs:
| Part Number | 7054430 |
| Fits | 1/2" and 5/8" Tow Receivers |
| Brand | Reese |
| Prevents Theft Use in place of standard pin and clip Easy Access Models Feature Side Key Entry, Sliding Dust Cap, Lock Housing Rotates 360 degrees Includes Dust Cap |
|
| Warranty | Lifetime |
Rubber Hitch Plug Specs:
| Part Number | 7000600 |
| Fits | 2" Receiver |
| Brand | Reese |
| REESE Towpower rubber receiver plug is designed for 2-in hitch box openings. It keeps the hitch clean and clear of debris. | |
| Warranty | 1 Year |
Questions or Comments? Call 702-374-8999
Reese has been the leader in towing systems for more than 60 years. Over those years, much has changed within the industry with tow vehicles and their frames made lighter while the trailers have become heavier. The technology utilized yesterday can no longer be used in today’s world. Reese purchases metals from high quality steel mills with history of performance. Metals are routinely audited by third party labs for chemistry.
Partial list of fitment years: 15 16 17 18 19 20 21 22 2015 2016 2017 2018 2019 2020 2021 2022
Get Expert Help
Reese Trailer Tow Hitch For 15-22 Chevy Colorado GMC Canyon Deluxe Package Wiring 2" Ball and Lock Install Notes
Installation Instructions for Chevrolet Colorado and GMC Canyon
Part Numbers:
- 75948
- 87675
- 44757
Wiring Access Location:
- PU3
Tools Required:
- Tape
- Wrenches: 10mm, 13mm, 21mm, 22mm
- Drill Bits: None
Step-by-Step Instructions:
-
Remove Impact Structure and Bumper:
- Remove the vehicle's impact structure and bumper by loosening and removing eight (8) bolts.
- Remove two (2) bolts securing the spare tire cradle. Keep these bolts for reinstallation.
- Disconnect electrical plugs and set aside the impact structure to return to the owner.
-
Prepare Frame Rails:
- Tape flat washers (item 4) to the frame rails on both sides.
-
Install Hitch:
- Raise the hitch into position and secure it using the provided fasteners as shown in Figure 2.
-
Reinstall Spare Tire Cradle:
- Reattach the spare tire cradle using the original fasteners.
-
Reinstall Bumper:
- Reattach the bumper using the original side fasteners.
-
Torque All Fasteners:
- Tighten all M14 CL10.9 fasteners to 100 lb-ft (136 N*m) using a torque wrench.
-
Reinstall Spare Tire:
- Raise the spare tire back into position if required.
-
Return Impact Structure:
- Return the removed impact structure to the vehicle owner.
Hardware List:
- Qty (4): Bolt – M14 x 2.00 x 45mm CL10.9
- Qty (4): Lock Washer – 9/16"
- Qty (4): Flat Washer – 9/16"
- Qty (4): Flat Washer – 1/2"
Safety Notes:
- Check the hitch frequently to ensure all fasteners and the ball are properly tightened.
- If the hitch is removed, plug all holes in the trunk pan or other body panels to prevent water and exhaust fumes from entering.
- Replace any damaged hitch or ball immediately.
- Observe safety precautions when working beneath the vehicle and wear eye protection.
- Do not cut access or attachment holes with a torch.
Specifications:
- Hitch Type: Weight Distributing
- Max Gross Trailer Weight: 8,000 lbs (3,632 kg)
- Max Tongue Weight: 800 lbs (363 kg)
- Hitch Type: Weight Carrying (Ball Mount)
- Max Gross Trailer Weight: 6,000 lbs (2,723 kg)
- Max Tongue Weight: 800 lbs (363 kg)
Manufacturer Notes:
- This hitch cannot be used with the step bumper after installation.
- Complies with safety specifications and requirements for connecting devices and towing systems of the state of New York, V.E.S.C. Regulation V-5, and SAE J684.
Installation Instructions for Towing Vehicle 4-Way Flat Plug
Tools Required:
- Circuit Tester
- Wire Crimp Tool
- Cable Ties
Step-by-Step Installation Instructions:
Towing Vehicle:
- Locate the appropriate wires at the rear of the vehicle using a circuit tester and the provided wiring chart as a reference.
- Make the connections as shown in the chart using wire taps.
- Connect the Ground Wire (White) to the vehicle frame or body.
General:
- Test all lights using a test light, circuit tester, or connected trailer to ensure proper functionality.
- Secure all loose wires with cable ties.
Notes:
- Vehicles with separate turn and stop lights require a taillight converter.
- If splicing into the vehicle wiring:
- Consult the vehicle owner's manual or local dealer for warnings or restrictions.
- Use appropriate gauge wire splices for secure connections.
Warnings:
- Complete Connections:
- All connections must be complete for proper functionality. Test and verify installation with a test light, circuit tester, or trailer after installation.
- Overloading Prevention:
- Overloading circuits can cause fires. Do not exceed the lower of the towing manufacturer’s ratings or:
- Maximum Right Turn, Left Turn, Stop, & Tail Light Circuits: 7.5 amps
- Maximum (+) Battery, Reverse, and Electric Brake Circuits: 30 amps.
- Overloading circuits can cause fires. Do not exceed the lower of the towing manufacturer’s ratings or:
- Additional fusing may be required. Refer to the vehicle owner's manual and instruction sheet for further details.
For further assistance or technical support, consult the vehicle’s owner's manual or contact the product manufacturer.
