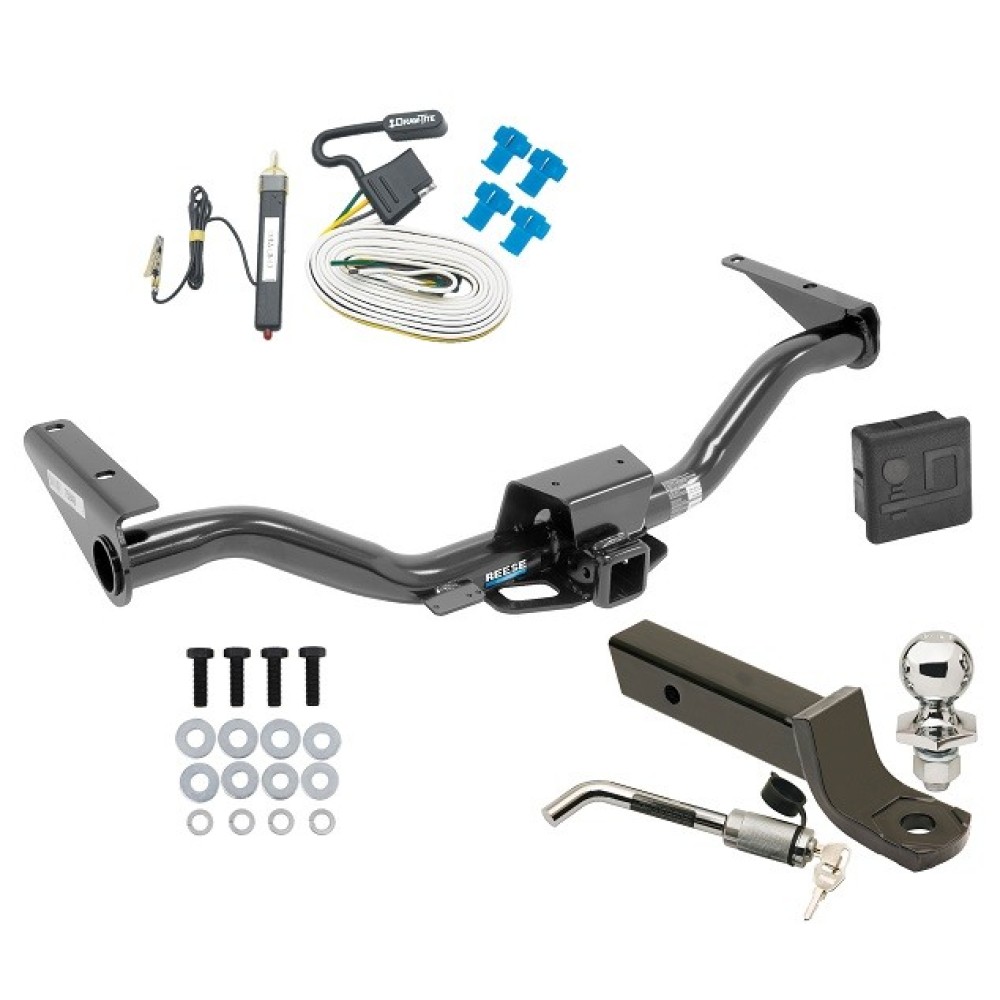

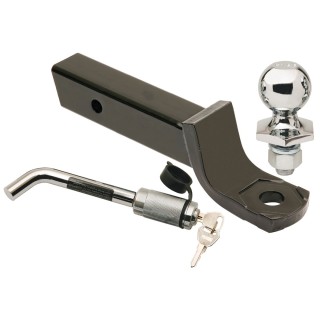

Installation Instructions for Chevrolet Colorado and GMC Canyon

Part Numbers:

• 75948
• 87675
• 44757

Wiring Access Location:

• PU3

Tools Required:

• Tape
• Wrenches: 10mm, 13mm, 21mm, 22mm
• Drill Bits: None

Step-by-Step Instructions:

1. Remove Impact Structure and Bumper:

   • Remove the vehicle's impact structure and bumper by loosening and removing eight (8) bolts.
   • Remove two (2) bolts securing the spare tire cradle. Keep these bolts for reinstallation.
   • Disconnect electrical plugs and set aside the impact structure to return to the owner.

2. Prepare Frame Rails:

   • Tape flat washers (item 4) to the frame rails on both sides.

3. Install Hitch:

   • Raise the hitch into position and secure it using the provided fasteners as shown in Figure 2.

4. Reinstall Spare Tire Cradle:

   • Reattach the spare tire cradle using the original fasteners.

5. Reinstall Bumper:

   • Reattach the bumper using the original side fasteners.

6. Torque All Fasteners:

   • Tighten all M14 CL10.9 fasteners to 100 lb-ft (136 N*m) using a torque wrench.

7. Reinstall Spare Tire:

   • Raise the spare tire back into position if required.

8. Return Impact Structure:

   • Return the removed impact structure to the vehicle owner.

Hardware List:

• Qty (4): Bolt – M14 x 2.00 x 45mm CL10.9
• Qty (4): Lock Washer – 9/16"
• Qty (4): Flat Washer – 9/16"
• Qty (4): Flat Washer – 1/2"

Safety Notes:

• Check the hitch frequently to ensure all fasteners and the ball are properly tightened.
• If the hitch is removed, plug all holes in the trunk pan or other body panels to prevent water and exhaust fumes from entering.
• Replace any damaged hitch or ball immediately.
• Observe safety precautions when working beneath the vehicle and wear eye protection.
• Do not cut access or attachment holes with a torch.

Specifications:

• Hitch Type: Weight Distributing
  • Max Gross Trailer Weight: 8,000 lbs (3,632 kg)
  • Max Tongue Weight: 800 lbs (363 kg)
• Hitch Type: Weight Carrying (Ball Mount)
  • Max Gross Trailer Weight: 6,000 lbs (2,723 kg)
  • Max Tongue Weight: 800 lbs (363 kg)

Manufacturer Notes:

• This hitch cannot be used with the step bumper after installation.
• Complies with safety specifications and requirements for connecting devices and towing systems of the state of New York, V.E.S.C. Regulation V-5, and SAE J684.

Installation Instructions for Trailer Light Wiring Kit

Part Number:

• 20252

Tools Required:

• Hot Air Gun or Appropriate Heat Source
• Wire Crimpers
• Drill (3/32” Drill Bit)
• Phillips Head Screwdriver
• Circuit Tester

Step-by-Step Instructions:

Step 1: Locate the Taillight Wiring Harness

1. Access the vehicle's taillight wiring harness.
2. Using the provided instructions, identify the appropriate wires for connection:
   • Green Wire: Right Turn & Stop
   • Yellow Wire: Left Turn & Stop
   • Brown Wire: Taillights
   • White Wire: Ground

Step 2: Make the Electrical Connections

1. Match the color-coded wires from the wiring kit to the corresponding vehicle wires.

   • Use a circuit tester to verify each wire's function before connecting.
   • CAUTION: Test one wire at a time to prevent damage to electronic components.

2. Connect the wires using the provided insulated butt connectors:

   • Strip the ends of each wire and seat them properly in the connector.
   • Use a crimping tool designed for insulated splices to secure the connections.

3. Heat the connectors:

   • Apply heat directly to the center of each splice using a hot air gun.
   • Work from the center outward until the tubing recovers and adhesive flows.
   • Allow the connections to cool before inspecting for integrity.

Step 3: Ground the System

1. Locate a grounding point near the wiring harness, such as the vehicle frame or cross member.
   • Do not drill into the vehicle floor or bed.
2. Clean the area to remove dirt, rust, or undercoating.
3. Drill a 3/32" hole at the grounding point and secure the white wire using the provided eyelet and screw.

Step 4: Verify the Installation

1. Test all connections using a circuit tester or trailer:
   • Verify the functionality of taillights, turn signals, and brake lights.
   • Ensure all connections are complete and secure.
2. If issues are identified, double-check the wiring and connections for errors.

Step 5: Store the 4-Flat Connector

• Store the 4-flat connector in the rear cargo area when not in use to protect it from damage and environmental exposure.

Warnings and Notes:

• WARNING: Overloading a circuit can cause fires. Do not exceed the following limits:
  • Stop/Turn Lights: 7.5 amps (1 per side)
  • Tail Lights: 7.5 amps
• WARNING: Always verify what is behind any surface before drilling to avoid vehicle damage or injury.
• NOTE: Trailer lighting that requires more than 7.5 amps per circuit must use a Trailer Light Power Converter.
• NOTE: If your trailer requires a plug other than the 4-flat, consult your dealer for optional 6-way or 7-way adapters.

Maintenance:

• Inspect the wiring harness periodically for damage, corrosion, or loose connections.
• Reapply heat to connectors if the adhesive seal weakens.

Specifications:

• Maximum Load:
  • Stop/Turn Lights: 7.5 amps (1 per side)
  • Tail Lights: 7.5 amps
• Recommended Grounding Hole Size: 3/32 inches
