Reese Trailer Tow Hitch For 16-23 Mazda CX-9 Complete Package w/ Wiring Draw Bar and 2" Ball
-550x550.jpg "Custom Fit Trailer Hitch Draw-Bar w/ Pin/Clip Wiring Harness (Plug & Play) 2\" Chrome Ball Installation Hardware Installation Instructions 06174 36071 118278 63820 Reese Trailer Tow Hitch 16-23 Mazda CX-9 Complete Package Wiring Draw Bar and 2&quo")
-550x550.jpg "Custom Fit Trailer Hitch Draw-Bar w/ Pin/Clip Wiring Harness (Plug & Play) 2\" Chrome Ball Installation Hardware Installation Instructions 06174 36071 118278 63820 Reese Trailer Tow Hitch 16-23 Mazda CX-9 Complete Package Wiring Draw Bar and 2&quo")
-550x550.jpg "Custom Fit Trailer Hitch Draw-Bar w/ Pin/Clip Wiring Harness (Plug & Play) 2\" Chrome Ball Installation Hardware Installation Instructions 06174 36071 118278 63820 Reese Trailer Tow Hitch 16-23 Mazda CX-9 Complete Package Wiring Draw Bar and 2&quo")
-150x150.jpg "Custom Fit Trailer Hitch Draw-Bar w/ Pin/Clip Wiring Harness (Plug & Play) 2\" Chrome Ball Installation Hardware Installation Instructions 06174 36071 118278 63820 Reese Trailer Tow Hitch 16-23 Mazda CX-9 Complete Package Wiring Draw Bar and 2&quo")
-150x150.jpg "Custom Fit Trailer Hitch Draw-Bar w/ Pin/Clip Wiring Harness (Plug & Play) 2\" Chrome Ball Installation Hardware Installation Instructions 06174 36071 118278 63820 Reese Trailer Tow Hitch 16-23 Mazda CX-9 Complete Package Wiring Draw Bar and 2&quo")
-150x150.jpg "Custom Fit Trailer Hitch Draw-Bar w/ Pin/Clip Wiring Harness (Plug & Play) 2\" Chrome Ball Installation Hardware Installation Instructions 06174 36071 118278 63820 Reese Trailer Tow Hitch 16-23 Mazda CX-9 Complete Package Wiring Draw Bar and 2&quo")
- Stock: Pre-Order
- Brand: Reese
- Model: 06174 36071 118278 63820

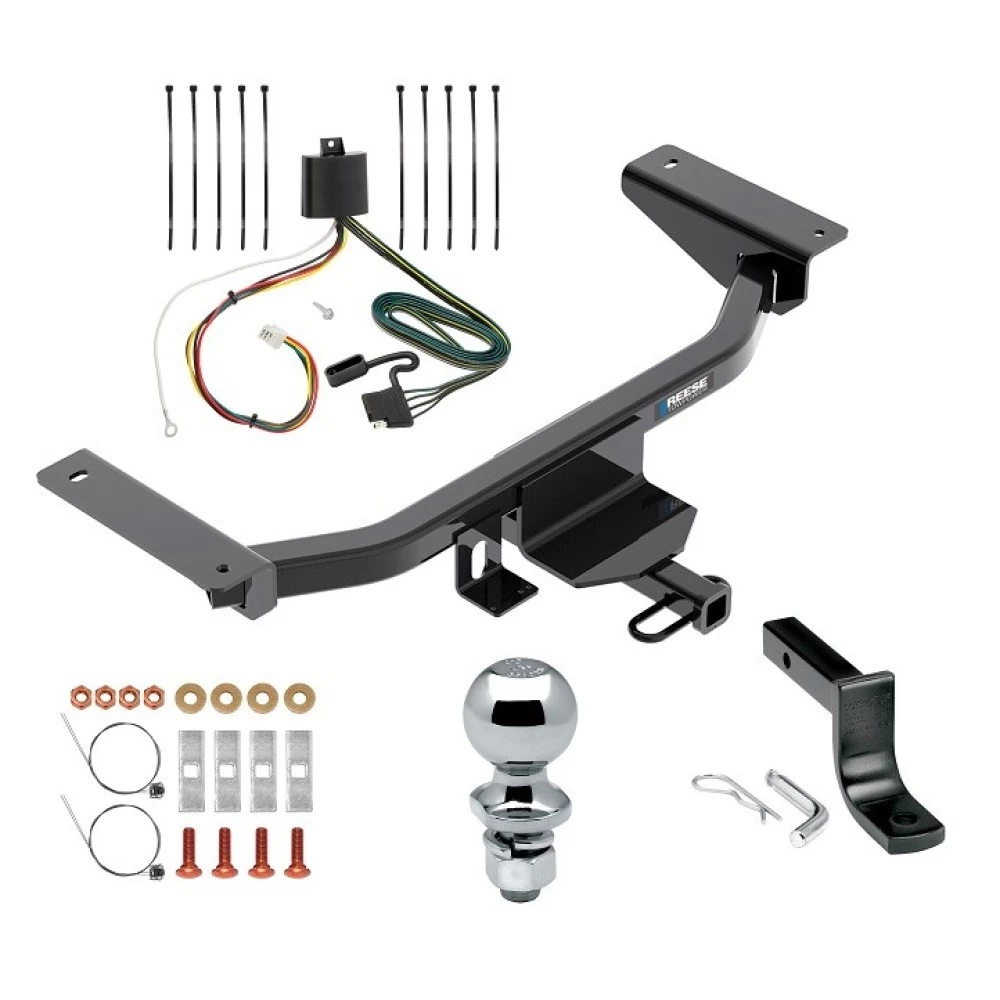

Includes Everything Pictured:
Custom Fit Trailer Hitch
Draw-Bar w/ Pin/Clip
Wiring Harness (Plug & Play)
2" Chrome Ball
Installation Hardware
Installation Instructions
Fits The Following Vehicles

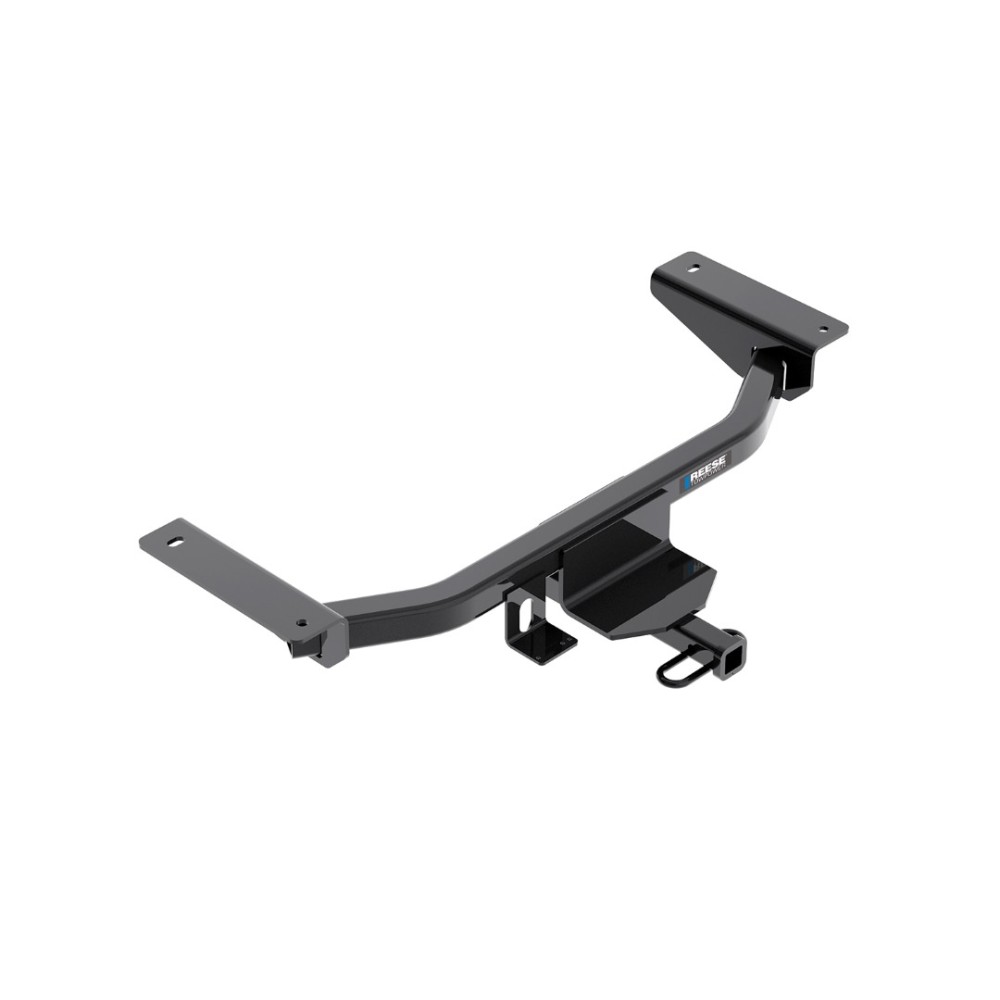

Trailer Hitch Specs:
| Part Number | 06174 |
| Brand | Reese |
| Finish | Black Powdercoat |
| Class | 2 |
| Receiver size opening | 1-1/4" |
| Max gross trailer weight | 3,500 lbs |
| Max GTW w/ weight distribution | N/A |
| Max Tongue Weight | 300 lbs |
| Warranty | Lifetime |
| Installation Instructions |  |

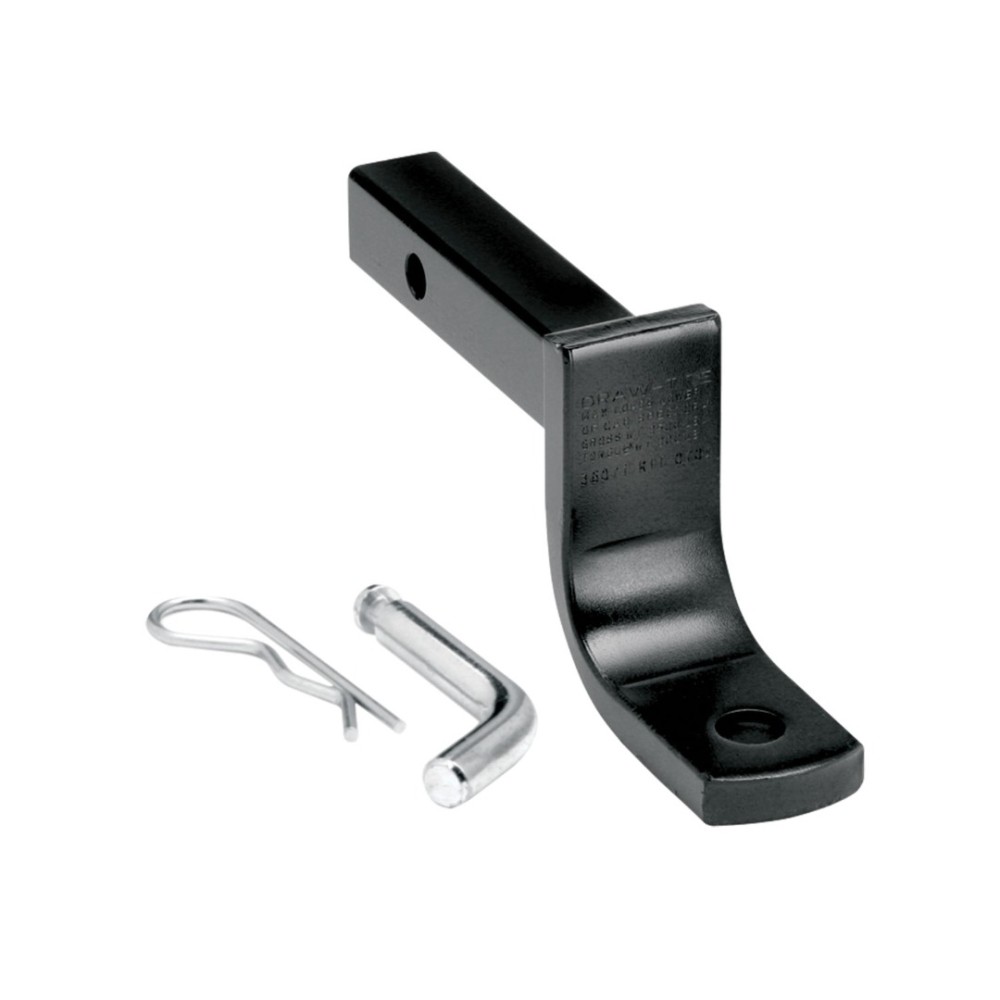

Draw-Tite Ball Mount made out of heavy duty steel can be used in either rise or drop position. Ball mount will allow you to hook up your trailer to your vehicle. Simply slide it inside of your hitch receiver opening and secure it with a pin/clip or lock (pin and clip included)
Specifications:
| Fits | 1-1/4" x 1-1/4" Trailer Hitch Receiver |
| Brand | Draw-Tite |
| Finish | Black Powdercoat |
| Length | 7-3/16" From Center of Pin Hole to Center of Ball Hole |
| Rise | 2-5/8" From inside top of hitch opening |
| Towing Capacity in Rise Position | 3,500 lb Gross Towing Weight 300 lb Tongue Weight |
| Drop | 3-1/4" From inside top of hitch opening |
| Towing Capacity in Drop Position | 3,500 lb Gross Towing Weight 300 lb Tongue Weight |
| Ball Hole Diameter | 3/4" |
| Pin hole diameter | 1/2" |
| Warranty | Limited Lifetime |

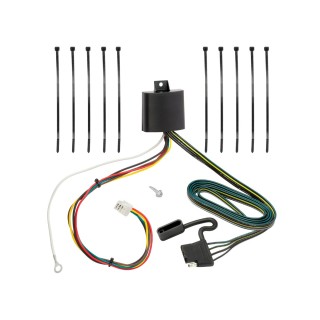

Wiring Kit Specs:
| Part Number | 118278 |
| Brand | Tekonsha |
| Warranty | 1 Year |
| Installation Instructions | |
Hitch Ball Specs:
| Part Number | 63820 |
| Brand | Draw-Tite |
| Size | 2" x 3/4" x 1-1/2" |
| Towing Capacity | 3,500 lbs. GTW |
| Material | Chrome |
| Torque | Torque to 160 ft. lbs |
| Shank Diameter | 3/4" |
| Warranty | Lifetime |
REESE Towpower custom-fit hitches are built according to manufacturer vehicle weight specifications and model year to ensure a perfect fit and top towing performance. Featuring solid all-welded construction for maximum strength and safety, every hitch meets and exceeds industry standards.
Partial list of fitment years: 16 17 18 19 20 21 22 23 2016 2017 2018 2019 2020 2021 2022 2023
