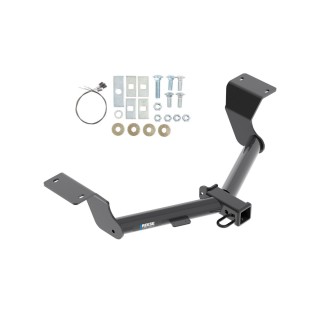

Reese Trailer Tow Hitch For 17‑19 Honda CR‑V 20‑24 CR‑V Except Hybrid Class 3 2" Towing Receiver
Model: 841282017 - 2019 Honda, CR-V, All Styles
2020 - 2024 Honda, CR-V, Except Hybrid
Trailer Hitch Specs:
| Part Number | 84128 |
| Brand | Reese |
| Finish | Black Powdercoat |
| Class | 3 |
| Receiver size opening | 2" |
| Max gross trailer weight | 4,500 lbs |
| Max GTW w/ weight distribution | N/A |
| Max Tongue Weight | 675 lbs |
| Warranty | Lifetime |
| Installation Instructions |  |
Thank you for choosing Reese the most powerful name in towing industry bar none. Manufactured by the same people that brought you Draw-Tite and Hidden Hitch all of our products come with standard lifetime warranty and support. Our custom hitches mount easily on your Car Truck Van SUV and RV. Most applications simply bolt on without any need for drilling or modifying your bumper. Please review installation instructions manual pdf file above for exact step by step instructions. Chose Class 1 or 2 for light duty towing, chose Class 3 4 and 5 for heavy duty towing. Pair your hitch with accessories like a ball mount that is available in several drop and rise configurations. Choose a 2 inch ball to haul most standard trailers. Choose a 1-7/8" ball to tow small and u tility trailers. Our hitches come with generous tongue weight ratings for use with cargo racks and other accessories. All parts in our store are sold at a discount. If you have any questions please do not hesitate to give us a call at 702-374-8999
Partial list of fitment years: 17 18 19 20 21 22 23 24 2017 2018 2019 2020 2021 2022 2023 2024
$163 40 $257.80 37% OFF
- Best Price on Web Guarantee
- Fastest Shipping
- FREE Shipping
- In Stock
We match lower prices from major authorized retailers for brand-new products in original packaging, provided the item is in stock. The competing seller must be an authorized, professional retail business; offers from
individuals, auctions, peer-to-peer sites, or unauthorized sellers don’t qualify. Used, refurbished, or open-box items are excluded.
Please see our full terms for details.
Verify Fitment
$257.80 $163 40
Learn more
Questions? Call our Auto Experts at (877) 869-6690
Get it now, pay later
Select installments at checkout to split your purchase into 4 interest-free payments of $40.75 every 2 weeks.
- No fees, ever.
- No impact on your credit score.
Payment options are offered by Affirm and are subject to an eligibility check and might not be available in all states. CA Residents: Loans by Affirm Loan Services, LLC are made or arranged pursuant to a California Finance Lender license.
Installments in partnership with
.
Affirm and its offerings are supported in English only. Translations are not provided by Affirm.
Product Details
- Brand: Reese
- Model: 84128
- Includes: Class 3 Trailer Tow Hitch
Compatibility Chart
Description
2017 - 2019 Honda, CR-V, All Styles
2020 - 2024 Honda, CR-V, Except Hybrid
Trailer Hitch Specs:
| Part Number | 84128 |
| Brand | Reese |
| Finish | Black Powdercoat |
| Class | 3 |
| Receiver size opening | 2" |
| Max gross trailer weight | 4,500 lbs |
| Max GTW w/ weight distribution | N/A |
| Max Tongue Weight | 675 lbs |
| Warranty | Lifetime |
| Installation Instructions | |
Thank you for choosing Reese the most powerful name in towing industry bar none. Manufactured by the same people that brought you Draw-Tite and Hidden Hitch all of our products come with standard lifetime warranty and support. Our custom hitches mount easily on your Car Truck Van SUV and RV. Most applications simply bolt on without any need for drilling or modifying your bumper. Please review installation instructions manual pdf file above for exact step by step instructions. Chose Class 1 or 2 for light duty towing, chose Class 3 4 and 5 for heavy duty towing. Pair your hitch with accessories like a ball mount that is available in several drop and rise configurations. Choose a 2 inch ball to haul most standard trailers. Choose a 1-7/8" ball to tow small and u tility trailers. Our hitches come with generous tongue weight ratings for use with cargo racks and other accessories. All parts in our store are sold at a discount. If you have any questions please do not hesitate to give us a call at 702-374-8999
Partial list of fitment years: 17 18 19 20 21 22 23 24 2017 2018 2019 2020 2021 2022 2023 2024
Get Expert Help
Reese Trailer Tow Hitch For 17-19 Honda CR-V 20-24 CR-V Except Hybrid Class 3 2" Towing Receiver Install Notes
Installation Instructions for Trailer Hitch
Part Numbers:
- 76128
- 84128
- CQT76128
Applications:
- Years: 2017-Current
- Make and Models: Honda CR-V
Attention: This is a summary of the installation procedure. For complete installation instructions, including diagrams and detailed information from the manufacturer, please download the full installation PDF.
Tools Required:
- Ratchet
- Torque Wrench
- Safety Glasses
- Sockets: 10 mm, 11/16", 3/4"
- 6" Socket Extension
- Flat Head Screwdriver
- Exhaust Removal Pliers (Optional)
- Lubricant or Soapy Water
Step-by-Step Instructions:
1. Lower the Exhaust:
- Remove the rubber isolators from the exhaust at the rear of the vehicle on both sides.
- It may be necessary to remove the isolator forward of the rear axle.
- Spray lubricant or soapy water on the metal hanger rod and rubber isolator to ease removal.
2. Remove Center Splash Guard (For 2023 or Newer Models):
- Using a 10 mm socket, remove nuts from the splash guard.
- Remove rivets using a flat head screwdriver.
- Return the splash guard to the vehicle owner.
3. Install Hardware:
- Use the fish wire to install the carriage bolts and spacers into the large access hole at the end of the vehicle frame as shown in Figure 1.
- Repeat for both sides.
- Keep the fish wire attached to the hardware to prevent it from falling back into the frame.
4. Install the Hitch:
- Gently raise the hitch into position, guiding it over the mufflers.
- Feed the end of the fish wires through the attachment holes in the hitch.
- Install the conical washers (teeth side against the hitch) and hex nuts to hold the hitch in place.
- For the hitch receiver, insert the bolt through the bracket and towhook, then attach the spacers, lock washer, and hex nut as shown in Figure 1.
5. Tighten Fasteners:
- Torque all 7/16"-14 GR5 fasteners to 50 lb-ft (68 N·m).
- Torque all 1/2"-13 GR5 fasteners to 75 lb-ft (102 N·m).
6. Reinstall Exhaust:
- Raise the exhaust back into position and reattach all isolators removed in Step 1.
Hardware List:
- 4 × Carriage Bolts (7/16"-14 × 1-1/4", GR5)
- 4 × Spacer Blocks (.25" × 1.00" × 2.00")
- 4 × Conical Washers (7/16")
- 4 × Hex Nuts (7/16"-14, GR2)
- 1 × Carriage Bolt (1/2"-13 × 2.00", GR5)
- 1 × Spacer Block (.25" × 1.00" × 3.00")
- 1 × Lock Washer (1/2")
- 1 × Hex Nut (1/2"-13, GR5)
- 4 × Fish Wires (7/16")
Safety Notes:
- Always wear safety glasses during installation.
- Check the hitch frequently to ensure all fasteners and the hitch ball are securely tightened.
- If the hitch is removed, plug all holes in the trunk pan or body panels to prevent water and exhaust fumes from entering.
- Replace any damaged hitch or ball before use.
- Do not cut access or attachment holes with a torch.
Specifications:
- Max Gross Trailer Weight (Weight Carrying): 4,500 lbs (2,043 kg)
- Max Tongue Weight (Weight Carrying): 675 lbs (306 kg)
- Weight Distribution: Not applicable
- Installation Time: Approximately 30 minutes
This product complies with V.E.S.C. Regulation V-5 and SAE J684 safety specifications for towing systems.
For technical support and assistance, our team of experts is available to help. You can reach our tech support by visiting www.trailerjacks.com or calling 877-869-6690.
Warranty Information:
For complete warranty instructions, please download the full installation PDF.
