- Stock: In Stock
- Brand: Reese
- Model: 84046 118723 21536

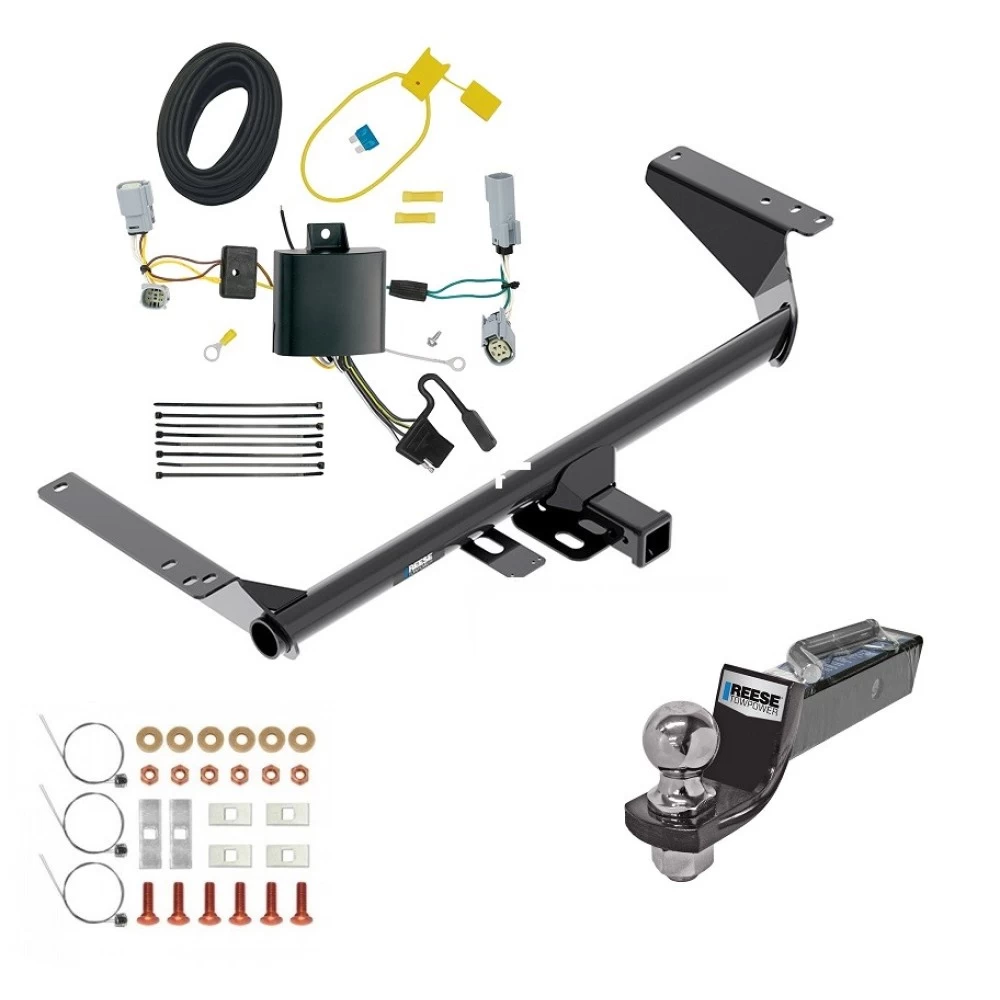

Custom Fit Trailer Hitch
Wiring Harness (Plug & Play)
2" Drop Ball-Mount w/ Pin/Clip
2" Chrome Ball
Installation Hardware
Installation Instructions
Fits The Following Vehicles
2017 - 2020 Chrysler, Pacifica, LX Except Hybrid
2017 - 2020 Chrysler, Pacifica, Touring Except Hybrid
2020 - 2023 Chrysler, Voyager, Except Hybrid
2022 - 2023 Chrysler, Grand Caravan, (Canada Only) Except Hybrid
Trailer Hitch Specs:
| Part Number | 84046 |
| Brand | Reese |
| Finish | Black Powdercoat |
| Class | 3 |
| Receiver size opening | 2" |
| Max gross trailer weight | 4,500 lbs |
| Max GTW w/ weight distribution | 5,000 lbs |
| Max Tongue Weight | 675/675 lbs |
| Warranty | Lifetime |
| Installation Instructions |  |
| Part Number | 118723 |
| Brand | Tekonsha |
| Warranty | 1 Year |
| Installation Instructions | |

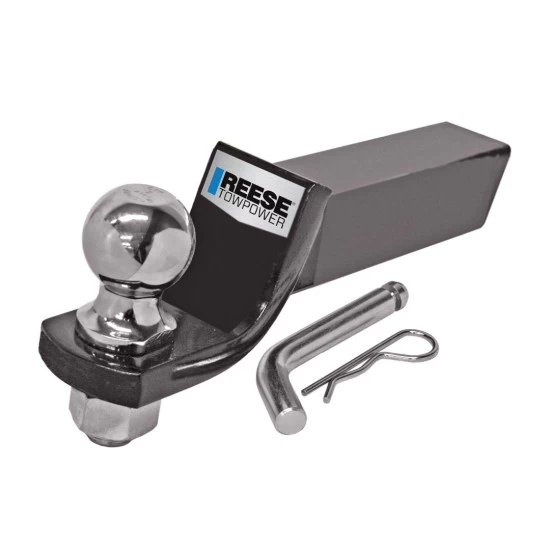

Towing Starter Kit Specs:
| Part Number | 21536 |
| Brand | Reese |
| Fits | 2" x 2" Trailer Hitch Receiver |
| Ball Size | 2" |
| Ball Shank Dia. | 1" |
| Ball-Mount Length | 9" From Center of Pin Hole to Center of Ball Hole |
| Towing Capacity | 6,000 lb Gross Towing Weight 600 lb Tongue Weight |
| Drop | 2" From inside top of hitch opening |
| Rise | 3/4" from top of inside of hitch opening |
| Ball-Mount Finish | Black Powdercoat |
| Ball Finish | Chrome (Cold forged for superior strength) |
| Warranty | Lifetime |
Thank you for choosing Reese the most powerful name in towing industry bar none. Manufactured by the same people that brought you Draw-Tite and Hidden Hitch all of our products come with standard lifetime warranty and support. Our custom hitches mount easily on your Car Truck Van SUV and RV. Most applications simply bolt on without any need for drilling or modifying your bumper. Please review installation instructions manual pdf file above for exact step by step instructions. Chose Class 1 or 2 for light duty towing, chose Class 3 4 and 5 for heavy duty towing. Pair your hitch with accessories like a ball mount that is available in several drop and rise configurations. Choose a 2 inch ball to haul most standard trailers. Choose a 1-7/8" ball to tow small and u tility trailers. Our hitches come with generous tongue weight ratings for use with cargo racks and other accessories. All parts in our store are sold at a discount. If you have any questions please do not hesitate to give us a call at 702-374-8999
Partial list of fitment years: 17 18 19 20 21 22 23 2017 2018 2019 2020 2021 2022 2023
