Reese Trailer Tow Hitch For 17-22 Chevy Bolt EV w/ Draw Bar Kit Class 1 1-1/4" Receiver

Reese Trailer Tow Hitch For 17-22 Chevy Bolt EV w/ Draw Bar Kit Class 1 1-1/4" Receiver
Reese Trailer Tow Hitch For 17-22 Chevy Bolt EV w/ Draw Bar Kit Class 1 1-1/4" Receiver
Reese Trailer Tow Hitch For 17-22 Chevy Bolt EV w/ Draw Bar Kit Class 1 1-1/4" Receiver
Reese Trailer Tow Hitch For 17-22 Chevy Bolt EV w/ Draw Bar Kit Class 1 1-1/4" Receiver
Reese Trailer Tow Hitch For 17-22 Chevy Bolt EV w/ Draw Bar Kit Class 1 1-1/4" Receiver
Reese Trailer Tow Hitch For 17-22 Chevy Bolt EV w/ Draw Bar Kit Class 1 1-1/4" Receiver
Reese Trailer Tow Hitch For 17-22 Chevy Bolt EV w/ Draw Bar Kit Class 1 1-1/4" Receiver
Reese Trailer Tow Hitch For 17-22 Chevy Bolt EV w/ Draw Bar Kit Class 1 1-1/4" Receiver
Reese Trailer Tow Hitch For 17-22 Chevy Bolt EV w/ Draw Bar Kit Class 1 1-1/4" Receiver
$250.70
  • Stock: In Stock
  • Brand: Reese
  • Model: 77956 3593

Applies to this product only

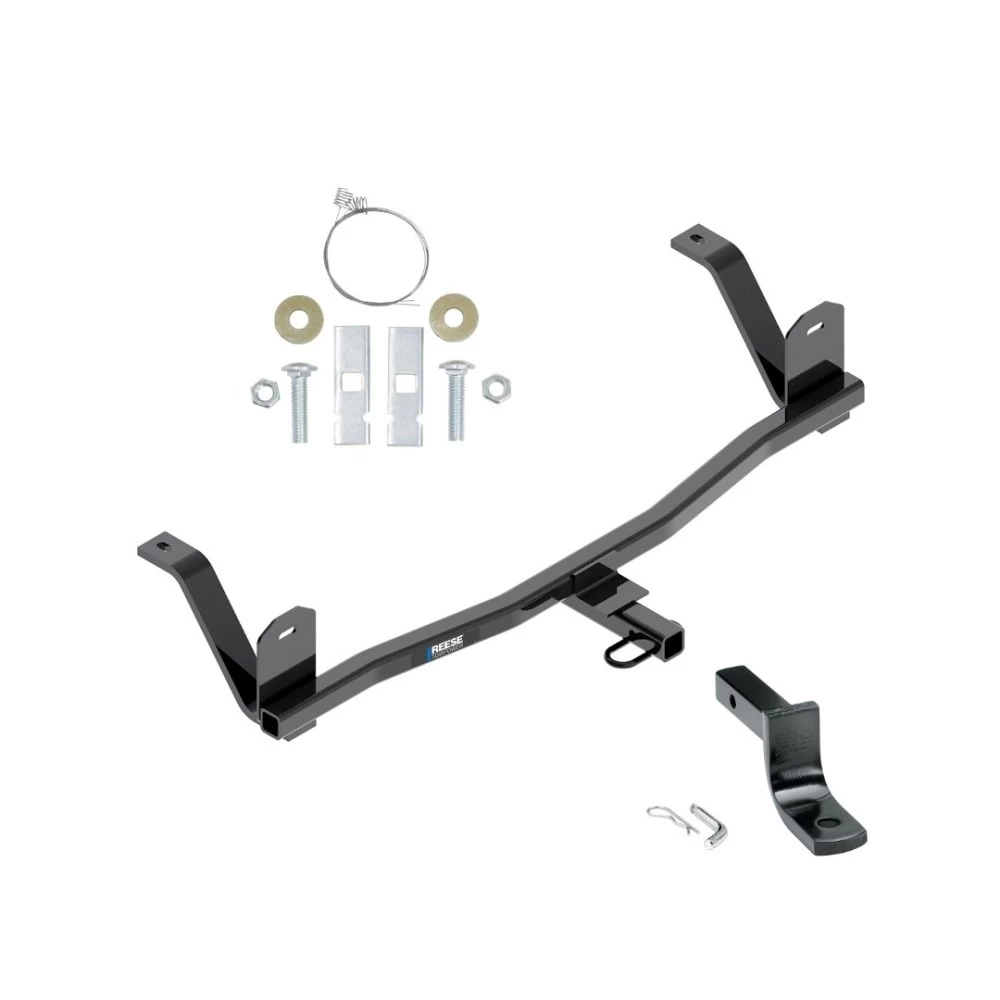

Includes Everything Pictured:
Custom Fit Trailer Hitch
Draw-Bar w/ Pin/Clip
Installation Hardware
Installation Instructions





Fits The Following Vehicles


​2017 - 2022    Chevrolet, Bolt EV, All Styles


Trailer Hitch Specs:

Part Number 77956
Brand Reese
Finish Black Powdercoat
Class 1
Receiver size opening 1-1/4"
Max gross trailer weight 2,000 lbs
Max GTW w/ weight distribution N/A
Max Tongue Weight 200 lbs
Warranty Lifetime
Installation Instructions



Draw-Tite Ball Mount made out of heavy duty steel can be used in either rise or drop position. Ball mount will allow you to hook up your trailer to your vehicle. Simply slide it inside of your hitch receiver opening and secure it with a pin/clip or lock (includes pin and clip)


Ball Mount Specifications:

Fits 1-1/4" x 1-1/4" Trailer Hitch Receiver
Brand Draw-Tite
Finish Black Powdercoat
Length 6-5/8" From Center of Pin Hole to Center of Ball Hole
Rise 2-1/8" From inside top of hitch opening
Towing Capacity in Rise Position 2,000 lb Gross Towing Weight
200 lb Tongue Weight
Drop 2-3/4" From inside top of hitch opening
Towing Capacity in Drop Position 2,000 lb Gross Towing Weight
200 lb Tongue Weight
Ball Hole Diameter 3/4"
Pin hole diameter 1/2"
Warranty Limited Lifetime

Questions or Comments? Call 702-374-8999


Thank you for choosing Reese the most powerful name in towing industry bar none. Manufactured by the same people that brought you Draw-Tite and Hidden Hitch all of our products come with standard lifetime warranty and support. Our custom hitches mount easily on your Car Truck Van SUV and RV. Most applications simply bolt on without any need for drilling or modifying your bumper. Please review installation instructions manual pdf file above for exact step by step instructions. Chose Class 1 or 2 for light duty towing, chose Class 3 4 and 5 for heavy duty towing. Pair your hitch with accessories like a ball mount that is available in several drop and rise configurations. Choose a 2 inch ball to haul most standard trailers. Choose a 1-7/8" ball to tow small and u tility trailers. Our hitches come with generous tongue weight ratings for use with cargo racks and other accessories. All parts in our store are sold at a discount. If you have any questions please do not hesitate to give us a call at 702-374-8999

Partial list of fitment years: 17 18 19 20 21 22 2017 2018 2019 2020 2021 2022

Specification
Attachment Location Rear
Color Black
Drawbar Included Yes
Drilling Required No
Gross Towing Weight 2,000 lbs.
Hitch Class I
Material Steel
Maximum Tongue Weight 200 lbs.
Mounting Hardware Included Yes
Mounting Type Vehicle Frame
Receiver Size 1.25 in.
Receiver Type Square Tube
