Reese Trailer Tow Hitch For 17-24 Subaru Impreza Deluxe Package Wiring 2" and 1-7/8" Ball and Lock

Reese Trailer Tow Hitch For 17-24 Subaru Impreza Deluxe Package Wiring 2" and 1-7/8" Ball and Lock

Name: Trailer Hitch with Wiring, Balls, Draw-Bar, and Lock Cover for Subaru Impreza (2017-2024
Brand: Reese
Price: 330.71 USD
Availability: InStock

Model: 77959 3593 118744 63820 63810 580407 2211

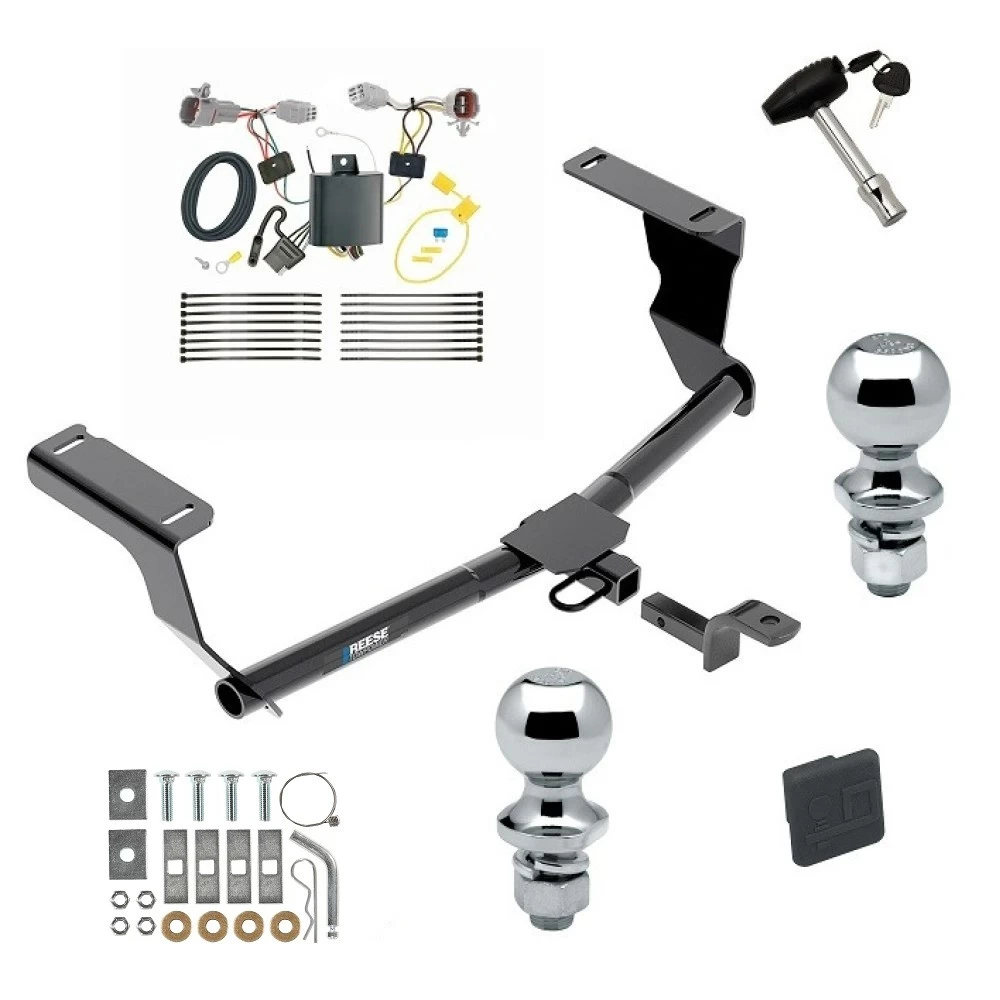

Includes Everything Pictured:
Custom Fit Trailer Hitch
Draw-Bar w/ Pin/Clip
Wiring Harness (Plug & Play)
1-7/8" and 2" Chrome Ball
Security Lock Pin
Rubber Hitch Plug Cover
Installation Hardware
Installation Instructions

Fits The Following Vehicles

2017 - 2024 Subaru, Impreza, 5 Dr. Wagon, Except WRX STi & w/Quad Exhaust Outlets

Trailer Hitch Specs:

Part Number	77959
Brand	Reese
Finish	Black Powdercoat
Class	1
Receiver size opening	1-1/4"
Max gross trailer weight	2,000 lbs
Max GTW w/ weight distribution	N/A
Max Tongue Weight	200 lbs
Warranty	Lifetime
Installation Instructions

Draw-Tite Ball Mount made out of heavy duty steel can be used in either rise or drop position. Ball mount will allow you to hook up your trailer to your vehicle. Simply slide it inside of your hitch receiver opening and secure it with a pin/clip or lock (includes pin and clip)

Specifications:

Fits	1-1/4" x 1-1/4" Trailer Hitch Receiver
Brand	Draw-Tite
Finish	Black Powdercoat
Length	6-5/8" From Center of Pin Hole to Center of Ball Hole
Rise	2-1/8" From inside top of hitch opening
Towing Capacity in Rise Position	2,000 lb Gross Towing Weight 200 lb Tongue Weight
Drop	2-3/4" From inside top of hitch opening
Towing Capacity in Drop Position	2,000 lb Gross Towing Weight 200 lb Tongue Weight
Ball Hole Diameter	3/4"
Pin hole diameter	1/2"
Warranty	Limited Lifetime

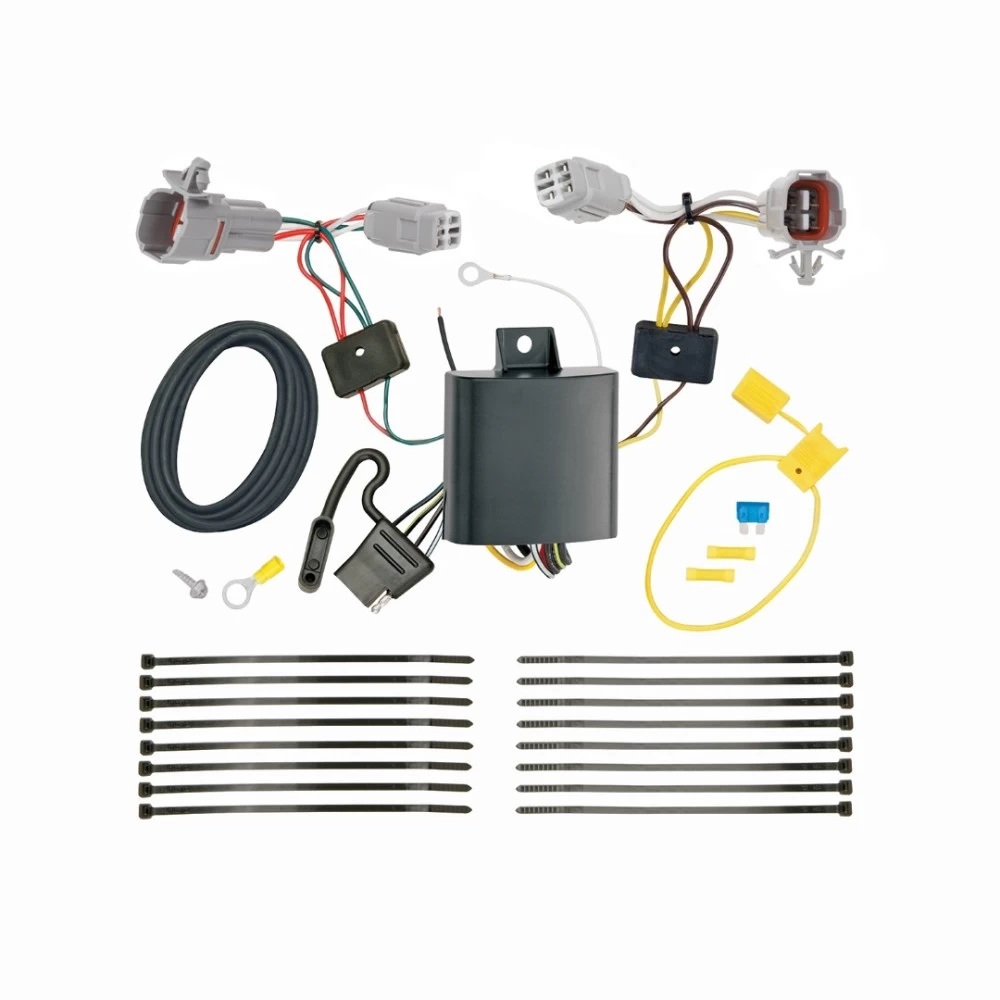

Wiring Kit Specs:

Part Number	118744
Brand	Tekonsha
Warranty	1 Year
Installation Instructions

Hitch Ball Specs:

Part Number	63820
Brand	Draw-Tite
Size	2" x 3/4" x 1-1/2"
Towing Capacity	3,500 lbs. GTW
Material	Chrome
Torque	Torque to 160 ft. lbs
Shank Diameter	3/4"
Warranty	Lifetime

Hitch Ball Specs:

Part Number	63810
Brand	Draw-Tite
Size	1-7/8" x 3/4" x 1-1/2"
Towing Capacity	2,000 lbs. GTW
Material	Chrome (Cold forged for superior strength)
Torque	torgue to 160 ft. lbs
Ball Hole Diameter	3/4"
Warranty	Lifetime

Questions or Comments? Call 702-374-8999
REESE Towpower custom-fit hitches are built according to manufacturer vehicle weight specifications and model year to ensure a perfect fit and top towing performance. Featuring solid all-welded construction for maximum strength and safety, every hitch meets and exceeds industry standards.

Partial list of fitment years: 17 18 19 20 21 22 23 24 17 2018 2019 2020 2021 2022 2023 2024

See Full Description

$330 ⁷¹ $510.69 35% OFF

Best Price on Web Guarantee
Fastest Shipping
FREE Shipping
In Stock

Best Price on Web Guarantee

We match lower prices from major authorized retailers for brand-new products in original packaging, provided the item is in stock. The competing seller must be an authorized, professional retail business; offers from individuals, auctions, peer-to-peer sites, or unauthorized sellers don’t qualify. Used, refurbished, or open-box items are excluded.

Please see our full terms for details.

Applies to this product only

Estimate

Verify Fitment

Year

Make

Model

Add to Wish List

$510.69 $330 ⁷¹

Questions? Call our Auto Experts at (877) 869-6690

Get it now, pay later

Select installments at checkout to split your purchase into 4 interest-free payments of $ every 2 weeks.

No fees, ever.
No impact on your credit score.

Payment options are offered by Affirm and are subject to an eligibility check and might not be available in all states. CA Residents: Loans by Affirm Loan Services, LLC are made or arranged pursuant to a California Finance Lender license.

Fits Vehicle Styles

Product Details

Brand: Reese
Model: 77959 3593 118744 63820 63810 580407 2211
Includes: Class 1 Trailer Tow Hitch, T-One T-Connector Custom Harness, Trailer Tow Hitch Ball Mount, Trailer Tow Hitch Ball, Trailer Tow Hitch Ball, Trailer Tow Hitch Lock, Trailer Tow Hitch Tube Cover

Compatibility Chart

Year Range	Make	Model	Style

Description

Fits The Following Vehicles

2017 - 2024 Subaru, Impreza, 5 Dr. Wagon, Except WRX STi & w/Quad Exhaust Outlets

Trailer Hitch Specs:

Part Number	77959
Brand	Reese
Finish	Black Powdercoat
Class	1
Receiver size opening	1-1/4"
Max gross trailer weight	2,000 lbs
Max GTW w/ weight distribution	N/A
Max Tongue Weight	200 lbs
Warranty	Lifetime
Installation Instructions

Specifications:

Fits	1-1/4" x 1-1/4" Trailer Hitch Receiver
Brand	Draw-Tite
Finish	Black Powdercoat
Length	6-5/8" From Center of Pin Hole to Center of Ball Hole
Rise	2-1/8" From inside top of hitch opening
Towing Capacity in Rise Position	2,000 lb Gross Towing Weight 200 lb Tongue Weight
Drop	2-3/4" From inside top of hitch opening
Towing Capacity in Drop Position	2,000 lb Gross Towing Weight 200 lb Tongue Weight
Ball Hole Diameter	3/4"
Pin hole diameter	1/2"
Warranty	Limited Lifetime

Wiring Kit Specs:

Part Number	118744
Brand	Tekonsha
Warranty	1 Year
Installation Instructions

Hitch Ball Specs:

Part Number	63820
Brand	Draw-Tite
Size	2" x 3/4" x 1-1/2"
Towing Capacity	3,500 lbs. GTW
Material	Chrome
Torque	Torque to 160 ft. lbs
Shank Diameter	3/4"
Warranty	Lifetime

Hitch Ball Specs:

Part Number	63810
Brand	Draw-Tite
Size	1-7/8" x 3/4" x 1-1/2"
Towing Capacity	2,000 lbs. GTW
Material	Chrome (Cold forged for superior strength)
Torque	torgue to 160 ft. lbs
Ball Hole Diameter	3/4"
Warranty	Lifetime

Specifications

Specification
Attachment Location	Rear
Color	Black
Drawbar Included	Yes
Drilling Required	Yes
Gross Towing Weight	2,000 lbs.
Hitch Class	I
Material	Steel
Maximum Tongue Weight	200 lbs.
Mounting Hardware Included	Yes
Mounting Type	Vehicle Frame
Receiver Size	1.25 in.
Receiver Type	Round Tube
