Reese Trailer Tow Hitch For 18‑24 Chevy Equinox 18‑24 GMC Terrain Except Diesel w/ Draw Bar Kit Class 2 1‑1/4" Receiver

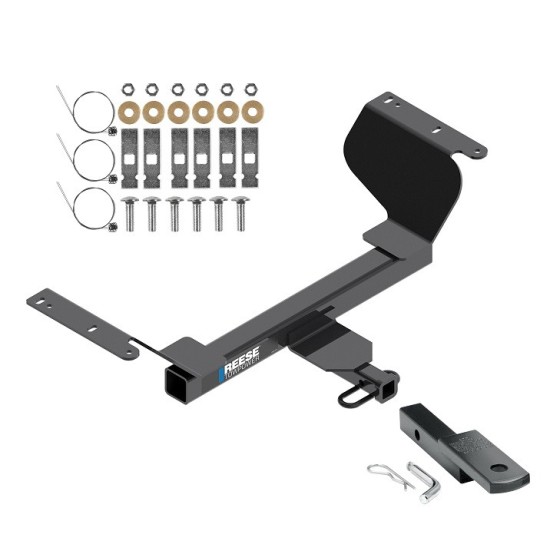

Model: 06180 36051Includes Everything Pictured:
Custom Fit Trailer Hitch
Draw-Bar w/ Pin/Clip
Installation Hardware
Installation Instructions
Fits The Following Vehicles:
2018 - 2024 Chevrolet, Equinox, Except Models w/1.6L Diesel
2018 - 2024 GMC, Terrain, Except Diesel
Trailer Hitch Specs:
| Part Number | 06180 |
| Brand | Reese |
| Finish | Black Powdercoat |
| Class | 2 |
| Receiver size opening | 1-1/4" |
| Max gross trailer weight | 3,500lbs |
| Max GTW w/ weight distribution | N/A |
| Max Tongue Weight | 350 lbs |
| Warranty | Lifetime |
| Installation Instructions |  |

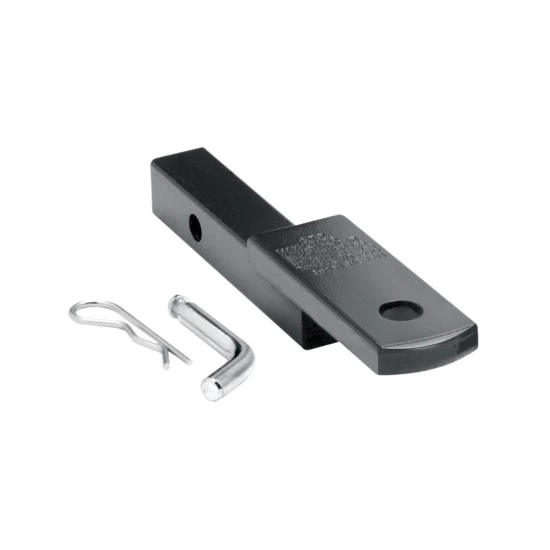

Draw-Tite Ball Mount made out of heavy duty steel can be used in either rise or drop position. Ball mount will allow you to hook up your trailer to your vehicle. Simply slide it inside of your hitch receiver opening and secure it with a pin/clip or lock (pin and clip included)
Specifications:
| Fits | 1-1/4" x 1-1/4" Trailer Hitch Receiver |
| Brand | Draw-Tite |
| Finish | Black Powdercoat |
| Length | 7" From Center of Pin Hole to Center of Ball Hole |
| Rise | 5/8" From inside top of hitch opening |
| Towing Capacity in Rise Position | 3,500 lb Gross Towing Weight 350 lb Tongue Weight |
| Drop | 1-1/4" From inside top of hitch opening |
| Towing Capacity in Drop Position | 3,500 lb Gross Towing Weight 350 lb Tongue Weight |
| Ball Hole Diameter | 3/4" |
| Pin hole diameter | 1/2" |
| Warranty | Limited Lifetime |
Thank you for choosing Reese the most powerful name in towing industry bar none. Manufactured by the same people that brought you Draw-Tite and Hidden Hitch all of our products come with standard lifetime warranty and support. Our custom hitches mount easily on your Car Truck Van SUV and RV. Most applications simply bolt on without any need for drilling or modifying your bumper. Please review installation instructions manual pdf file above for exact step by step instructions. Chose Class 1 or 2 for light duty towing, chose Class 3 4 and 5 for heavy duty towing. Pair your hitch with accessories like a ball mount that is available in several drop and rise configurations. Choose a 2 inch ball to haul most standard trailers. Choose a 1-7/8" ball to tow small and u tility trailers. Our hitches come with generous tongue weight ratings for use with cargo racks and other accessories. All parts in our store are sold at a discount. If you have any questions please do not hesitate to give us a call at 702-374-8999
Partial list of fitment years: 18 19 20 21 22 23 24 2018 2019 2020 2021 2022 2023 2024
$207 93 $343.21 39% OFF
- Best Price on Web Guarantee
- Fastest Shipping
- FREE Shipping
- In Stock
We match lower prices from major authorized retailers for brand-new products in original packaging, provided the item is in stock. The competing seller must be an authorized, professional retail business; offers from
individuals, auctions, peer-to-peer sites, or unauthorized sellers don’t qualify. Used, refurbished, or open-box items are excluded.
Please see our full terms for details.
Verify Fitment
$343.21 $207 93
Learn more
Questions? Call our Auto Experts at (877) 869-6690
Get it now, pay later
Select installments at checkout to split your purchase into 4 interest-free payments of $51.75 every 2 weeks.
- No fees, ever.
- No impact on your credit score.
Payment options are offered by Affirm and are subject to an eligibility check and might not be available in all states. CA Residents: Loans by Affirm Loan Services, LLC are made or arranged pursuant to a California Finance Lender license.
Installments in partnership with
.
Affirm and its offerings are supported in English only. Translations are not provided by Affirm.
Product Details
- Brand: Reese
- Model: 06180 36051
- Includes: Class 2 Trailer Tow Hitch, Trailer Tow Hitch Ball Mount
Compatibility Chart
Includes Everything Pictured:
Custom Fit Trailer Hitch
Draw-Bar w/ Pin/Clip
Installation Hardware
Installation Instructions
Fits The Following Vehicles:
2018 - 2024 Chevrolet, Equinox, Except Models w/1.6L Diesel
2018 - 2024 GMC, Terrain, Except Diesel
Trailer Hitch Specs:
| Part Number | 06180 |
| Brand | Reese |
| Finish | Black Powdercoat |
| Class | 2 |
| Receiver size opening | 1-1/4" |
| Max gross trailer weight | 3,500lbs |
| Max GTW w/ weight distribution | N/A |
| Max Tongue Weight | 350 lbs |
| Warranty | Lifetime |
| Installation Instructions | |
Draw-Tite Ball Mount made out of heavy duty steel can be used in either rise or drop position. Ball mount will allow you to hook up your trailer to your vehicle. Simply slide it inside of your hitch receiver opening and secure it with a pin/clip or lock (pin and clip included)
Specifications:
| Fits | 1-1/4" x 1-1/4" Trailer Hitch Receiver |
| Brand | Draw-Tite |
| Finish | Black Powdercoat |
| Length | 7" From Center of Pin Hole to Center of Ball Hole |
| Rise | 5/8" From inside top of hitch opening |
| Towing Capacity in Rise Position | 3,500 lb Gross Towing Weight 350 lb Tongue Weight |
| Drop | 1-1/4" From inside top of hitch opening |
| Towing Capacity in Drop Position | 3,500 lb Gross Towing Weight 350 lb Tongue Weight |
| Ball Hole Diameter | 3/4" |
| Pin hole diameter | 1/2" |
| Warranty | Limited Lifetime |
Thank you for choosing Reese the most powerful name in towing industry bar none. Manufactured by the same people that brought you Draw-Tite and Hidden Hitch all of our products come with standard lifetime warranty and support. Our custom hitches mount easily on your Car Truck Van SUV and RV. Most applications simply bolt on without any need for drilling or modifying your bumper. Please review installation instructions manual pdf file above for exact step by step instructions. Chose Class 1 or 2 for light duty towing, chose Class 3 4 and 5 for heavy duty towing. Pair your hitch with accessories like a ball mount that is available in several drop and rise configurations. Choose a 2 inch ball to haul most standard trailers. Choose a 1-7/8" ball to tow small and u tility trailers. Our hitches come with generous tongue weight ratings for use with cargo racks and other accessories. All parts in our store are sold at a discount. If you have any questions please do not hesitate to give us a call at 702-374-8999
Partial list of fitment years: 18 19 20 21 22 23 24 2018 2019 2020 2021 2022 2023 2024
Get Expert Help
Reese Trailer Tow Hitch For 18-24 Chevy Equinox 18-24 GMC Terrain Except Diesel w/ Draw Bar Kit Class 2 1-1/4" Receiver Install Notes
Installation Instructions for Chevrolet Equinox and GMC Terrain (2018-Current)
Part Numbers:
- 36642
- 06180
- CQT36642
Wiring Access Location:
- SUV1, SUV2
Tools Required:
- Ratchet
- Torque Wrench
- Safety Glasses
- Flat Head Screwdriver
- 15mm Socket
- T15 Torx Bit
- 6" Socket Extension
- Pliers
- Lubricant or Soapy Water
Installation Time:
- Estimated: 35 minutes (for professional installers)
Step-by-Step Instructions:
-
Lower Muffler:
- Spray lubricant on the rubber isolators to make them easier to remove.
- Remove two (2) screws from the bottom of the rear fascia using a T15 Torx bit.
- Remove two (2) bolts per exhaust hanger bracket using a 15mm socket and detach the brackets from the hanger tabs.
- Remove the rubber isolator from the hanger in front of the muffler.
- Lower the exhaust one side at a time by pulling on the rear fascia for clearance.
- On the passenger side, if additional clearance is needed, pull the wire harness off the frame and reinstall it after hitch installation.
-
Install Hardware:
- Feed the coiled end of the pull wire through an attachment hole in the frame and out of the access hole.
- Attach a spacer and carriage bolt to the pull wire and pull the hardware into position (three per side).
- Leave the pull wires attached until the hitch is in place to prevent the hardware from being pushed back into the frame.
-
Position and Secure the Hitch:
- Raise the hitch into position, being careful not to push the hardware back into the frame.
- Loosely install the provided conical washers (teeth side facing the hitch) and hex nuts onto the carriage bolts.
-
Reattach Exhaust:
- Raise the muffler back into place and reattach the brackets and rubber isolators by reversing the steps from Step 1.
-
Tighten Fasteners:
- Use a torque wrench to tighten all 7/16"-14 GR5 fasteners to 50 ft-lb (68 N*m).
Torque Specifications:
- 7/16"-14 GR5 bolts: 50 ft-lb (68 N*m)
Hardware List:
- (6) Carriage Bolts, 7/16"-14 x 1.50" GR5
- (6) Spacer Blocks, 1/4" x 7/8" x 3"
- (6) Conical Washers, 7/16"
- (6) Hex Nuts, 7/16"-14
- (6) Pull Wires, 7/16"
Safety Notes:
- Frequently check the hitch to ensure all fasteners and the ball are securely tightened.
- If the hitch is removed, plug all holes in the trunk pan or other body panels to prevent water or exhaust fumes from entering.
- Replace any damaged hitch or ball immediately.
- Observe safety precautions when working beneath the vehicle and wear eye protection.
- Do not cut access or attachment holes with a torch.
Specifications:
- Max Gross Trailer Weight: 3,500 lb (1,589 kg)
- Max Tongue Weight: 350 lb (159 kg)
Additional Notes:
- Authorized Drawbar Kit: 36061 (sold separately; must be used in the RISE position only)
- Fastener Kit: 36642F
- This product complies with V.E.S.C. Regulation V-5 and SAE J684 safety standards.
