- Stock: In Stock
- Brand: Reese
- Model: 96953 45322 63840 63830 63252

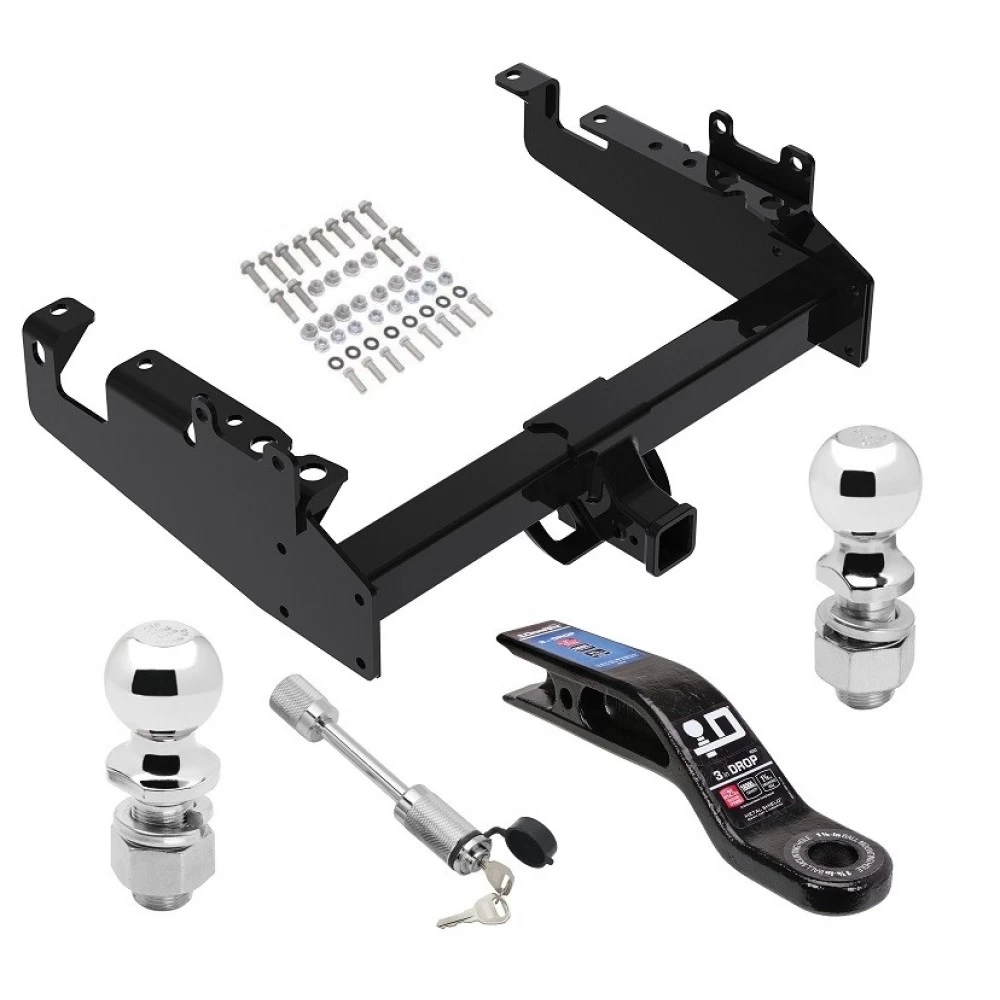

Includes Everything Pictured:
Custom Fit Trailer Hitch
3" Drop Ball Mount
2-5/16" and 2" Chrome Ball
Dogbone Style Towing Lock
Installation Hardware
Installation Instructions
This Hitch Fits The Following Vehicles:
2019 - 2024 Ford, F-350 Super Duty, Cab & Chassis, w/34" Wide Frames
2019 - 2024 Ford, F-450 Super Duty, Cab & Chassis, w/34" Wide Frames
2019 - 2024 Ford, F-550 Super Duty, Cab & Chassis, w/34" Wide Frames
| Part Number | 96953 |
| Brand | Reese |
| Finish | Black Powdercoat |
| Class | 5 |
| Receiver size opening | 2" |
| Max gross trailer weight | 18,000 lbs |
| Max GTW w/ weight distribution | 18,000 lbs |
| Max Tongue Weight | 2,700/2,700 lbs |
| Warranty | Lifetime |
| Installation Instructions |  |
| Part Number | 45323 |
| Fits | 2-1/2" x 2-1/2" Trailer Hitch Receiver |
| Brand | Draw-Tite |
| Finish | Black Powdercoat |
| Length | 10" From Center of Pin Hole to Center of Ball Hole |
| Towing Capacity in Rise Position | 18,000 lb Gross Towing Weight 2,000 lb Tongue Weight |
| Drop | 5" From inside top of hitch opening |
| Towing Capacity in Drop Position | 18,000 lb Gross Towing Weight 2,000 lb Tongue Weight |
| Rise | 3-1/2" from top of inside of hitch opening |
| Ball Hole Diameter | 1-1/4" |
| Warranty | Limited Lifetime |
Draw-Tite Ball Mount made out of heavy duty steel can be used in either rise or drop position. Ball mount will allow you to hook up your trailer to your vehicle. Simply slide it inside of your hitch receiver opening and secure it with a pin/clip or lock (pin and clip sold seperately)
Hitch Ball Specs:
| Part Number | 63840 |
| Brand | Draw-Tite |
| Size | 2-5/16" x 1-1/4" x 2-3/4" |
| Towing Capacity | 20,000 lbs. GTW |
| Material | Chrome |
| Torque | torgue to 450 ft. lbs |
| Ball Hole Diameter | 1-1/4" |
| Warranty | Lifetime |
Hitch Ball Specs:
| Part Number | 63830 |
| Brand | Draw-Tite |
| Size | 2" x 1-1/4" x 2-3/4" |
| Towing Capacity | 8,000 lbs. GTW |
| Material | Chrome (Cold forged for superior strength) |
| Torque | torgue to 450 ft. lbs |
| Ball Hole Diameter | 1-1/4" |
| Warranty | Lifetime |
Dogbone Style Towing Lock Specs:
| Part Number | 63252 |
| Fits | 2-1/2" Receivers, 3-1/2" Span |
| Brand | Draw-Tite |
| Prevents Theft Use in place of standard pin and clip Easy Access Models Feature Side Key Entry, Sliding Dust Cap, Lock Housing Rotates 360 degrees Includes Dust Cap |
|
| Warranty | 1 Year |
Thank you for choosing Draw Tite the most powerful name in towing industry bar none. Manufactured by the same people that brought you Reese and Hidden Hitch all of our products come with standard lifetime warranty and support. Our custom hitches mount easily on your Car Truck Van SUV and RV. Most applications simply bolt on without any need for drilling or modifying your bumper. Please review installation instructions manual pdf file above for exact step by step instructions. Chose Class 1 or 2 for light duty towing, chose Class 3 4 and 5 for heavy duty towing. Pair your hitch with accessories like a ball mount that is available in several drop and rise configurations. Choose a 2 inch ball to haul most standard trailers. Choose a 1-7/8" ball to tow small and u tility trailers. Our hitches come with generous tongue weight ratings for use with cargo racks and other accessories. All parts in our store are sold at a discount. If you have any questions please do not hesitate to give us a call at 702-374-8999
Partial list of fitment years: 19 20 21 22 23 24 2019 2020 2021 2022 2023 2024
