Installation Instructions for Volkswagen Jetta (2019-Current)
Part Numbers:
- 24978

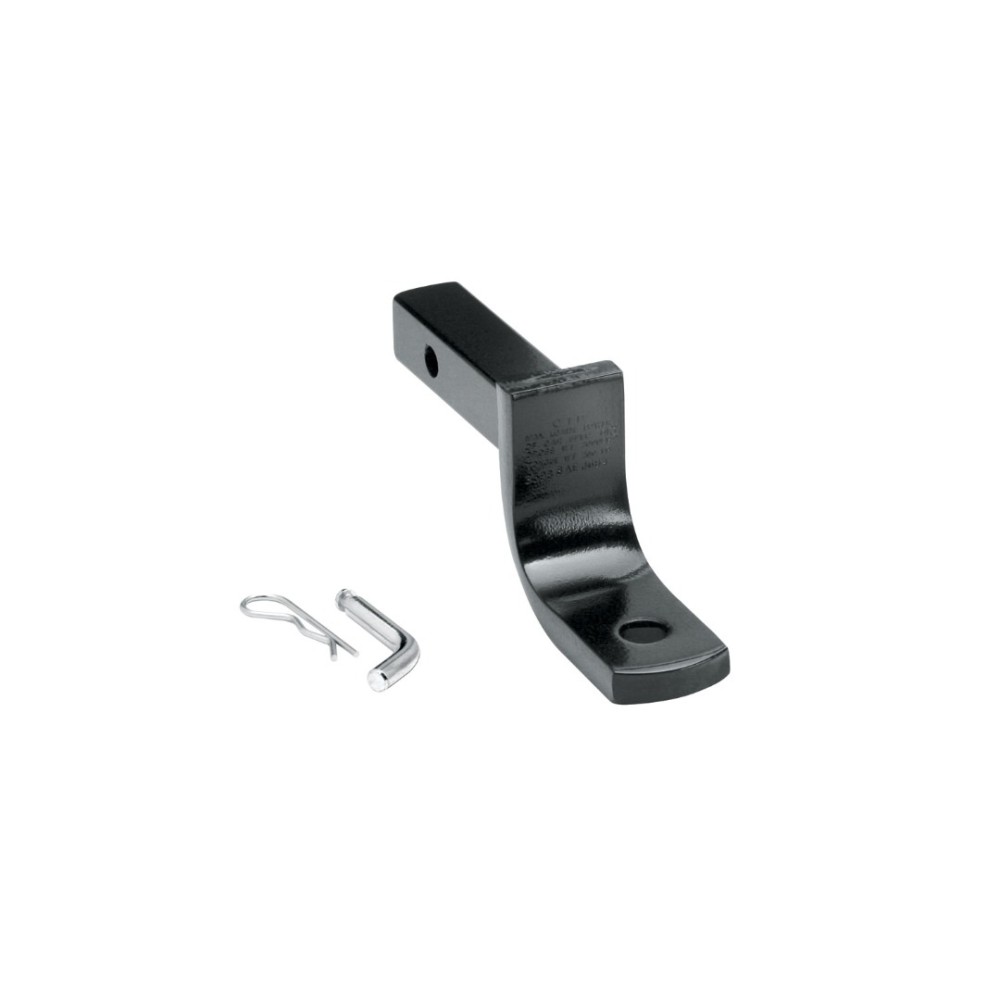

- 77978
- CQT24978
Tools Required:
- Ratchet
- Torque Wrench
- Safety Glasses
- Sockets: 10mm, 13mm
- T15 Torxbit Socket
- T25 Torxbit Socket
- 6" Socket Extension
- Panel Removal Tool
- Utility Knife
- Plastic Trim Tools
- Flat Head Screwdriver
- Marker
- Tape Measure
Step-by-Step Instructions:
-
Remove Underbody Panel:
- Use a T25 Torxbit socket and a 10mm socket to remove 3 screws and 2 plastic flange nuts from the bottom panel on the passenger side.
-
Remove Taillights:
- Open the tailgate and remove the plastic cover near the taillight using a flat head screwdriver, on both sides.
- Using a T25 Torxbit socket, remove 2 screws holding each taillight.
- Slide the taillights rearward and unplug the wiring.
-
Remove Bumper Fascia:
- (a) Using a T15 Torxbit socket, remove 4 screws and tabs from the bottom fascia.
- (b) Using a T25 Torxbit socket, remove 1 screw from the bottom of the wheel well liner, 3 horizontal screws from the wheel well liner, and 1 vertical screw in the upper area behind the wheel well liner, on both sides.
- (c) Use plastic trim tools to remove the fascia starting at the outer edges near the wheel wells while gently pulling the fascia.
- (d) Disconnect the wiring harness from the fascia if present and set it aside.
-
Remove Bumper Beam:
- Using a 13mm socket with a 6" extension, remove 7 factory M8 bolts holding the bumper beam to the end panel.
-

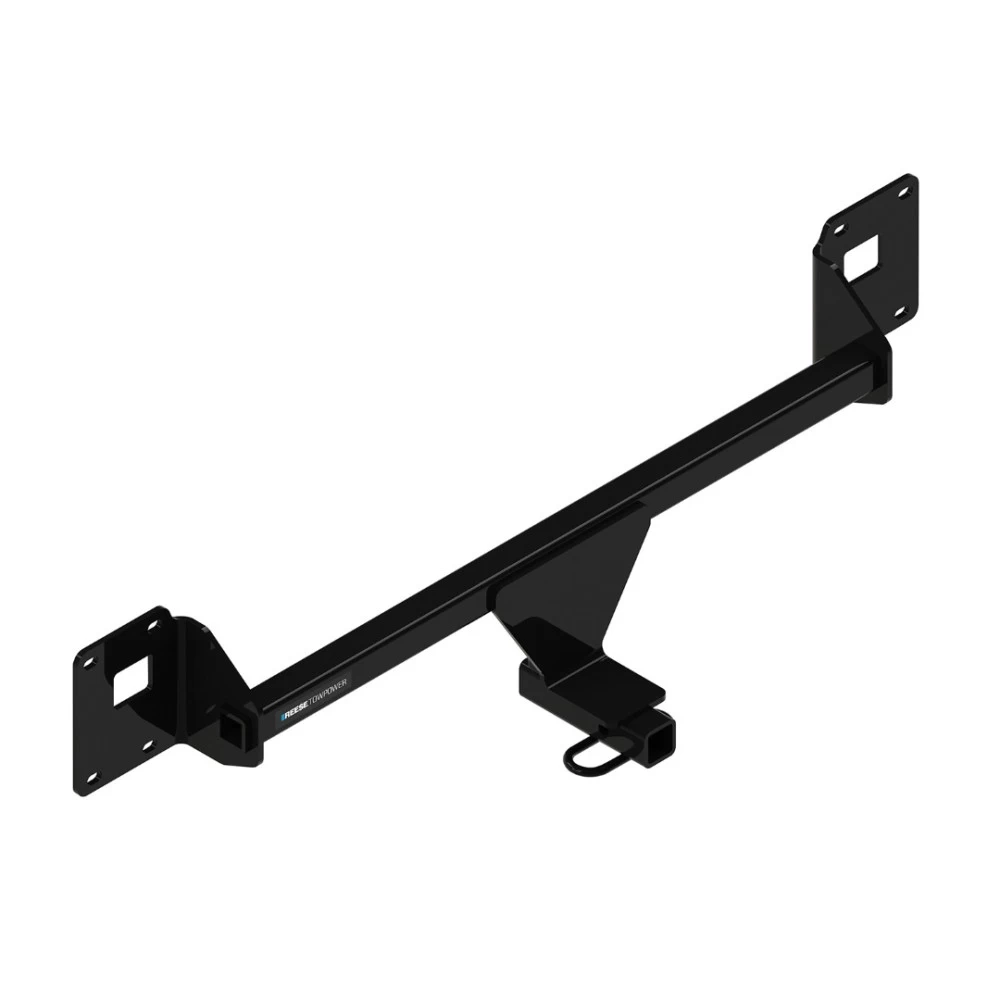

Install Hitch:
- Align the bumper beam with the hitch on the floor.
- Raise the hitch and bumper beam into position, aligning holes on the end panel.
- Loosely reinstall the 7 M8 bolts to the bumper beam and hitch.
-
Torque Fasteners:
- Tighten all M8 bolts to 25 ft-lb (34 N*m) using a torque wrench.
-
Trim Bumper Fascia:
- Locate the center of the fascia and trim it as shown in the instructions.
-
Reinstall Components:
- Reinstall all fasteners, the wiring harness, the fascia, wheel well trim, taillights, and the underbody panel.
Hardware List:

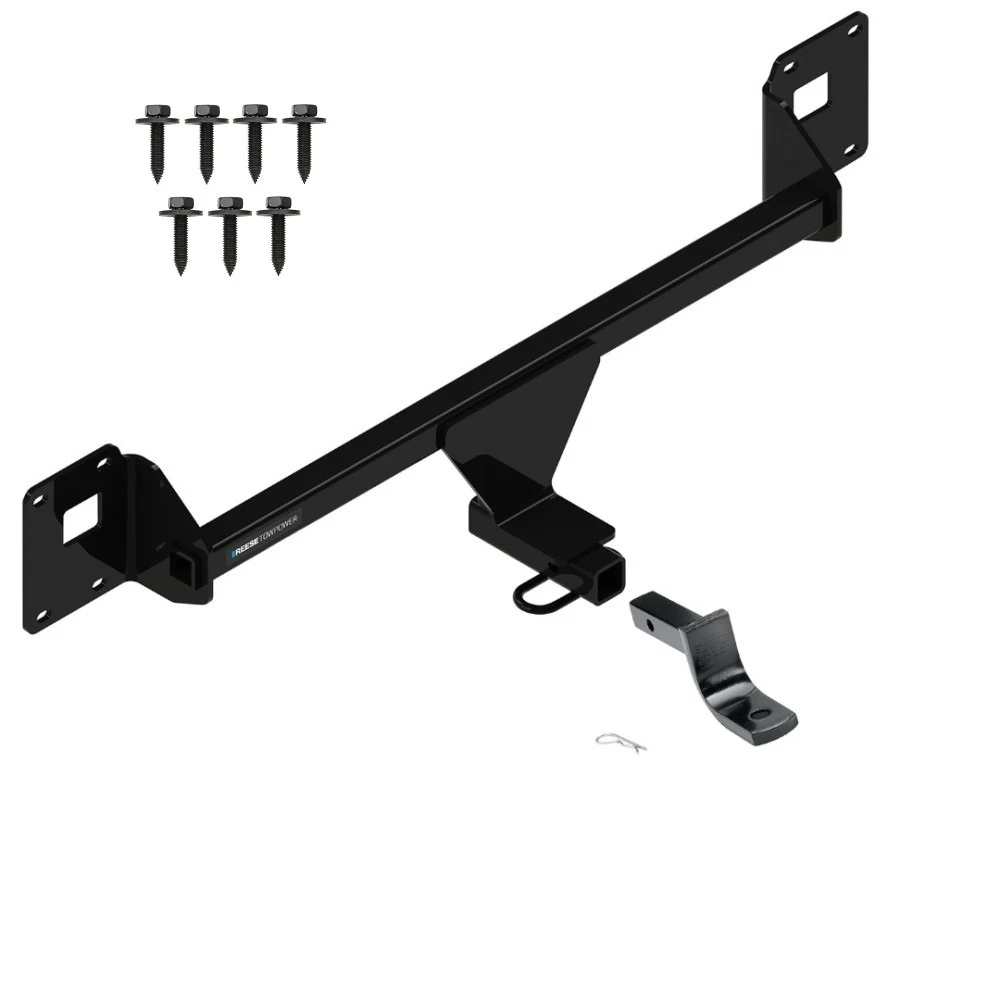

- (7) Bolt, M8 x 1.25 x 35mm, CL 9.8
Safety Notes:
- Always wear safety glasses during installation.
- Check the hitch frequently to ensure all fasteners and the ball are properly tightened.
- Plug any removed holes in the trunk pan or body panels to prevent water or exhaust fumes from entering.
- Replace any damaged hitch or ball immediately.
- Do not cut access or attachment holes with a torch.
Specifications:
- Installation Time: 80 minutes
- Max Gross Trailer Weight: 2,000 lb (908 kg)
- Max Tongue Weight: 200 lb (90.8 kg)
- Complies with SAE J684 and VESC Regulation V-5 standards.
