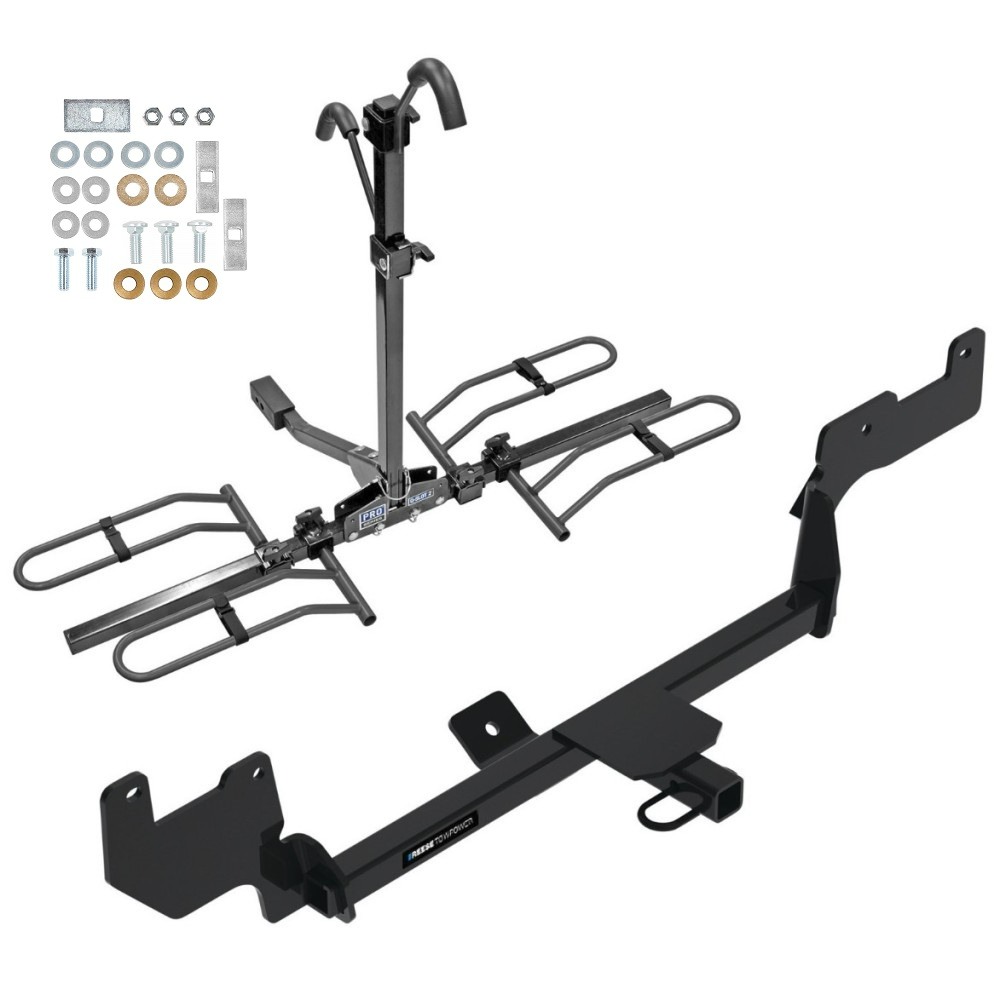

Reese Trailer Tow Hitch For 20‑234 Hyundai Venue 1‑1/4" Towing Receiver Class 1 Platform Style 2 Bike Rack
Model: 77992 63134Custom Fit Trailer Hitch
2 Bike Carrier Rail Rack
Installation Hardware
Installation Instructions
Fits The Following Vehicles
Thank you for choosing Reese the most powerful name in towing industry bar none. Manufactured by the same people that brought you Draw-Tite and Hidden Hitch all of our products come with standard lifetime warranty and support. Our custom hitches mount easily on your Car Truck Van SUV and RV. Most applications simply bolt on without any need for drilling or modifying your bumper. Please review installation instructions manual pdf file above for exact step by step instructions. Chose Class 1 or 2 for light duty towing, chose Class 3 4 and 5 for heavy duty towing. Pair your hitch with accessories like a ball mount that is available in several drop and rise configurations. Choose a 2 inch ball to haul most standard trailers. Choose a 1-7/8" ball to tow small and u tility trailers. Our hitches come with generous tongue weight ratings for use with cargo racks and other accessories. All parts in our store are sold at a discount. If you have any questions please do not hesitate to give us a call at 702-374-8999
$449 54 $681.44 34% OFF
- Best Price on Web Guarantee
- Fastest Shipping
- FREE Shipping
- In Stock

We match lower prices from major authorized retailers for brand-new products in original packaging, provided the item is in stock. The competing seller must be an authorized, professional retail business; offers from
individuals, auctions, peer-to-peer sites, or unauthorized sellers don’t qualify. Used, refurbished, or open-box items are excluded.
Please see our full terms for details.
Verify Fitment
View products that fit your vehicle
Fits 's with the following styles:
View products that fit your vehicle
Fits 's with the following styles:
$681.44 $449 54
Questions? Call our Auto Experts at (877) 869-6690
Get it now, pay later
Select installments at checkout to split your purchase into 4 interest-free payments of $112.25 every 2 weeks.
- No fees, ever.
- No impact on your credit score.
Payment options are offered by Affirm and are subject to an eligibility check and might not be available in all states. CA Residents: Loans by Affirm Loan Services, LLC are made or arranged pursuant to a California Finance Lender license.
Installments in partnership with
.
Affirm and its offerings are supported in English only. Translations are not provided by Affirm.
Product Details
- Brand: Reese
- Model: 77992 63134
- Includes: Class 1 Trailer Tow Hitch, Q-Slot Trailer Tow Hitch Bike Carrier
Compatibility Chart
Year Range | Make | Model | Style |
---|---|---|---|
Loading... |
Specification | |
Attachment Location | Rear |
Color | Black |
Drawbar Included | No |
Drilling Required | No |
Gross Towing Weight | 2,000 lbs. |
Hitch Class | I |
Material | Steel |
Maximum Tongue Weight | 200 lbs. |
Mounting Hardware Included | Yes |
Mounting Type | Vehicle Frame |
Receiver Size | 1.25 in. |
Receiver Type | Square Tube |
Be the first to ask a question.
Description

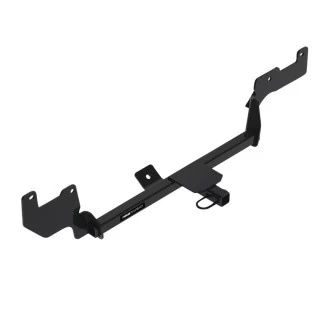

Custom Fit Trailer Hitch
2 Bike Carrier Rail Rack
Installation Hardware
Installation Instructions
Fits The Following Vehicles
Thank you for choosing Reese the most powerful name in towing industry bar none. Manufactured by the same people that brought you Draw-Tite and Hidden Hitch all of our products come with standard lifetime warranty and support. Our custom hitches mount easily on your Car Truck Van SUV and RV. Most applications simply bolt on without any need for drilling or modifying your bumper. Please review installation instructions manual pdf file above for exact step by step instructions. Chose Class 1 or 2 for light duty towing, chose Class 3 4 and 5 for heavy duty towing. Pair your hitch with accessories like a ball mount that is available in several drop and rise configurations. Choose a 2 inch ball to haul most standard trailers. Choose a 1-7/8" ball to tow small and u tility trailers. Our hitches come with generous tongue weight ratings for use with cargo racks and other accessories. All parts in our store are sold at a discount. If you have any questions please do not hesitate to give us a call at 702-374-8999
Get Expert Help
Reese Trailer Tow Hitch For 20-234 Hyundai Venue 1-1/4" Towing Receiver Class 1 Platform Style 2 Bike Rack Install Notes
Installation Instructions for Hyundai Venue (2020-Current)
Part Numbers:
- 24992
- 77992
- CQT24992
Tools Required:
- Ratchet
- Torque Wrench
- Safety Glasses
- Sockets: 12mm, 3/4"
- Flat Head Screwdriver
- Exhaust Removal Pliers
- Phillips Screwdriver
- Ratchet Strap or Bungee Cord
- Tape
- Hack Saw
Step-by-Step Instructions:
-
Remove Carbon Canister Splash Guard Panel:
- Using a flat head screwdriver, remove (2) push pin rivets from the splash guard panel on the driver side.
- Remove the panel from (2) studs on the frame rails and spare tire panel.
- Return the panel to the vehicle owner.
-
Loosen Rear Wheel Well Liners:
- Using a flat head screwdriver, remove (2) push pin rivets from the wheel well liners on each side.
- Using a short Phillips screwdriver, remove (2) screws from each side of the wheel well liner.
- Retain all fasteners for reinstallation.
-
Lower Vehicle Exhaust:
- Use exhaust removal pliers to detach (2) rubber hangers, one from each end of the muffler.
- Slightly bend the heat shield on the passenger side near the end panel using pliers.
- Ensure the exhaust is supported before removing the hangers. Use lubricant or soapy water to ease removal.
-
Remove End Panel Bolts:
- Using a 12mm socket, remove (1) bolt from each side of the vehicle's end panel.
- Return the bolts to the vehicle owner. Do not remove the existing weldnut, which remains attached.
-
Trim Fascia:
- Use a hack saw to cut off the second tab on the driver side fascia.
- Mark 6.75" from the edge of the first tab and trim a 1" square notch.
- On the passenger side, mark 1.75" from the edge of the curvature and trim another 1" square notch if necessary.
-
Install Hitch:
- Tape (2) 1/2" flat washers and (2) 3/8" flat washers to the hitch brackets.
- Align the holes in the hitch bracket with the slots.
- Insert a 1/2" carriage bolt and spacer into the tow hook.
- Raise the hitch into position over the exhaust and loosely secure with 1/2" carriage bolts, spacers, nuts, and conical washers at the lower innermost holes of the end panel on both sides.
- Loosely secure the center bracket to the tow hook with a 1/2" carriage bolt, spacer, conical washer, and nut.
- Install M8 bolts with conical washers into the existing weldnuts on both sides.
-
Tighten Fasteners:
- Torque all M8 fasteners to 20 ft-lb (27 N*m).
- Torque all 1/2" fasteners to 75 ft-lb (102 N*m).
-
Reinstall Wheel Liners and Exhaust:
- Reinstall (1) screw and (2) push pin rivets into each rear wheel well liner.
- Raise the exhaust back into position and reattach the hangers.

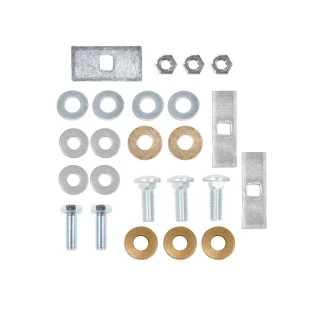

Hardware List:
- (3) Carriage Bolt, 1/2"-13 x 2.00" GR5
- (2) M8 x 1.25 x 40 Bolt
- (3) Conical Washer, 1/2" (Part No. 01292008)
- (2) Conical Washer, 3/8" (Part No. 01292006)
- (3) Nut, 1/2"-13 GR5
- (4) Flat Washer, 1/2"
- (4) Flat Washer, 3/8"
- (2) Spacer, 1/4" x 1" x 2" (Part No. 5121)
- (1) Spacer, 1/4" x 1-1/2" x 3" (Part No. 1171)
Safety Notes:
- Always wear safety glasses during installation.
- Regularly check the hitch to ensure all fasteners and the ball are properly tightened.
- Plug any removed holes in the trunk pan or body panels to prevent water or exhaust fumes from entering.
- Replace any damaged hitch or ball immediately.
- Do not cut access or attachment holes with a torch.
Specifications:
- Installation Time: 50 minutes
- Max Gross Trailer Weight: 2,000 lb (907 kg)
- Max Tongue Weight: 200 lb (90.7 kg)
- Complies with SAE J684 and VESC Regulation V-5 standards.
