Reese Trailer Tow Hitch For 20-24 Hyundai Venue Deluxe Package Wiring 2" and 1-7/8" Ball and Lock

Reese Trailer Tow Hitch For 20-23 Hyundai Venue Deluxe Package Wiring 2" and 1-7/8" Ball and Lock
Reese Trailer Tow Hitch For 20-23 Hyundai Venue Deluxe Package Wiring 2" and 1-7/8" Ball and Lock
Reese Trailer Tow Hitch For 20-23 Hyundai Venue Deluxe Package Wiring 2" and 1-7/8" Ball and Lock
Reese Trailer Tow Hitch For 20-23 Hyundai Venue Deluxe Package Wiring 2" and 1-7/8" Ball and Lock
Reese Trailer Tow Hitch For 20-23 Hyundai Venue Deluxe Package Wiring 2" and 1-7/8" Ball and Lock
Reese Trailer Tow Hitch For 20-23 Hyundai Venue Deluxe Package Wiring 2" and 1-7/8" Ball and Lock
Reese Trailer Tow Hitch For 20-23 Hyundai Venue Deluxe Package Wiring 2" and 1-7/8" Ball and Lock
Reese Trailer Tow Hitch For 20-23 Hyundai Venue Deluxe Package Wiring 2" and 1-7/8" Ball and Lock
Reese Trailer Tow Hitch For 20-23 Hyundai Venue Deluxe Package Wiring 2" and 1-7/8" Ball and Lock
Reese Trailer Tow Hitch For 20-23 Hyundai Venue Deluxe Package Wiring 2" and 1-7/8" Ball and Lock
Reese Trailer Tow Hitch For 20-23 Hyundai Venue Deluxe Package Wiring 2" and 1-7/8" Ball and Lock
Reese Trailer Tow Hitch For 20-23 Hyundai Venue Deluxe Package Wiring 2" and 1-7/8" Ball and Lock
Reese Trailer Tow Hitch For 20-23 Hyundai Venue Deluxe Package Wiring 2" and 1-7/8" Ball and Lock
Reese Trailer Tow Hitch For 20-23 Hyundai Venue Deluxe Package Wiring 2" and 1-7/8" Ball and Lock
Reese Trailer Tow Hitch For 20-23 Hyundai Venue Deluxe Package Wiring 2" and 1-7/8" Ball and Lock
Reese Trailer Tow Hitch For 20-23 Hyundai Venue Deluxe Package Wiring 2" and 1-7/8" Ball and Lock
Reese Trailer Tow Hitch For 20-23 Hyundai Venue Deluxe Package Wiring 2" and 1-7/8" Ball and Lock
Reese Trailer Tow Hitch For 20-23 Hyundai Venue Deluxe Package Wiring 2" and 1-7/8" Ball and Lock
Reese Trailer Tow Hitch For 20-23 Hyundai Venue Deluxe Package Wiring 2" and 1-7/8" Ball and Lock
Reese Trailer Tow Hitch For 20-23 Hyundai Venue Deluxe Package Wiring 2" and 1-7/8" Ball and Lock
Reese Trailer Tow Hitch For 20-24 Hyundai Venue Deluxe Package Wiring 2" and 1-7/8" Ball and Lock
$372.36
  • Stock: In Stock
  • Brand: Reese
  • Model: 77992 3593 118818 63820 63810 580407 2211

Applies to this product only

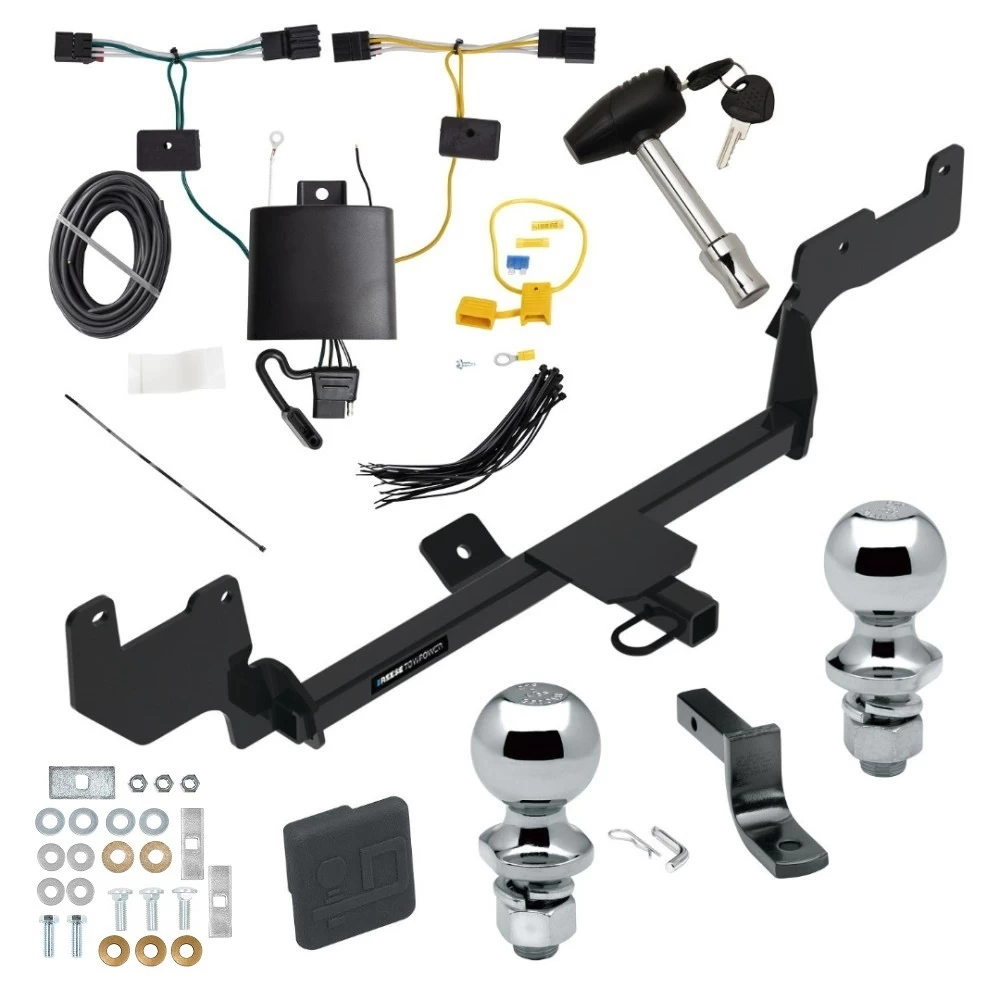

Includes Everything Pictured:
Custom Fit Trailer Hitch
Draw-Bar w/ Pin/Clip
Wiring Harness (Plug & Play)
1-7/8" and 2" Chrome Ball
Security Lock Pin
  Rubber Hitch Plug Cover

Installation Hardware
Installation Instructions

Fits The Following Vehicles

2020 - 2024    Hyundai, Venue, All Styles

Trailer Hitch Specs:
Part Number 77992
Brand Reese
Finish Black Powdercoat
Class 1
Receiver size opening 1-1/4"
Max gross trailer weight 2,000 lbs
Max GTW w/ weight distribution N/A
Max Tongue Weight 200 lbs
Warranty Lifetime
Installation Instructions

Draw-Tite Ball Mount made out of heavy duty steel can be used in either rise or drop position. Ball mount will allow you to hook up your trailer to your vehicle. Simply slide it inside of your hitch receiver opening and secure it with a pin/clip or lock (includes pin and clip)

Ball Mount Specifications:
Fits 1-1/4" x 1-1/4" Trailer Hitch Receiver
Brand Draw-Tite
Finish Black Powdercoat
Length 6-5/8" From Center of Pin Hole to Center of Ball Hole
Rise 2-1/8" From inside top of hitch opening
Towing Capacity in Rise Position 2,000 lb Gross Towing Weight
200 lb Tongue Weight
Drop 2-3/4" From inside top of hitch opening
Towing Capacity in Drop Position 2,000 lb Gross Towing Weight
200 lb Tongue Weight
Ball Hole Diameter 3/4"
Pin hole diameter 1/2"
Warranty Limited Lifetime

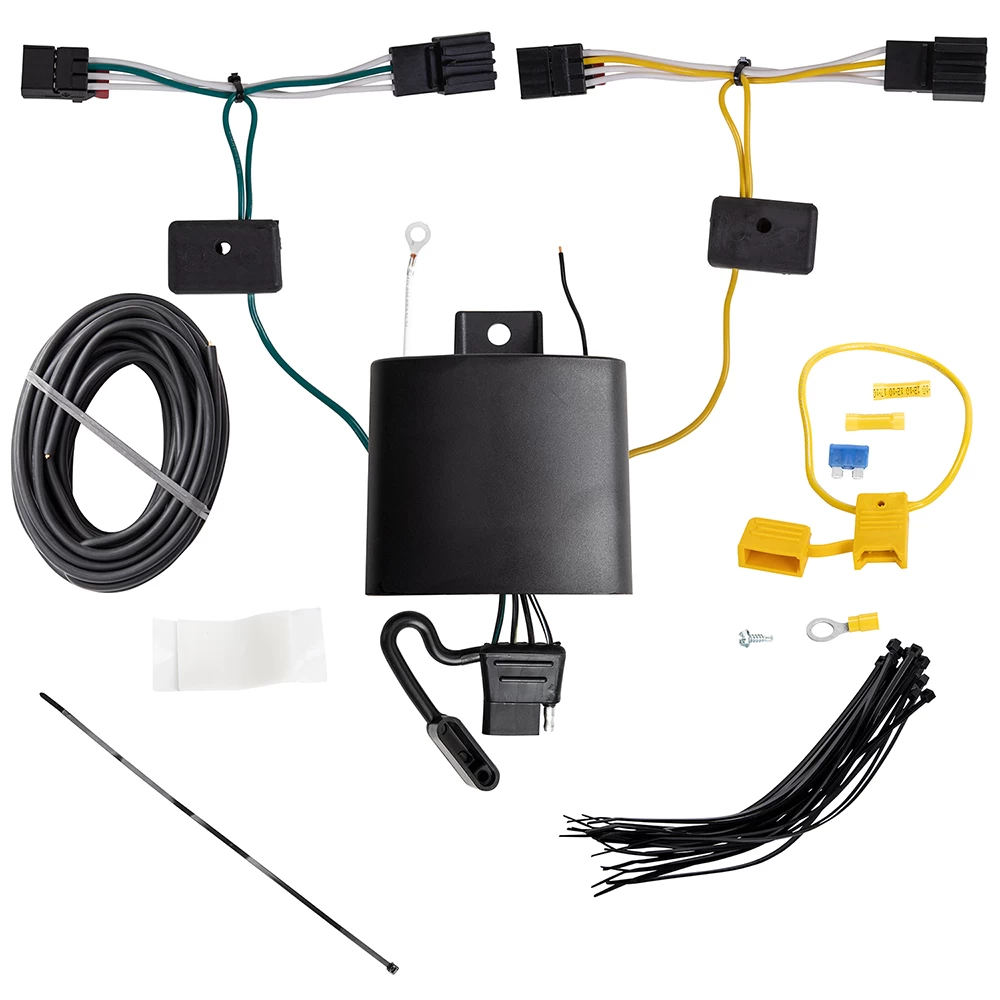

Wiring Kit Specs:
Part Number 118818
Brand Tekonsha
Warranty 1 Year
Installation Instructions

Hitch Ball Specs:
Part Number 63820
Brand Draw-Tite
Size 2" x 3/4" x 1-1/2"
Towing Capacity 3,500 lbs. GTW
Material Chrome
Torque Torque to 160 ft. lbs
Shank Diameter 3/4"
Warranty Lifetime

Hitch Ball Specs:
Part Number 63810
Brand Draw-Tite
Size 1-7/8" x 3/4" x 1-1/2"
Towing Capacity 2,000 lbs. GTW
Material Chrome
(Cold forged for superior strength)
Torque torgue to 160 ft. lbs
Ball Hole Diameter 3/4"
Warranty Lifetime

Security Lock Pin
Specs:
Part Number 580407
Fits 2" and 1-7/8" Tow Receivers
Brand Draw-Tite
Prevents Theft
Use in place of standard pin and clip
Easy Access Models Feature Side Key Entry, Sliding Dust Cap, Lock Housing Rotates 360 degrees
Includes Dust Cap
Warranty Lifetime

Rubber Hitch Plug Specs:
Part Number 2211
Fits 1-1/4" Receiver
Brand Draw-Tite
Attaches to any  1-1/4" receiver
Rubber construction tightly seals tube opening
Pin or clips are not required, simply push the cover into your  1-1/4" x 1-1/4" hitch opening
Prevents any buildup of dirt and debris
Warranty 1 Year



Questions or Comments? Call 702-374-8999


Thank you for choosing Reese the most powerful name in towing industry bar none. Manufactured by the same people that brought you Draw-Tite and Hidden Hitch all of our products come with standard lifetime warranty and support. Our custom hitches mount easily on your Car Truck Van SUV and RV. Most applications simply bolt on without any need for drilling or modifying your bumper. Please review installation instructions manual pdf file above for exact step by step instructions. Chose Class 1 or 2 for light duty towing, chose Class 3 4 and 5 for heavy duty towing. Pair your hitch with accessories like a ball mount that is available in several drop and rise configurations. Choose a 2 inch ball to haul most standard trailers. Choose a 1-7/8" ball to tow small and u tility trailers. Our hitches come with generous tongue weight ratings for use with cargo racks and other accessories. All parts in our store are sold at a discount. If you have any questions please do not hesitate to give us a call at 702-374-8999


Partial list of fitment years: 20 21 22 23 24 2020 2021 2022 2023 2024
Specification
Attachment Location Rear
Color Black
Drawbar Included Yes
Drilling Required No
Gross Towing Weight 2,000 lbs.
Hitch Class I
Material Steel
Maximum Tongue Weight 200 lbs.
Mounting Hardware Included Yes
Mounting Type Vehicle Frame
Receiver Size 1.25 in.
Receiver Type Square Tube
