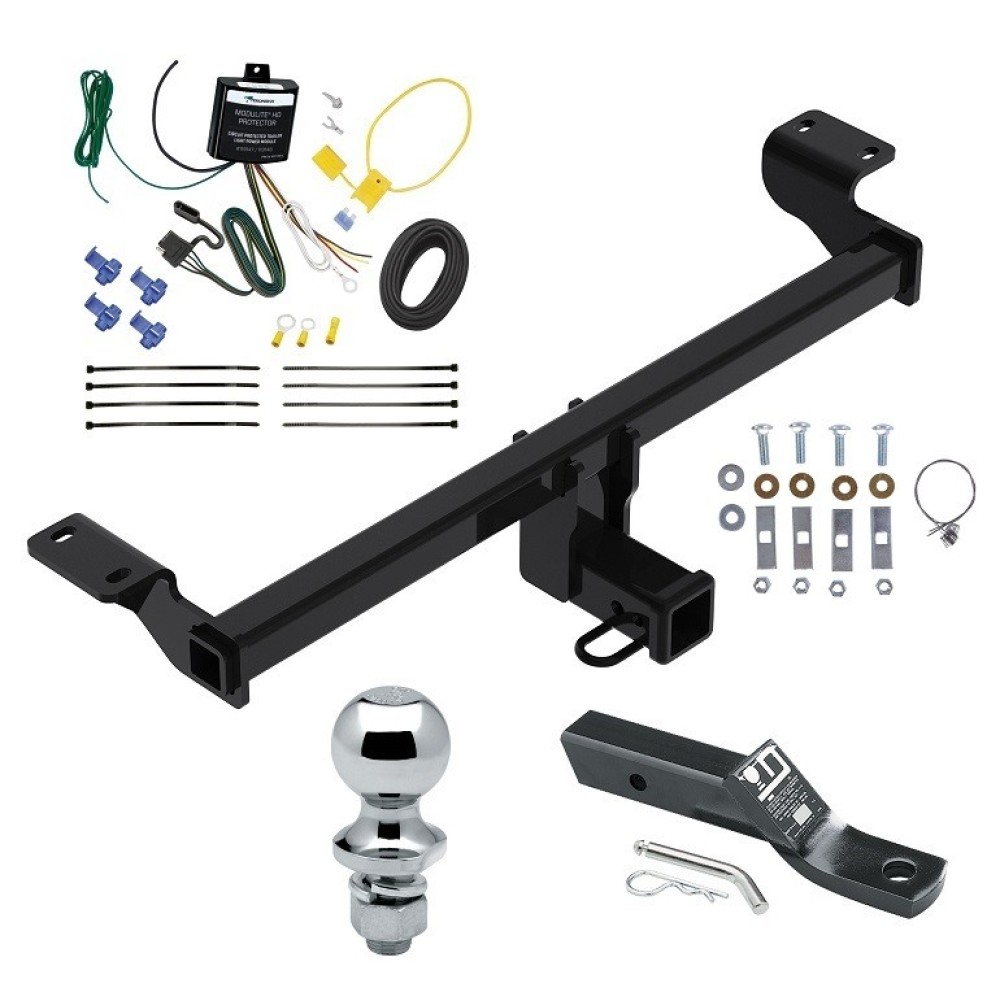

Installation Instructions for 2020-Current Ford Escape and Lincoln Corsair

Part Numbers:

• 76449
• 84449
• CQT76449

Tools Required:

• Ratchet
• Torque Wrench
• Safety Glasses
• Sockets: 3/4", 7 mm
• 6-inch Socket Extension
• Exhaust Removal Pliers
• Die Grinder
• Tape Measure
• Marker
• Utility Knife
• Tin Snips

Step-by-Step Instructions:

1. Lower Exhaust:

   • Use an exhaust hanger removal tool to lower the muffler by removing the rearmost rubber hangers (one on the driver side and one on the passenger side).
   • Support the exhaust to prevent damage.
   • Spray lubricant or soapy water on the rubber hangers to ease removal.

2. Trim Heat Shield:

   • Remove the four screws securing the heat shield.
   • Trim the heat shield as shown in Figure 2 (Ford Escape) or Figure 3 (Lincoln Corsair).
   • Return the screws and trimming area to the vehicle owner.
   • Note: The heat shield can be trimmed without fully removing it.

3. Enlarge Access Hole:

   • Use a die grinder to enlarge the access holes in the vehicle frame just enough to fit the 1/2" carriage bolts (both sides).

4. Trim Lower Fascia (Ford Escape Only):

   • Using a tape measure, marker, and utility knife, measure, mark, and trim the lower fascia as shown in Figure 4.

5. Install Hitch:

   • Tape the flat washer onto the front attachment holes of the frame rails.
   • Using pull wires, feed the carriage bolts and spacers into the vehicle frame through the enlarged access holes.
   • Leave the pull wires attached.
   • Raise the hitch into position and guide the pull wires through the hitch bracket slots.
   • Remove the pull wires and loosely install the conical washers (teeth side toward the hitch) and hex nuts onto the hitch.

6. Tighten Fasteners:

   • Tighten all 1/2"-13 GR5 fasteners with a torque wrench to 75 ft-lbs (102 Nm).

7. Reinstall Exhaust:

   • Raise the exhaust back into position and secure the hangers.

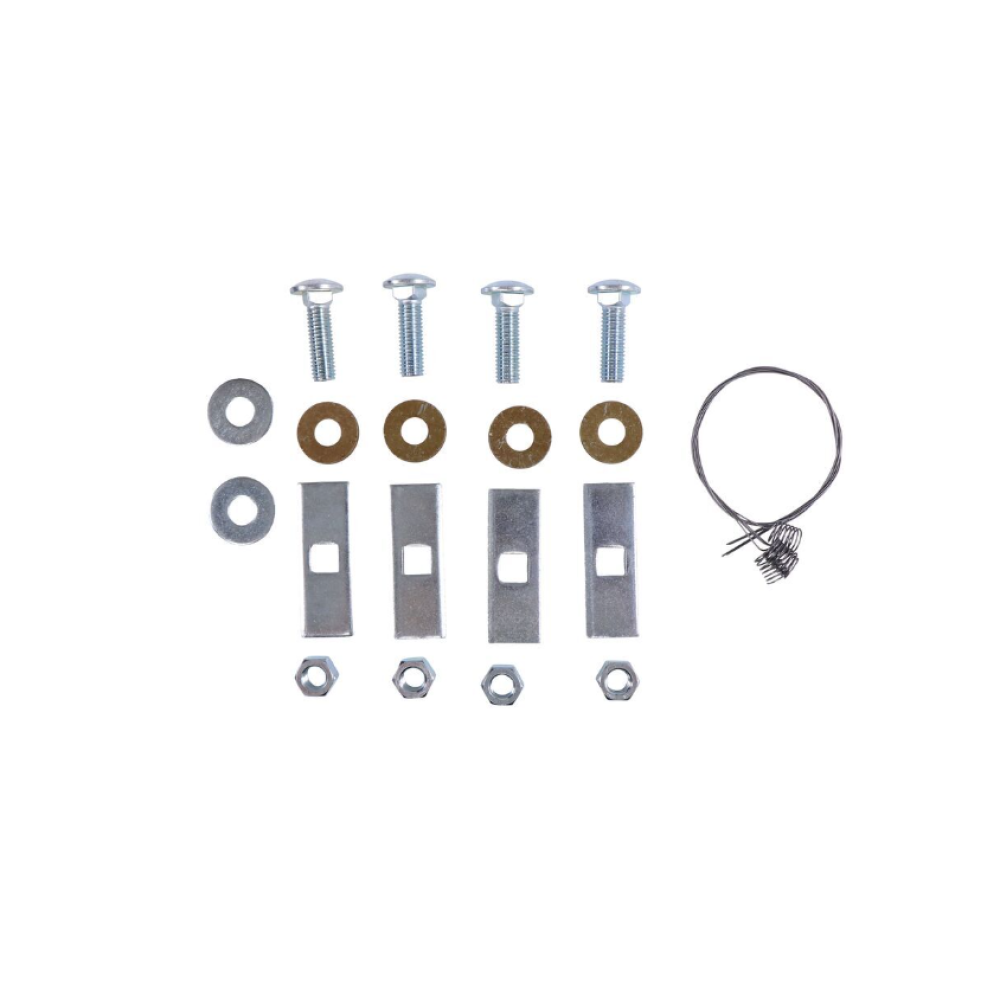

Hardware List:

• (4) Carriage Bolt 1/2"-13 x 1.75" GR5
• (4) Spacer 1/4" x 1" x 3"
• (2) Flat Washer 1/2"
• (4) Conical Washer 1/2"
• (4) Hex Nut 1/2"-13 GR5
• (4) Pull Wire 1/2"-13

Safety Notes:

• Always wear safety glasses during installation.
• Ensure proper torque to keep the hitch securely mounted to the vehicle.
• Regularly check that all fasteners and the ball are properly tightened.
• Replace any damaged hitch or ball immediately.
• Do not cut or modify the hitch.
• Observe safety precautions when working beneath the vehicle.

Specifications:

• Weight Carrying Capacity: 4,500 lbs (2,041 kg) trailer weight, 675 lbs (306 kg) tongue weight.
• Weight Distributing Capacity: Not applicable.
• Product complies with V.E.S.C. Regulation V-5 and SAE J684.

Additional Notes:

• Installation time for professional installers is approximately 60 minutes.
• For detailed photo instructions, scan the QR code provided in the manual or visit the website.

Installation Instructions for Modulite® HD Protector Vehicle Wiring

Part Number:

• 119148

Tools Required:

• Phillips Head #2 Screwdriver
• Wire Cutters
• Wire Strippers/Wire Crimpers
• Tester or Volt Meter
• Socket & Ratchet Set
• Drill with 3/32” Drill Bit
• Double-Sided Tape

Step-by-Step Instructions:

Tow Vehicle Inputs - Determination:

1. Disconnect and isolate the vehicle's negative battery terminal.
   • Warning: Read and follow all warnings and instructions on the tow vehicle's battery.
2. Splice the tow harness input wires to the vehicle as determined.
   • Caution: Use appropriate gauge wire splices. Blue taps are for 16-18 gauge wires only.

Harness Installation:

1. Determine the mounting location of the module and secure it using the double-sided tape provided.
   • Warning: Mount the module with the epoxy side pointed towards the ground to prevent water buildup.
2. Locate a suitable grounding point near the module, such as an existing ground stud, or drill a 3/32” hole to secure the white wire using the provided eyelet and screw.
   • Caution: Verify what is behind any surface before drilling to avoid damage or personal injury.
3. Route the power wire to the vehicle’s positive battery terminal. Use the provided fuse holder, butt connector, and ring terminal to connect to the battery.
   • Do not insert the 15 amp fuse yet.
   • Caution: Ensure the module is connected to a constant power source and avoid routing the wire near hot pipes, heat shields, fuel tanks, or pinch points.

Completion:

1. Secure the harness with cable ties provided to prevent damage or rattling.
2. Reconnect the vehicle's negative battery cable.
3. Insert the 15 amp fuse into the fuse holder and close the cap.
4. Test the installation using a test light or trailer. Check each function independently and in combination.

Hardware List:

• 8 × Cable Ties, 8.5”
• 1 × 15 AMP Fuse
• 2 × Ring Terminals
• 1 × Fuse Holder
• 2 × Yellow Butt Connectors
• 1 × Self-Tapping Screw
• 4 × Blue Taps
• 1 × Spade Terminal

Wiring Outputs:

• White Wire: Ground
• Brown Wire: Tail
• Yellow Wire: Left Turn/Brake
• Green Wire: Right Turn/Brake
• Red Wire: Stop (for 3-wire systems only)

Safety Notes:

• Always read and follow all warnings and instructions included with the product and the vehicle's manual.
• Do not exceed the manufacturer’s towing capacity or the product’s amperage ratings.
• Wear safety glasses and use all necessary safety precautions during installation.

Troubleshooting Guide:

• 4-Flat Not Functioning: Ensure input wires are correctly installed and repeat testing after removing the 15 amp fuse for 10 seconds.
• No Power to 4-Flat: Check the chassis ground and ensure the module is properly connected to a constant power source.

Specifications:

• Installation Time: Approximately 45 minutes
• Compatibility: Does not work with multiplex vehicles (BM, BT, or BTT). Use part numbers 119190 or 119250 for these systems.

Attention: This is a summary of the installation procedure. For complete installation instructions, including diagrams and detailed information from the manufacturer, please download the full installation PDF.

For technical support and assistance, our team of experts is available to help. You can reach our tech support by visiting www.trailerjacks.com or calling 877-869-6690.

For warranty information, please download the full installation PDF.
