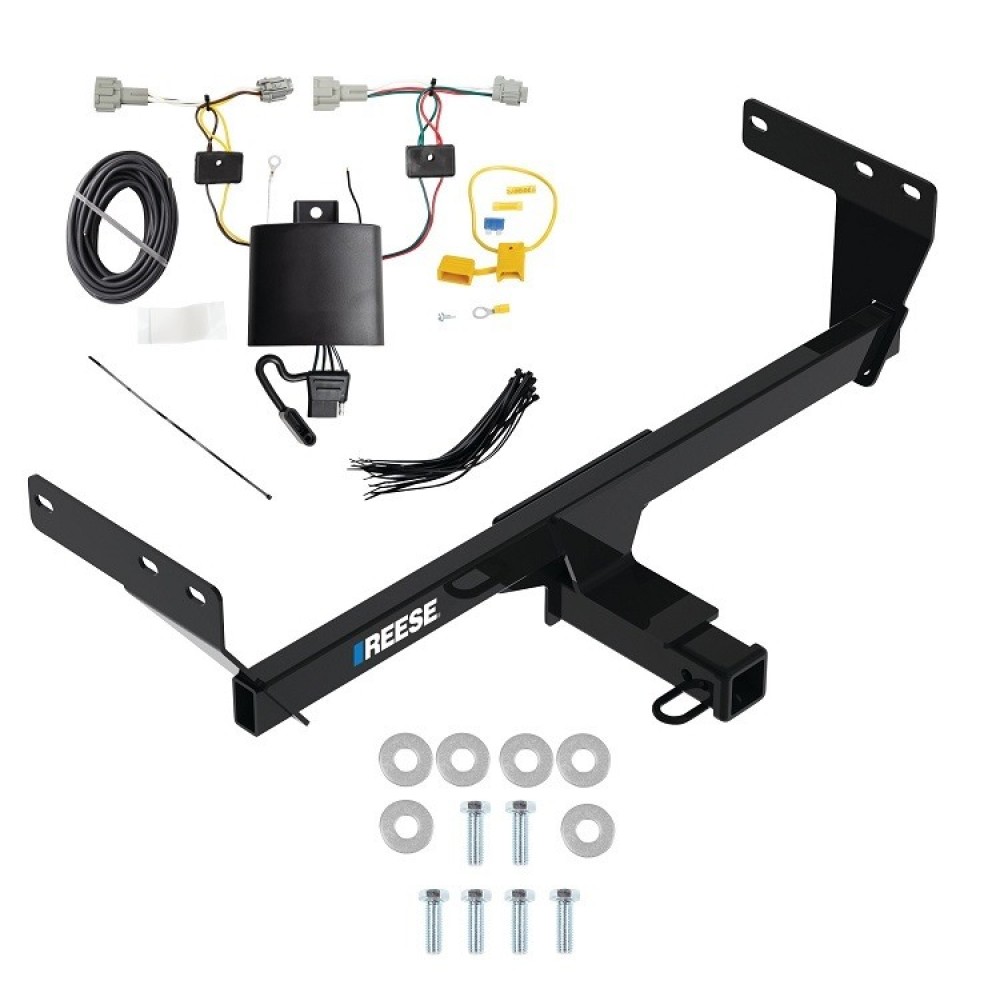

- Includes: Class 3 Trailer Tow Hitch, T-One T-Connector Custom Harness
Compatibility Chart
Year Range | Make | Model | Style |
---|
Description
Get Expert Help
Reese Trailer Tow Hitch For 21-24 Nissan Rogue 2" Receiver Class 3 w/ Wiring Harness Kit Install Notes
Installation Instructions for 2021-Current Nissan Rogue
Part Numbers:
- 76396
- 84396
- CQT76396
Tools Required:
- Ratchet
- Torque Wrench
- Safety Glasses
- Socket: 19 mm
- Socket Extension
- M12x1.25 Tap
Step-by-Step Instructions:
-
Clean Access Holes:
- Using an M12x1.25 tap, clean the existing weldnuts on both sides of the vehicle frame to remove paint and debris.
-
Install Hitch:
- Raise the hitch into position and align it with the mounting holes in the vehicle frame.
- Loosely install six M12 bolts and six 1/2" conical washers (teeth side toward hitch).
-
Tighten Fasteners:
- Using a torque wrench, tighten all M12 fasteners to 76 ft-lbs (103 Nm).
Hardware List:
- (6) M12x1.25x35 CL8.8 Bolts
- (6) 1/2" Conical Washers
Safety Notes:
- Always wear safety glasses during installation.
- Ensure all fasteners are properly tightened to the specified torque.
- Periodically check that the hitch is securely mounted and all fasteners are tight.
- Replace any damaged hitch or ball immediately.
- Do not cut or modify the hitch.
- Follow all vehicle manufacturer instructions related to towing.
Specifications:
- Weight Carrying Capacity: 3,500 lbs (1,588 kg) trailer weight, 525 lbs (238 kg) tongue weight.
- Weight Distributing Capacity: Not applicable.
- Product complies with V.E.S.C. Regulation V-5 and SAE J684.
Notes:
- Installation time for professional installers is approximately 30 minutes.
- For step-by-step photo instructions, scan the QR code provided in the manual.
Installation Instructions for T-One® T-Connector for Nissan Rogue
Part Numbers:
- 118833
Tools Required:
- Trim Panel Remover
- 10mm Socket & Ratchet or Wrench
- Drill (3/32” Drill Bit)
- Wire Crimpers
- Wire Cutters
- Phillips Head Screwdriver
- Test Probe
Step-by-Step Instructions:
-
Open the Hatch:
- Remove the plastic threshold cover, side panels, and cargo trays to locate the vehicle’s wiring in the rear cargo area.
- Using a 10mm socket or wrench, remove the 10mm bolts securing the cargo hooks.
-
Access the Taillight Wiring Harness:
- Remove two 10mm nuts from the taillight pocket on both the driver’s and passenger’s sides.
- Carefully slit the grommet to allow for the T-Connector wiring.
-
Connect the Driver-Side T-Connector:
- Insert the T-One® Connector end with the yellow wire between the driver-side wiring connectors.
- Ensure the connectors are fully inserted and the locking tabs are securely engaged.
-
Mount the Black Box:
- Mount the T-One® Connector black box on the driver’s side using the provided double-sided tape.
- Secure the remaining harness with the provided cable ties, avoiding areas where the wire could be pinched, cut, or damaged.
-
Ground the White Wire:
- Locate a suitable grounding point near the connector, such as an existing ground stud.
- If no ground point is available, drill a 3/32” hole and secure the white wire with the provided eyelet and screw.
- Clean the grounding area of dirt and rustproofing before securing.
Caution: Verify what is behind any surface before drilling to avoid damage or injury.
-
Route the Passenger-Side T-Connector:
- Route the green wire behind the panels and along the threshold to the passenger-side taillight pocket.
-
Connect the Passenger-Side T-Connector:
- Insert the T-One® Connector end with the green wire between the passenger-side wiring connectors.
- Ensure the connectors are fully inserted and the locking tabs are securely engaged.
-
Connect the Power Wire:
- Disconnect the vehicle’s Negative (-) battery cable.
- Remove the fuse from the yellow fuse holder (provided).
- Attach the ring terminal to the Positive (+) battery cable and secure it.
- Connect the other end of the fuse holder to the black 12-gauge wire using the provided yellow butt connector.
-
Route the Power Wire:
- Starting from the front of the vehicle, route the black 12-gauge wire rearward along the frame rail, avoiding hot pipes, heat shields, fuel tanks, or areas that may pinch or damage the wire.
-
Connect the Power Wire to the Black Box:
- Connect the black 12-gauge wire to the black power wire on the T-One® Connector black box using the provided yellow butt connector.
-
Reconnect the Battery and Test:
- Reconnect the Negative (-) battery cable.
- Install the 15-amp fuse into the fuse holder.
- Test the installation using a test light or trailer. Reset the vehicle’s electrical system by temporarily removing the key from the ignition.
-
Reassemble the Vehicle:
- Replace all panels, threshold covers, and storage items removed during installation.
- Ensure no wires are pinched or damaged.
-
Store the 4-Flat Connector:
- Route the 4-flat connector through the driver’s side trim panel into the storage compartment and store it when not in use.
Safety Notes:
- Overloading circuits can cause fires. Do not exceed stated product ratings.
- Always wear safety glasses and follow safety precautions during installation.
Manufacturer Notes:
- Refer to the vehicle owner’s manual and the instruction sheet for additional details.
- Store these instructions for future reference.
- Always read and follow all warnings and instructions printed on the tow vehicle’s battery.
