Name: Reese Trailer Tow Hitch For 22-23 Chevrolet Bolt EV Deluxe Package Wiring 2" and 1-7/8" Ball and Lock - 78295 3593 119148 63820 63810 580407 2211
Brand: Reese
Price: 344.09 USD
Availability: InStock

Reese Trailer Tow Hitch For 22-23 Chevrolet Bolt EV Deluxe Package Wiring 2" and 1-7/8" Ball and Lock

0 reviews - Write a review

$344.09

Stock: In Stock
Brand: Reese
Model: 78295 3593 119148 63820 63810 580407 2211

Qty

Add to Cart

Buy Now Ask Question

Add to Wish List Compare this Product

Applies to this product only

Estimate

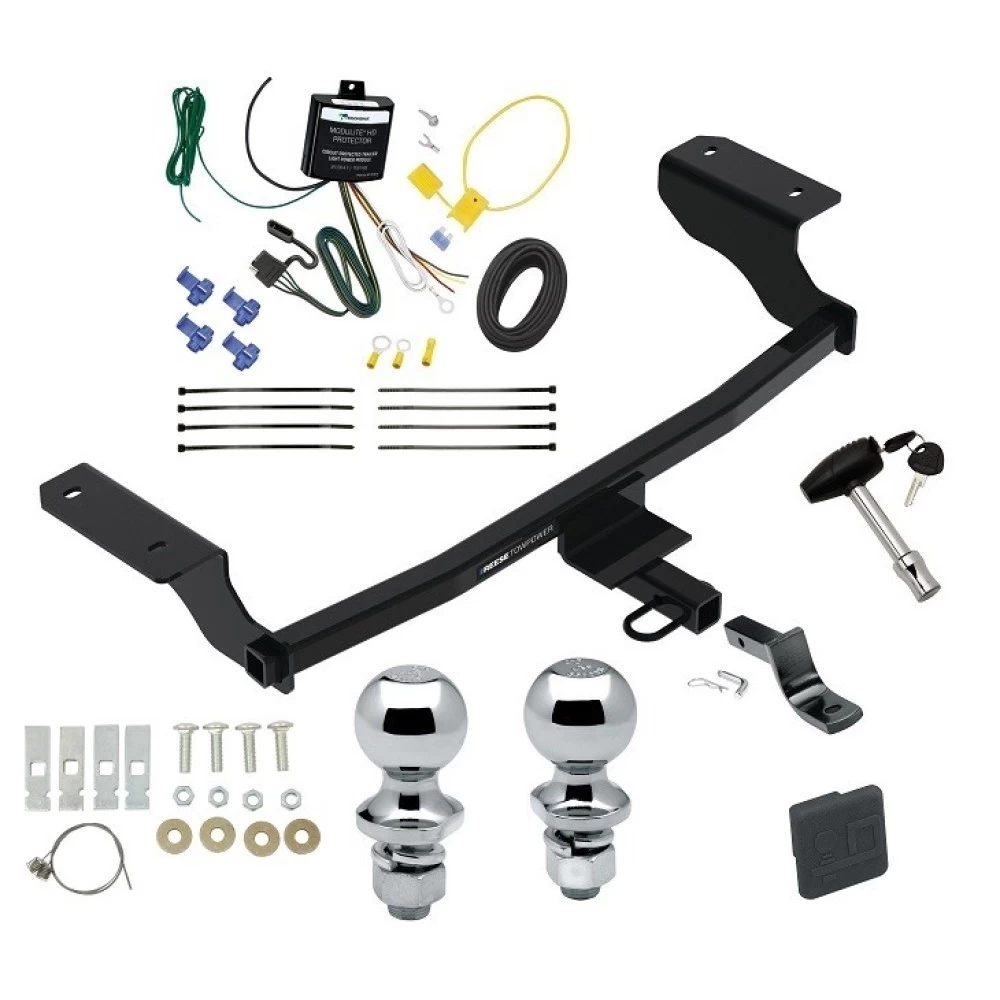

Includes Everything Pictured:

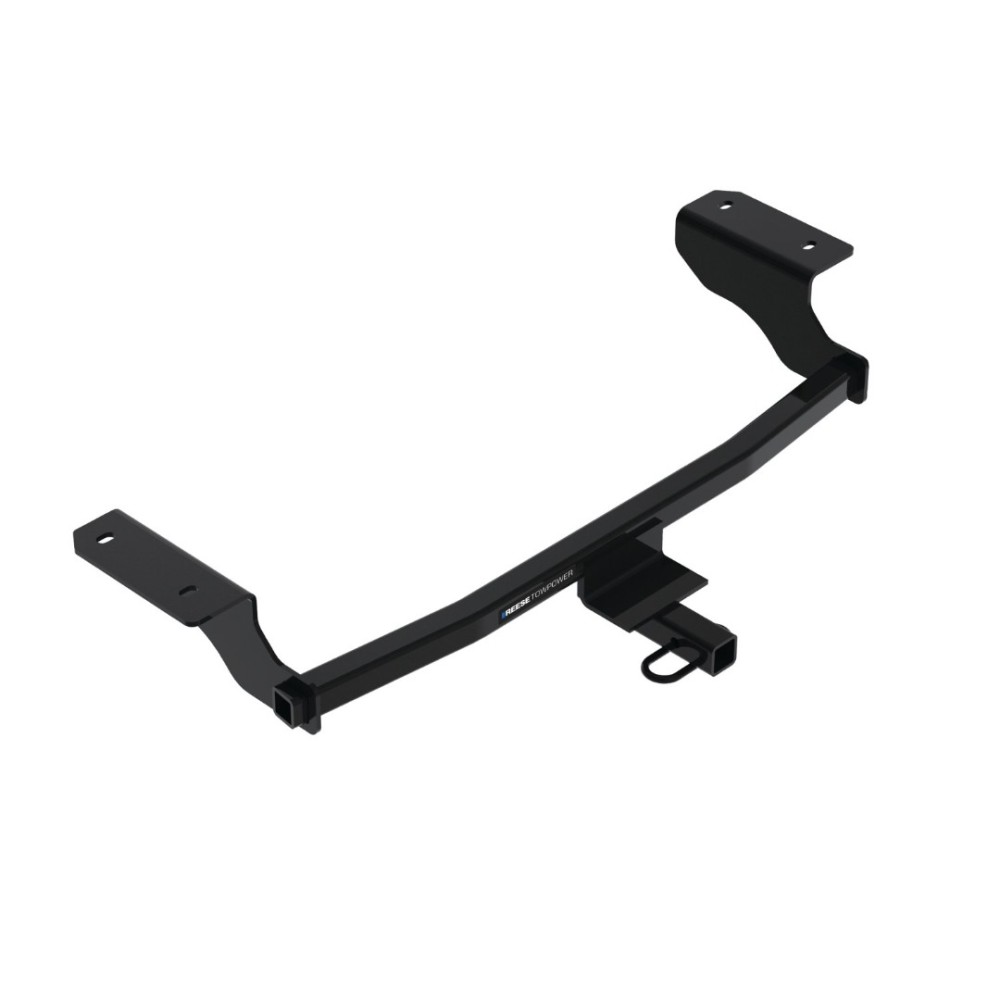

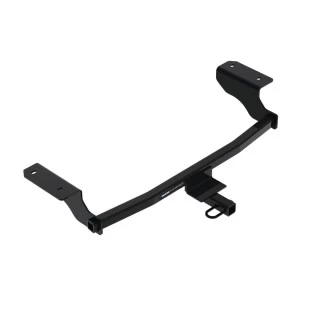

Custom Fit Trailer Hitch
Draw-Bar w/ Pin/Clip
Wiring Harness (Requires Splicing)
1-7/8" and 2" Chrome Ball
Security Lock Pin
Rubber Hitch Plug Cover

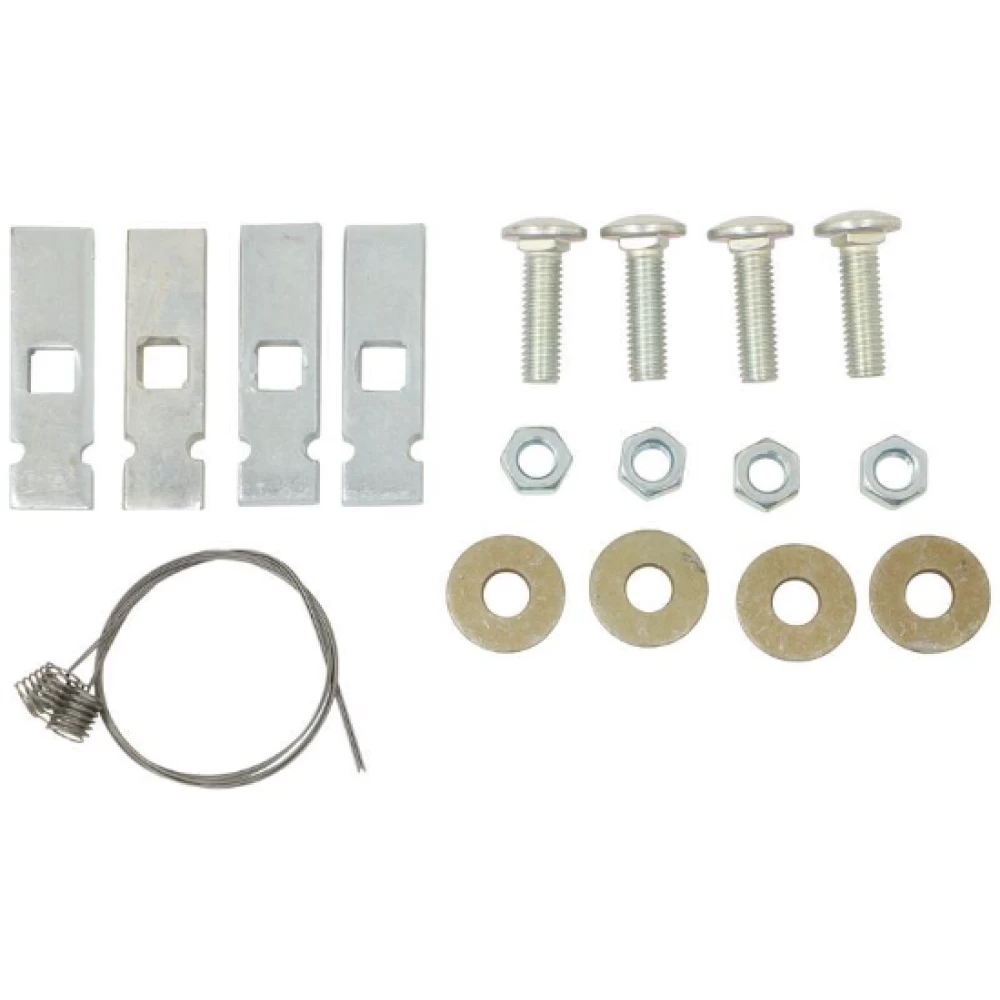

Installation Hardware
Installation Instructions

Fits The Following Vehicles:

2022 - 2023 Chevrolet, Bolt EV, All Styles

Trailer Hitch Specs:

Part Number	78295
Brand	Reese
Finish	Black Powdercoat
Class	I
Receiver size opening	2"
Max gross trailer weight	2,000 lbs
Max GTW w/ weight distribution	N/A
Max Tongue Weight	200 lbs
Warranty	Lifetime
Installation Instructions

Draw-Tite Ball Mount made out of heavy duty steel can be used in either rise or drop position. Ball mount will allow you to hook up your trailer to your vehicle. Simply slide it inside of your hitch receiver opening and secure it with a pin/clip or lock (includes pin and clip)

Ball Mount Specifications:

Fits	1-1/4" x 1-1/4" Trailer Hitch Receiver
Brand	Draw-Tite
Finish	Black Powdercoat
Length	6-5/8" From Center of Pin Hole to Center of Ball Hole
Rise	2-1/8" From inside top of hitch opening
Towing Capacity in Rise Position	2,000 lb Gross Towing Weight 200 lb Tongue Weight
Drop	2-3/4" From inside top of hitch opening
Towing Capacity in Drop Position	2,000 lb Gross Towing Weight 200 lb Tongue Weight
Ball Hole Diameter	3/4"
Pin hole diameter	1/2"
Warranty	Limited Lifetime

Wiring Kit Specs:

Part Number	119148
Brand	Tekonsha
Warranty	1 Year
Installation Instructions

Hitch Ball Specs:

Part Number	63820
Brand	Draw-Tite
Size	2" x 3/4" x 1-1/2"
Towing Capacity	3,500 lbs. GTW
Material	Chrome
Torque	Torque to 160 ft. lbs
Shank Diameter	3/4"
Warranty	Lifetime

Hitch Ball Specs:

Part Number	63810
Brand	Draw-Tite
Size	1-7/8" x 3/4" x 1-1/2"
Towing Capacity	2,000 lbs. GTW
Material	Chrome (Cold forged for superior strength)
Torque	torgue to 160 ft. lbs
Ball Hole Diameter	3/4"
Warranty	Lifetime

Questions or Comments? Call 702-374-8999
REESE Towpower custom-fit hitches are built according to manufacturer vehicle weight specifications and model year to ensure a perfect fit and top towing performance. Featuring solid all-welded construction for maximum strength and safety, every hitch meets and exceeds industry standards.

Partial list of fitment years: 22 23 2022 2023

Specification
Attachment Location	Rear
Color	Black
Drawbar Included	Yes
Drilling Required	Yes
Gross Towing Weight	2,000 lbs.
Hitch Class	I
Material	Steel
Maximum Tongue Weight	200 lbs.
Mounting Hardware Included	Yes
Mounting Type	Vehicle Frame
Receiver Size	1.25 in.
Receiver Type	Square Tube

Be the first to ask a question.

Tags: 78295 , 3593 , 119148 , 63820 , 63810 , 580407 , 2211 , Reese , Trailer , Tow , Hitch , 22-23 , Chevrolet , Bolt , EV , Deluxe , Package , Wiring , 2" , and , 1-7/8" , Ball , and , Lock , 22 , 23 , 2022 , 2023
