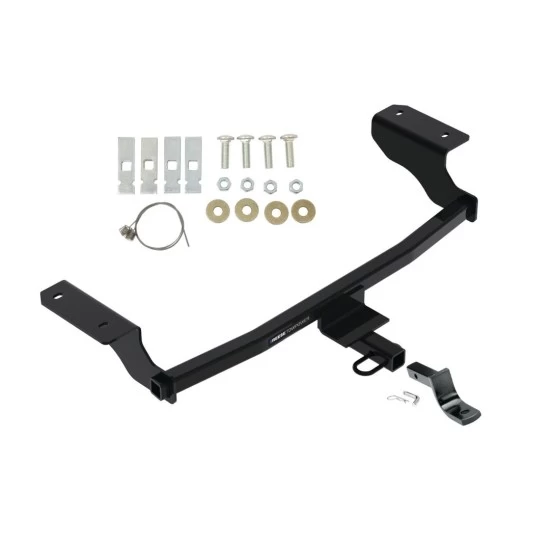

Reese Trailer Tow Hitch For 22-23 Chevrolet Bolt EV w/ Draw Bar Kit Class 1 1-1/4" Receiver
-550x550.jpg "Custom Fit Trailer Hitch Draw-Bar w/ Pin/Clip Installation Hardware Installation Instructions 78295 3593 Reese Towpower Trailer Tow Hitch 22-23 Chevrolet Bolt EV Draw Bar Kit Class 1 1-1/4\" Receiver 22 23 2022 2023")
-150x150.jpg "Custom Fit Trailer Hitch Draw-Bar w/ Pin/Clip Installation Hardware Installation Instructions 78295 3593 Reese Towpower Trailer Tow Hitch 22-23 Chevrolet Bolt EV Draw Bar Kit Class 1 1-1/4\" Receiver 22 23 2022 2023")
- Stock: In Stock
- Brand: Reese Towpower
- Model: 78295 3593
Verify Product Fitment
Custom Fit Trailer Hitch
Draw-Bar w/ Pin/Clip
Installation Hardware
Installation Instructions
2022 - 2023 Chevrolet, Bolt EV, All Styles
Trailer Hitch Specs:
| Part Number | 78295 |
| Brand | Reese |
| Finish | Black Powdercoat |
| Class | I |
| Receiver size opening | 1-1/4 |
| Max gross trailer weight | 2,000 lbs |
| Max GTW w/ weight distribution | N/A |
| Max Tongue Weight | 200 lbs |
| Warranty | Lifetime |
| Installation Instructions |  |
Draw-Tite Ball Mount made out of heavy duty steel can be used in either rise or drop position. Ball mount will allow you to hook up your trailer to your vehicle. Simply slide it inside of your hitch receiver opening and secure it with a pin/clip or lock (includes pin and clip)
Ball Mount Specifications:
| Fits | 1-1/4" x 1-1/4" Trailer Hitch Receiver |
| Brand | Draw-Tite |
| Finish | Black Powdercoat |
| Length | 6-5/8" From Center of Pin Hole to Center of Ball Hole |
| Rise | 2-1/8" From inside top of hitch opening |
| Towing Capacity in Rise Position | 2,000 lb Gross Towing Weight 200 lb Tongue Weight |
| Drop | 2-3/4" From inside top of hitch opening |
| Towing Capacity in Drop Position | 2,000 lb Gross Towing Weight 200 lb Tongue Weight |
| Ball Hole Diameter | 3/4" |
| Pin hole diameter | 1/2" |
| Warranty | Limited Lifetime |
Thank you for choosing Reese, the most powerful name in trailer light wiring and brake control system. Our trailer wiring harness is vehicle specific, requires no splicing or cutting of the wires. Simply plug & play and your vehicle will be able to control trailers brake, turn and running lights. Trailer wiring kit comes with a 1 year warranty and everything necessary to install the trailer plug wiring. Reese manufactures a wider range of different products for hooking up trailer lights to your Car Truck or SUV. T-One connectors work great with boat trailer wiring and utility trailer wiring. Typically those trailers will use the standard 4 flat plug which is what our T One connectors offer. If you have an RV Fifth Wheel or any other large type of trailer you will us a 7 pin trailer plug to control your electric trailer brakes. Tekonsha offers 7 pin trailer connector as well. Simply do a search above to see if there is a 7 wire trailer wiring available for hooking up your 7 way. If there is not you can use part number 85343 trailer wiring adapter to convert any 4-Flat into a 7-Way. In addition you will use part number 20506 which will include the rest of wiring needed for electric brake controls. You can also call us or email us any time and we will be able to provide information you need.
Partial list of fitment years: 22 23 2022 2023
Compatibility Chart:
| Year Range | Make | Model | Style |
|---|
