Reese Trailer Tow Hitch For 78-96 Chevy G10 G20 G30 GMC G1500 G2500 G3500 2" Receiver

Reese Trailer Tow Hitch For 78‑96 Chevy G10 G20 G30 GMC G1500 G2500 G3500 2" Receiver

Model: 44011

This Hitch Fits The Following Vehicles:

1978 - 1995   Chevrolet, G10, All Styles
1978 - 1995   Chevrolet, G20, All Styles
1978 - 1995   Chevrolet, G30, All Styles
1979 - 1995   GMC, G1500, All Styles
1979 - 1995   GMC, G2500, All Styles
1979 - 1995   GMC, G3500, All Styles
1996   Chevrolet, G30, Classic & Sport Full Size w/Lo-Mount Taillights
1996   GMC, G3500, Vandura & Rally Full Size w/Lo-Mount Taillights

Trailer Hitch Specs:

Part Number	44011
Brand	Reese
Finish	Black Powdercoat
Class	3
Receiver size opening	2"
Max gross trailer weight	5,000 lbs
Max GTW w/ weight distribution	7,500 lbs
Max Tongue Weight	500/750 lbs
Warranty	Lifetime
Installation Instructions

Questions or Comments? Call 702-374-8999

Thank you for choosing Reese the most powerful name in towing industry bar none. Manufactured by the same people that brought you Draw-Tite and Hidden Hitch all of our products come with standard lifetime warranty and support. Our custom hitches mount easily on your Car Truck Van SUV and RV. Most applications simply bolt on without any need for drilling or modifying your bumper. Please review installation instructions manual pdf file above for exact step by step instructions. Chose Class 1 or 2 for light duty towing, chose Class 3 4 and 5 for heavy duty towing. Pair your hitch with accessories like a ball mount that is available in several drop and rise configurations. Choose a 2 inch ball to haul most standard trailers. Choose a 1-7/8" ball to tow small and u tility trailers. Our hitches come with generous tongue weight ratings for use with cargo racks and other accessories. All parts in our store are sold at a discount. If you have any questions please do not hesitate to give us a call at 702-374-8999

Partial list of fitment years: 78 79 80 81 82 83 84 85 86 87 88 89 90 91 92 93 94 95 96 1978 1979 1980 1981 1982 1983 1984 1985 1986 1987 1988 1989 1990 1991 1992 1993 1994 1995 1996

See Full Description

$268 ²⁰ $418.84 36% OFF

Best Price on Web Guarantee
Fastest Shipping
FREE Shipping
In Stock

Best Price on Web Guarantee

We match lower prices from major authorized retailers for brand-new products in original packaging, provided the item is in stock. The competing seller must be an authorized, professional retail business; offers from individuals, auctions, peer-to-peer sites, or unauthorized sellers don’t qualify. Used, refurbished, or open-box items are excluded.

Please see our full terms for details.

Applies to this product only

Please wait...

Verify Fitment

Year

Make

Model

Add to Wish List

$418.84 $268 ²⁰

Pay in 4 interest-free installments of $67.00 with

Learn more

Questions? Call our Auto Experts at (877) 869-6690

Get it now, pay later

Select installments at checkout to split your purchase into 4 interest-free payments of $67.00 every 2 weeks.

No fees, ever.
No impact on your credit score.

Payment options are offered by Affirm and are subject to an eligibility check and might not be available in all states. CA Residents: Loans by Affirm Loan Services, LLC are made or arranged pursuant to a California Finance Lender license.

Fits Vehicle Styles

Product Details

Brand: Reese
Model: 44011
UPC: 016118003253
Includes: Class 3 Trailer Tow Hitch

Compatibility Chart

Specification
Attachment Location	Rear
Ball Mount Included	No
Color	Black
Drilling Required	No
Gross Towing Weight	5,000 lbs.
Gross Towing Weight w/ Weight Distribution Kit	7,500 lbs.
Hitch Class	III
Material	Steel
Maximum Tongue Weight	500 lbs.
Maximum Tongue Weight w/ Weight Distribution Kit	750 lbs.
Mounting Hardware Included	Yes
Mounting Type	Vehicle Frame
Receiver Size	2 in.
Receiver Type	Square Tube

Be the first to ask a question.

Description

Part Number	44011
Brand	Reese
Finish	Black Powdercoat
Class	3
Receiver size opening	2"
Max gross trailer weight	5,000 lbs
Max GTW w/ weight distribution	7,500 lbs
Max Tongue Weight	500/750 lbs
Warranty	Lifetime
Installation Instructions

Questions or Comments? Call 702-374-8999

Tags: 44011 , 1978 , 1979 , 1980 , 1981 , 1982 , 1983 , 1984 , 1985 , 1986 , 78 , 79 , 80 , 81 , 82 , 83 , 84 , 85 , 86 , Chevrolet , G10 , Reese , Towpower , Trailer , Tow , Hitch , Receiver , Bar , Frame

Get Expert Help

Reese Trailer Tow Hitch For 78-96 Chevy G10 G20 G30 GMC G1500 G2500 G3500 2" Receiver Install Notes

Installation Instructions for Chevrolet and GMC Vans

Part Numbers:

75121
44011

Tools Required:

Wrenches: 9/16" socket & wrench, 3/4" socket & wrench
Drill Bits: None

Equipment Required:

Pull Wire (provided)

Step-by-Step Instructions:

Remove Bumper Support Brackets:
- Remove the two lower bumper support brackets, one per side. Save the bolts and washers, and return the brackets to the owner.
Install Side Brackets:
- Place the left and right side brackets against the frame bottom.
- Install four 1/2" bolts and washers (removed in Step 1). Leave these bolts loose.
Install Bumper Bolts:
- Install two 3/8" bumper bolts (removed in Step 1), two 3/8" conical washers, and two 3/8" lock nuts from the parts package. Leave the lock nuts loose.
- Warning: Always use the 3/8" lock nuts with the 3/8" bumper bolts to prevent the receiver from loosening or separating.
Fishwire Bolts into Place:
- Screw the pull wire onto a 1/2" carriage bolt and feed it through a bolt plate and the large hole on the outboard side of the frame. Pull it out through the bottom hole of the frame.
- Repeat for the other side.
- Install two 1/2" conical washers, lock washers, and hex nuts on the bolts. Leave the nuts loose.
Tighten Fasteners:
- Tighten bolts and nuts in the exact order listed below to pull the receiver rearward to the bumper before tightening the frame bolts:
  - Torque the two 3/8" lock nuts on the bumper to 30 ft-lb (41 N·m).
  - Torque the 1/2" nuts and bolts to 75 ft-lb (102 N·m).

Torque Specifications:

3/8" Lock Nuts: 30 ft-lb (41 N·m)
1/2"-13 Nuts and Bolts: 75 ft-lb (102 N·m)

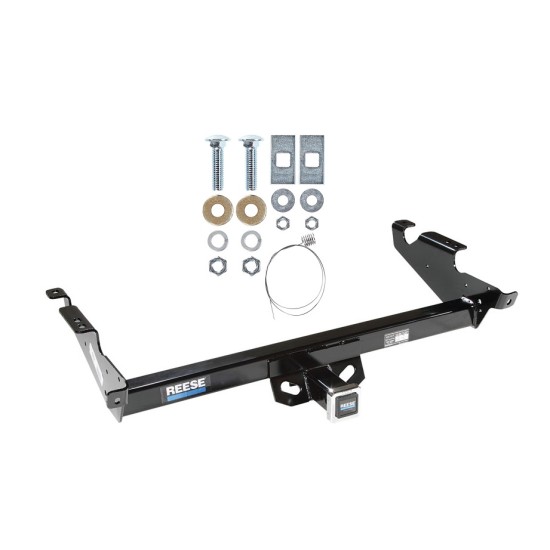

Hardware List:

(2) Carriage Bolts, 1/2"-13 x 2.00
(2) Blocks
(2) Pull Wires, 1/2"-13
(2) Conical Washers, 1/2"
(2) Lock Washers, 1/2"
(2) Hex Nuts, 1/2"-13
(2) 3/8" Bumper Bolts
(2) 3/8" Conical Washers
(2) 3/8" Lock Nuts

Safety Notes:

Regularly inspect the hitch to ensure all fasteners and the ball are securely tightened.
Replace any damaged hitch or ball immediately.
Plug any holes in the vehicle's trunk pan or body panels to prevent water or exhaust fumes from entering.
Do not lubricate threads, as bolt failure may occur due to over-tightening.
Follow proper safety precautions when working beneath the vehicle, including wearing eye protection.
Do not cut access or attachment holes with a torch.
Do not drill or weld the hitch.

Specifications:

Weight Carrying (Ball Mount):
- Max Gross Trailer Weight: 5,000 lb (2,270 kg)
- Max Tongue Weight: 500 lb (227 kg)
Weight Distributing:
- Max Gross Trailer Weight: 7,500 lb (3,405 kg)
- Max Tongue Weight: 750 lb (341 kg)
