Product Details
- Brand: Reese
- Model: 33050 74218 21536 7054430 7000600
- Includes: Class 3 Trailer Tow Hitch, T-One T-Connector Custom Harness, Trailer Tow Hitch Ball Mount Starter Kit, Trailer Tow Hitch Lock, Trailer Tow Hitch Tube Cover
Compatibility Chart
Description
Get Expert Help

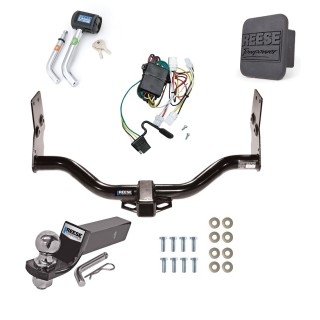

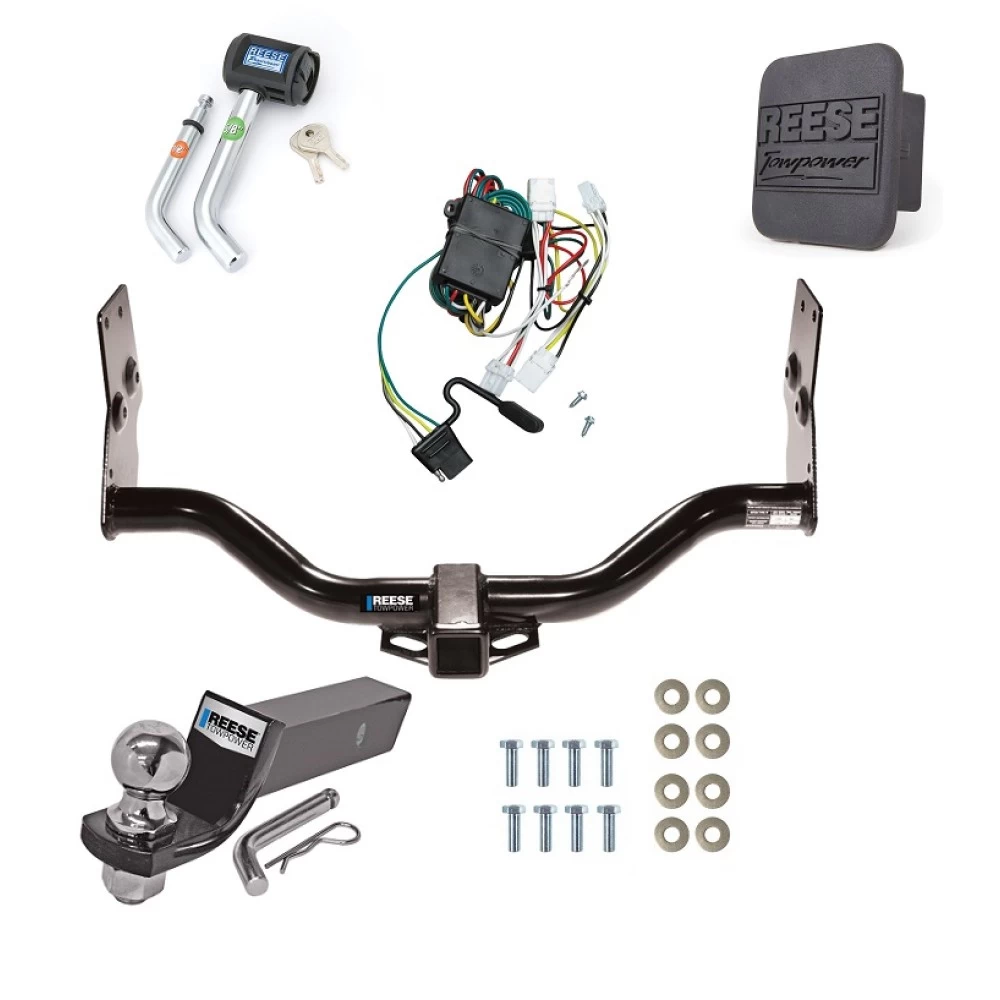

Reese Trailer Tow Hitch For 96-04 Nissan Pathfinder 97-03 Infiniti QX4 Deluxe Package Wiring 2" Ball and Lock Install Notes
Installation Instructions for Nissan Pathfinder and Infiniti QX4
Part Numbers:
- 75077
- 44730
- UH78141
- 70609
Tools Required:
- Wrenches: 17mm
Step-by-Step Instructions:
-
Remove Tow Hooks:
- Remove tow hooks from each frame rail and retain the fasteners for reuse.
-
Position Hitch:
- Raise the hitch into position, aligning the mounting holes with the frame rail attachment points.
-
Install Fasteners:
- Insert and tighten the M12 x 1.25 x 35 CL8.8 bolts with conical toothed washers (8 places).
-
Return Fasteners and Tow Hooks:
- Return the removed fasteners and tow hooks to the vehicle owner.
-
Torque Fasteners:
- Tighten all M12 CL8.8 fasteners to 68 lb-ft (92 N*m).
Torque Specifications:
- M12 CL8.8 fasteners: 68 lb-ft (92 N*m)
Hardware List:
- (8) Bolts, M12 x 1.25 x 35mm CL8.8
- (8) Conical Toothed Washers
Safety Notes:
- Regularly inspect the hitch to ensure all fasteners and the ball are securely tightened.
- Replace any damaged hitch or ball immediately.
- If the hitch is removed, plug any holes in the frame or body panels to prevent water or exhaust fumes from entering.
- Always wear safety glasses and observe proper safety precautions when working beneath the vehicle.
- Do not cut access or attachment holes with a torch.
Specifications:
- Weight Carrying (Ball Mount):
- Max Gross Trailer Weight: 5,000 lb (2,268 kg)
- Max Tongue Weight: 500 lb (227 kg)
- Weight Distributing:
- Max Gross Trailer Weight: 5,500 lb (2,495 kg)
- Max Tongue Weight: 550 lb (250 kg)
Additional Notes:
- Accessory Rating: Class C
- This product complies with V.E.S.C. Regulation V-5 and SAE J684 safety standards.
Installation Instructions for T-Connector Adapter
Part Numbers:
- 118361
Wiring Access Location:
- Tail light wiring harness behind the rear interior panels.
Tools Required:
- Drill with a 3/32" drill bit.
- Screw or cable ties (provided in the kit).
Step-by-Step Instructions:
Vehicle-Specific Instructions:
1A. For Nissan Altima:
- Open the trunk and remove the plastic threshold plate.
- Pull back the trunk lining behind the tail lamps on both sides to expose the vehicle's wiring connectors.
- The vehicle’s connectors will match the ends of the T-Connector harness.
1B. For Nissan Pathfinder & Infiniti QX4:
- Open the rear door and remove the plastic threshold plate.
- Partially remove the rear interior trim panel on both sides of the vehicle behind the tail lamps.
- Locate a square access hole behind the tail lamps to access the vehicle’s wiring connectors.
- The vehicle’s connectors will match the ends of the T-Connector harness.
-
Separate the driver’s side connectors located in step 1.
- Insert the T-Connector with the yellow wire in-between the connectors.
-
Route the wire across to the passenger’s side.
- Repeat step 2 using the T-Connector with the green wire.
-
Locate a suitable grounding point on the driver’s side near the connectors.
- Caution: Do not drill into the vehicle floor or bed.
- Drill a 3/32" hole and secure the white wire with the provided eyelet and screw.
-
Test the installation with a test light or trailer.
-
Secure the black box to the vehicle using the provided cable tie or screw.
-
Reattach all interior trim panels, threshold plate, and trunk lining.
- Specifications:
- This unit is rated for 4 amps per circuit.
- Specifications:
Hardware List:
- T-Connector adapter.
- Black box.
- Eyelet and screw.
- Cable ties.
Safety Notes:
- Handle all connectors with care to avoid damage.
- Ensure all connections are clean and securely fastened.
- Test the installation after completing all steps to verify functionality.
Manufacturer Notes:
- Follow all warnings and instructions provided with the product.
- Use a test light or trailer to confirm proper installation.
